Custom Fit Trailer Hitch


Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"

Curt Trailer Hitch

Rating: ratingratingratingratingrating
85 reviews


Code:   13535

Retail:$268.11

Price:$160.87

Shipping Weight: 32 pounds

Shipping Special
Quantity:




Curt Trailer Hitch - 13535

This fully welded trailer hitch receiver bolts onto your vehicle's frame with no welding required. Powder coated steel is sturdy and corrosion resistant.

Features:

  • Custom fit is designed specifically for your vehicle
  • Precision, robotic welding maximizes strength and improves fit
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Gloss black powder coat finish over protective base coat offers superior rust resistance
  • Sturdy, square-tube design
  • Ball mount, pin and clip sold separately
  • Made in the USA


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 3,500 lbs
    • Maximum tongue weight: 350 lbs
    • Not rated for use with weight-distribution systems
  • Limited lifetime warranty


Note: All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from CURT.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



13535 Curt Class 3 Trailer Hitch Receiver





Video of Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

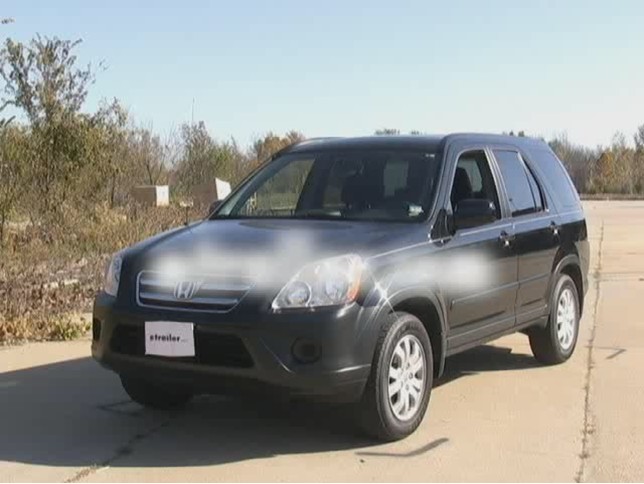

Video hitch install 2006 honda CRV
Trailer Hitch Installation - 2006 Honda CRV

Video Transcript for Trailer Hitch Installation - 2006 Honda CRV

Today we are going to install part number 13535 from Curt on our 2006 Honda CRV. First, we will show you where the hitch mounts up. First will be on the drivers side, on that frame rail right here. And then the center point, where the tie-down loop is, it uses that. And the same two holes on the passengers side, which is right now hidden by the muffler.

Our next step is to go ahead and lower the muffler. And it is a good idea to spray down the hangers with some type of lubricant. We will take down two hangers that are toward the rear of the vehicle, and we will slowly let the muffler down. And next we will go ahead and install the hardware for the hitch. It is pretty simple. You just run your wire from the rear-most hole out to the forward hole, install your plate, push it into the frame, and then thread it onto your bolt, and then pull the whole assembly through the frame and out the hole. And the next bolt, we do the same thing, except we use the same hole. We install our hardware and plate, we shove it into the frame and then pull it back out through the same hole. And then go ahead and repeat all those steps for the other side.

At this point, we can go ahead and install the hitch. On some hitches, large ones like this, it might be a good idea to have an extra set of hands. The next thing we do is install a U-bolt on the tow loop. It is a good idea to leave the hitch as loose as possible in case you have to move it around to get the U-bolt in place. All right, we will snug up all the bolts and get them even. And then we will give the bolts their final torque. All right, now we can go ahead and torque down the bolts. And the torque rating is specified in the instructions. All right, at this point we can go ahead and reinstall the exhaust. All right, and that concludes our install of part number 13535 from Curt.


This Product Fits The Following Vehicles

2002 - 2006 Honda CR-V




Customers Who Purchased This Trailer Hitch Also Bought...






Customer Reviews

Curt Trailer Hitch Receiver - Custom Fit - Class III - 2 - 13535

Average Customer Rating:  ratingratingratingratingrating4.8 out of 5 stars   (85 Customer Reviews)




- 13535

ratingratingratingratingrating by: Tim D.06/17/2011

Is this review helpful?


I purchased Curt Hitch Receiver #13535 for my 2005 Honda CR-V so that I could attach a hitch-mounted bike rack. This hitch protrudes enough from the rear of the vehicle so that when the bike rack is attached it clears the spare tire on the door of the CR-V. This hitch is also very robust for this purpose.17198

comment on this review


- 13535

ratingratingratingratingrating by: Lauren B.12/10/2010

Is this review helpful?


Fantastic Service I needed a towing kit for my husband's 2003 Honda CRV so we can tow our small fishing boat. I love the fact that e-trailer suggests a kit by vehicle. I ordered the entire kit at a very low price and it arrived in only a couple of days. The customer service team responds quickly to e-mails. I just need to wait until its a little warmer to put it on the truck. Thanks e-trailer! 3961

comment on this review


- 13535

ratingratingratingratingrating by: Dave P.08/10/2010

Is this review helpful?


Great product, easy install Hitch came via ground shipping in 5 days with all items in box. Installation was on a 2005 Honda CR-V AWD. Used ramps to raise the rear end for better access. Used spray oil to lube the two rubber muffler mounts and the aft rubber exhaust hanger mount. Popped all three rubber exhaust mounts free by hand. Fished all four hitch mount bolts with anti-rotation plates per directions with no problems (I kinked the fish wire to keep the plates separate from the bolts per instructions). Raised hitch to CR-V frame and attached hitch U-bolt to CR- V tie-down ring first (per directions) being careful not to bump the loose hitch frame mount bolts. Then, with two people, raised hitch flanges up to CR-V frames being careful not to push hitch mount bolts up into frames. Started one nut on the driver side, then started and snugged all remaining nuts (don't push nuts too hard or bolts will get pushed into CR-V frames. Torquing passenger side hitch nuts is tough due to tight clearances but manageable. Re-installed all three exhaust hangers to rubber isolators by hand. Install time with set-up and cleanup about 1 hour. Hitch frame bolt holes were in excellent alignment with CR-V frame holes. Found installation video helpful. So far, muffler does not rattle against passenger side hitch frame mount bolt ends. I have good mechanical skills and a good complement of tools. This is the second hitch that I have installed. Great product, directions, and video. Way to go etrailer! 3340

comment on this review


- 13535

ratingratingratingratingrating by: Rick D.05/12/2013

Is this review helpful?


Went in well and seems great. Haven't used it yet but looks substantial. Thanks for the YouTube directions as well.79894

comment on this review


- 13535

ratingratingratingratingrating by: Sarah05/01/2013

Is this review helpful?


Nice product, haven't towed anything yet but looks like it'll do the job well78556

comment on this review


- 13535

ratingratingratingratingrating by: Mark G04/22/2013

Is this review helpful?


Installed quick and easy. Total installation took about 20 minutes for two people.77311

comment on this review


- 13535

ratingratingratingratingrating by: john04/07/2013

Is this review helpful?


excellent product. the installation took me 30min. This is the right way of doing business. thanks e trailer. 74645

comment on this review


- 13535

ratingratingratingratingrating by: Luke03/26/2013

Is this review helpful?


Nice heavy duty hitch made in Wisconsin, at a affordable price72706

comment on this review


- 13535

ratingratingratingratingrating by: Wayne03/18/2013

Is this review helpful?


looks great on the 2003 Honda CR-V. you need a video for the "how to" for the wiring kit for the 2003 Honda CR-V. Thank you for such a great product. 71466

comment on this review


- 13535

ratingratingratingratingrating by: Wayne03/18/2013

Is this review helpful?


looks great on the 2003 Honda CR-V. you need a video for the "how to" for the wiring kit for the 2003 Honda CR-V. Thank you for such a great product. 71430

comment on this review


- 13535

ratingratingratingratingrating by: GregM11/29/2012

Is this review helpful?


Sturdy hitch, fits perfectly. 60283

comment on this review


- 13535

ratingratingratingratingrating by: Jeff R.10/15/2012

Is this review helpful?


I was surprised of how easy the install went. After reviewing the video attached to the web page I found the install went faster than expected. It was so easy that I should have bought the product years ago for my 2003 CRV. Fantastic!!! You do need a second pair of hands to make this install.57227

comment on this review


- 13535

ratingratingratingratingrating by: Roy D.09/27/2012

Is this review helpful?


Awesome Fish Wire! Took about 30 mins. The exhaust hangers are the worst, but you need to remove those for any hitch.55893

comment on this review


- 13535

ratingratingratingratingrating by: Peter S.09/17/2012

Is this review helpful?


Overall: very satisfactory. Standard delivery arrived in 3 days (to MA). Installation was straightforward once I got proper tools. You may need power or heavy duty wrench to loosen the M12 nuts on the frame. On 2011 Golf TDI these were 18mm (not 19mm as instructions suggested). The additional bolts supplied with the hitch were 19mm. I'll second another reviewer's suggestion for better packaging. I ordered 2 hitches and this one arrived protruding from the box, although not significantly damaged (the other was OK).54905

comment on this review


- 13535

ratingratingratingratingrating by: George09/15/2012

Is this review helpful?


This is a high quality product. It took me only 1/2 hr. to install with my wife's help. Read the instructions, watch the video, and have at it!54807

comment on this review


- 13535

ratingratingratingratingrating by: Dave08/07/2012

Is this review helpful?


Was straightforward to install, just like the video. Took about an hour, as I was cautious. I've used it without a problem.50893

comment on this review


- 13535

ratingratingratingratingrating by: Jon r07/24/2012

Is this review helpful?


Easier installation than I thought. The online instruction video was a great help. My only complaint is that the muffler vibrates against one of the installation bolts making a noise that requires either denting in the muffler to clear the bolt or some kind of heat resistant material to cushion that area.49141

comment on this review


- 13535

ratingratingratingratingrating by: Robert Rivera07/23/2012

Is this review helpful?


My hitch came on time and was packaged great. The instructions were very easy and the video provided by etrailor was extremely helpful. I would use this company again, Bob 49053

comment on this review


- 13535

ratingratingratingratingrating by: Jim P.07/01/2012

Is this review helpful?


Hitch fits great. Having to work around the muffler though, turned a 15 minute job into a two hour ordeal. If I had to do it again I would just remove and replace the muffler.46378

comment on this review


- 13535

ratingratingratingratingrating by: Gene S06/26/2012

Is this review helpful?


Grate Product Could not be any be tter.45743

comment on this review


- 13535

ratingratingratingratingrating by: Garett B.06/14/2012

Is this review helpful?


I ordered a hitch/wiring harness for my '06 CRV. I used the videos from this website to do the installation and I don't think it could be any easier. The whole installation was exactly like the videos. Wish all projects had instructions like this!44208

comment on this review


- 13535

ratingratingratingratingrating by: Rick06/08/2012

Is this review helpful?


The easiest install I've ever done. The included wire to fish the bolts was a life saver, great idea, I now only have one source for towing needs, thanks etrailer.43263

comment on this review


- 13535

ratingratingratingratingrating by: Nick Anderson05/23/2012

Is this review helpful?


It took me about 45 minutes to install the hitch , i am very satified with your product & recomend it for anyone who wants to put a hitch on a cr- v Honda .41428

comment on this review


- 13535

ratingratingratingratingrating by: Ted C05/21/2012

Is this review helpful?


Great hitch. Excellent communication on delivery. It even arrived early. The YouTube installation video was really helpful as well as the little "fish" tools. I could not be more pleased. Highly recommend. Much better price than the professional installs. 41202

comment on this review


- 13535

ratingratingratingratingrating by: Tom O.05/14/2012

Is this review helpful?


The order, communication and delivery process were flawless - very good company to deal with. The hitch installation and wiring instructions were accurate (Honda CRV), and I was able to accomplish in the time estimates. The hitch itself was slight off-square so I had to hammer it a little to get to fit, but it's "pulling its weight" now.40294

comment on this review


- 13535

ratingratingratingratingrating by: Alan L.05/06/2012

Is this review helpful?


Simple ordering. Quality product. Detailed installation instructions including videos. Highly satisfied with the overall experience. One recommendation: Kit comes with two fishwires. I would recommend using four. Tolerances are tight and we spent some anxious moments during the fit-up trying to get the hitch in place without pressing bolts back up into the frame. 39515

comment on this review


- 13535

ratingratingratingratingrating by: Brett C.04/27/2012

Is this review helpful?


I installed the hitch and harness today in less than an hour. It was a fantastic experience regarding the instructions and ease of installation. There is no doubt the etrailer is one of the best online vendors that I have ever used! Thanks to everyone. 38633

comment on this review


- 13535

ratingratingratingratingrating by: Harold M04/25/2012

Is this review helpful?


I found not only this new hitch as discribed but the service to be amazing! No I'm not related to the owner just saying that from beginning to end, which by the way was only like 3 days, this project was picture perfict. I can't say enough about how please I am. THANKS and I give you (5) on a scale of 1 to 5! Great Job. 38351

comment on this review


- 13535

ratingratingratingratingrating by: Tom04/24/2012

Is this review helpful?


easy to install 38245

comment on this review


- 13535

ratingratingratingratingrating by: chris b04/13/2012

Is this review helpful?


product was as advertised and delivered promptly37138

comment on this review


- 13535

ratingratingratingratingrating by: Ed04/03/2012

Is this review helpful?


I used this hitch to pull a U-Haul trailer across the country behind my Honda CRV. It worked great!! The online video was very instructive, and it was not all that difficult to install with help from a friend. 36073

comment on this review


- 13535

ratingratingratingratingrating by: Ed03/27/2012

Is this review helpful?


Great product, excellent service and very helpful videos that made installation easy. 35271

comment on this review


- 13535

ratingratingratingratingrating by: John S.03/15/2012

Is this review helpful?


I installed this hitch on my '03 Honda CR-V. This was so easy. It bolted on very quickly. I would recomend this to anyone with a CR-V.33950

comment on this review


- 13535

ratingratingratingratingrating by: Russ H.02/28/2012

Is this review helpful?


Great product. Excellent powder coated finish. Installation was fairly easy. I thought I might need a lift but had no problem working under my car on my garage floor. I drove the back wheels up onto some pieces of 2 x 8 scrap wood, which gave me enough clearance. You will definitely need a helper to hold it up while you get the bolts lined up. I had to get the hitch because I have a rescue dog named Toby, who takes up most of the back end of my 2006 Honda CRV. I have a utility trailer now to make runs to the home center or carry stuff on trips. 32735

comment on this review


- 13535

ratingratingratingratingrating by: Piers01/08/2012

Is this review helpful?


This was relatively easy to install. The kit came with 6 nuts and bolts. One of the nuts was the wrong size. A small issue. The tools for threading the bolts into the frame worked well. I had to read all the instructions to understand what I was supposed to do, but it went very quickly once I did that. It looks great and fits well. 29319

comment on this review


- 13535

ratingratingratingratingrating by: Billy lewis12/14/2011

Is this review helpful?


great jobs thanks! 28141

comment on this review


- 13535

ratingratingratingratingrating by: Doru11/07/2011

Is this review helpful?


The trailer hitch was easy to install without any help. It took about 30 - 40 minutes of easy work. The installation video provided by this site ( http://www.etrailer.com/tv-hitch-install-2004-honda-crv.aspx ) was very helpful. 26652

comment on this review


- 13535

ratingratingratingratingrating by: RAY T10/28/2011

Is this review helpful?


RECEIVED 10/26 - INSTALLED NEXT DAY - VIDIOS VERY HELPFUL, OUTSTANDING WEB SITE, WOULD REFER eTRAILER TO ANYONE. THANKS 26254

comment on this review


- 13535

ratingratingratingratingrating by: artie.G10/24/2011

Is this review helpful?


great! service and shipping spot on! 26048

comment on this review


- 13535

ratingratingratingratingrating by: Eric Z09/29/2011

Is this review helpful?


whole installation from lifting the vehicle to install to lowering the vehicle took 40 minutes. Absolutely fantastic product both in ease of install and the engineering of the product.24864

comment on this review


- 13535

ratingratingratingratingrating by: Bryan T.09/02/2011

Is this review helpful?


This was the easiest automotive accessed install I have ever done. I owe all of the credit to the excellent online installation videos. After watching the hitch and wiring videos, I had no problems!!! I definitely recommend these products and especially this company. I almost forgot, when I placed my order I got free standard (5-7 day) shipping and then not 30 minutes later my shipping was upgraded to 3 day shipping!! Again, all around a great experience!!23437

comment on this review


- 13535

ratingratingratingratingrating by: Kyle08/30/2011

Is this review helpful?


Shipping was super fast and customer service was Excellent!!! 23180

comment on this review


- 13535

ratingratingratingratingrating by: james campbell08/25/2011

Is this review helpful?


shipped on time, best installation instructions ,22730

comment on this review


- 13535

ratingratingratingratingrating by: Todd S.08/21/2011

Is this review helpful?


Fast shipping, great instructions! 22417

comment on this review


- 13535

ratingratingratingratingrating by: Tom S.07/29/2011

Is this review helpful?


Bought hitch to pull a light trailer and sailboat. Took me longer than 20 minutes, but definitely a straight forward process. Installed easily and the video is a big help. The muffler lowers pretty easily, and doesn't require any prying like the instructions indicated. The fish wires work great. The wiring kit works perfectly, but took as much time as the hitch. Two tips: 1) do not screw the bolt all the way into the fish wire or you'll never get them off without destroying the fish - fortunately they provide 2 of them. 2) tighten the middle U-bold some to get it centered before tightening the outer bolts. 20581

comment on this review


- 13535

ratingratingratingratingrating by: Bubba c07/24/2011

Is this review helpful?


Great hitch, well made, easy to install. I installed it in about 30 min. Including reading exellent instructions. Got my son to help for about 2 min to raise and align bolts.20106

comment on this review


- 13535

ratingratingratingratingrating by: Phil B07/22/2011

Is this review helpful?


Excellent experience!! Had what I needed, good prices and online videos to show installation. I installed the trailer hitch and light harness in under 90 minutes in my driveway. Thank you19859

comment on this review


- 13535

ratingratingratingratingrating by: JK07/12/2011

Is this review helpful?


Curt hitch item 13535 received and installed same day in ~1 hr. Fits perfectly on my 2005 Honda CR-V. A lot of time and elbow grease was spent trying to remove the muffler supports (note that there are 3 on this vehicle, one of which is near the rear axel). Definitely recommend watching the etrailer install video first and having a second set of hands available. Overall, based on a quote I got, doing this myself saved me about $150. Hitch was received in a cardboard box with other items (wiring assembly, ball mount, etc.) and no packing foam. Hitch was scratched in spots and that was the basis for my "good" rating. My concern about the scratches will lead to premature corrosion. 19209

comment on this review


- 13535

ratingratingratingratingrating by: miguel solares06/07/2011

Is this review helpful?


Fit like a glove, easy install just like the video showed. Shipped as expected. Etrailer kept in touch until package was delivered 16238

comment on this review


- 13535

ratingratingratingratingrating by: Ernest S.05/27/2011

Is this review helpful?


great product fit my cr-v perfect ! 15538

comment on this review


- 13535

ratingratingratingratingrating by: Brad W.04/27/2011

Is this review helpful?


Hitch and wiring were shipped extremely fast. Arrived a few days after my order. Everything went as planned. Videos are helpful. You guys are the greatest! Fishing the wire through the frame is so slick. Hardest part of install was removing exhaust hangers - lubrication tip worked very well. Saved over $200.00 doing it myself. Total installation time of hitch and wiring less than 1 hour.12439

comment on this review


- 13535

ratingratingratingratingrating by: Ross G.04/19/2011

Is this review helpful?


What a system etrailer.com has set up! The fish line for bolts is phenomenal! Job was over in no time! Never knew installing a hitch myself was an option and especially at this price. Awesome!12004

comment on this review


- 13535

ratingratingratingratingrating by: Chris B.04/14/2011

Is this review helpful?


Great Product. Followed instructions and was installed in 20 minutes by myself. I'm not a "car" person.11700

comment on this review


- 13535

ratingratingratingratingrating by: Hugh04/10/2011

Is this review helpful?


Well-built, good pictures to see how it will look on my car. Great video instructions for installing the hitch and the wiring made it easy to install. Fast delivery. Thank you, Etrailer.com. 11450

comment on this review


- 13535

ratingratingratingratingrating by: Steven R.03/31/2011

Is this review helpful?


Ordering was a breeze. My hitch arrived in excellent condition on the exact day it was supposed to. The video made installation a snap. Only took about 30 minutes to install. Great job etrailor10830

comment on this review


- 13535

ratingratingratingratingrating by: James03/28/2011

Is this review helpful?


The hitch arrived very quickly and was easy for my mechanic to install. This is my second purchase from etrailer and I would highly recommend! (First one fit a 1998 Cadillac and this one was for a 2002 Honda CR-V.) My mechanic looked it up and said he could not even come close to buying a hitch for me for this price.10563

comment on this review


- 13535

ratingratingratingratingrating by: Richard C.03/21/2011

Is this review helpful?


Just installed hitch and took only 30 minutes, I do have a hoist which made it easier. Very well designed and no modifications needed. Love the fish wire tool.... best tool ever for installing capture bolt and anchor. Would recommend to anyone. 10025

comment on this review


- 13535

ratingratingratingratingrating by: Stephanie03/07/2011

Is this review helpful?


Hitch shipped out the day after I ordered it (on a Sunday night) and was at my front door by Thursday. A friend who knows a bit about cars and I installed it together. Installation took about an hour once we got the right sockets (9/16ths is the measurement of the smaller nuts and took 2 hardware stores to find a socket that size for the torque wrench). Hardest part was getting the muffler back on. All in all, it was inexpensive, and not too difficult to install. The video was a great help. Definitely would recommend having a second pair of hands to get it on the bolts; even with both of us under there it took some effort to get it all lined up and screwed on, I can't imagine doing that alone. Can't wait to strap my bikes onto the back of my 2002 Honda CRV and head for higher ground!8684

comment on this review


- 13535

ratingratingratingratingrating by: George F.02/26/2011

Is this review helpful?


Fit perfectly on my 2002 CR-V. The fish wires made an impossible job easy. The videos helped too. The 2" receiver makes it easy to shift bike racks, carriers, etc between vehicles without any adapters. I installed it alone in about 1.5 hours.7941

comment on this review


- 13535

ratingratingratingratingrating by: Katy02/17/2011

Is this review helpful?


Ups delivered it to my neighbors but other than that I'm happy7380

comment on this review


- 13535

ratingratingratingratingrating by: Jim B.02/13/2011

Is this review helpful?


Well built and went on easy, not to mention quick delivery. Very pleased with the mount and the ordering process.7118

comment on this review


- 13535

ratingratingratingratingrating by: Wade R.01/26/2011

Is this review helpful?


I couldn't be more pleased with the ordering process, and delivery. Ordered on Monday, received my items on Wednesday and was kept informed along the way where my shipment was. I don't think I have done business with an online company that was so responsive. Install videos was a real seller for me. Very impressed and would not hesitate to use them in the future.6126

comment on this review


- 13535

ratingratingratingratingrating by: Eric W01/24/2011

Is this review helpful?


Very easy to install and well built. Did not have any help so I used jack stands to help me hold up the hitch duting the install. Video was very helpfull. Great product!5987

comment on this review


- 13535

ratingratingratingratingrating by: Mark01/21/2011

Is this review helpful?


Received on time as expected and exactly what I ordered. Great helpful internet helpful tips for installing myself. Thank you.5881

comment on this review


- 13535

ratingratingratingratingrating by: Firemandave07/14/2010

Is this review helpful?


Perfect fit on my car. This was easy to install on my Honda CRV. It took less than 30 minutes. I only had to do a very minor adjustment to the muffler hangers. Looks great.3241

comment on this review


- 13535

ratingratingratingratingrating by: Angry Cr V05/03/2010

Is this review helpful?


Easy Install- Quality Product Great service, received the product in 2 days and it took less than 40 minutes to install. High quality product and if you are handy, install is not difficult at all. 2999

comment on this review


- 13535

ratingratingratingratingrating by: MK05/02/2010

Is this review helpful?


Good Buy Ditto Tom G from Bedford, NH. My muffler does vibrate however. Trying to figure out a fix.2997

comment on this review


- 13535

ratingratingratingratingrating by: Underdirt04/14/2010

Is this review helpful?


Easy Install I installed the wiring harness and the hitch with minimal assistance from my wife and a floor jack. I didn't have a watch, but things went well and I believe the install took less than an hour for the hitch. The U bolt was defective and it broke when I tried to repair. Called, etrailer and the customer representative is having a new bolt shipped. Just watch the video and play it back to be sure you get each step. The muffler was not a problem, just a little spray lube and the rubber mounts came off. I can see where this could be a challenge if the rubber was old, dry, dirty and stuck on, but I had no problems at all. This CR-V was from the south. Good luck!2930

comment on this review


- 13535

ratingratingratingratingrating by: Kevin03/25/2010

Is this review helpful?


Top Notch Product Installation was for a 2005 CR-V. Price was right, ordering was a cinch & I received the order in 2 days. This was the first hitch I've ever installed myself and it couldn't have been easier. It took me about an hour to install laying flat on my back with my son helping. No problems at all with the fishwire, dropping the exhaust or anything. Hitch is well-built and looks good on the vehicle. I'm impressed and very happy. Thanks!2855

comment on this review


- 13535

ratingratingratingratingrating by: Sebastian03/20/2010

Is this review helpful?


30 min. - 45 min. - done! Very easy to install. The video helped a lot, specially when I thought I would have to remove the rear bumper... Overall a super duper experience with delivery and installation. A+ 2828

comment on this review


- 13535

ratingratingratingratingrating by: Hollis03/07/2010

Is this review helpful?


Easy to install i was able to install this item easily with the help of my jack centered under the tongue of the hitch and raised in to place after mounting the bolts. Lube the exhaust hangers and they pop off with no trouble. 2783

comment on this review


- 13535

ratingratingratingratingrating by: Ron S12/24/2009

Is this review helpful?


Tips for your installation Installation is not as easy as it would seem. The tolerance on the hitch as it lines up with the frame of the car is not perfect. A couple tips: The hardest part, by far, is getting the hitch onto the bolts once you have the bolts fished through the frame holes. I had the bolts fished through the frame holes in no time, and then I lifted up the hitch (by myself with jack stands on the other side) and the holes were close, but not perfect. While pushing it up, the hitch pushed one of the bolts up into the frame. UGH! So, it took me 15 minutes to fish it out with a dental tool! At that point, I put the fish-threader back onto the bolt and left it there as I fished the threader and the bolt through the holes. This allowed me to pull the bolt through and more importantly, to make sure I didn't push it back up into the frame. DO THIS TO SAVE YOURSELF ALOT OF HEADACHES. I destroyed the fish threader in the process, and on the other side, simply used electrical tape. Lastly, the first side went on fairly easily, and one bolt on the second side, but the last bolt on the second side was about 1/8" off due to the tolerance and line up of this hitch. To solve this, I pulled the electrical tape that was on the bolt through the hitch hole, then muscled it so the hitch grabbed just the tip of the bolt, and I had enough thread to grab with the nut. Good luck.2606

comment on this review


- 13535

ratingratingratingratingrating by: Alan D08/21/2009

Is this review helpful?


Installation video Go a little slower on the installation video to make certain backing plates are correct orientation otherwise you have to fish em out2291

comment on this review


- 13535

ratingratingratingratingrating by: Joe08/19/2009

Is this review helpful?


Very difficult to install Looks great, but spent far too much time just trying to install it. Received everything as ordered. Thank you. But installation!!! Impossible. Got close but not close enough. After the bolt and washer were bumped up into that closed chamber I was able to retrieve it after an hours labor. Now the hitch itself will not stretch onto the fourth bolt. Now searching for an installer. 2273

comment on this review


- 13535

ratingratingratingratingrating by: Tom G06/14/2009

Is this review helpful?


Good quality, OK installation If you are reasonably handy mechanically, you can install this hitch yourself. I have a 2005 Honda CRV. It took me about twice as long as they estimated, but worked out OK in the end. I found the part where you need to work above the muffler on the passenger side of the car very difficult. There are two hangers on the back end of the muffler that come off pretty easy, but the front hanger I couldn't get. Because of this, it was very tight working on that side. Feeding the bolt and plate through the holes with the fishwire was also not as easy as shown in the video. Don't spin the fishwire on all of the way or it will be very difficult to spin off once you have the bolt through. I had to bend the twisted wire off after the first of the four bolts, making the wire difficult to use for the other three bolts. It was very frustrating. Also, make sure you have a helper when it comes time to lift the hitch into place and tighten the nuts on. It is very heavy and awkward to do when you are underneath by yourself and if you are not careful you can push the bolts up inside the frame. The instructions mentioned that the hangers may need to be bent down to avoid the hitch from touching the muffler. I was hoping this was not going to be case for me as the hanger brackets are big and not easily bent. As it turned out, the bottom of the bolts are just barely above the muffler. It is possible in rough road conditions you might hear the muffler heat shield rattling against the bolts, but time will tell. I left it as is. Overall, I think the hitch will work very well. Just alot yourself more time and more help then the instructions indicate.1982

comment on this review


- 13535

ratingratingratingratingrating by: Jordan M.04/09/2009

Is this review helpful?


Very impressed with this hitch I just finished installing this hitch on my 2003 CR-V and I must say that I am impressed overall. I decided to go for the Curt because of the online installation video. I would recommend spending the extra couple bucks over the other models for the Curt because it is truly well-made and easy to install - there truly are no suprises like widening holes in the frame or any other crap to deal with. Just follow the video (the directions are fine, too) and you will be set. In my driveway on ramps, I loosened the exhaust hangers, put the bolts in the frame holes with the wire, and my friend held the hitch up while I hand-tightened the nuts before torquing them to spec. That's it - it literally took 45 minutes! You can tell it is going to last and be very reliable. I wholeheartedly recommend this hitch and eTrailer.com was fast, easy, and cheap - 6 stars!!1723

comment on this review


- 13535

ratingratingratingratingrating by: AJK11/30/2008

Is this review helpful?


Produect as described Product was as described, installation was easy. I installed it by myself using two car jacks to lift the hitch into position. Be careful not to knock the loose bolts back into the frame as it is easy to do so and retrieval will be very difficult. Will recommend it to others. 1440

comment on this review


- 13535

ratingratingratingratingrating by: alpha66180wolf11/23/2008

Is this review helpful?


Easy to install............... Easy to install, Very Nice..........1435

comment on this review


- 13535

ratingratingratingratingrating by: Brad09/08/2008

Is this review helpful?


High quality, easy to install Overall, I'm very happy with this hitch. It is heavy duty and well constructed. The order arrived quickly and in good condition. Installation was quick and easy; however, it may be helpful if the instructions suggested to install the U-bolt over my CRV's tow hook before tightening the 4 main bolts to be sure it is aligned. Finally, the two bolts on the passenger side are above the muffler. My muffler occasionally would rattle against the ends of the bolts while idling. Grinding off the excess bolt length solved the problem.1265

comment on this review


- 13535

ratingratingratingratingrating by: JG08/23/2008

Is this review helpful?


Awesome Very easy to install. Sure beats the Honda dealer's deal!!!!1213

comment on this review


- 13535

ratingratingratingratingrating by: SHRED07/26/2008

Is this review helpful?


Sturdy and priced right! My '03 CRV tows my 1500 lb bass boat like nothing with this receiver. 1101

comment on this review


- 13535

ratingratingratingratingrating by: pablo07/16/2008

Is this review helpful?


Horrible Fit. Muffler rattle . The holes in the hitch were off by at least 1/2 inch. The bolts do not clear the muffler, so there is a constant rattle. I regret the purchase.1066

comment on this review


- 13535

ratingratingratingratingrating by: Brandon B.07/04/2008

Is this review helpful?


Love it. exellent product! I'm glad I paid the extra money and got the class 3 hitch. It gives you more options on the accesories for it. Installation was a breeze, taking me only 25 minutes to complete.1027

comment on this review


- 13535

ratingratingratingratingrating by: rcijr06/30/2008

Is this review helpful?


Great product and great price The install took me a little longer than the website says, but I was ok with that. It sure beats paying twice as much for someone to install it for you. Looks like a great product.1021

comment on this review


- 13535

ratingratingratingratingrating by: Dan S07/06/2012

Is this review helpful?


get two people to put it up and it goes real smooth. would have had it done in five minutes if I didn't open my first can.46969

comment on this review


Ask the Experts about this Curt Trailer Hitch


  • Carrying 4 Bikes with a 2003 Honda CR-V
  • With a class I trailer hitch, you are only supposed to carry up to 2 bikes. Also, if you use an extension, your available tongue weight will be cut in half. If you want to carry 4 bikes, you might want to consider upgrading your hitch from a class I to a class III. The Class III Hitch that is available for your vehicle is the Curt Class III Trailer Hitch, item # 13535, I have posted a link to the installation instructions for you to review.
    view full answer...

  • Will the Thule Revolver Bike Rack Work with the Curt Class III Hitch On a 2006 Honda CR-V
  • The only way to determine for sure if the Thule Revolver Swinging 4 Bike Rack, item # TH964, will work is to measure the distance from the center of your hitch pin hole to the farthest back part of your spare tire. The Revolver has a clearance of 7-1/2 inches from the center of the hitch pin hole to the farthest back part of the bike rack. The Curt Class III Trailer Hitch Receiver, item # 13535, sits just about even with the farthest back part of the rear fascia when installed on the CR-V. If yo
    view full answer...

  • Fitment of Curt Class III Trailer Hitch Receiver, # 13535, on 2005 Honda CRV and Gross Towing Weight
  • The Curt Class III Trailer Hitch Receiver, # 13535, will fit your 2005 Honda CRV. The hitch has a Gross Towing Weight of 3,500 lbs., but you will be limited to what the Gross Towing Weight of your vehicle is, which is listed in your owners manual. The reason they make a Class III receiver is because it has a more common 2 inch receiver opening than the 1-1/4 inch Class I receiver and gives you a bigger selection of accessories to use on the CRV and still be within the 350 lb. Tongue Weight o
    view full answer...

  • Is the Hardware Needed for Installation Included with Trailer Hitch # 13535 for a 2004 Honda CR-V
  • The hardware pictured on the product page for Curt Trailer Hitch, # 13535, for the 2004 Honda CR-V, is included with the hitch. You will receive: 2 fish wire tools 2 hex flange nuts 4 carriage bolts 4 spacers 4 large hex flange nuts 1 U-bolt I have included a link to the installation details and a video installation below.
    view full answer...

  • Can the Curt Trailer Hitch # 13535 be Used to Tow a Small Trailer with a 2006 Honda CRV
  • The Curt Trailer Hitch # 13535, will allow you to tow a trailer with gross weight of 3,500 pounds and 350 pounds of tongue weight, see instructions link. The size of the trailer is not as large an issue as the weight of the trailer is. We have an informative article with trailer towing tips for you to review, see link. You will need to consult your vehicle owner manual to be sure that the trailer you plan to tow and all of the contents carried on it are within the vehicle capabilities.
    view full answer...

  • Recommendation For Towing Pop-Up Camper With Curt Class III 2-Inch Hitch # 13535 on 2004 Honda CR-V
  • The Curt Class III 2-Inch Hitch, part # 13535, will fit your 2004 Honda CR-V. The hitch has a gross towing weight capacity of 3,500 lbs, but the 1,500-lb towing capacity of your vehicle will be the maximum you will be able to tow. When you add the hitch to your CR-V it will not increase the towing capacity of your vehicle. I am including a link to the installation instructions and an installation video of the Curt # 13535 hitch. If the total weight capacity of your pop-up camper, loaded and r
    view full answer...

  • Which Ball Mount for a Class III Hitch on a 2003 Honda CRV
  • Choosing a ball mount requires knowing what rise or drop you need to keep your trailer and vehicle level. The easiest way to do this is to park your vehicle and trailer on level ground and take some measurements. First measure from the ground to the the inside top edge of the receiver tube on the hitch. Then measure from the ground to the bottom edge of the trailer coupler. If the trailer coupler is taller than you need a rise to make up the difference. If the vehicle is taller, you need a drop.
    view full answer...

  • How To Fix Muffler Rattling Against the Trailer Hitch on a 2004 Honda CRV
  • When we have this issue on vehicles here at our shop. Sometimes we bend out the last exhaust hanger just enough to force it away from the hitch . Also the rubber hangers could be on the loose side causing too much play, you could try replacing with new rubber hangers. Check through your directions to see if it mentions flipping or removing an exhaust hanger.
    view full answer...


Info for this part was:


Written by:
Lindsey

Edited by:
Leah

Test fit by:
Patrick

Video by:
Zack

Expert Research
Bob

Expert Research
Mike H

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time.





Subscribe to email newsletter

Email

privacy - we don't send unsolicited email




etrailer.com reviews etrailer.com reviews

All images, layout and content copyright etrailer.com
