This fully welded, corrosion-resistant Chevrolet Camaro trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Hitch will not fit models with factory ground effects package. No drilling required for installation
Video of Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

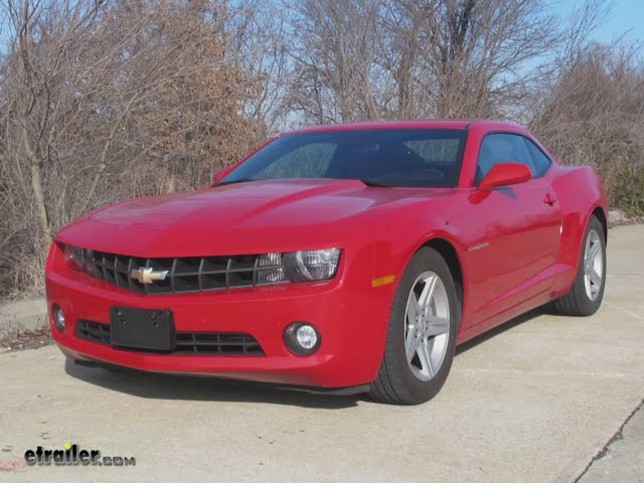

Today on our 2010 Chevrolet Camero, we're going to take a look at and also show you how to install the draw tite sportsframe trailer hitch receiver. This is a custom fit, class one hitch, offering an inch and a quarter by an inch and a quarter opening. Part number is 24850. Here's our hitch when installed. As you can see we're going to have our receiver tube opening and it's going to come out here, but aesthetically that's really all we're adding to the rear of the vehicle. Our cross tube's going to remain hidden. It goes up to already existing attachment points just like up there in the front, so no drilling or anything like that's going to be required. This is a class one hitch, so this gives us an inch and a quarter by inch and a quarter opening.
This hitch is really designed for small two bike racks, small cargo carriers, or small trailers. We've got our safety chain connection point here. This is a rolled steel style material. Then we're going to have a half inch diameter pin hole. That's what we'll use to secure all of our accessories with.
We want to be sure that we use a class one rated accessory, but as you can see here, it looks like we're going to have plenty of room to use just about any type of locking hitch pin, regular hitch pin, or anti-roll device that we might choose. When it comes to towing or hauling bike racks and things like that, we're limited to a two hundred pound tongue weight rating, so that's the maximum downward force that we'll be able to put here at the receiver tube opening. The hitch gives us a two thousand pound gross trailer weight rating. It's going to be the total weight of our trailer and anything that we might load up on it. Now, we do need to consult the owner's manual of the Camero. We need to see what it's rated for and then we want to stay with which ever of those numbers are the lowest. There are a couple of measurements that are going to be helpful in selecting your bike rack or hitch cargo carrier.
Will be from the ground to the inside top edge of the receiver tube opening. We're going to have about ten inches. Then from the center of our hitch pin hole to the outermost edge of our bumper, it's about eight and a quarter. We're going to take a quick look at our attachment points before we get the hitch put up in position. Basically what we're going to do is go directly up from the rear of the, kind of, the tail pipe assembly here on each side. Right up here we're going to have a stud that comes through a weld nut.
Now, as we put our hitch into position, we want it to fit over that weld nut. Now that attachment point's going to be in the exact same spot on each side. You can see here on the passenger's side as well. Then there's going to be an arm that comes off the hitch, and it's going to come right down here to where this transaxle in the rear meets this mount. There's a little oblong hole right there, and we've got our three-eights bolt that will go through our hitch bracket into that, and we'll tighten that down. Now, as we raise our hitch up into position, we want to get it started on one side, and then rotate it around. We'll have to pull down on that fascia just a little bit to get it to slide past. Just like that. Now, while one person holds it in position, the other person will get the hardware started. You'll see right here where that weld nut comes through the hitch, we want to be sure that it sits all the way through that larger hole. We don't want it to be where the plate of the hitch is actually resting on that nut. We want it to be in that larger hole. Then we're going to place on the smaller diameter flat washer and also thread on one of our flange lock nuts. All right, now it's time for us to snug our nut down just enough so it holds our hitch in position over that weld nut. We'll do that on both sides. Here's our forward attachment point, or the attachment point closer to the front of the vehicle. We've got the oblong hole in the hitch and then that small oblong hole here in the bracket which we discussed. You can see we've got three different link bolts here. We want to use the shortest of these that we can to pass through our hitch and then also through that bracket. Then we've got a conical tooth washer that needs to be in place. You'll see just like that. Let's pass this through and see. Close you can see. That spacing looks like it will be okay once we start tightening it down, it's going to move in a little bit, but we've got a little wiggle room. That's the shortest bolt. It happens to be the one I'm using, but your application may be a little different. Now we want to grab some of the larger washers here, and we want to try to take up that space. That's a little bit loose. Now, you may use some, you may use all of the washers. Getting some of the spacer washers put on. Then we want to thread on the larger of the lock nuts, it will be a three-eights lock nut. As you can see our bolt there long enough to pass through the end of the nut, but we still got a gap there before it meets that transaxle. That should be exactly what we're looking for. Now we can look in the instructions, you want to find your torque specifications there, and it's time to go through, and torque all of our fasteners down appropriately. Now with all of our hardware torqued down to specification, that's going to complete our installation of the draw tite sportsframe class one trailer hitch receiver. Part number 24850 on our 2010 Chevrolet Camaro.
Average Customer Rating: 4.9 out of 5 stars (25 Customer Reviews)This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.
by: Martin M.06/14/2012
I couldn't be happier with the customer service and the unbelievable fast shipping. I order my hitch on Monday at I installed it Tuesday night. You guys are the best and if I need another hitch I will without a doubt order a hitch from your fine company. 44154
by: Matt T08/06/2014
Got everything installed over the weekend. Install was straightforward, I had done one previously on my Chrysler 300 before I got my Camaro. Having the wiring kit makes all the difference in the world on these. No shots of it in use yet, haven't got that far, but I did get pics of the car after installation. No problems at all and everything was completed successfully. Appreciate everything that you all did to get it out to me quickly and correctly. 144681
by: Patrick Doyle04/24/2015
Easy to install and a pleasure to use on my Camaro!!!! Fast shipping, great video instructions, Thanks ! Patrick Doyle 187892
by: Wade W.12/11/2015
I was very happy with how easy the product installed,and how well made their products are. It took 30 minutes to install the hitch.I was able to watch the installation video before I received my order,so I was prepaired and ready when they arrived.I ordered on the 9th of DEC. and to my surprise I received them on the 11th of DEC. Good job "etrailer" for your excellent customer satisfaction. I will certainly recommend you to others. Thank you and have a great holiday and new year. 233609
by: Bill G03/31/2012
Had A friend with a lift and watched the video and the installation was a breeze. WE had it done in 20 mins. I have a Swagman XTC-2 type rack and my mountain bike fits great. The pedal is close to the rear bumper but I don't think it will hit. I just remove my pedals for transport. You cant even tell you have a hitch on the car unless you look very close. E trailer had my order shipped in a few days. Great company. 35721
by: Bob F.07/18/2015
The hitch went on as advertised, the video was very helpful. Though it took a bit longer, it was installed with the car on the ground. The hardware kit arrived intact, but with no 3/8 nut for the main frame bolt. I called customer support at etrailer, who contacted Drawtite and another hardware kit was shipped to me. Very good customer service from etrailer and drawtite. 212773
by: Bob H.11/21/2011
Hidden Hitch 60266 with Swagman G2 on 2012 Chevy Camaro. 27239
by: Dick D.07/20/2012
I am 69 years old and had this hitch on my 2010 Camaro in about 45 minutes, with no lift. This is my third hitch to purchase from etrailer. I have been satisfied each time. Outstanding Customer Service and Shipping. Dick.D 48700
by: Jake Sysk01/06/2016
Added Hitch to my 2015 Camero. Good assembly diagram and instructions one bolt three nuts and some washers. I know you would like a more detailed review. There's just nothing more to do. best regards. Jake 84 + 234858
by: James Simpson08/09/2011
Hitch fitted fine only gripe I have is the kit had no nuts to fit the studs on the car. So I had to find nuts and use washers that I had to make it fit. Not really a big deal my shop is full of nuts and bolts 21504
by: Clyde C.02/04/2012
I recently ordered a hitch from etrailer. The service and expediency of the deliver was excellent. I have not experienced this high level of service in many years if ever. Thank You very much. 31046
I've installed several hitches, and this one was a little cramped getting in, but not too bad. My V6 6-speed Camaro pulls my 6 x 10 utility trailer with ease. 318567
by: Les H.05/14/2011
Fit good and fairly easy to install. Sorry no pictures. Packing for shipment could have been better, powder coat had alot of chips and scratches on hitch 13985
by: Joe C09/21/2016
Received hitch and wiring package on time and at this time all looks great. Now I just have to install it but I do not foresee any problems. Thanks! 297158
This is a great hitch. I installed it in 30 minutes and hauled my trailer 650 miles the next day. I installed it on a 2011 Camaro. 193758
Easy install, would of been easier if a lifted the car. Took maybe 30 min a the most. Looks well made with nice welds. 79232
Hitch went on easy took about 30 minutes. Wire harness took about 45 minutes . Both work just fine. 154324
by: Ron S.09/06/2016
Took only about 30 minutes to install. Didn't have to jack the vehicle. Clear instructions. 291739
Recieved with no issues. Fast and was installed in about 15 minutes. Thank you. 154114
by: Kevin M.10/04/2013
Great fit, excellently made and looks great on the back of my Camaro. 102577
by: Mustafa S.08/06/2014
Solid.. easy to install. Installation video helped a lot 144802
by: Trevor M10/07/2014
Goods delivered promptly. Happy with service. Thanks. 155122
by: ENRIQUE AGUIRRE11/28/2016
Easy to install less than 30 minutes and cheap 320349
Fit perfectly, easy to install. 246029
by: Duane Hovet12/12/2014
Everything fit great 164369
