Code: 75099
Retail:$259.21
Price:$185.95
$165.95 after Mail In Rebate
Shipping Weight: 48 pounds
Shipping SpecialFully welded Chevrolet C/K Series Pickup trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.
Features:
Specs:
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

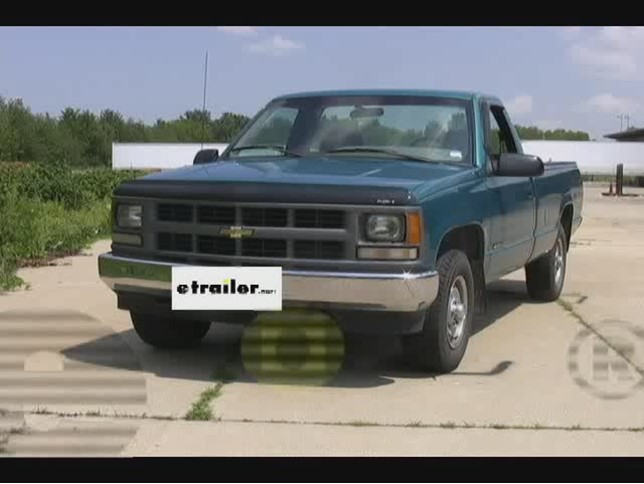

Today we are going to show you part number 75099 from Draw-Tite. We are going to install this on a 1996 Chevrolet pickup 1500 with an 8-foot bed. All right, the first thing we need to do on our install here is, we need to remove this bolt here, and the hitch will reinstall at this attachment here and also this hole right here, and the one back here, also. This one we will run a 1/2 inch bit through just to clean it out and dig out some of the rust and stuff, but basically it is really a no-drill application. We will go ahead and run the drill bit right through here just to clean it out. And maybe you will have to do this on yours or not, but it is always a good idea. And we will go ahead and remove this bolt and the same thing for the other side. OK, we will go ahead and install the hardware. The plate and the bolt go right here and another one goes through this hole right here. And go ahead and repeat it for the other side.
Next, we can go ahead and install the hitch. On this one, it is kind of heavy so it is always a good idea to have an extra set of hands. You might have to push some hardware back in, so let us take some time out to fix that. Then go ahead and install the fasteners for the bolts going toward the front of the vehicle. And you definitely want to leave them loose. And we have the holes at the rear of the vehicle to install the bolts. OK, last we can get the bolts at the end of the frame. Just go ahead and thread those back in. You may have to clean it out and loosen the hitch a little bit to give some wiggle room to get those bolts in. At this point you can go ahead and snug them down, and then we will give them their final torque. All right, that covers our install of part number 75099 from Draw-Tite on a 1996 Chevrolet pickup 1500 with an 8-foot bed.
1995 C/K Series Pickup by Chevrolet Owners Who Purchased This Trailer Hitch Also Bought...
Average Customer Rating: 4.5 out of 5 stars (2 Customer Reviews)
by: TV12/08/2009
Is this review helpful?
Easy Install Looks great I install this hitch without moving the muffler out of the way and it was fine. I took my time and install the bolts in first starting with the furthest back hole and working my way toward the rear bumper. I started with the driver's side as there was nothing to get in the way and get a feel for pulling the bolts through. Once you get one in, the rest was straight forward and easy to do. I also bolted the hitch on myself starting on the passenger side first. It took 5 minutes of finessing, but once you get the first nut on, you are all set.2579
by: Leo05/11/2011
Is this review helpful?
Installation was easy, bolt-on installation straight forward. it fitted my 1995 chevrolet 1500 truck perfectly.does not interfere with lowering or raising the spare tire into place. Also is well hidden behind bumper. 13409
Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?
Chevrolet C/K Series Pickup Accessories
Complete Towing Package
1995ChevroletC/K Series Pickup
Tech Tip
No drilling required for installation, Hitch crosstube concealed behind bumper, Will not fit models with roll pan bumper
