Trailer Hitch > 2004 > Buick > Rendezvous

Hidden Hitch Trailer Hitch for the Buick Rendezvous, 2004

Hidden Hitch Trailer Hitch

ratingratingratingratingrating (2 reviews)


Code:   90158

Retail:$251.10

Price:$171.95


Shipping Special

Shipping Weight: 33 pounds

Quantity:






Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class II - 1-1/4" - Buick Rendezvous, 2004

Specially designed for light-duty applications, this fully welded Buick Rendezvous trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance. Drawbar, pin and clip included.

Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Buick Rendezvous
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar, pin and clip included


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class II
    • Maximum gross trailer weight: 3,500 lbs
    • Maximum tongue weight: 300 lbs
  • Limited lifetime warranty


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



90158 Hidden Hitch Class 2 Trailer Hitch Receiver





Video of Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class II - 1-1/4"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

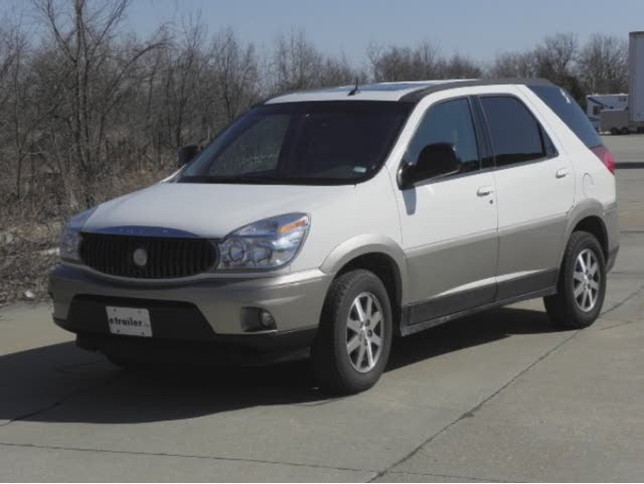

Video Hitch Install 2004 Buick Rondezvous
Trailer Hitch Installation - 2004 Buick Rendezvous
Video install trailer hitch 2003 buick rendezvous 90158
Trailer Hitch Installation - 2003 Buick Rendezvous - Hidden Hitch

Video Transcript for Trailer Hitch Installation - 2004 Buick Rendezvous

Today on this 2004 Buick Rendezvous we will be installing Draw-Tite hitch part number 36425. This installation will also apply for Hidden Hitch part number 90158. We are underneath the vehicle near the bumper, we are looking at the driver side frame rail. As you can see we have two large oblong holes at the end of the frame rail and we are going to be using both of those as attaching points for our trailer hitch. We will be placing carriage bolts and blocks up inside the frame and pulling it back down into position for both of those locations. That is going to be the same on the passenger side as well. If you notice further rearward we have this lip that is attaching the body to the bumper. We are going to be drilling four holes, two per side, to attach the trailer hitch to as well. What we want to do first is put the hardware into the frame, get the hitch up into position, and we will use the hitch as a template to drill those holes out. 00:47

We are going to be using the 1/2 inch carriage bolt along with the one by three inch block at all four of the locations. To get the hardware into position we are going to be using the larger rear most hole as our access hole. What I am going to be using is the bolt leader which we offer at Etrailer.com. This one is 1/2 inch to accommodate the 1/2 inch carriage bolt. Basically that is going to help us pull our hardware into place. We are going to take and feed the bolt leader up through our forward most attaching point and back out the access hole. Next take the block and feed it on to our bolt leader followed by our carriage bolt which we are going to thread the bolt leader on to the end of the carriage bolt. Feed the block up into the frame followed by the carriage bolt and then use the bolt leader to pull it down into position. 01:34

We are going to be using the 1/2 inch carriage bolt along with the one by three inch block at all four of the locations. To get the hardware into position we are going to be using the larger rear most hole as our access hole. What I am going to be using is the bolt leader which we offer at Etrailer.com. This one is 1/2 inch to accommodate the 1/2 inch carriage bolt. Basically that is going to help us pull our hardware into place. We are going to take and feed the bolt leader up through our forward most attaching point and back out the access hole. Next take the block and feed it on to our bolt leader followed by our carriage bolt which we are going to thread the bolt leader on to the end of the carriage bolt. Feed the block up into the frame followed by the carriage bolt and then use the bolt leader to pull it down into position. 01:34

With the bolts snugged up we can drill the holes out using the 3/8 drill bit. With the holes drilled we want to take our 3/ 8 bolts along with our flat washer and them from the bumper side of the vehicles end panel in towards the front of the vehicle. We are going to attach on the other side using the lock washer and hex nut. With those in place we can start torquing the bolts down. I am going to torque the bolts in the end panels first and then we will go back and torque the bolts at the bottom of the frame last. You want to check with the directions to verify the appropriate torque rating for each of the bolts. Now that we have got our hitch installed lets give you a couple of final installed dimensions. From the ground to the top of the receiver tube opening is going to run 13 inches and from the center of the pin hole to clear the rear edge of the bumper is going to be approximately seven inches. Just make sure that if you lowered the exhaust off its rear most hanger earlier that you put that back up. That will conclude the installation of Draw-Tite part number 36425 on a 2004 Buick Rendezvous.




Customer Reviews

Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class II - 1-1/4" - 90158

Average Customer Rating:  ratingratingratingratingrating5.0 out of 5 stars   (2 Customer Reviews)

Specially designed for light-duty applications, this fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance. Drawbar, pin and clip included.


- 90158

ratingratingratingratingrating by: George I.07/31/2013


The hitch was shipped timely...after a replacement was determined. The installation was fairly easy...especially with the help of the the video and the little bolt leader! Very happy with it's appearance and quality. 92555






- 90158

ratingratingratingratingrating by: Sam P.07/07/2012


Flawless transaction and instructions. Wish I would have know it was this easy sooner. I would have done this a long time ago. Will use etrailer from now on! 47075




2
2



Buick Rendezvous Accessories




Weight Carrying Capacity
Gross Towing Weight (GTW):
3,500 lbs.

Tongue Weight (TW):
300 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution


Trailer Hitch Installation Instructions 90158 Installation instructions 90158 Installation Instructions

Tech Tip
Hitch will fit Ultra models (3.6 Liter engines).Drilling required for installation,,,

Manufacturer Estimated Installation Time



Recommended Wiring:
Hidden Hitch 118383
118383

Hidden Hitch 41405
With Tow Package Use:41405

Recommended Balls:

1-7/8" hitch ball - 19256


2" hitch ball -19258

If you have any questions you can contact our customer service department.

Info for this part was:


Test Fit:
Joe V

Video by:
Andrew K

Written by:
Lindsey S

Video Edited:
Dustin K

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
