This durable, fully welded Acura MDX trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

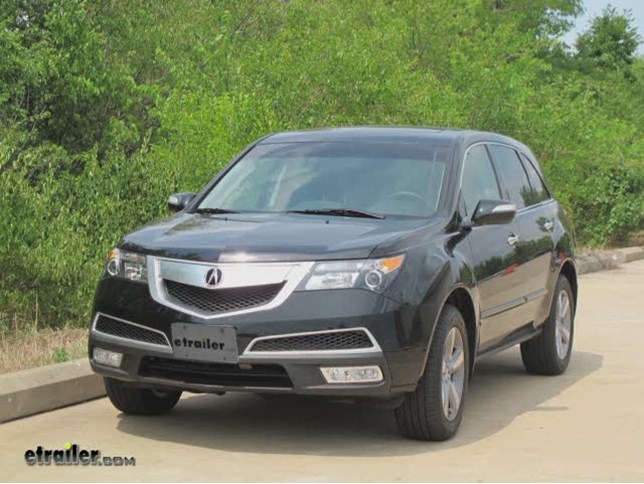

Today on our 2011 Acura MDX, we'll be installing Hidden Hitch, part number 87474. This is what our hitch will look like once it's installed. Next, we'll go ahead and give you a couple of measurements to assist you in selecting accessories for your new hitch. From the center of the hitch pin hole to the outermost edge of the bumper is 4-1/2 inches. From the top of the receiver tube to the ground is 16 inches. This will assist you in selecting accessories such as a drawbar, a bike rack, or a cargo carrier.
Now, let's go ahead with the installation. Our first step: We've gone ahead and lowered and removed the spare tire. Now with the spare tire removed, we have access to the inside of the vehicle frame where you can see the eight attachment points, four on each side. These are weld nuts built into the frame by the manufacturer. Over time, these weld nuts will build up with rust, dust, dirt and debris so I recommend you go ahead and take some spray lubricant and a 1/2-inch nylon tube brush, part number 814092, and thoroughly clean the threads out.
I'll even take one of my new fasteners provided in our install kit and thread it into the weld nut to make sure it will go nice and easily. Now with that done, we'll need to go ahead and lower the exhaust. However, before we do that, we'll need to take a safety strap and put it underneath the exhaust so that we can control how far and fast the exhaust will fall. We'll go ahead and take some spray lubricant and spray down each one of the four rear exhaust hangers. There's one located on each side of both mufflers.
Next, we'll go ahead and take our pry bar. We'll simply pry the rubber isolator off the metal hanger. Now, we're ready to go ahead and remove the hangers. With all four hangers removed, we'll now use a safety strap to safely lower the exhaust. Next, we'll need to remove both heat shields above the muffler.
Each heat shield has a total of three fasteners. We're going to remove the fasteners and then remove the heat shields. Now with both heat shields removed, we can now go ahead and put our hitch into place. It's a good idea to get an extra set of hands to help you hold the hitch and fasteners as you install them into the frame. At this time, we'll just go ahead and install all eight fasteners finger tight. Next, we'll go ahead and tighten them down. Now with all eight fasteners tightened down, we'll go ahead and torque to specifications as indicated in the instructions. Now with our hitch torqued to specifications and secured in the vehicle, we can go ahead and reinstall the heat shields and exhaust. With that done, we'll go ahead and remove our safety strap. That will complete the install of our Hidden Hitch, part number 87474 on our 2011 Acura MDX.
Average Customer Rating: 4.9 out of 5 stars (53 Customer Reviews)This durable, fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.
The product was fine and installed fairly easily. The videos are very helpful. Just a note on the MDX; the rubber exhaust hangars are pretty stiff when cold. Best to do this when the shop/garage is warm. Also, like most wrenching, its best to wear protective eyewear; especially if your car has a few miles on it. I had a lot of salt/sand/debris falling from underneath. When you are looking up at the wrench, its bound to break something loose that falls down (along with the lubricant) and is a safety risk. As for packaging and the item itself.... The hitch was sent in a box without any padding or packaging. The two plates had punctured the box. Unfortunately, I did not even notice until collecting the item from my front porch and dragging it puncture-side down damaging my floor. The package was too small for the item and poorly packaged which seems to be the biggest complaint on etrailer. Finally, I live in a state that uses a lot of road salt. Choosing the best protected (e-coated, powder coating, etc.) was very important to me. This hitch came with more deep (to the metal) gouges and scratches than I could believe. There was no problem with the manufacture but it sure made me wonder if it was a cosmetic second. The price was good, shipping and follow-up was excellent, product was okay. Plan to get some touch-up paint (easier before you install) if you worry about corrosion. 110175
by: Aren V.05/05/2011
Received the product within a week or ordering from etrailer.com. They even bumped up my shipping from the standard 5-7 day ground to a 3-5 day ground for no extra charge. The product came 4 days later and was packaged fairly well. The box had been punctured on one spot but there was no damage (dents, scratches, or chipped paint) to the hitch itself. The installation took about 2 hours with prep and clean up, mainly because I was doing it alone using a jack. It will be much easier if you could have a friend help you out. The hitch fits perfectly and is very sturdy without looking too out of place or ruining the design of the rear of the vehicle. I have not towed anything with it at this time, but I have had a bike rack on it with up to 4 bikes and it has performed as promised. 12953
by: Allen L.05/02/2012
Opted to choose HH out of the 3 options for my 2012 MDX as some reviews for the other ones mention a tight fit - which made me nervous. A little bit over an hour of installation time, mostly spent on removing the screws, as the videos provided pretty much walked you through what you need to do. The only thing I would've mentioned in the video is that there are two rubber hangers. No need to use a pry bar. If you let the lubricant settle in for a couple of seconds it can be removed by hand. No issues in the actual installation of the hitch. Only removed one heat shield. Used an extension on my ratcheting socket wrench and it was doable. Yes, it would take time due to limited space but not an issue. Needed somebody to slightly screw in the fasteners as I held the hitch up. All in all was a very unfrustrating, all-went-according-to-plan experience. Oh and etrailer is the best, this is the 2nd one I've ordered from them, no complaints there. Only one issue, the "Hidden Hitch" sticker could've been more of a higher quality. It peeled right off - I would've proudly kept that there for the life of the product. :) 39170
by: Steven G.05/28/2012
A very nice hitch at a good price. Ordered on Tuesday and the product arrived Thursday - a day earlier than estimated by etrailer. The box was a little torn-up by UPS, but the hitch and parts inside were in excellent shape. I am not that handy so I studied the reviews/video and made sure my tools were adequate for the job before starting. I just followed the installation steps as shown and have to say that it is all very straight forward. As the video said, getting the hitch into place took a little jiggling and an extra pair of hands to get the first couple of bolts started made the task easier. Took a little more than one (1) hour total time in my garage (no lift) to install including prep and clean-up as I was slow and careful with each step. I have to say that I was surprised how easy it was and how quickly I was finished. The hitch looks great and given that it will be used to carry a bike rack the class III rating is more than enough for that job. I couldn't be happier with the experience and will definitely be telling others to use etrailer if they need a hitch. 41849
by: Pete B.03/08/2012
Ordered the hitch on Thursday and it arrived Monday using the free shipping option. Everything made it in great shape. The hitch was easy to install on my 2008 MDX using the etrailer video. It took me a little over an hour, no lift, and most of the time was spent searching for the right size socket to get the heat shield off. Small tip, you only need to remove 1 heat shield to get clearance for the hitch to fit. The hitch fit perfectly and 3 of the 4 bolts on each side when in no problem. The lower front bolt is a pain and I recommend using a smaller socket wrench, my heavy duty wrench was just too big. Once installed the hitch is extremely solid and looks great. The wiring is a piece of cake, total of about 15 minutes. Etrailer was fantastic and I could be any happier with my experience. I will use them again, no doubt. 33320
by: Dave H.10/14/2011
I have found the product, supplier, and support to be excellent. The Video showing installation was a huge benefit and prevented me from having to figure out clearance issues during installation. I followed the steps in the video and with the help of a friend we had the hitch fully installed in 1.5hrs. I did invest in a $34 torque wrench but when you consider the Acura dealer quoted me $834 to install a similar hitch and wiring harness it's still a deal, and I now have a torque wrench. The frame on my car is angled toward the rear and required the hitch mounting plates to be manufactured with compound angles that matched up to the frame. The fact that the hitch went right into place tells me the manufacturer put good quality control into their process. I'd recommend this product to anyone with average experience working on cars. 25598
by: Erik G03/17/2012
The hitch appears well-built and fits nicely into the space. A few install issues. First, the hitch can be positioned with only one person if you get far enough underneath, head towards the front of the car. You can use your knee to hold up one side of the hitch while starting the bolts on the other side. As other reviewers state, the hitch can be installed by removing only one heat shield/exhaust hanger, but removing both heat shields makes it easier to tighten the bolts for the hitch. Beware of the limited room you'll have to sqeeze a wrench into place to remove/replace the heat shields and don't even think about using a long-handled torque wrench to tighten the hitch bolts, especially the bolts located towards the rear end of the car. 34208
Installation was just as easy as advertised on a 2013 Acura MDX. Under one hour including cleanup and setup, one person, no lift or jack. There is a extra muffler hanger near the exhaust tip on the 2013 (not shown in the video), but it slips off easily by hand if you push the muffler up just a bit. I recommend unhooking only one muffler and removing its heat shield and sliding the hitch up in slightly diagonally, instead of unhanging both mufflers. If you do the install on your back under the car, you can just rest the hitch on your stomach and put a couple bolts in on each side by hand by yourself. The partialy-obscured install bolts go in easily with a 10" socket extension. 88064
by: Peter White08/19/2013
I purchased the "Hidden Hitch" Class III receiver for my 2011 Acura MDX. The whole process couldn't have been easier - I ordered the product, it was then delivered on time, as expected. The installation was a breeze - I had viewed the install video ahead of time and didn't even need to read the directions (except for the torque settings) - Saahh weeeet !! I will definitely use and recommend etrailer.com for any future towing/trailer needs. Thank you Peter Houston TX. 95890
Nice hitch. Packaging could have been better as rails were outside the box when it came. Install was as expected 2hrs but doable. Note for my 2010 acura mdx I had to remove 4 rubber hangers from the exhaust portion they are located on either side of the muffler/heat shields also came off. When you are positioning hitch into place slide one side just above one muffler and raise the opposite side up into place then you can raise other side up. looks beefy and tough was worried that it would stick out but with a hitch cover it blends in nicely 41502
by: Steve R.08/05/2012
The video was extremely helpful. Installed myself in my garage with no lifts. Took about 3 hours total. Most of that time was spent screwing and unscrewing the heat shields. Some reviews said that you only had to loosen one side of the exhaust. Ending up doing both sides (like the video said!) and it worked perfectly. Everything mounted to the frame very nicely and secure. I feel very confident in the product. All parts arrived QUICKLY (gave free upgrade in shipping) and in great condition. I will definitely shop etrailer again! 50609
Excellent purchase. The order arrived in 2 days, as described and all items were in perfect condition. The hitch itself was very easy to install, even without the lift. You just need to follow the steps from the movie to be able to install it in around an hour. As others have already mentioned, there is no need to remove second heat shield. There is enough room to fit the hitch with one shield still attached to the car. Again, excellent experience. If I ever need another hitch, this site will be the first place I will check to look for it. 51845
by: Jay T.04/18/2011
Great hitch! Installation was easy (you don't even need to jack up the MDX). I really appreciated the model-specific videos on YouTube. It gave me alot of confidence before starting the project. Toughest part was getting the rubber hangers off the muffler. My model had one-way clips on the muffler that made it a little more challenging than the video. I was able to slip the hangers around them by wrapping with some teflon tape. A few good tugs and you're on your way! 11941
by: Brent O10/03/2013
Product arrived in great shape & instructions were very straight forward & simple to follow. Hitch looks great & have already started using it. 2nd time I've purchased from etrailer & have had a wonderful experience both times - both quality of products & support regarding installation etc. Will continue purchasing hitches as needed for new vehicles moving forward - great value & much cheaper than paying some local shop to screw in 8 bolts for 200-400 in labor! 102446
by: Dean H.08/10/2012
The product was ordered on Monday and arrived on Wednesday in spite of the fact that I specified standard free shipping (7-10 days). I installed it by myself, without incident, on Thursday in about an hour, using the video from the website as a guide. I am extremely pleased with the service. As to the product itself, it is sturdy, well built, and fit my MDX perfectly. It has been a pleasure doing business with this company, I recommend them highly. 51304
by: Tom C.07/12/2012
Ordered the hitch on a Friday, received it on the following Wednesday. All the pieces parts intact, hitch looked in good shape. Took the MDX and hitch to a shop to have it installed and after 45 minutes and little to no problems the hitch looks great and is ready for use. This is the second Hidden Hitch I have bought, the last for a Mercedes ML350, and it is the only hitch manufacturer I would consider. 47666
by: Jeff R.09/22/2013
The Hidden Hitch Trailer Hitch Receiver installed flawlessly. It was a perfect fit. The only thing I would suggest for future buyers is to oil and clean the threads on your MDX's weld nuts prior to install. It only took me about one hour to install. I saved hundreds of dollars going this route rather than taking it to the dealer. 100941
The Hidden Hitch fits perfectly on my 2013 MDX. I'm fairly certain they make the OEM hitch. I previously owned a 2007 MDX and used another brand that fit horribly (required a sledge hammer to bang it in place). Etrailer also packages the hitch well so that it arrives undamaged. I have dealt with other venders that just saran wrap the product resulting in a banged up hitch upon delivery. 92339
This arrived quickly, though the box did not fare as well. It could have used a little extra packaging on the edges. It fit perfectly on my 2012 MDX and took about 45 mins to install. The video was right on point for the install and it looked great, pretty clean when it was all said and done. There is one tough bolt on each side but an 8" extension gets right in there. 54164
by: Ed M.03/01/2012
etrailer was recommended by a good friend with like interest. Service was very fast and easy to order. etrailer upgraded my shipping just because! Rcvd trailer hitch 5 day after order. Have not installed yet but website video's and written instruction are sound, from perspective of ex Honda Engineer w/ lots of electrical-mechanical experience. 32824
This is the second Hidden Hitch I have purchased from etrailer.com. Just like the last time the hitch installed with ease. The videos from etrailer's website made the installation really straight forward. And just like last time etrailer.com had the best price, a lot of customer reviews and excellent customer service, shipping and follow-up. 88927
Took about 2 hours to install including removing spare, dropping mufflers, removing heat shields, etc. Hitch is well built. Some of the powder coat got knocked of with shipping but a touch up with paint only took a couple of minutes. Spare fits just fine with hitch installed. Not much visible except the hitch receiver. Nice product. 62834
by: Mike S.10/11/2011
Hitch was very easy to install on my '09 MDX. I didn't have to jack up the car and completed the installation without any helpers. I only had to remove one exhaust heat shield to get enough clearance to install the hitch. Use a 12" socket extension to tighten the rear bolts without interference between the hitch and the torque wrench. 25413
by: Mitch M11/05/2013
The installation went pretty good but the muffler posed a little challenge. I had to wedge it in despite removing the hangers. The only thing I need to adjust is how the spare tire fits. I'll need to adjust the hitch as far toward the rear as possible. Right now it is a little tight. 106424
by: M Alexander08/27/2012
The free shipping came just one day after we ordered. Installation was smooth and took about an hour and a half. The video was a plus! Looks great on the 08 Acura MDX and saved us about $800+ that they wanted us to spend at the dealership. Love etrailer! 53223
Shipped pretty quickly. Installation wasn't a problem. It took more time to clean out the threads (2008 model so a decent amount of buildup) than to install (less than an hour). There is a great video on Youtube (better than the one on this site). 84916
by: Mike C.04/24/2011
The hidden hitch was very easy to install on my 2010 Acura MDX. The instructions were thorough and I had the hitch installed in about an hour. The product was exactly as described on etrailer's website and delivery was free! 12295
Product arrived quickly and in great shape. The online installation instructions helped immensively because the included 1 page instructions while detailed don't quite show how to do it but only what to do. 53855
by: Jon B.12/16/2013
Great product. Fairly easy to install although getting the hitch around the tailpipes was not nearly as easy as the video indicated. Faster than expected shipping. Great service. Would buy again. 110195
I order on a monday and it arrived on Wednesday. I couldnt beleive it.. I put on on Saturday morning in an hour with help from & year old nephew. The video directions were great. I'll be back! 20918
by: RICHARD E09/20/2013
I believe so far that ordering the trailer hitch was a good idea it was inexpensive easy to install it seem to come with a good set of directions for the mechanic and future use 100820
by: Michael L.10/19/2012
Easy installation. From start to finish took less than 1 hour with no need to place the car on jack stands. Hitch arrived within three days of placing the order (East Coast). 57671
by: Craig D09/09/2012
The hitch went right in. Only had to take off the drivers side heat sheild. Didn't even need to raise the car. Design appears to be very strong and well thought out. 54130
by: Franco A08/12/2011
Ordered on Sunday delivered on Thursday installed Thursday night! Package was wexactly how described and installation very easy. Strong solid construction. 21667
by: K Hoover07/15/2014
Product is exactly as described. Only took a couple hours to install and looks great. Love the "hidden" factor of the hitch. My bike rack fits perfectly. 141322
Received within a few days. Fairly easy to install with the right tools. Took me a few hours, but should've been less as I caused most of my own delays. 72742
by: Jeff S.06/24/2013
Arrived with a few nicks and scratches but otherwise in great condition. Install was just as described. Very helpful to watch the video on the website. 85778
by: Mike G.07/24/2011
The product installed very easily. It took me about an hour, by myself. If I had noticed there were 6 hanger on my MDX it would have been even faster. 20156
by: Mark G06/29/2013
Product was exactly what I needed. Arrived on-time and installed exactly as described by etrailer.com. Many thanks for a painless upgrade! 86746
by: John H03/03/2014
Shipment was fast an communication awesome. Hitch worked great and simple to install. Looks like the OEM hitch at a fraction of the cost. 118356
by: mike s07/01/2015
fits perfectly, it would have been nice to have a second set of hands and a lift but it can be done by one person without using a jack. 208625
by: Jim P05/08/2013
The trailer hitch arrived promptly. The installation went well with no problems. I would definitely recommend this trailer hitch. 79395
Product is very well built. Nice clean welds and heavy duty construction. I would recommend to anyone thinking of buying. 8773
by: Alex P.02/06/2009
very good Suggest to buy it. Fit on my Acura MDX 2008, looks great and solid. Install alone within 2hrs, no surprises. 1553
by: Ralph C05/11/2012
Great service - delivered quick all is good - will be installing soon. Thank you for the great service! RC 40092
by: Arthur S.07/31/2013
It took me about 45 minutes to install this hitch. It was a nice, easy, clean installation. Thank you! 92603
by: Brian Y.02/24/2012
Product showed up within one day (obviously this depends on your location) and everything was great. 32391
by: Henri p08/05/2011
Perfecto ! Thank you or the video instructions. It was awesome. 21224
hitch went together and installed without any hitches. 69921
by: Alexei P.05/09/2013
Great product. Installed in 1/2 hour. T hanks 79675
