1755000 Titan Weld-On Coupler
Video of Titan Weld-On Coupler for 2 5/16" ball - 21K
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

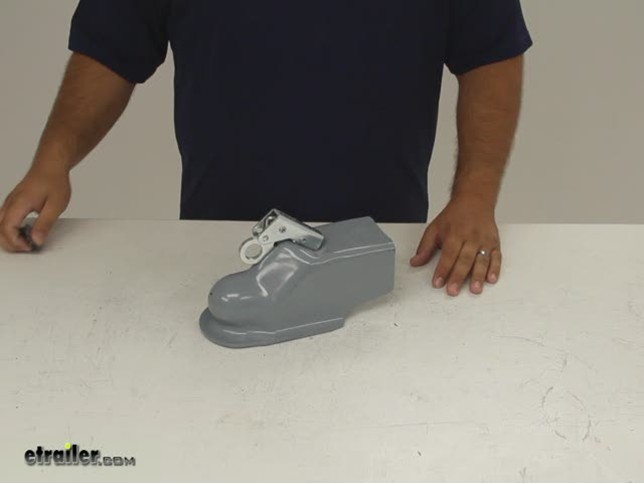

Today were going to take a quick look at the Titan weld on Coupler for two and five sixteenth balls part number t1755000. This is a weld on coupler designed to be used with trailers that have three inch wide tongues. Well take a measurement here of the inside width and well get our three inches. The coupler has an overall length of about nine and half inches. Its finished in a gray primer so you can come back and paint it whatever color youd like to match your trailer. It has a gross trailer weight capacity of 21,000 pounds.
The latch system is a little bit different than on many other trailer couplers. Theres a safety release here that youll have to pull up in order to open the latch. To close it all you have to do is pull it forward. You do want to make sure that the safety is set properly. When the safety is down in place in the slot the latch cant come open until you pull this.
You can also use a coupler lock here to secure it and prevent the safety release from coming up that way youre guaranteed that the trailer cant come uncoupled while youre pulling it down the road or you can prevent theft while its in storage. Now well show you how the system works from underneath. Inside the ball socket area theres a piece of tubular metal here that fits around the back of the ball. Well pull our safety release and open the lever and you can see that piece of metal move back and out of the way. As we pull the latch forward it drops back down into place.
Now weve got a two and five sixteenth ball with us so well show you how it works with the ball. With that piece of steel there we cant get the ball in. Well open the latch and our ball fits into the socket. Now well close the latch and that piece of metal moves forward and fits around the backside of the ball. Now our balls secured and it allows travel for smooth towing behind the vehicle.
Thats it for a quick look at the Titan weld on Coupler for two and five sixteenth balls part number t1755000.
Customers compare T1755000 to these similar products
Customers Who Purchased This Trailer Coupler Also Bought...
Average Customer Rating:
4.9 out of 5 stars (10 Customer Reviews)
by: Daryl01/13/2013
Is this review helpful?
should work just fine. Great company to work with.62844
by: joboo12/13/2012
Is this review helpful?
this matches all the descriptions. 61399
by: Jim S.11/17/2012
Is this review helpful?
The coupler is very well built and was easy to weld to the 3" tubing I am using.59591
by: Jim Elliott09/11/2012
Is this review helpful?
Recieved it quick 54380
by: Bradley B08/10/2012
Is this review helpful?
Product arrived quickly and in perfect condition51232
by: Luther K.05/16/2012
Is this review helpful?
Hitch was just what I needed and was shipped extremely fast.40756
by: Dean B.05/01/2012
Is this review helpful?
Hitch was perfect and the shipping was very quick. I am very happy with the service from etrailer. This was my first purchase form this company, and I will try to use them in the future.39011
by: john e.03/26/2012
Is this review helpful?
very happy with the coupler ,good fast sevice35220
by: Tom B.03/13/2012
Is this review helpful?
Great product... heavy duty peice. 33747
by: Joel P03/01/2012
Is this review helpful?
the operation of the latch is good, the fit to the tongue is a little loose, mine req'd clamping, hammering and filling the gap with a few passes of 7018, it was about .25 large (better than too small). Unit looks superior to the bulldog units i have on other trailers (they seem to stiffen up after a few years in the weather).32986
