A-Frame Coupler with Black Paint Finish - 2" Ball - 5,000 lbs

Rating: rating rating rating rating rating
18 reviews

Code: CA5100B

Retail:$19.39

Price:$17.95

Shipping Weight: 8 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Redline Trailer Coupler CA5100B Review - Video

Redline Trailer Coupler - CA5100B

Standard A-frame coupler is constructed of durable steel and features a traditional, easy-to-use trigger latch for quick and secure hookup.

Features:

Quick, easy and secure trigger-style latch
Weld-on application for A-frame trailers
Durable steel construction
Built-in jack attachment port
Black paint finish

Specs:

Application: A-frame trailer
Ball size: 2"
Capacity: 5,000 lbs

CA5100B A-Frame Coupler - 2" Ball - Black Paint Finish

Video of A-Frame Coupler with Black Paint Finish - 2" Ball - 5,000 lbs

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

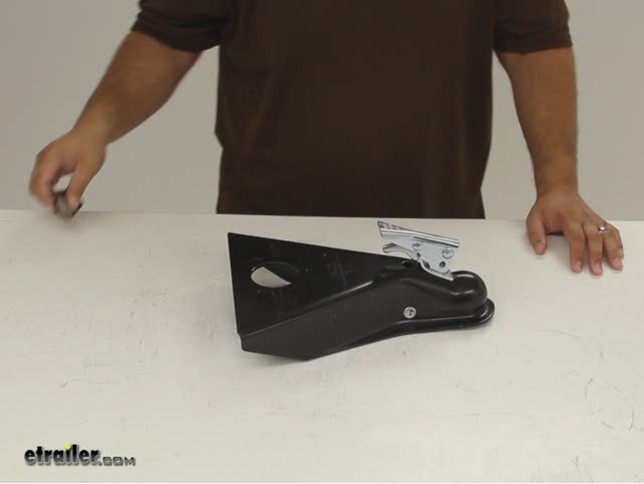

Video Demo Redline Trailer Coupler CA5100B

Redline Trailer Coupler CA5100B Review

Video Transcript for Redline Trailer Coupler CA5100B Review

Today we're going to take a quick look at the Redline A-frame coupler with black finish, part number CA5100b. Now this coupler has a 5000 pound gross trailer weight capacity. It also has a 700 pound tongue weight capacity. It's designed to work with a 2 inch trailer ball and it will fit over your standard 50 degree A frame trailers. There's also a jack mount predrilled into the top of our coupler. There's a large center hole for the jack's body and three threaded hole for the bolts.

This is a well done coupler so when you fit it over the frame of your trailer, you'll just weld along the edges to secure it to the trailer's frame. We'll go over one quick measurement here. We're going to take a look at the overall length of the coupler and we get about 13-1/2 inches. Now we'll show you the latching mechanism. On the underside of the handle there's a little trigger release.

You'll need to pull it up in order to open then handle. When you close it, that trigger reengages against this plate to help prevent unintentional opening of the latch. Now there's a better method here. There's a hole drilled all the way through the handle and the latch mechanism. You can use the coupler lock through there to prevent the latch from opening, even if the trigger gets depressed.

It'll also help protect your trailer against theft while you have it in storage. Now we'll take a look at the underside so we can see how the latch mechanism works with the ball. There's a wedge here that fits along the back of the ball. When we open our latch, the wedge moves back and down, out of the way so you can either couple or uncouple your trailer. I'm going to show you again with a two inch trailer ball that we have.

You'll fit the coupler over the ball and close the handle. The wedge engages against the back of the ball and the trigger latch will reengage up top and that's when you know it's closed all the away. It's a good snug fit on the ball that allows travel to make sure the trailer tracks smoothly behind the vehicle, but with the wedge in place, the wedge is captive and can't come out. And that's it for the Redline A-frame coupler with black pain finish, part number CA5100b.

Customers compare CA5100B to these similar products

Trailer Coupler, 2" Ball, A-Frame Tongue (5,000 lbs)$32.95

A-Frame Coupler with Oily Finish - 2-5/16" Ball - 14,000 lbs $21.95

Bulldog Collar-Lok Coupler w/ Low-Profile Latch - 2" Ball - A-Frame - 7,000 lbs $79.95

Pro Series A-Frame Trailer Coupler with Trigger Latch - 2" Ball - 5,000 lbs $29.95

Bulldog Heavy-Duty Cast Head Coupler w/ Wedge Latch - 2-5/16" Ball - A-Frame - 15,000 lbs $119.95

Customers Who Purchased This Trailer Coupler Also Bought...

2-1/2" Long Standard Torx Trailer Floor and Wall Liner Screw $0.14

2-1/4" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.24

2-1/2" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.17

Pro Series Round, A-Frame Jack - Topwind - 14" Lift - 2,000 lbs $19.95

1-1/2" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.18

Customer Reviews

A-Frame Coupler with Black Paint Finish - 2 - CA5100B

Average Customer Rating: rating rating rating rating rating 4.9 out of 5 stars (18 Customer Reviews)

- CA5100B

rating rating rating rating rating by: Henry o04/15/2013

Is this review helpful?

This is a great replacement piece at an extremely affordable price. The hardest part is getting the old one off! Make sure you have good welder install this for you!76026
