Trailer Coupler > Fold-Away Couplers > Weld-On > No Coupler > 36 Inch Fold-Away Tongue > Hinge Kit > 3 x 3 Inch Tongue > 5000 lbs GTW > Fulton


Fulton Fold-Away Coupler Hinge Kit for 3" x 3" Trailer Tongue - Weld On - Up to 5,000 lbs

Fulton Trailer Coupler

ratingratingratingratingrating (149 reviews)


Code:   FHDPW330300

Retail:$88.94

Price:$69.95


Shipping Special

Shipping Weight: 6 pounds

Quantity:






Fulton Trailer Coupler - FHDPW330300

Use with actuators or standard couplers to create a foldaway tongue up to 48" long so that your trailer can be stored in even the smallest garage. Weld-on mounting creates a clean look, and the unique offset design guarantees superior performance.

Features:

  • Hinge kit lets you create up to a 48" foldaway tongue for your trailer
    • Designed to be used with actuators or standard couplers
  • Weld-on installation
  • Sturdy steel construction
  • Raw finish
  • Pivot bolt and pivot pin and clip included
  • Not for use on aluminum trailer frames
  • Made in USA


Specs:

  • Application: 3" x 3" trailer tongue
    • Trailer tongue material thickness must be between .188" and .120"
  • Capacity: up to 5,000 lbs (see table)
  • 5-Year limited warranty


Use the table below to determine your maximum pivot length based on your trailer capacity. Pivot length is the measurement from the center line of the coupler ball to the farthest pivot hole.

Pivot

Hinge Kit Maximum Pivot Table

HDPW330300 Fulton High Performance Weld-On, Fold-Away Hinge Kit for 3" x 3" Trailer Tongue





Video of Fulton Fold-Away Coupler Hinge Kit for 3" x 3" Trailer Tongue - Weld On - Up to 5,000 lbs


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

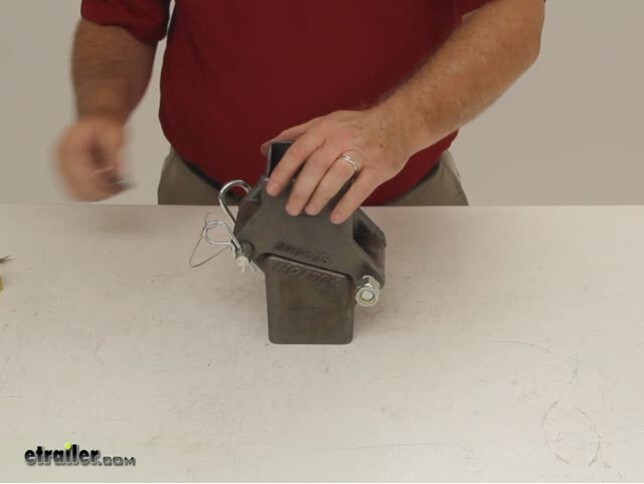

Video Demo Fulton Trailer Coupler FHDPW330300
Fulton Trailer Coupler FHDPW330300 Review

Video Transcript for Fulton Trailer Coupler FHDPW330300 Review

Today were going to review part number FHDPW330300. This is the Fulton Fold Away Coupler Hinge Kit for a 3-inch-by-3-inch trailer tongue. This hinge kit lets you create up to a 40-inch foldaway tongue for your trailer. It can be used with actuators or standard couplers so that your trailer can be stored even in the smallest garage. It is a weld on installation, which will create a clean look. The unique offset design guarantees superior performance.

It is made of a sturdy steel construction and it is a raw finish. The pivot bolt and the pivot pin and clip are included. Now this coupler hinge kit is not for use on aluminum trailer frames. This part is made in the USA. Again, the application would be 3-inch-by-3-inch trailer tongue.

It does come with a five-year limited warranty. Now the capacity will depend on the maximum pivot length that youll be using it on. The capacity would be up to 5000 pounds. What youll want to do is when you go the product page for this part number therell be a table listed on that product page and that will show you the gross trailer weight capacity for whatever the maximum pivot length would be. Basically, the pivot length would be if you have your coupler here and the tongues put into this end, you would measure from the center of the coupler ball to the furthest pivot hole, which would be right here.

If that distance would be like 24 inches that would be the pivot length, that would give you 5000-lb weight capacity. If it is longer, if it would go to 48 inches, that would drop your maximum capacity down to about 2500 pounds. Again, the best thing would be to go to the chart on the product page of this part number. Just to show you briefly how this would work, to make it pivot you would just pull the pin or the clip out and then pull the pin out right here. That will allow the hinge coupler to rotate out of the way.

If you have this mounted with your coupler over here, youd be able to bring your coupler and trailer tongue back folded away. Then when you need to tow with it you just put it back in. Drop your pin in. Insert the clip and you would be ready to go. Again, this part has as five-year limited warranty. That should do it for part number FHDPW330300. .


Customer Reviews

Fulton Fold-Away Coupler Hinge Kit for 3" x 3" Trailer Tongue - Weld On - Up to 5,000 lbs - FHDPW330300

Average Customer Rating:  ratingratingratingratingrating4.9 out of 5 stars   (149 Customer Reviews)

Use with actuators or standard couplers to create a foldaway tongue up to 48" long so that your trailer can be stored in even the smallest garage. Weld-on mounting creates a clean look, and the unique offset design guarantees superior performance.


- FHDPW330300

ratingratingratingratingrating by: John02/24/2013

Is this review helpful?


Great product, solved my issue of trying to fit the boat in the garage. Simple to install. Transaction with etrailer was excellent and the product arrived quickly. I will purchase from etrailer again. 67617






- FHDPW330300

ratingratingratingratingrating by: Luke01/29/2013

Is this review helpful?


EVERYTHING YOU SAID ABOUT THE ORDERING, SHIPMENT, FOLLOW UP THROUGH DELIVERY, ARRIVAL OF PRODUCT, WERE ALL RIGHT ON THE MARK. DOING BUSINESS THIS WAY IS A PLEASURE. IF ALL INTERNET SELLERS WERE LIKE YOU THERE WOULD BE MORE INTERNET SALES. THANK YOU FOR THE EXCELLENT SERVICE. (Luke) 64440





Comments

Very well written and I totally agree, Sir!

comment by: Matt - 05/25/2013


1562

We are glad to hear you and Luke have been pleased with our service. Treating our customers like friends and neighbors is our goal.

Patrick B - 5/28/2013



Comments

I had the hinge welded on my trailer by a professional welder. I have had the boat and trailer out several times since, and the hinge performed beautifully. I am still very happy to have bought from you. Thank you.

comment by: Luke Corcoran - 01/29/2014


2665

Thanks for following up with us, we are happy to know that you are still happy. If you have any questions, just give us a shout.

Patrick B - 2/5/2014




- FHDPW330300

ratingratingratingratingrating by: Charlie Nash09/30/2013

Is this review helpful?


When you have a 19 foot trailer and a 17 foot garage, this is the answer to your problem! It took less than an hour for the pros to cut the tongue and weld the fold away into place. You do have to be careful not to toast the wiring and be prepared to cut and splice it. My jon boat now sits straight in the garage with a golf cart parked next to it and room to walk around both of them. Perfect! 102005






- FHDPW330300

ratingratingratingratingrating by: D Miller03/21/2014

Is this review helpful?


I purchased this Fold- Away Coupler Hinge for my Kayak trailer project I'm getting ready to do. The quality of this is piece is very good and I received it faster than advertised. This product will allow me to extend the tongue on my trailer and it will fold out of the way when parked. 121536






- FHDPW330300

ratingratingratingratingrating by: CR Hewlett04/19/2012

Is this review helpful?


I received this Fold-Away Coupler today (04/19/2012). Your sales department was great on handling this request over the phone and it arrived to be installed today. Thank You Jennifer and staff, I have used you in the past and will order thinking in the future. CR 37736






- FHDPW330300

ratingratingratingratingrating by: Sammy09/23/2013

Is this review helpful?


Excellent.....exactly what I was looking for. I bought a boat in Ar brought it to Tx and it wouldn't fix in the garage. I got on the internet and found your product and bought it. Service was outstanding all the way....Thanks!!! 101051






- FHDPW330300

ratingratingratingratingrating by: john05/11/2012

Is this review helpful?


have not installed it yet but looks well built. the instructions that came with it are for the bolt on model. I got the weld on...there is no referance to welding. I am sure once installed its gonna do the job 40085






- FHDPW330300

ratingratingratingratingrating by: Bob03/22/2012

Is this review helpful?


I wanted to thank you for the fast shipment on this item, I own a mobile welding service and this fold away coupler make my job easy and fast, Look forward in dealing with you soon. 34778






- FHDPW330300

ratingratingratingratingrating by: M.D. Jensen06/27/2012

Is this review helpful?


My buying g experience was great at etrailer. Very friendly representative and I received exactly what I wanted within the week. Couldn't be happier !!! 45790






- FHDPW330300

ratingratingratingratingrating by: Ray M.12/07/2012

Is this review helpful?


Great help in getting product very quickly. It is exactly what I needed. I will not hesitate to use etrailer.com for any additional needs. 60923






- FHDPW330300

ratingratingratingratingrating by: Ray B.07/17/2013

Is this review helpful?


Quality construction, great price and fast shipping. Great combination and will be ordering from e-trailer.com again in the future. 90121






- FHDPW330300

ratingratingratingratingrating by: John04/08/2013

Is this review helpful?


prompt service good product, break away tongue being instaled as we speak, will definetly order again. john 75016






- FHDPW330300

ratingratingratingratingrating by: Eric D.06/18/2013

Is this review helpful?


Greet product, great service. I have already recommended etrailer to a friend of mine. Thanks! 85121






- FHDPW330300

ratingratingratingratingrating by: Randall Jones03/21/2012

Is this review helpful?


Product arrived very quickly and everything was correct. This is a very solid built unit. 34636






- FHDPW330300

ratingratingratingratingrating by: Tom Turner11/25/2013

Is this review helpful?


Just what the doctor ordered. Perfect to get my trailer to fit into the garage. 108443






- FHDPW330300

ratingratingratingratingrating by: Mark Kulesza03/04/2011

Is this review helpful?


Hindge was better than expected, Heavier & better Quality than expected. Thank You 8445






- FHDPW330300

ratingratingratingratingrating by: STEVE R02/02/2011

Is this review helpful?


Will dedal with etrailer again. Great service and products! 6523






- FHDPW330300

ratingratingratingratingrating by: Ron J10/10/2011

Is this review helpful?


Well Built and very easy installation . Works perfect. 25372






- FHDPW330300

ratingratingratingratingrating by: FLOYD R07/14/2012

Is this review helpful?


Product was delivered on a timely fashion thanks 47915






- FHDPW330300

ratingratingratingratingrating by: Rory05/07/2014

Is this review helpful?


Easy installation, solid product.. 129369






- FHDPW330300

ratingratingratingratingrating by: Lawton05/12/2014

Is this review helpful?


Fantastic product easy to install 130188






- FHDPW330300

ratingratingratingratingrating by: C. Rhoten10/13/2012

Is this review helpful?


Easy to install. Works great. 57169






- FHDPW330300

ratingratingratingratingrating by: Josh E07/23/2013

Is this review helpful?


Great product. Easy install. 91109






- FHDPW330300

ratingratingratingratingrating by: pvd04/09/2012

Is this review helpful?


excellent service @e trailer 36640




Reviews for other Fold-Away Coupler Hinge Kit :

- FHDPW340300

ratingratingratingratingrating by: Larry O.10/04/2013

Is this review helpful?


I received my Hinge Kit yesterday as promised. Was a little surprised their were no papers of instructions included but it was a very basic no brainer installing. From the time I hauled out the welder, cut the tongue , welded both halves of the hinge, ground a little, and painted it was 45 minutes complete. This is a simple no nonsense, super strong assemble that I'm completely happy with. As you can see from the pictures I had a problem, this was a great discovery and solution. I'd give it a 10, A+ and an excellent. Capt. Lar 102545






- FHDPB330301

ratingratingratingratingrating by: Scott B.12/31/2012

Is this review helpful?


Installation was easy. I installed it in a Shorland'r trailer. It took me about 2 - 3 hours including clean-up. I am 100% satisfied! All the hardware, Torx drive, prick punch and safety stickers were included. Instructions were clear and easy to follow, but I was surprised it called for torque of 75Lbs. on each bolt. Tools used were a pencil, square, high tension hack saw (18TPI), file, prick punch (included), hammer, safety glasses, 18V portable drill w/ 1/8, 1/4, 3/8 & 1/2 bits, Torx socket (included), 3/4 box-end wrench, 12" adjustable wrench & torque wrench. I also added a sheath to the wiring to reduce any chaffing that may occur across the new hardware. You may want to consider additional safety chains depending on haw far back you reinstall them on the tongue. One other note: The 3x3 box tube tongue on my trailer was a bit small. The coupler easily slid over the 3x3 box tube. I had to draw up the bolts to ensure a tight fit. I used a large adjustable wrench on the Torx socket with a small length of pipe on the end of the wrench (for mechanical advantage purposes). It drew up and tightened just fine. Overall, it was an easy install. It did exactly what I bought it to do! 62289






- FHDPB340301

ratingratingratingratingrating by: Lee D08/12/2013

Is this review helpful?


Your product was a tremendous package. The trailer I installed it on carries a 1976 Cobalt 19DV that I have owned since new. The trailer is a Calkins single axle 4000lbGW. I have paid over 15K in storage fees for the over 37 years I have owned this boat. I wasn't aware of a product like this until I happened to see a trailer at a Bass Pro Shop in Branson MO while on a vacation trip. The trailer had a swing tongue not your product but it got me thinking and after returning home I found your product on the internet. Can't believe how great the application fit and the ease of installation(after drilling holes of course). I have on single car garage that I tried to store the boat in but the tongue was to long to be able to close the door. After this installation the trailer fits perfect. Great product would recommend to anyone. 94600






- FHDPB340301

ratingratingratingratingrating by: S.M.08/01/2011

Is this review helpful?


This hinge was exactly what I was looking for. My boat would not fit in the garage straight in or even at a shallow enough angle to park a car next to it. After a couple of hours of labor(FUN). The boat fits nicely on its side of the garage. I like projects that are rewarding once completed. The hinge is beautiful, and looks like it belongs on the trailer. The quality of materials was remarkable, and the fit was perfect. I have no concerns with this product failing whatsoever. Be careful not to cut your trailer wiring when sawing through the tongue. I needed a new plug on that end anyways, so no heartache here. I have read another review that stated this hinge was not sturdy and rattled. The only explanation I could see with the reason for that is not installing the rubber stoppers on the hinge per the instructions. The fit after installing the rubber was snug. It takes a little effort to close the hinge with the rubber stoppers installed and results in a tight connection. The picture of the product on this website shows the nuts on the top and bottom (outside) of the hinge, in the instructions it has you install them the other way, which leads to a cleaner looking end product. I will tell everyone I know that owns a boat about this product. 20770






- FHDPB330301

ratingratingratingratingrating by: Johnnie03/11/2014

Is this review helpful?


Hi there . I just want to say this swing out hinge is great love how easy it is to install and use . I'm done with the install and I need to add my safety chain . But hear are some pics of my install and a new hitch as well. 120204






- FHDPB330301

ratingratingratingratingrating by: JW03/02/2012

Is this review helpful?


I purchased this folding trailer tongue device so that I could park my 16' Boston Whaler Dauntless in the garage and still have room for a car. It worked just fine and I can tell no difference in the way the trailer tows. It is very sturdy device and I have complete cofidence in its strength. I must admit I was a bit anxious about cutting my trailer tongue (31"), but it worked fine. I used a circular saw with a metal blade first and then finished the cut with a saw jaws. After that a good drill and bits are critical. The directions were good and I followed them closely. I wish I had done it last year, my car would not have had to stay outside. 33004






- FHDPB230101

ratingratingratingratingrating by: Don C12/02/2013

Is this review helpful?


Just completed installation of trailer tongue hinge and could not be more pleased with the result. This saved 3ft off orig trailer length and allows boat to now easily fit in the garage - just in time for winter. Installation went smoothly - the instructions and on-site vids were extremely helpful in avoiding issues. I'd caution anyone to take heed of the safety cautions - esp. eye protection - when cutting and drilling. Results were fantastic. Hinge is a high quality, solid product - extremely pleased. Item shipped and arrived early, customer service is first rate and I will def be ordering from etrailer again. Highly recommend. 108869






- FHDPB330301

ratingratingratingratingrating by: Range fishing04/19/2014

Is this review helpful?


Excellent product. Service was great. Ordered on a Friday night and had it by Wednesday. Altogether, install takes roughly two hours. Recommend having a good saw and good bits to make it go as smooth as possible. Bottom line, I can now finally shut my garage door all the way. Highly recommend this product to anyone looking to make a swing tongue without having to pay $300 to have a shop do it. 125979






- FHDPB330301

ratingratingratingratingrating by: Greg10/17/2012

Is this review helpful?


Bought a used boat and it needed to fit in the garage. This was the best option and it turned out great. The product details were a big help for the fit and installation. Took about 2 hours and make sure you have a good bit to drill the holes. I stumbled on to etrailers website and no need to look any further. It's hard not to get the right part with all the details and pictures they provide. I have bought several items and the quality is high, price is fair and ships on time. I've sent my buddies your way and I'm working on another order...Thanks! 57439






- FHDPB330301

ratingratingratingratingrating by: William J09/03/2013

Is this review helpful?


Best accessory yet for my 17' Tracker & trailer. Fits nicely in my garage now. Installation, although time consuming, was easy - the directions were spot on. Now I just need to get extensions for my safety chains so I can mount behind the fold-away bracket. Would recommended this for anyone needing to take advantage of the limited space. 98097






- FHDPB330301

ratingratingratingratingrating by: Russ Mc11/21/2012

Is this review helpful?


Exactly what I needed/wanted! etrailer's price was the lowest also! The shipping was excellent; had it at my door in just THREE Days! Thanks etrailer! I will definitely buy again! 59897





Comments

Perfect! Still satisfied ! Thanks

Russ Mc - 05/22/2014

4371



- FHDPB230101

ratingratingratingratingrating by: John C10/13/2013

Is this review helpful?


I keep my boat in the garage which made for a tight fit to get into the house. I came across the Fold-Away Coupler Hinge Kit. - ordered it and installed it this weekend. The installation was much easier than I expected. Great communication from the folks at trailer.com Now the boat fits with more space to move around in the garage. My wife is happy - so I am happy! Great product! Photo attached - I just have to move the chains so they connect behind the coupler. 103680






- FHDPB340301

ratingratingratingratingrating by: Marty07/12/2011

Is this review helpful?


This is a great product in concept, but not in execution. My friend installed one, which I liked. I needed to shorten my trailer by a few inches so I bought the kit too. I was able to shorten the trailer by 24 inches instead of only a few inches. When all was installed I tested it out, and the darn thing has so much wobble in it that I can easily get 1/2"-1" of up and down wobble at the coupler only 24 inches away. The casting and pins aren't a tight fit, and therefore the rating of the product is poor. I'm very disappointed and now I have a connection that scares me when I tow it. Not worth the convenience. 19298






- FHDPB330301

ratingratingratingratingrating by: Harry C.12/01/2012

Is this review helpful?


I had a short boat on a long trailer so I cut some of the tongue off for easy trailering and storage in my shop. Then I got a longer boat and found myself having to put my truck in the water during low water season. I was going to weld the tongue back on until I found this product on the net. I received it quickly and it had everything I needed. It installed quickly and easy. I no longer have to back my truck in the water and I can still store it in my shop. Great product and would recommend to anyone. Thanks Etrailer. 60392






- FHDPW340300

ratingratingratingratingrating by: Jeremy J05/20/2013

Is this review helpful?


Kit came fast and fit great. Very happy with the ability to park the boat in the garage and only take up one parking spot. 81037






- FHDPB330301

ratingratingratingratingrating by: Tom Desneux06/19/2014

Is this review helpful?


Works great in extending tongue length by 36" for ramps that are not steep. All wiring and safety chains contained inside tongue tube. Chains and wiring zip tied together so a simple pull on chain allows tongue to be moved to towing position. Allows Power Caster usage to place trailer in garage with tongue folded. 136644






- FHDPB330301

ratingratingratingratingrating by: Greg B04/28/2014

Is this review helpful?


I bought this product so that I could extend the tongue on one of my boat trailers. It installed quite easily and works really well. The construction seems super durable, which is what I was looking for. Now I can tow that boat with my minivan rather than huge truck. Since the tongue is extended the van doesn't come anywhere close to touching corrosive sea water. When I get home I just release the pin and rotate the tongue extension aft for efficient storage. 127882






- FHDPB330301

ratingratingratingratingrating by: Mike M.08/02/2012

Is this review helpful?


Thanks for such a great buying experience on line. Again. Ordered Sunday afternoon and the package arrived as advertised on Wednesday. Exactly as I ordered and with excellent instructions. As you can see from the photo it is a done project. Thanks. 50312






- FHDPW340300

ratingratingratingratingrating by: Ed J W.06/13/2013

Is this review helpful?


I bought the fold away to extend the trailer by 3 feet. I pull my boat with a Tahoe and would have to put boots on to get back to the boat to release it. The extra 3 feet will solve that problem. A friend of mine did the welding and everything was straight forward as to how it centered up . I now have it painted and ready for service next week at Lake Shelbyville in IL. I also had to extend the wiring harness the same 3 feet. Thanks Ed. 84541






- FHDPB340301

ratingratingratingratingrating by: Richard C.12/15/2010

Is this review helpful?


Perfect product I really needed to free up space in the garage so my wife could keep her car out of the weather. I ordered the fold away coupler and it has solved all our garage problems. Installation was easy and comes with everything you will need to install. I really don't know how you can improve the product at all. I will suggest this to anyone who needs to fold the tongue on there boat to make it fit in the garage straight. 4187






- FHDPB330301

ratingratingratingratingrating by: John S08/26/2012

Is this review helpful?


I had jack knifed my trailer and bent the tongue. This allowed me to cut out the bent section of the tongue and to install the fold away coupler. It does everything it is advertised to do. Once I got it installed it was great. It takes some work to drill the 16 holes and especially to tighten the 16 bolts. It definitely helps to have two people do the installation. Bottom line is it solved my problems. Thank you etrailer. 53065






- FHDPB230101

ratingratingratingratingrating by: Larry H.05/24/2012

Is this review helpful?


I wanted to put my smaller fishing boat in the garage in the winter. No luck! The tongue of the trailer was in the way. I ordered the Fulton Fold-Away Coupler Hinge Kit and after an easy installation I will be able to have the boat in the garage where it will be out of the weather and available for me to work on for the next fishing season. Thanks for a quality product and fantastic attention to customer satisfaction. A+A+A+ 41532






- FHDPB330301

ratingratingratingratingrating by: Joel Hatcher03/01/2011

Is this review helpful?


I recieved the coupler last night and install it today. It was top quility and every thing I needed came with it. It is going to save me a lot of money in storage bacause the boat will fit were it couldn't before. 8202






- FHDPB340301

ratingratingratingratingrating by: Ron B05/16/2014

Is this review helpful?


Excellent product. They were extremely helpful in getting this ordered --'real' friendly people. All hardware, plus a centering punch and torx bit to hold the fasteners were provided. Thank you much. 131039






- FHDPW340300

ratingratingratingratingrating by: David08/21/2013

Is this review helpful?


As a machinist/pattern maker for over 25 years, this is a very nicely engineered casting. Their is not a square corner on this part, which is good, square corners tend to crack. All the cast flashing, especially on the inside, has been removed. Very clean look for a casting. Pin and bolt slide thru, good fit. I could have made this piece, but it would have cost me more than I can buy it for. 96293






- FHDPB350101

ratingratingratingratingrating by: Mark P.01/23/2011

Is this review helpful?


Very impressed with product, excellent instruction included torx bit for installation and centering punch to mark holes, that was very thougtfull of Fulton. Used sawsall to cut 3x5 tounge on Shorelander trailer with very good success. The instant shipping from etrailer.com impressed me very much, Thank you, will order from again with out a second thought. 5947




66
165
Show More Reviews

Ask the Experts about this Fulton Trailer Coupler
Expert Answers about Fulton Fold-Away Coupler Hinge Kit for 3" x 3" Trailer Tongue - Weld On - Up to 5,000 lbs - FHDPW330300                                       Do you have a question about this Trailer Coupler?


  • Should I Use a Bolt On or a Weld on Fold Away Coupler On a Shorelander Trailer with 3x3 Frame
  • I more or less agree with you. The Fulton Fold-Away Hinge Kit for 3 x 3 inch Trailer Tongue - Weld-On, item # FHDPW330300, is a cleaner look and if you got a bad weld job you would not have a safe setup. I have done some welding, I am in no way a professional weldor, and in my limited experience a good weld will not fail before the steel it is welded to will fail. If you like the clean look of the weld on I would have a certified weldor perform the operation. If you take the trailer to...
    view full answer...

  • How Do You Weld the Fulton Weld On Hinge Kit for 3x3 Tailer Frame and What Material is it Made Of
  • The Weld-On Fulton Fold-Away Hinge Kit for 3" x 3" Trailer Tongue, item # FHDPW330300, is constructed of cast steel. All welding must be performed by a certified AWS welder. Making sure casting is straight and fully seated on the tongue tube. Weld complete on all four sides using a 3/16 inch minimum fillet weld.
    view full answer...

  • Installation and Quality Details of the Fulton Fold-Away Coupler Hinge Kit, # FHDPB330301
  • When the Fulton Fold-Away Coupler Hinge Kit, # FHDPB330301, is in the closed position, it measures 7-1/2 inches long. Each end of the trailer tongue will go in at least 3 inches and is held in place by 4 bolts a piece. When properly installed, the hinge will not degrade the integrity of the trailer or lower its capacity. If you stay within the capacity and do not overload the trailer you should not have bending or cracking problems. If the pivot length is at the maximum of 34 inches,...
    view full answer...

  • Installation of Fulton Fold-Away Coupler Kit # FHDPW350300 and Will it Work On an Aluminum Trailer
  • The Fulton Fold-Away Coupler Hinge Kit, Weld-On, part # FHDPW350300, is not for use on an aluminum frame trailer. It would need to be welded to a steel frame trailer. On an aluminum trailer you would need to check with the trailer manufacturer if a bolt-on hinge kit can be used. If it can, you can use the Fulton Fold-Away Coupler Hinge Kit, Bolt-On, part # FHDPB350101. This will fit the 3 inch x 5 inch tongue you have referenced. To install the Fulton Fold-Away Coupler Hinge Kit,...
    view full answer...

  • Lanuage for fitting Fold-Away Coupler Hinge Kit FHDPW330300
  • Couplers are the foremost part of the trailer that attaches to the hitch ball. Actuators are trailer couplers that are normally on boats and have a surge break system built in. Standard couplers are couplers without brakes. The Fulton Fold-Away Hinge Kit is the weld on version and there is a bolt on version available to create a foldaway tongue for a 3 inch by 3 inch trailer frame. We also carry both versions for the 3 inch by 4 inch trailer frame. When determining the maximum pivot...
    view full answer...

  • Where Does the Trailer Jack Install on a Trailer if it has a Hinge Coupler
  • You will want to put the trailer jack between the Fulton Fold-Away Coupler Hinge Kit # FHDPW330300 that you referenced and the frame of the trailer. If you had the jack on the side of the hinge that pivots it would make it unstable and difficult to pivot the tongue of the coupler. Not only would it make things much more difficult, but the hinge is designed to only support weight when it is locked out straight as both sides of hinge will have support to carry the weight. When the hinge...
    view full answer...

  • Bolt on Fold-Away Hinge Kit for a 3 inch by 3inch boat Trailer Tongue
  • For a 3 inch by 3 inch bolt on trailer tongue hinge kit you will need to use the Fulton Bolt On Fold-Away Coupler Hinge Kit, # FHDPB330301. This hinge kit is designed to bolt on without welding and allows you to create up to a 48 inch long foldaway tongue on your boat trailer, depending on the gross trailer weight and max tongue weight of the trailer. I added a chart that shows the GTW, TW and Maximum Pivot Length for the # FHDPB330301 fold-away. You should always install the fold -away...
    view full answer...

  • What Kind of Welding Is Required to Install Fold-Away Coupler Hinge Kit FHDPW230300
  • Wire feed welding would be the best welding method to secure the # FHDPW230300 hinge kit to your existing trailer tongue. To install the hinge, you would simply cut the tongue at the point at which you want it to pivot, and then slide the two sides of the hinges over the newly cut ends. They will slide on about 3 inches on each side. To determine the maximum pivot length for your particular trailer, I recommend taking a look at the chart on the product page for hinge kit # FHDPW330300. The...
    view full answer...

  • Want Folding Coupler for Performance Brand Boat Trailer with 2-1/2-inch x 2-3/8-inch Trailer Tongue
  • Thank you for providing a photo of your trailer tongue to help illustrate its dimensions which you measured as 2-1/2-inches tall x 2-3/8-inches wide. This is an unusual tongue size and we do not offer any folding couplers in this size. Since Performance Trailer is no longer in business I was not able to find out what materials they used in construction of their trailers; please note that foldaway couplers such as the unit you referenced, part # FHDPB330301 from Fulton, cannot be used on...
    view full answer...

  • Length of Fulton Fold-Away Hinge Kit, part # FHDPW330300
  • I went out to our warehouse and measured this. The hinge is 4 inches deep at the longest angle. At the shortest, it is 3-1/4 inches long.
    view full answer...


Info for this part was:


Photos by:
Theodore B

Written by:
Lindsey S

Expert Research:
DeAnne T

Expert Research:
Robert G

Installed by:
Jeff D

Expert Research:
Jameson C

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




Stay Connected


Subscribe to email newsletter

Email

privacy - we don't send unsolicited email





Only 20 Hours 33 Minutes Remaining

etrailer.com reviewsetrailer.com reviews

All images, layout and content copyright etrailer.com
