Code: FHDPB340301
Retail:$139.83
Price:$107.95
Shipping Weight: 14 pounds
Shipping SpecialUse with actuators or standard couplers to create a foldaway tongue up to 48" long so that your trailer can be stored in even the smallest garage. Unique offset design guarantees superior performance.
Features:
Specs:
Use the table below to determine your maximum pivot length based on your trailer capacity. Pivot length is the measurement from the center line of the coupler ball to the farthest pivot hole.
Video of Fulton Fold-Away Coupler Hinge Kit for 3" x 4" Tongue - Bolt On - Up to 7,000 lbs
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

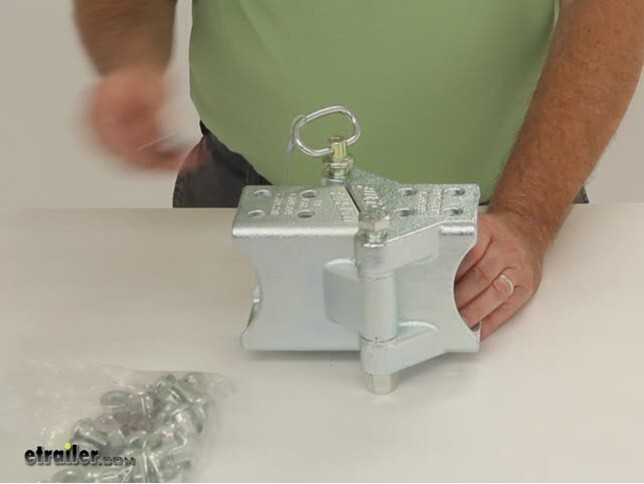

Today were going to review part number fhdpb340301. This is the Fulton Fold Away Coupler hinge kit for three inch by four inch trailer tongue. This is a bolt-on kit. This hinge kit will let you create up to a 48 inch fold away tongue for your trailer. It is designed to be used with actuators or standard couplers. This is a bolt-on installation.
It is of sturdy steel construction. As you can see it has a shiny, corrosion resistant, zemat 600 zinc finish. The mounting hardware, the pivot bolt and the pivot pin and clip are included. Now this hinge kit is not for use on aluminum trailer frames. It is made in the USA.
The application is to fit on three inch by four inch trailer tongue. That would be three inches wide by four inches tall. It does come with a five year limited warranty. Basically you would just pull the clip and pull the pin out. That would allow the fold away section, which would just be this part here, actually fold away.
It can be mounted the other way also to where it would fold this way. Now Fulton does recommend that the male casting, which is this casting right here, that has the casting on the middle here. This male casting should be mounted to the stationer part of the trailer tongue. Then this female casting part would be mounted to the fold away section of the tongue. Basically when youre going to tow with it you just put your pin in.
Put the clip on and you would be ready to go. Then if you pull it in the garage and you need to fold the tongue for storage just remove the pin and clip. This section which is the fold away part would just fold back towards the trailer. Now the capacity on this is up to 7,500 pounds. What you would want to do is look at the product page for this part number. It will list the table and show that depending on the length of the fold away section of your tongue, that length its called the maximum pivot length will determine the weight capacity. Basically what you would do is to determine the pivot length. This part is attached to the fold away tongue. You would measure from the center line of the coupler ball to the furthest pivot hole which is this one back here. If that fold away part is 48 inches then your weight capacity would be 4,000 pounds. Now if it is a shorter pivot length like 27 inches then it would give you the maximum of 7,500 pounds. Depending on what the pivot length is will determine the capacity of this hinge kit. Again I do recommend to go to the product page of this part number. Itll list the table and show you the different lengths. Then what your capacity rating would be. That should do it for review on part number fhdpb340301.
Customers compare FHDPB340301 to these similar products
Customers Who Purchased This Trailer Coupler Also Bought...
Average Customer Rating: 4.8 out of 5 stars (20 Customer Reviews)
by: S.M.08/01/2011
Is this review helpful?
This hinge was exactly what I was looking for. My boat would not fit in the garage straight in or even at a shallow enough angle to park a car next to it. After a couple of hours of labor(FUN). The boat fits nicely on its side of the garage. I like projects that are rewarding once completed. The hinge is beautiful, and looks like it belongs on the trailer. The quality of materials was remarkable, and the fit was perfect. I have no concerns with this product failing whatsoever. Be careful not to cut your trailer wiring when sawing through the tongue. I needed a new plug on that end anyways, so no heartache here. I have read another review that stated this hinge was not sturdy and rattled. The only explanation I could see with the reason for that is not installing the rubber stoppers on the hinge per the instructions. The fit after installing the rubber was snug. It takes a little effort to close the hinge with the rubber stoppers installed and results in a tight connection. The picture of the product on this website shows the nuts on the top and bottom (outside) of the hinge, in the instructions it has you install them the other way, which leads to a cleaner looking end product. I will tell everyone I know that owns a boat about this product. 20770
by: J05/15/2013
Is this review helpful?
Product was exactly as described and communication was excellent! Very satisfied with this transaction!80335
by: Kevin04/23/2013
Is this review helpful?
This is a great idea! I was looking to for a way to get my boat in the garage and here it is. The installation went perfectly smooth and was well described in the instructions. The device is solid and sturdy. Pretty clever. 77400
by: William02/27/2013
Is this review helpful?
Received really fast from Etrailer. Had to have a new tongue fabricated so had the trailer shop install. The joint is really stout and folds back 180. Very pleased overall.67887
by: DAVID01/30/2013
Is this review helpful?
Great product, Easy installation. Use it on my 95' bullet bass boat Trailer. Highly recommend.AAA+++ Seller.64584
by: Brent01/26/2013
Is this review helpful?
Great product. Looks good and fits even better. I would buy again. 64180
by: Stephen S.10/08/2012
Is this review helpful?
I haven't put the swing-away coupler on my trailer yet but I have been very happy with the level of customer support I have received. The product arrived early and I got emails keeping me up-to-date throughout the process. I highly recommend this company.56678
by: Justin09/20/2012
Is this review helpful?
Fast, friendly service. Product arrived faster than expected and the product performed perfectly. Thank you.55237
by: Bruce H.09/18/2012
Is this review helpful?
Exactly what I needed to squeeze my boat and trailer into my garage!55063
by: russ s08/18/2012
Is this review helpful?
ordering was easy and it was at my door in two days !!!!!52221
by: Rod F.06/19/2012
Is this review helpful?
Well made and thought out. Instructions were clear and easy to follow. My only complaint is that I wish the instructions would have addressed what to do with brake lines in more detail. Total installation was 3 hours including bleeding the brake lines. There were two of us which makes it much easier, especially for bleeding the brake lines.44764
by: Jeff W11/21/2011
Is this review helpful?
Installed real easy, very sturdy with great instructions and weight ratings. Only sorry I didn't install it sooner27251
by: Brent P11/14/2011
Is this review helpful?
This item worked as it was described...The instal went very smooth, I can now fit my boat in the garage ..... I also love etrailer... they have the best web site to find items and seem to have the best prices as well.26899
by: Eric11/05/2011
Is this review helpful?
Fastest shipping EVER - I ordered at 7:30pm, standard shipping, arrived at my door, the next day at 1:30 - thanks etrailer!!!!! 26592
by: Jon in Florida10/18/2011
Is this review helpful?
This was exactly what I needed to fit the trailer in my garage. I have already installed it. I used a sawzall with a metal blade to cut right through the trailer, and then I used titanium drill bits to bore holes. 25747
by: John R.10/16/2011
Is this review helpful?
Product delivered as advertised and on time.25646
by: Stefan Bernd07/18/2011
Is this review helpful?
Exactly like ordered. Really fast and very friendly responds. Always again19592
by: Marty07/12/2011
Is this review helpful?
This is a great product in concept, but not in execution. My friend installed one, which I liked. I needed to shorten my trailer by a few inches so I bought the kit too. I was able to shorten the trailer by 24 inches instead of only a few inches. When all was installed I tested it out, and the darn thing has so much wobble in it that I can easily get 1/2"-1" of up and down wobble at the coupler only 24 inches away. The casting and pins aren't a tight fit, and therefore the rating of the product is poor. I'm very disappointed and now I have a connection that scares me when I tow it. Not worth the convenience.19298
by: BO H.03/26/2011
Is this review helpful?
I WAS SATISFIED WITH PRODUCT & THE INSTRUCTIONS PROVIDED WITH IT. IT INSTALLED VERY EASILY. THE WRENCH PROVIDED TO INSTALL BOLTS & NUTS & THE PUNCH WAS VERY HELPFUL.10420
by: Richard C.12/15/2010
Is this review helpful?
Perfect product I really needed to free up space in the garage so my wife could keep her car out of the weather. I ordered the fold away coupler and it has solved all our garage problems. Installation was easy and comes with everything you will need to install. I really don't know how you can improve the product at all. I will suggest this to anyone who needs to fold the tongue on there boat to make it fit in the garage straight. 4187
