Fulton A-Frame Coupler, 2-5/16" Ball, Wedge Latch, Oily Finish - 10,000 lbs

Video Transcript for Fulton Trailer Coupler F44305R0500 Review

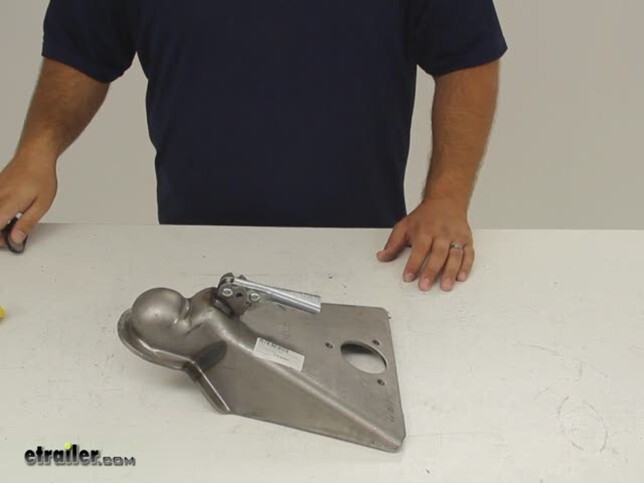

Today were going to take a quick look at the Fulton A-frame Coupler for two and five sixteenth balls part number f44305r0500. Now Fulton covers this coupler with a limited three year warranty. It has a gross trailer capacity of 10,000 pounds. Again its designed to be used with trailer balls that measure two and five sixteenths inches. This coupler comes unfinished so you can paint it or finish to suit whatever needs you have for your trailer. The latch mechanism works by pulling this release trigger on the bottom side of the latch and lifting the handle up.

As you do this the wedge inside our coupler is pulled up and away from our trailer ball releasing it. Now back up at the latch well you see theres a hole here to secure the lock and prevent it from opening while trailering down the road but itll also prevent theft. When you open the latch the hole lines up with the cut outs in the top of the mount so you can re-insert that pin and keep the jaw open while your hooking or unhooking your trailer. Its designed to be used with 50 degree A-frame trailers and it has a cut out and threaded holes for mounting your jack. Now weve got a two and five sixteenth ball with us today so we can show how the coupler works with the ball.

Well pull up our release trigger, open the latch and we can fit our ball into place. The latch closes and the wedge moves down securing the ball. It allows free movement so the trailer will track nicely behind the vehicle but it is captive and wont let the ball out. Well lift up our latch, the wedge moves back and we can remove the ball. Thats it for a quick look at the Fulton A-frame Coupler for two and five sixteenth balls part number f44305r0500..
