Trailer Coupler 2" Ball 2-1/2" Channel Tongue (3,500 lbs.) by Dutton-Lainson

Dutton-Lainson Trailer Coupler - DL13847

A key element of easy hitching, unhitching and safe trailer towing is a strong and efficiently operating coupler system, properly installed on the tongue of the trailer. D-L couplers offer an exclusive Quick-Lock ball clamp assembly that can be adjusted without wrenches. This feature provides a precise fit on the hitch ball while the trigger action release allows fast locking and unlocking. The lock lever is held securely closed by cam action and the safety latch.

Features:

• Adjustable lock ball clamp
• Fits 2-1/2" tongue
• Overall length: 10-1/2"
• Capacity: 3,500 lbs.
• Zinc TUFFPLATE finish
• Made in the USA

13847 Trailer Coupler 2" Ball 2-1/2" Channel Tongue (3,500 lbs.) by Dutton-Lainson Model 982P-2

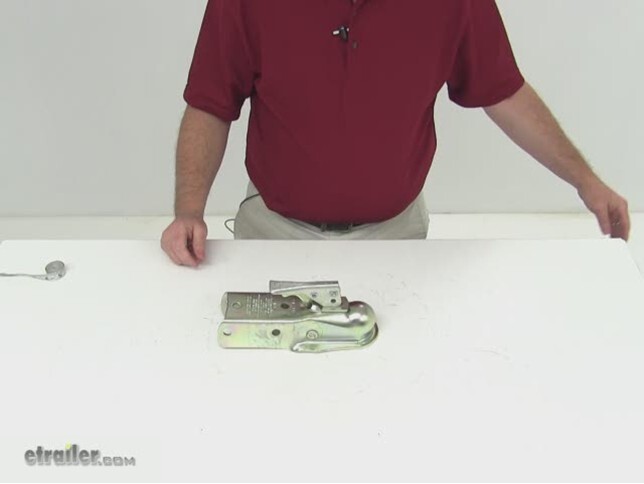

Video of Trailer Coupler 2" Ball 2-1/2" Channel Tongue (3,500 lbs.) by Dutton-Lainson

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Dutton-Lainson Trailer Coupler DL13847 Review

Customers compare DL13847 to these similar products

Fulton Fas-Lok Coupler, 2" Ball, 2-1/2" Channel - 3,500 lbs$20.95

Trailer Coupler 2" Ball 2-1/2" Channel Tongue (3,000 lbs)$19.95

Fulton Fas-Lok Coupler, 2" Ball, 2" Channel - 3,500 lbs$20.95

Trailer Coupler 2" Ball 2" Channel Tongue (3,500 lbs.) by Dutton-Lainson$22.95

Trailer Coupler 1-7/8" Ball 2-1/2" Channel Tongue (2,000 lbs)$16.95

Customers Who Purchased This Trailer Coupler Also Bought...

Primary Wire - 16-Gauge - White - per Foot $0.13

Pro Series Round, Pipe-Mount Swivel Jack w/ Footplate - Topwind - 10" Lift - 5,000 lbs $25.95

Trailer Wheel Lug Nut - 1/2"(Each) $0.58

Chrome Trailer Wheel Lug Nut - 1/2" (Each) $0.99

Replacement U-Bolt with Nuts for 1-1/2" Wide, Square Trailer Axles - 1/2" Diameter $6.99

Ask the Experts about this Dutton-Lainson Trailer Coupler
Do you have a question about this Trailer Coupler?

• Need Replacement Trailer Coupler With 2.5 Channel 1-7/8 Inch Ball Coupler To 2 Inch Ball Coupler

• The item you selected, Trailer Coupler 2 Inch Ball 2-1/2 Inch Channel, part # DL13847 has a bolt spacing of 3 inches from the center of the bolt holes. At this time we do not have a 2 Inch Ball Coupler with a bolt spacing of 2-1/2 inches. The replacement trailer coupler that you will work if the gross trailer weight capacity of your trailer is 2,000 pounds or less is the Master Lock Trailer Coupler 1-7/8 Inch Ball 2-1/2 Inch Channel Tongue, part # 2834AT. The bolt spacing on part # 2834AT is
  view full answer...


• Ball and Coupler Recommendation for a Trailer with 2-1/2 inch Channel

• One idea would be for you to install the Dutton-Lainson Trailer Coupler # DL13847 that you referenced since it will match the 2.5 inch channel and 2.5 inch distance between bolts, and then get a 1-7/8 inch ball for your ball mount and you should be ready to go. I attached a page that has all of the 1-7/8 inch balls we offer and an FAQ page on hitch balls for you to check out. Another option you have is to install a Fulton Fas-Lok Coupler # F222500301 by having it welded on. That way you would
  view full answer...


• Will Bolt Pattern on Dutton-Lainson Trailer Coupler # DL13847 Match Fulton Coupler on Boat Trailer

• Yes, the mounting holes on the Dutton-Lainson Trailer Coupler, part # DL13847, will be in the same location as the mounting holes on the Fulton Trailer Coupler, part # F222500301. As long as the tongue has not been modified the mounting holes are all at the industry standard of 3 inches, center to center, and the distance from the top of the channel to the center of the mounting holes will be the same on all of the bolt-on couplers.
  view full answer...
