Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Driver's-side electric trailer brake assembly measures 12" x 2" and features a thoroughly tested magnet and high-quality friction material. Rated for up to 7,000-lb axles.
Features:
Specs:

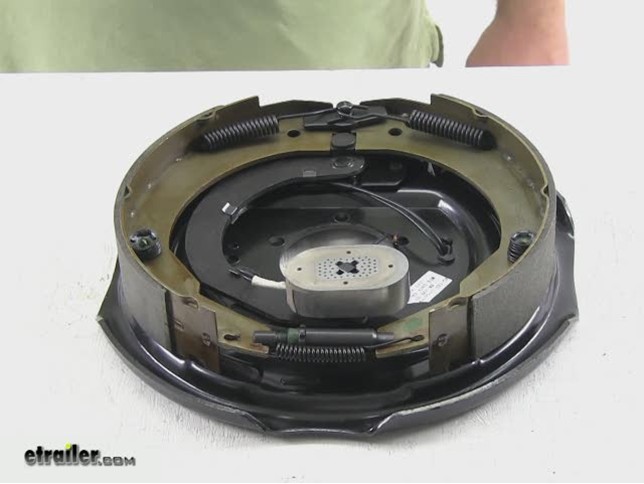

Video of TruRyde Electric Brake Assembly - 12" - Left Hand
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Today we are going to look at the TruRyde Electric Brake Assembly 12 for the left hand side, part number TRBK12E01. This is a 12 by 2 brake assembly. We can measure across the brake shoes for our 12 figure, and then we will measure the width of the shoes, and thats where we get our 2. This brake assembly when paired with the opposite side are good for axels up to 7,000 pounds. Its also covered by a 1 year limited warranty. It uses a 5 stud mounting pattern, so you need to check the axel on your trailer to make sure that you have the correct pattern.
There are a pair of wires that you will need to hook up to operate the magnet. It doesnt matter which you use for ground and which you use for brake feed, so as long as you have a solid electrical connection. This is a manual adjust brake, so over time as the shoes wear, you will need to adjust the tension to make sure you have proper braking pressure. To do this you will rotate the star wheel to expand this pin, and expand the shoes. This is an electric brake assembly, and the way it works is as you brake in the tow vehicle current is sent to this magnet and it is charged.
It becomes magnetized and it adheres against the drum rotating around it. As the drum rotates, the drag on the magnet activates this arm, and it will open the brake assembly up, applying pressure to the drum. Again this is an electrical system so you want to make sure you are not going to use it on boat trailers or marine applications. The way to identify which is left hand and which is right hand is that you will always make sure that the shorter shoe is facing the nose of the trailer, and the longer shoe is on the back of the trailer. And that does it for the TruRyde Electric Brake Assembly 12 for the left hand side, part number TRBK12E01..
Customers compare TRBK12E01 to these similar products
Customers Who Purchased This Trailer Brakes Also Bought...
Average Customer Rating:
4.8 out of 5 stars (44 Customer Reviews)
by: Blaine T06/21/2011
Is this review helpful?
So far product has been very good. Thanks for a great shopping experience.17606
by: Knotts106/03/2013
Is this review helpful?
Assembly fit perfectly, amazing pricing, awesome communication, and super fast shipping. E-Trailer.com seriously impressed me and we will absolutely buy again!83124
by: william04/19/2013
Is this review helpful?
very impressed with product matching my old parts and shipping was in a timely manner, thank you76958
by: Nathan S.04/19/2013
Is this review helpful?
Received 3/7/13, installed 3/14/13. Lost braking power yesterday 4/18/13. Took drum assembly apart to inspect brakes. After just barely over a months use and they are down to the metal? I've been doing this(pulling freight on 6-7klb axle trailer) for 10 years and generally get a years use per set. Drums were replaced with shoes. Must have gotten a bad batch this time.76894
That kind of wear certainly is not normal. How did you adjust the brake assemblies when you first installed them?
Patrick B - 4/22/2013 by: Rob K.04/16/2013
Is this review helpful?
I bought 4 of these kits for my car hauler! Came with everything i needed and it was nice that its all assembled on delivery. I have read some reviews about the mounting bolts not being with the kit. That was not an issue for me because i just reused the old ones. installed in a couple hours and adjusted and works great so far. Cant beat it for the price.76402
by: Gary04/01/2013
Is this review helpful?
Great service - ordered and shipped in the same day. Not installed them yet but inspection shows excellent quality73571
by: Joseph03/10/2013
Is this review helpful?
fast shipping!! great fit!!! great price!!! thanks again!!!69894
by: Jason03/05/2013
Is this review helpful?
Just what I was looking for, ended up having to replace all brake & ground wires to both axles, then while I was at it I went ahead and rewired entire trailer. Should not have to worry about anything for a while, 68831
by: GARY02/13/2013
Is this review helpful?
Hi Patrick,I am glad to respond with a review of my experience with etrailer, My service was fast and responsive I ordered on Sat. and my order was shipped fast and with free shipping on $ 150+ orders prices were very competitive, In my area there is a lot of homemade and factory built trailers with mobile home style trailer axles and I would like to see more parts info and cross references on your web sight,I just place another order for some axle seals from you for a Moblie home style axle on a 2000 Hudson Trailer but had to use other sources to find part numbers, however I'm sure if I had called I could have found out what I needed just not on your web sight. Thanks for the great service. 66099
by: Paul02/12/2013
Is this review helpful?
faster than a roadrunner thanks again 66072
by: Robert T.01/29/2013
Is this review helpful?
The whole unit is quality built, very solid and heavy duty. An excellent product at a reasonable price.64530
by: Justin01/24/2013
Is this review helpful?
Product was a perfect fit and shipped fast. Also very reasonable prices!!64055
by: David01/21/2013
Is this review helpful?
The product arrived as advertised. The customer service that etrailer.com provides is nothing short of outstanding. The product always arrives before anticipated and the communication throughout the whole transaction is phenomenal! I would recommend this company to anyone.63774
by: Scott R01/21/2013
Is this review helpful?
I received my product in great shape and it worked like a dream. E-trailer had it to me before I expected it. Very fast delivery. I would highly recommend them.63630
by: Michael01/14/2013
Is this review helpful?
Great price and shipped to my door in a few days. Have not installed them yet but look perfect63006
by: mike01/11/2013
Is this review helpful?
fast shipping, good price 62713
by: mike01/11/2013
Is this review helpful?
fast shipping, good price 62712
by: luke n.11/30/2012
Is this review helpful?
These are cheap! But the quality looks good. We will see how they last but i am not concerned.60323
by: Brad B.10/19/2012
Is this review helpful?
It's only been a couple days since I put the brakes on but they work great so far. Easy to install!57642
by: Jeff L.10/18/2012
Is this review helpful?
Superior service. Products as advertized. Internet business as it should be. Will definitely use again.57546
by: Mike10/09/2012
Is this review helpful?
Unit was delivered in excellent shape, seems like a good product... Will have to see how long they last56808
by: nstec10/07/2012
Is this review helpful?
seem to be ok 56617
by: Jacknel08/29/2012
Is this review helpful?
These were very simple to install. and were a 100% replacement for my RV. Appear to be of excellent quality. Great service, great company to do business with. This is my third purchase. Highly recommended.53473
by: Tyrel08/22/2012
Is this review helpful?
Just as described, arrived promptly as always from etrailer.52590
by: Bruce in Arkansas, Ferree Double AXLE Backhoe Trai08/11/2012
Is this review helpful?
Servicing and upgrading old Ferree Trailer out of NC here in Arkansas. Appears to have two 7,000 pound axles with Dexter electric five hole brakes. When pulling the fourth hub we discover no parts, nada, nothing. Etrailer has the Dexter, but we spied and called Heather about this Tru-Ryde an exact replacement. She supplied this complete left side brake setup for one side, left. It fit perfectly, works like a charm, electrical pigtails are ready to hook up. Easier than pie. Thanks Heather and Etrailer.com Two thumbs up.51392
by: Dvaid Carpenter07/13/2012
Is this review helpful?
I just want to say "You guys did a great job. You made it very easy to take my order and kept me informed on the process and tracking the product. I can't believe that I placed my order on Tuesday and received it Thursday morning. Great job, Dave Carpenter47775
by: David B06/23/2012
Is this review helpful?
Great product, easily installed, perfect fit. Much easier than trying to repair the old brakes (again). Great product + Great service = one very satisfied customer. 45363
by: allen06/22/2012
Is this review helpful?
very good brakes 45345
by: chris m.05/30/2012
Is this review helpful?
work great and precfect fit 42107
by: Kevin B.05/07/2012
Is this review helpful?
Great value. High quality for the price, and etrailer.com was terrific to deal with.39598
by: Dean F.03/24/2012
Is this review helpful?
Fit perfectly, easy installation. what a difference this conversion made!35032
by: craig t03/19/2012
Is this review helpful?
product fit perfectly. quality is better than expected. much cheaper than the local trailer sales. would highly recomend to others. fast shipping34403
by: Harold K.03/16/2012
Is this review helpful?
Perfect transaction. Easy to navigate site. Fast shipping. Product went on with ease. Works great. Thanks etrailer.com34150
by: Robert D03/14/2012
Is this review helpful?
Im going to be honest, These are great parts!! You could not buy the parts and rebuild the ones youve got as cheap as this. WOW Im glad I looked at your site and got these.33873
by: Todd Sims11/17/2011
Is this review helpful?
Worked well and priced right. 27069
by: Scott L.11/07/2011
Is this review helpful?
I had 4-9.44 hubs on #5200 axles. When I replaced the hubs to a 8-201-90, I also replaced the brakes. Only one axle had brakes and they were shot. The other axle used to have brakes, but they were missing - nothing but spider webs. The #5200 axle is actually a derated #6000 axle, and the #7000 electric brakes are compatible with it. I installed these brakes on both axles. Very easy to install, fit perfect. The hardest part of the whole job was taking the nuts off the old rusted out brakes. So much fun that was. All new nuts/bolts/lock washers installed. Note to self: wire up the brakes PRIOR to mounting the wheels. 26663
by: Bob F. Sadieville ky.09/29/2011
Is this review helpful?
1st time buyer. Impressed how fast parts arrived. All in good shape. I am sure i will be a return customer. 24855
by: Steve F.09/12/2011
Is this review helpful?
I purchase these to replace my worn AL-KO brakes. They were a direct-bolt up and they look like they are made better than the original AL-KO brakes. The price is amazing! Thanks Etrailer!23810
by: Ernest08/29/2011
Is this review helpful?
Thanks for speedy response and handling...already installed and works great-Thanks23033
by: Dave O08/26/2011
Is this review helpful?
Excellent product and got it very quickly. That was nice! Thanx!22884
by: Jesse H05/23/2011
Is this review helpful?
Excellent cost and really fast shipping! No issues at all. Will be using for any future trailer part needs!15176
by: charlie daniels04/20/2011
Is this review helpful?
these brake assemblies are exactly as i expected -fit the axles just like the oem sets - quick shipping - great value - you people are a pleasure to trade with - thank you much ! 12084
by: Chris W. PA03/30/2011
Is this review helpful?
These are excellent! Very well made, no significant difference between these and the Dexter ones. I'm very pleased with them and e-trailer for their fast order processing and shipping. 10733
by: steve m01/31/2011
Is this review helpful?
Great experience. 6469
