Code: TRBK10E02
Retail:$34.95
Price:$29.95
Shipping Weight: 10 pounds
Shipping SpecialPassenger's-side electric trailer brake assembly measures 10" x 2-1/4" and features a thoroughly tested magnet and high-quality friction material. Rated for up to 3,500-lb axles.
Features:
Specs:
Video of TruRyde Electric Brake Assembly - 10" - Right Hand
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

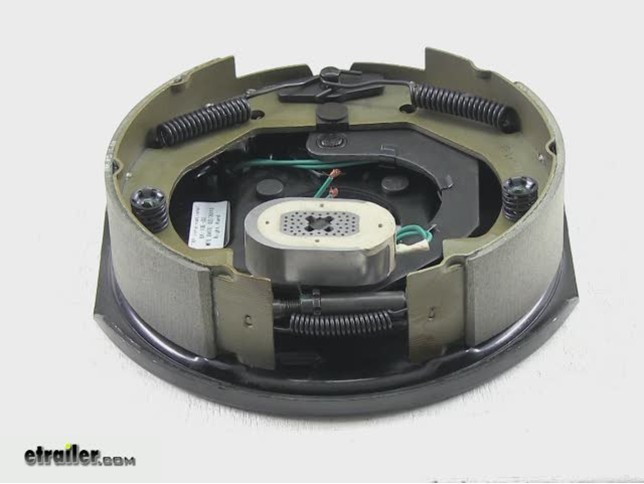

Today we are going to show you the TruRyde Electric Brake Assembly for 10 right hand side, part number TRBK10E02. This is a 10 by 2-1/4 brake assembly, we will measure the diameter across the shoe, and we will get 10, and then we will measure the width of the shoe, and thats where we get our 2-1/4. When paired up with the left hand side assembly these brakes are good for 3,500 pound axels. The assembly uses a 4 bolt flange mount pattern, so you need to check your axel and make sure you have the proper pattern. There are a pair of wire leads and it doesnt matter which you use for your ground connection, or your power connection, just make sure you have a good solid electrical connection. These are manual adjust brake assemblies, so over time as the shoes wear, youll need to make sure you tighten up the system properly.
To do this you will take the star wheel to open or close the shoes and get the proper tension set. We know that this is a right hand side assembly because you will put the shorter shoe towards the front of the trailer, and the longer shoe towards the rear. The way the brake assembly works is when you apply brakes in the tow vehicle, the electric magnet will charge and adhere to the surface of the drum on the inside. As the drum spins around while the wheel is rotating, the drag will pull this lever, and open up the brake assembly applying brakes to the drum, and slowing down the trailer. This assembly is covered by a limited 1 year warranty.
And thats it for the TruRyde Electric Brake Assembly for 10 right hand side, part number TRBK10E02.
Customers compare TRBK10E02 to these similar products
Customers Who Purchased This Trailer Brakes Also Bought...
Average Customer Rating: 4.9 out of 5 stars (11 Customer Reviews)
by: no name04/15/2013
Is this review helpful?
Great product and cheaper than the name brand76259
by: William04/05/2013
Is this review helpful?
Great product and fast shipping. Will use etrailer again!74484
by: Ron03/07/2013
Is this review helpful?
Great company to deal with. Brakes came quicker than estimated, were packaged well and were the best deal I could find. I highly recommend e-trailer and will be buying more from them soon. Not to mention all the great help videos they have. Thanks guys.69400
by: Jim H12/14/2012
Is this review helpful?
Exactly as it should be. No issues. Lower cost replacement for Dexter original, works perfectly. Studs are 7/16-20. The studs were slightly loose in the axle flange that they were installed in, so make sure to install drum with bearings and adjust shoes up tight BEFORE tightening the backing plate nuts. This will make sure that the brakes are centered in the drum.61452
by: William Wilson11/19/2012
Is this review helpful?
Product was as described, communication was great and items were shipped in a very timely manner. Thank You59749
by: lou10/05/2012
Is this review helpful?
Product was new Nuts and washers were not included had to buy them Have not installed yet but looks good Delivery was fast and transaction was good would use etrailer again56345
by: brandon h09/13/2012
Is this review helpful?
shipped extremely fast. but these were the wrong size. my mistake. i needed 12 inch54574
by: Rick06/06/2012
Is this review helpful?
quick service and will do business again 43039
by: Tanya Grove05/10/2012
Is this review helpful?
Great 39868
by: silvercreekfarms07/28/2011
Is this review helpful?
product got sent and here fast!!!! 05 tandam 16ft trailer sat last 2 yrs.funny to do product review after hours of work....I did all the work. 4 brakes where premade and set up, bolt on and wire up.Just rust kicked my butt. hearin from me again thanks bry silvercreekfarms20463
by: Bret F.06/28/2011
Is this review helpful?
Great price for a complete system. Very easy to install. 18073
