Code: TRBK10E01
Retail:$34.95
Price:$29.95
Shipping Weight: 10 pounds
Shipping SpecialDriver's-side electric trailer brake assembly measures 10" x 2-1/4" and features a thoroughly tested magnet and high-quality friction material. Rated for up to 3,500-lb axles.
Features:
Specs:
Video of TruRyde Electric Brake Assembly - 10" - Left Hand
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

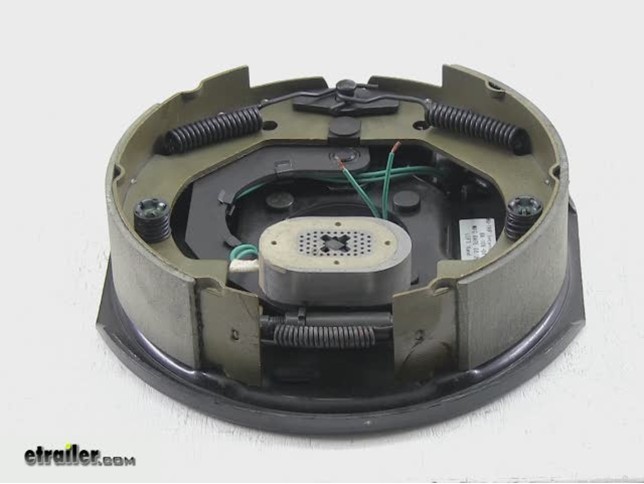

Today we are going to show you the TruRyde Electric Brake Assembly particularly for left hand side, part number TRBK10E01. This is a 10 by 2-1/4 brake assembly. Well measure the diameter across the shoes, and thats where we get our 10, and then we will measure the width of the shoe ant theres our 2-1/4. This assembly utilizes a four bolt flange mount pattern, so you will need to double check your axel and make sure what pattern you have. There are a pair of wire leads, and it doesnt matter which you use for the brake feed and the ground. Either one is fine just make sure you have a good strong electrical connection.
When paired up with the right hand assembly these axels are good up to 3,500 pounds. This is a manual adjust assembly which means that over time the shoes will wear, and you will need to adjust the tension to make sure you have adequate braking power. To do this, you will rotate the star wheel to open and close the shoes as needed. The way the brake assembly works is as you apply brake pressure in your tow vehicle, the magnet will charge and adhere to the drum that is rotating around. As the magnet drags against the surface of the drum it will pull this arm and open up the brakes and apply brake pressure slowing down your trailer.
The brakes are covered by a limited one year warranty, we know that this is the left hand side, because we always put the short shoe towards the front, and the long shoe towards the rear of the trailer. And that does it for the TruRyde Electric Brake Assembly particularly for left hand side, part number TRBK10E01.
Customers compare TRBK10E01 to these similar products
Customers Who Purchased This Trailer Brakes Also Bought...
Average Customer Rating: 4.6 out of 5 stars (22 Customer Reviews)
by: Garry Mc.05/21/2013
Is this review helpful?
Got part quickly, installed in a breeze. Got some good tech help also. So far I'd say this is a good company to deal with.81308
by: Barry M.05/09/2013
Is this review helpful?
Perfect match. Came with new studs, but could have also used new nuts. I had to split one to get old assembly off.79536
by: Fe04/26/2013
Is this review helpful?
very good quality, will order other side very soon77969
by: Joe M04/11/2013
Is this review helpful?
very good product 75431
by: Kurtis03/15/2013
Is this review helpful?
Great product and fits perfect 70889
by: Paul02/28/2013
Is this review helpful?
always great to deal with amazing the stuff on back order always comes with the order. thanks again as always a repeat buyer68137
by: Bill12/29/2012
Is this review helpful?
product is used for upgrade of the old style brake magnets & brakes. complete replacement of the brake assembly was simple & time saving. very satisfied w/ TruRyde products & service. 62200
by: Jim H12/14/2012
Is this review helpful?
Exactly as it should be. No issues. Lower cost replacement for Dexter original, works perfectly. Studs are 7/16-20. The studs were slightly loose in the axle flange that they were installed in, so make sure to install drum with bearings and adjust shoes up tight BEFORE tightening the backing plate nuts. This will make sure that the brakes are centered in the drum.61451
by: tim k12/11/2012
Is this review helpful?
great products very fast shipping.poor packaging boxs were destroyed.61126
by: Bill B12/10/2012
Is this review helpful?
Brake assembly ( left and right ) were delivered quickly and I actually installed the day they were delivered.61067
by: Richard L.10/06/2012
Is this review helpful?
Great SERVICE packaged well and arrived fast.Just as stated in the product desc. Will buy from etrailer again!!!!!!56584
by: Lou10/05/2012
Is this review helpful?
Product was new Nuts and washers were not included had to buy them Have not installed yet but looks good Delivery was fast and transaction was good would use etrailer again56344
by: Rod frisbee09/16/2012
Is this review helpful?
Excellent price excellent service excellent communications. 54824
by: Jason J08/07/2012
Is this review helpful?
Shipped fast and went on easy. 50816
by: Will B07/30/2012
Is this review helpful?
Everything for the price of the brake pads. Just can't go wrong. 49925
by: Dustin S07/19/2012
Is this review helpful?
Brakes work great and easy installation. Better than replacing brake shoes alone. Best price around!48566
by: Randson H07/06/2012
Is this review helpful?
Product works well so far, looks like it should last. Good value for the money, great service at ETrailer.46968
by: Donald S07/06/2012
Is this review helpful?
Great prices quick delivery Very satisf ied46873
by: Mike R06/08/2012
Is this review helpful?
easy to install but dosn't come with lock washers or nuts to bolt to axle will need 4 per 7/16-20 nuts43318
by: Rick Baird06/06/2012
Is this review helpful?
Quick and accurate just what I needed already recomended to three other people43038
by: kevin h06/06/2012
Is this review helpful?
awesome! direct easy bolt on replacement, superfast shipping arrived before expected, great products! i will be a returning customer43026
by: Tanya05/10/2012
Is this review helpful?
Great 39866
