Passenger's-side hydraulic trailer brake assembly features a single-plunger design. Mounting flange has 4-bolt pattern. Lowest Prices for the best trailer brakes from Dexter. Dexter Hydraulic Drum Brake Assembly - Single Servo - 10" - Right Hand - 3,500 lbs part number 23-313 can be ordered online at or call 800-298-8924 for expert service.
Select Your Vehicle

View Cart

Trailer Brakes > Hydraulic Drum Brakes > Brake Assemblies > 10 x 2-1/4 Inch > 3500 lbs Axle > Right Hand Side > Single Servo > Dexter

Dexter Hydraulic Drum Brake Assembly - Single Servo - 10" - Right Hand - 3,500 lbs

Dexter Trailer Brakes

(2 reviews)

Code:   23-313



Shipping Special

Shipping Weight: 9 pounds


Dexter Trailer Brakes - 23-313

Passenger's-side hydraulic trailer brake assembly features a single-plunger design. Mounting flange has 4-bolt pattern.


  • Hydraulic drum brake assembly is designed for use with surge-type trailer brake actuators
  • Single-plunger design
  • Mounting studs included


  • Configuration: right hand (passenger's side)
  • Dimensions: 10" diameter x 2-1/4" thick
  • Mounting flange: 4 bolt
  • Axle rating: up to 3,500 lbs

23-313 10" x 2-1/4" Hydraulic Brake Assembly - RH

Related Products

Customers compare 23-313 to these similar products

Customers Who Purchased This Trailer Brakes Also Bought...

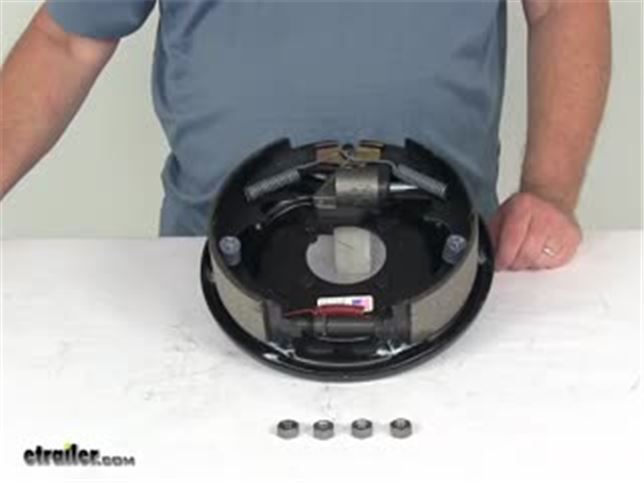

Video of Dexter Hydraulic Drum Brake Assembly - Single Servo - 10" - Right Hand - 3,500 lbs

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Dexter 10" x 2-1/4" Right Hand Hydraulic Trailer Brakes Review

Today, we're looking at the Dexter 10" Hydraulic Brake Assembly, part number 23-313. This setup is for the right-hand side. And the way we tell it is by this configuration, the forward shoe lining be thinner or smaller than the rear shoe lining or your primary shoe. This is a single servo setup, which means it has one wheel cylinder and one piston that pushes out against the shoes and they'll create a wedge effect inside the brake hub drum assembly. Couple this assembly with the left-hand side and the pair will create 3,500 pounds in braking capacity. To give the measurement of our assembly, we'll simply measure across the linings and see it is a 10" width.

Then we can measure the brake linings themselves and see it is 2-1/4". So our hub drum assembly setup will have to be a 10" x 2-1/4" assembly. We're mounting our backing plate to our axle. It has 4 studs pre-pressed in to the backing plate. We'll bolt up to the axle flange through these 4 bolts.

You want to make sure that you have a 4 bolt setup. On your initial installation, you'll use a star wheel adjuster to push the brake lining out to meet your hub drum assembly braking surface. You want to create a light drag on the initial setup. Then as the linings wear down, you'll also need to adjust that star wheel which can be done through the backing plate access hole to keep that light drag and keep the clearances between the shoe linings and the hub drum assemblies to a minimum. And there you have it for our Hydraulic Brake Assembly from Dexter, part number 23-313..
