Galvanized 10" Marine Brake Assembly, Single Servo, Left Hand

Video Transcript for Demco Galvanized 10" Left Hand Trailer Brakes Review

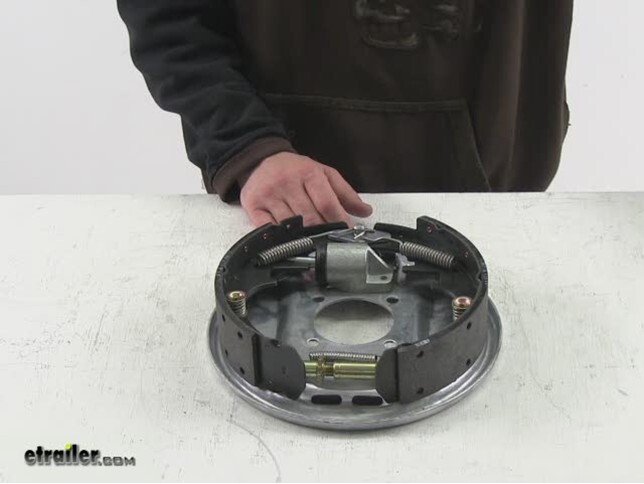

Today were looking at the Demco galvanized marine brake assembly part number 18788. This particular assembly is for the left hand side, we can tell this by looking at the shoe lining. The lining in the forward shoe is smaller than the lining on the rear shoe or primary. This means we have the left hand side. Couple this with the right hand side and it will create 3500 pounds in braking capacity. This is a single Inaudible 00:00:28 setup so we have one wheel cylinder and one piston that well push out against our shoe to create our pressure needed to create braking.

This particular setup is a 10 inch by 2 and . And how we find that measurement is by measuring across the lining to get our 10 inches and then measuring the show width to find out 2 and . When braking in reverse, this setup should create 25 percent braking in reverse. For installation its setup for a 4 bolt flange. You can see the bolts are predrilled to setup for your axle.

Then youll need to make a manual adjustment with the star wheel to push the brake linings out against the brake hub drum assembly. You want a light drag on your initial setup, then as the brake linings wear down, youll need to use the star wheel again to adjust the brake linings out but this can be down through the access hole here in the backing plate. And there you have it for our Demco galvanized 10 inch marine brake assembly, part number 18788.
