Take some of the hassle out of towing your car with this fuse bypass system. FuseMaster replaces your vehicle's mini-fuse and lets you prep for towing by simply flipping a switch. Integrated holder keeps fuse secure and functional. Lowest Prices for the best Tow Bar Wiring from Roadmaster. Roadmaster FuseMaster Fuse Bypass Switch for Towed Vehicle - 10" Harness - 20-Amp ATM Mini-Fuse part number RM76510 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$66.95

Select Your Vehicle
Select Your Vehicle

Roadmaster FuseMaster Fuse Bypass Switch for Towed Vehicle - 10" Harness - 20-Amp ATM Mini-Fuse


5 reviews


Shipping Weight: 2 pounds

Retail:$79.56

Price:$66.95


Tow Bar Wiring > Bypasses Vehicle Wiring > Fuse Bypass > Custom > Engine Compartment > Mini Fuse > Roadmaster


Roadmaster FuseMaster Fuse Bypass Switch for Towed Vehicle - 10" Harness - 20-Amp ATM Mini-Fuse

Roadmaster Tow Bar Wiring

(5 reviews)


Code:   RM76510

Retail:$79.56

Price:$66.95


Custom Fit Product

Shipping Special

Shipping Weight: 2 pounds

Quantity:






Roadmaster Tow Bar Wiring - RM76510

Take some of the hassle out of towing your car with this fuse bypass system. FuseMaster replaces your vehicle's mini-fuse and lets you prep for towing by simply flipping a switch. Integrated holder keeps fuse secure and functional.

Features:

  • Bypasses towed car's mini-fuse so you can tow your vehicle without draining its battery
    • Provides a simple alternative to removing a fuse every time you tow
    • Stores fuse so that you won't lose it
  • Installs quickly, easily and permanently
    • Remove fuse from car's fuse box and install FuseMaster in its place
    • Put fuse into FuseMaster fuse holder
    • Mount bypass switch near fuse box
  • Maintains functionality of mini-fuse when switched on
    • Flip switch to "Drive" position and drive like normal
  • Overrides mini-fuse when switched off
    • Flip switch to "Tow" position and you're good to tow
  • Made in the USA


Specs:

  • Application: ATM mini-fuse not exceeding 20 amps
  • Harness length: 10"


Some cars can be towed only if you get under the hood and pull a fuse. If you don't remove this fuse before towing, there's a good chance that your battery will be drained by the time you reach your destination.


Roadmaster's FuseMaster makes it easy to prep your vehicle for towing. Simply remove the fuse indicated in your owner's manual and replace it with the bypass. The system will hold the removed fuse and maintain its functionality. So, once the initial installation is complete, you don't have to remove or replace your fuse again.


Whenever you want to drive your car, just make sure the switch on the bypass is flipped into the "Drive" position. When the bypass system is on, the fuse will be active and your vehicle will function normally. Then, when it comes time to tow, switch the FuseMaster to "Tow." Doing this will render the fuse inactive so that you can flat tow your car without its battery being drained.


Installation

The preferred location for mounting the FuseMaster switch is the access panel inside your vehicle that leads to your fuse box. The switch must be mounted on a plastic surface that is no thicker than 1/4". Do not mount the switch on a metal surface. Drilling is required.


Roadmaster FuseMaster Switch

Included with the FuseMaster are 2 stickers: "Drive" and "Tow." Once the switch is installed, you can place the stickers on the access panel - one on each side of the toggle - to remind you which way the switch must go for each application. Place the "Drive" sticker on the side of the toggle that has the white dot. (To drive your car, the switch must be flipped so that the side with the white dot is depressed.) The "Tow" sticker can then be placed on the opposite side.




76510 Road Master Fuse Master Fuse Bypass for Towed Cars - Short







Video of Roadmaster FuseMaster Fuse Bypass Switch for Towed Vehicle - 10" Harness - 20-Amp ATM Mini-Fuse


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

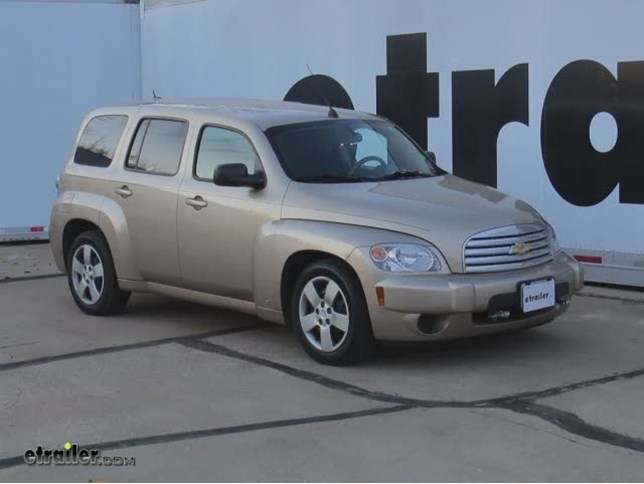

Video Transcript for Roadmaster FuseMaster Fuse Bypass Installation - 2008 Chevrolet HHR

Today on our 20008 Chevrolet HHR we're going to be installing the Roadmaster Fuse Master fuse bypass switch for towed vehicles, part number RM76510. Our switch is currently in the drive mode and we have it hooked up to our tow vehicle. We'll flip it into tow mode, which will disconnect the power going to the fuse port number 8 so it doesn't drain the battery while the vehicle's being towed. Then once you're finished with towing the vehicle and you're ready to drive it again, simply flip the switch back, which again sends power back to the fuse port through the bypass fuse. First we'll go ahead and locate the manufacturer's fuse box panel. The fuse box panel is located on the passenger side on the inside of the console. We'll go ahead and remove the panel by gently pulling out and releasing the fasteners underneath.

Turn it over we can see the four fasteners that secure the panel in place. Next we need to locate fuse pin location number 8. This is for the key pass system, and the one that will be turned off when the vehicle is being towed so that it doesn't drain the battery. All the way to the right of our fuse box, third right top, is a gray 2-amp fuse. This is pin location or fuse location number 8.

Now in order to install the fuse bypass what we'll do is remove our 2-amp fuse and replace it with the pins or terminals here at the end of the fuse bypass harness. Once everything is installed we'll then take the 2-amp fuse, put it into the fuse amp holder, and we'll have our switch mounted. Now mounting location will depend on accesibility between the length of your harness and where it's applicable to mount the switch, because you'll need enough length behind the mounting to allow for the harness and switch itself. To mount the switch we can remove the harness. We'll drill a 3/4" hole in the mounting and use the switch nut that's provided to sandwich it in the panel and secure the switch in place. For this application for the room that we need and the access to the driver we're going to mount it here in the panel.

I'm just going to hold it in place, then go by feel, make sure I've got plenty of room, mark my spot. Now with my panel marked I'm going to go ahead and drill out the hole for the switch. I'm going to start with a pilot bit and a small hole first. Now once our hole is drilled out we'll go ahead and install the switch. Once we have the switch in place we'll turn it over and use the nut to secure it. Now with our switch mounted and installed and secured, we're going to go ahead and install the labels.

We've got one for drive and one for tow. We can remove the label. I'm just going to attach it right above the switch for my drive and right below the switch for when the vehicle is being towed. Now with our switch installed we're going to move back to the vehicle, go ahead and remove the fuse, and install the harness into the fuse port. Again, we're going to the third from the top all the way to the right and removing the 2-amp fuse. Once this fuse is out we can take the wiring harness pins, which will replace the pins from the fuse. Now with the wiring harness installed into the fuse port we'll go ahead and take the two pigtails for our switch and reinstall them. Then we can put our fuse that we removed from the fuse box into the fuse holder. Put the cap on the fuse holder and then reinstall the fuse panel. There you have it for the install and operation of the Roadmaster Fuse Master fuse bypass switch for towed vehicles, part number RM76510, on our 2008 Chevrolet HHR. .


This Product Fits The Following Vehicles

2005 - 2005 Dodge Dakota

2006 - 2006 Chevrolet HHR

2010 - 2015 GMC Terrain

2008 - 2010 Saturn Vue

2006 - 2006 Chevrolet Cobalt 2-Door

2007 - 2010 Chevrolet Cobalt 2-Door, without adjustable pedals

2006 - 2006 Chevrolet Cobalt 4-Door

2007 - 2010 Chevrolet Cobalt 4-Door, without adjustable pedals

2007 - 2011 Chevrolet HHR without adjustable pedals

2012 - 2015 Chevrolet Sonic without adjustable pedals


Customers Who Purchased This Tow Bar Wiring Also Bought...








Customer Reviews

Roadmaster FuseMaster Fuse Bypass Switch for Towed Vehicle - 10" Harness - 20-Amp ATM Mini-Fuse - RM76510

Average Customer Rating:  4.8 out of 5 stars   (5 Customer Reviews)

Take some of the hassle out of towing your car with this fuse bypass system. FuseMaster replaces your vehicle's mini-fuse and lets you prep for towing by simply flipping a switch. Integrated holder keeps fuse secure and functional.


- RM76510

by: Don L02/10/2014


Relatively easy to install, instructions were clear and concise . I am very impressed with service received from you folks. This is the third time I have ordered from you and all three times the service has been exceptional . I will certainly be ordering again as I need more products. Thanks! 116188





Comments

Product works fine and I am still very happy with my purchase

Don L - 03/03/2015

9830



- RM76510

by: Bill B05/29/2014


My wiring harness arrived in 2 days, RM-154 and RM6510. Fast and everything was as ordered. I just need to install it and then we are Camping. 133384






- RM76510

by: Yendor09/12/2014


Installed this in my Honda crv, I hired the installation but am very happy that I just have to push the button to go to tow mode now. 150840






- RM76510

by: Larry H.04/24/2015


Employees provided great service with expert knowledge. 188076






- RM76510

by: Jim08/04/2013


Well designed and made. Easy installat ion. 93176




5
5


Ask the Experts about this Roadmaster Tow Bar Wiring
Do you have a question about this Tow Bar Wiring?


  • Availability of Roadmaster FuseMaster Fuse Bypass Switch for Flat-Towing 2006 Saturn Vue
  • The Roadmaster Fuse Bypass Switch you referenced, part # RM76510, is intended for 2008 - 2010 model years of the Saturn Vue as you noted, but we do also offer a switch suitable for your 2006 model year. The part number for that item is # RM76511. This kit is intended for use in 2003 and later model years. I have included a link to a video showing installation of this item in a different vehicle. I was able to find online a photo of the owners manual showing a diagram of the fuse panel...
    view full answer...

  • Which Fuses Need to Be Removed to Flat Tow 2011 Cadillac SRX
  • According to my Roadmaster representative, there are three fuses, all of which are located in the fuse box under the dash. You'll look for the BCM1, BCM2 and BCM3 fuses, all of which are 15 amps. Roadmaster recommends the # RM76511 (bypasses 1 fuse) and the # RM76512 (bypasses 2 fuses) fuse bypasses. I'll link you to some articles about flat towing. I hope you'll find them helpful.
    view full answer...

  • Recommendation for Supplemental Braking System on 2013 Chevrolet Sonic
  • The continuous power assist braking system or active power assist system works by monitoring your day-to-day braking habits to formulate a normal braking pattern. The system will detect a change in your rate of braking force and your position on the brake pedal and interpret this as an emergency situation. If the system feels that there is not enough pressure being applied to the brakes, it will initiate an override mode and activate the vehicles full braking force. Typically, a supplemental...
    view full answer...

  • Difference Between Standard Brake Controller and Supplemental Braking System Flat Towing Honda CR-V
  • The difference between the Blue Ox Patriot # BRK2012 that you referenced and a standard brake controller that sends the signal through the blue wire has to do with how the units work with the different brakes. The Patriot works with hydraulic brakes that are in vehicles and standard brake controllers work with trailers with electric brakes. The Patriot will not work on trailers and standard brake controllers will not work on automobiles. The Blue Ox Patriot # BRK2012 that you referenced...
    view full answer...

  • Parts Needed to Flat Tow a 2014 GMC Terrain
  • You have most of your bases covered, but you are missing one component to complete your flat towing setup for your 2014 GMC Terrain. You still need a lighting option. For your vehicle I would recommend the Hopkins Custom Tow Bar Lighting Kit part # HM56108. This is a custom install kit that would install without any cutting or splicing and would activate your towed vehicle's taillights in conjunction with your tow vehicle's. I attached an FAQ article on how to pick out the best tow...
    view full answer...

  • Parts Needed to Flat Tow a 2014 Chevy Sonic with Blue Ox Tow Bars
  • I have a solution for you, but the Roadmaster EZ-5 Base Plate kits like part # RM-523173-5 can not be used with a Blue Ox tow bar. For your 2014 Chevy Sonic you would want to use the Roadmaser EZ-4 Base Plate kit part # 523173-4 and then use the Roadmaster Tow Bar Adapter # RM-032 to allow you to use it with a Blue Ox tow bar. There are a few other components needed to flat tow your vehicle. You will need to pull a fuse to tow your vehicle so you would want the Roadmaster FuseMaster...
    view full answer...

  • What is the Right Fuse Bypass to Flat Tow a 2008 Chevy HHR Behind a Motor Home
  • For a 2008 Chevy HHR you will need FuseMaster # RM76510 to bypass the fuse that normally would have to be pulled in order to flat tow the vehicle. Please consult the HHR owners manual to confirm that fuses do in fact have to be pulled to flat tow the car as well as for other important information on flat towing the vehicle. I have included 2 helpful links on flat towing as well as a link to the installation instructions for the FuseMaster.
    view full answer...

  • Easier Option for Pulling Fuse to Dinghy Tow a 2011 Chevrolet HHR
  • You can use a fuse bypass like the Roadmaster FuseMaster # RM76510. Once installed, you will be able to turn off the fuse with the flip of a switch. I am including a link to the installation instructions for you to review.
    view full answer...

  • Would the Roadmaster Fusemaster # RM76510 fit a 2003 Honda CR-V
  • I checked with Roadmaster and they do not list your 2003 Honda CR-V as needing a fuse bypass for flat towing so they don't have a recommended bypass switch like the # RM76510 that you referenced. However, if you have ATM mini-fuses in your vehicle this product would work for if you wanted to deactivate a circuit easily. I attached an install video for you to check out as well.
    view full answer...

  • Fuse Bypass to Flat Tow a 2012 Honda CR-V without Draining the Battery
  • Roadmaster FuseMaster Fuse Bypass, # RM76511, is the one that you will need for a 2012 Honda CR-V. It fits several different vehicles and I have linked the installation instructions and a video showing an installation on a different vehicle it fits.
    view full answer...

  • Fuse Bypass to Flat Tow a 2011 Honda CR-V Behind a Motor Home
  • For your 2011 Honda CR-V you would actually need fuse bypass # RM76511. Once the bypass is installed all you have to do is flip the switch to remove power to it. Then you can say goodbye to the aching back! I have linked a video that shows an installation. The vehicle is different in the video but the process will be similar.
    view full answer...

  • Fuse Bypass For a 2011 GMC Terrain for Flat Towing Behind a Motor Home
  • For your 2011 GMC Terrain you will need to use the Roadmaster FuseMaster fuse bypass switch, # RM76510. I have also included a link to the installation instructions for you. The use of this product will make it easier to bypass the fuse by allowing you to bypass it instead of pulling it every time. The Blue Ox fuse bypass you referenced will not fit your Terrain like you said.
    view full answer...

  • How to Flat Tow a 2015 GMC Terrain
  • According to the online manual for the GMC terrain that I reviewed the vehicle can be flat-towed once a few preparation steps are taken, including removal of fuse 32 to prevent battery drain. I suggest you refer to your owners manual, specifically the section identified in the index as Recreational Towing, just to confirm that your particular Terrain is suitable for flat-towing and to become familiar with the steps necessary. For a base plate kit I would recommend the Roadmaster Base...
    view full answer...

  • Fuse Bypass Switches Recommendation For 2015 Chevrolet Malibu
  • To use a fuse bypass for the 3 fuses you need to remove on your 2015 Chevrolet Malibu you will need 2 of the bypass units we offer. I recommend the Roadmaster FuseMaster Bypass, part # RM76511 for one of the 20-amp mini-fuses and part # RM76512 for the other 2 20-amp mini-fuses that have to be removed. As far as mounting, the only indication given for mounting locations is to make the switch accessible. It really is dependent on the vehicle and where you have the room for these...
    view full answer...

  • Can Battery on 2015 GMC Terrain be Charged While Flat Towing it Behind a Motor Home
  • Check the owners manual for the vehicle you intend to flat tow because you may or may not have to disconnect the battery to flat tow it. If you do not then it is possible that there is some feature that could drain the battery while in tow. And of course if you do have to disconnect the battery it would not drain. To provide a maintenance charge to the vehicle while in tow you would attach a charge wire to the battery and connect it to the Terrain side connector included with wiring...
    view full answer...

  • Mini-Fuse Bypass Switch Recommend that Enables a Circuit to Be Turned Off with a Switch at Fuse Box
  • The Roadmaster FuseMaster Fuse Bypass # RM76510 that you referenced would do exactly what you are looking to do and is designed for use in a mini-fuse slot on a fuse box. However, for your situation this would be just a Band-Aid. I would recommend you fix it permanently as it may be a sign that eventually the wipers will just stop working which could be dangerous if you were caught in a storm.
    view full answer...

  • What Fuse to Pull to Flat Tow a 2012 GMC Terrain
  • I would make sure you are pulling the correct fuse, the fuse you need to pull is the number 32 fuse like you said, but you will want to make sure that it is the fuse labelled ignition switch. It sounds like your accessories are still on with the fuse pulled which makes me think you may have pulled the wrong fuse since those accessories shouldn't have power with the fuse pulled. Instead of pulling the fuse every time you tow you could install a Roadmaster Fusemaster part # RM76510...
    view full answer...

  • Do Fuses have to Be Pulled to Flat Tow a 2010 Ford Flex
  • It doesn't look like you have to pull any fuses to flat tow your 2010 Ford Flex. But I do recommend consulting the owners manual to confirm. There are currently no fuse bypasses listed for your vehicle most likely because no fuses have to be pulled.
    view full answer...

  • How Could a Fuse Bypass Switch be Tested on a 2006 Chevy HHR For Flat Towing
  • The correct Roadmaster Fuse Bypass Switch is the # RM76510. When activated this will kill the ignition circuit. An easy way to test to see if it is working would be to attempt to start the vehicle. If the switch is working the vehicle shouldn't start. The next test would be to deactivate the switch and see if the vehicle starts then. Basically whatever circuit this product is installed on should be totally dead when it's activated.
    view full answer...

  • Parts Needed to Flat Tow a 2012 Chevy Sonic Turbo
  • The Blue Ox base plates # BX1703 fit all models of the 2012 Chevy Sonic including Turbo models and LTZ models. Be sure to consult the vehicle owners manual for the proper procedure for flat towing the vehicle. In addition to the base plates you will also need a compatible tow bar. Only certain tow bars will fit the base plates, the most popular of which is the Aventa, # BX7445. This tow bar also comes with another required item, safety cables. Next you will need a lighting solution....
    view full answer...

  • Parts Needed to Flat Tow a 2014 Chevy Sonic Behind a Motor Home
  • A flat towing set up would not be cheap because in addition to the base plates and tow bar, to legally tow a vehicle you also need safety cables, lights, and supplemental braking. The Ambassador tow bar # BX7302, fits Blue Ox base plates spaced 24 inches apart on center. Base plates # BX1703 are 23-1/2 inches apart on center so it would not work. The least expensive compatible tow bar is the Adventurer, # BX7322. For safety cables you can use # RM-643. And for inexpensive lighting you...
    view full answer...

  • 2008 HHR SS Flat Towing Setup Recommendation
  • There are several base plates available for your 2008 Chevy HHR depending on the model. Since you have an SS model, use # 523159-1. In addition to the base plates, you will also need a compatible tow bar, safety cables, lighting, and supplemental braking to flat tow your vehicle. The most popular compatible tow bar is the Falcon 2, # RM-520. For safety cables you can use # RM-643. The coiled design helps keep the cables off of the ground. Most states now require a supplemental...
    view full answer...

  • Tail Light Wiring Kit to Tow a 2007 Chevrolet HHR Behind a Class A Coach
  • The Roadmaster Universal Hy-Power Diode Wiring Kit, # RM-154, will work with your 2007 Chevrolet HHR. I have attached an installation video of this kit on a 2011 HHR for you to check out. If you do not want to cut your vehicles tail light wiring, then you may be interested in the Hopkins Custom Tail Light Wiring Kit for Towed Vehicles, # HM56100. I prefer this wiring harness because it has a simple plug-in installation. I have attached a few help articles on tow bar wiring for you to...
    view full answer...

  • Towing a non-SS 2010 Chevy HHR Behind a Motor Home
  • No, the Chevy HHR and HHR SS are fundamentally different were the base plates install so you would not be able to use the SS base plates, # 523159-1, on a non-SS model. I have verified this with my contact at Roadmaster. For a non-SS model you would use base plates # 3141-1. For a compatible tow bar I recommend the Falcon 2, # RM-520, and safety cables # RM-643. For lighting you can use a magnetic lighting kit # C-ATL20A. Or for a more permanent solution you can use diode kit # RM-154....
    view full answer...

  • Brakemaster is Draining Battery on a 2008 Saturn Vue
  • This is strange because the Brakemaster, # RM-9160, has only one electrical component and that is the breakaway switch. It would not draw any power unless you pulled the pin out. If it is drawing power then something is either wrong with the switch or there is a wire somewhere that is possibly damaged and shorting out. But that would draw more current than 400 milliamps. You can disconnect the breakaway switch from the vehicle battery and see if that stops the draw on the battery. Also,...
    view full answer...

  • Fuse Bypass Kit for 2010 Saturn Outlook Flat-Towed Behind Motor Home
  • The recommended Roadmaster FuseMaster Fuse Bypass switches for use in your 2010 Saturn Outlook are part # RM76513 and # RM76510. The RM76513 bypass unit takes FMX-type fuses rated for 30- to 50-amp values and the RM76510 takes an ATM mini-fuse up to 20-amp value. Instructions for both parts are linked at right.
    view full answer...

  • Can Blue Ox Tail Tow Bar Wiring Kit Be Installed On 2012 Chevrolet Traverse For Flat-Towing
  • You are able to install the Blue Ox Tail Light Wiring Kit, part # BX8869 on your Traverse. The only thing you will want to make sure of is that you have enough room to install the bulb socket inside the Traverse tail light. If you find you do not have enough room I recommend the Roadmaster Tail Light Wiring kit, part # RM-155. You will want to check the owner's manual when flat-towing your Traverse for specific guidelines. When you want to flat-tow any vehicle you need 5 items,...
    view full answer...

  • Can 2014 GMC Terrain be Safely Driven After Removing Fuse 32 for Flat Towing
  • Fuse 32 inside the in-cab fuse panel on the 2014 GMC Terrain is for the ignition switch. It appears to control a switch related to the key position in the ignition. The vehicle will still start and run but something related to the ignition will not have power if you do so. Therefore it is not recommended to drive without it. You can install a bypass switch # RM76510 to disable power to this fuse rather than having to pull it and put it back in every time. When flat towing the vehicle...
    view full answer...

  • Fuse Bypass for Tow Bar Wiring on a 2010 Chevy Cobalt
  • For your 2010 Chevy Cobalt the fuse bypass you will need is # RM76510. I have included a link to a video showing an example installation on a similar vehicle.
    view full answer...
