Quickly and easily connect your towed car's lighting system to your RV to activate the signal lights required for towing. This custom harness plugs directly into your Jeep Grand Cherokee's existing wiring - no cutting or splicing required.
Typically, wiring your car for flat towing is a tremendous chore. You have to position and mount multiple diodes beneath your car and then splice into the car's wiring. Before cutting and splicing, though, you have to use a circuit tester to identify each wire. This must be done for the wires carrying signals from your running lights, brake lights, and both turn signal lights. And don't forget to jump the diodes so that the running light signal is sent to both sides of your car.
Or..you could just plug in the TrailerMate wiring harness. This custom-fit system plugs into your Jeep Grand Cherokee's existing wiring harness, which is located behind your car's tail light assemblies. No cutting, tapping or splicing is required. The wiring around the plugs is encased in durable convoluted tubing, making it easier to handle and safer to route as well.
After plugging in the wiring harness, use the included bracket to mount the 4-way flat connector at the front of your towed car. Then hook up to your RV with the supplied wiring extension, and you're good to tow. Note: The extension included with this system requires that your RV have a 4-wire flat trailer connector. If your RV has a 7-pole round connector, or another type of connector, then an adapter is required.
Because your Jeep Grand Cherokee has a combined lighting system - wherein the brake signals and the turn signals are carried on a single wire - a brake light relay (RM-88400 - sold separately) may be required if you use a supplemental braking system with your towing setup. A supplemental braking system depresses the brake pedal in your towed car every time you apply the brakes in your RV. So, if your towed car's brake lights illuminate when the brake pedal is pressed and the engine is off - as is the case when towing - then you need to install a relay to ensure that the lights on your towed car always act in accordance with the signals sent by your RV via the wiring harness. Without a relay, the brake signal from your towed car will override the turn signal sent by your RV when you slow down to make turns, creating a potential hazard.
When you're not flat towing your car, the TrailerMate wiring harness can remain on your Jeep Grand Cherokee; it will not interfere with the electronics. And if you ever tow a trailer with your car, you'll be wired and ready. The TrailerMate system comes ready to accept 4-flat wiring (TM85330 - sold separately) at the rear of your Jeep Grand Cherokee so that you can hook up a trailer quickly and easily. Just plug in the add-on 4-way trailer connector, and you're good to go.
Video of TrailerMate Custom Tail Light Wiring Kit for Towed Vehicles
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

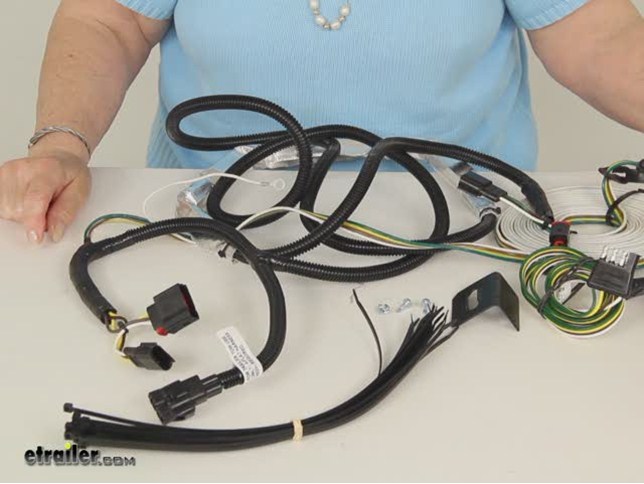

Today we're reviewing part number TM781117 from TrailerMate. This is a custom taillight wiring kit for towed vehicles. This part number is made specifically for the Jeep Grand Cherokee beginning in model year 2007. Using the etrailer.com Fit Guide will help you determine whether you're particular vehicle will work with this kit.This part provides an easy way to give power to the brake light and turn signal in your towed vehicle. You don't have to do any cutting or splicing it's a simple plug in installation. Let's start with the driver's side.
At the rear of the vehicle you should remove the cover over the back of the taillight and locate the wiring harness behind the taillight. Disconnect that and plug in these two connectors into your driver's side wiring harness.You'll notice that the driver's side wire has a yellow wire right here. Then you do the same thing on the passenger side. The passenger side has a green wire where the yellow wire was on the other side. Do the same thing, disconnect the wiring harness and plug these two connectors in to the wiring harness.Now you'll notice there's a third connecting wire at the rear.
What this is for is it enables you to install a four-way at the back of your Jeep Grand Cherokee for when you want to tow using that car as the tow vehicle. In order to make this operable you will need to purchase part number TM85330, that's sold separately. It's the TrailerMate custom taillight wiring kit with a four-pole flat trailer connector.The third thing you want to install after you plugged in your drivers side and passenger side wiring harness is your ground wire and this should be mounted on a clean, unpainted metal surface using one of the self-tapping screws that's provided in the kit. You've installed three things and then the next thing you want to do is run the long power wire, right here up to the front of your vehicle.You can secure it to the frame under your car using the included cable ties. Once you get the power wire up to the front of the vehicle you'll see that you have a four-pole here and you need to mount that.
A mounting bracket is included. You see two holes and you have two self-tapping screws for that. You see the slot in the front, all you do is slide the four-pole into the slot and then it's mounted at the front of our vehicle.Then you have also a four foot extension loop. This is included in the kit. Some kits don't include extension loops but this one from TrailerMate does so that's convenient.
You want to connect the four-pole that you just mounted to the four-pole on the extension loop like that and then the extension loop hooks up to the four-pole at the back of your RV. Now if you happen to have a seven-pole behind your RV rather than a four-pole you will need to get a seven-way to four-way adapter and we do sell those at etrailer.com.Then you're all hooked and you're ready to go. Please note that this kit will prevent damage to your Grand Cherokee's electrical components that might be caused by electrical feedback from the RV because it has built in dyads that safeguard the wiring. Also it will not interfere with the electrical system on your Cherokee when it's not hooked up to an RV. If by some chance you use a supplemental braking system you might need to get a brake light relay.In that case look at part number RM88400 sold separately. There you have it for the TrailerMate Custom Taillight Wiring Kit for your towed Jeep Grand Cherokee.
