Tires and Wheels > Tire with Wheel > Bias Ply Tire > 15 Inch > 5 on 4-1/2 Inch > Load Range D > Steel > 225/75-15 > Kenda

Loadstar ST225/75D15 Bias Trailer Tire with 15" White Wheel - 5 on 4-1/2 - Load Range D

Rating: rating rating rating rating rating
15 reviews

Code: AM3S862

Price:$145.95

Shipping Weight: 50 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Kenda Tires and Wheels AM3S862 Review - Video

Kenda Tires and Wheels - AM3S862

Bias tire has a ply rating of 8 and a 2,540-lb maximum load at 65 psi. The 15" diameter x 6" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.

Features:

Loadstar special trailer tire outshines other bias tires
- Flatter tread offers improved stability for excellent handling
- Special trailer tire design
  - Couples the strength of a bias tire with the durability and stability of a radial tire
  - Created specifically for trailers - not intended for use on other vehicles
- Advanced rubber compound
  - Longer tread wear
  - Low rolling resistance for smooth ride
8-Spoke steel wheel by Dexstar
- Resists rust with white powder coat finish over e-coat
Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

Rim dimensions: 15" diameter x 6" wide
Bolt pattern: 5 on 4-1/2"
Wheel capacity: 2,050 lbs at 75 psi
Wheel bolt size: 1/2"-20
Pilot diameter: 3.19"
Tire size: ST225/75D15
- Section width: 8.4"
- Outer diameter: 28.1"
Tire capacity:
- Load range: D
- Ply rating: 8
- Maximum load: 2,540 lbs at 65 psi
Limited 2-year warranty

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
If D = 3", then the bolt pattern is 5 on 5"
If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

3S862 Dexstar 8-Spoke 15" White Wheel and Loadstar K550 Bias Tire - LR D

Video of Loadstar ST225/75D15 Bias Trailer Tire with 15" White Wheel - 5 on 4-1/2 - Load Range D

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Kenda Tires and Wheels AM3S862

Kenda Tires and Wheels AM3S862 Review

Video Transcript for Kenda Tires and Wheels AM3S862 Review

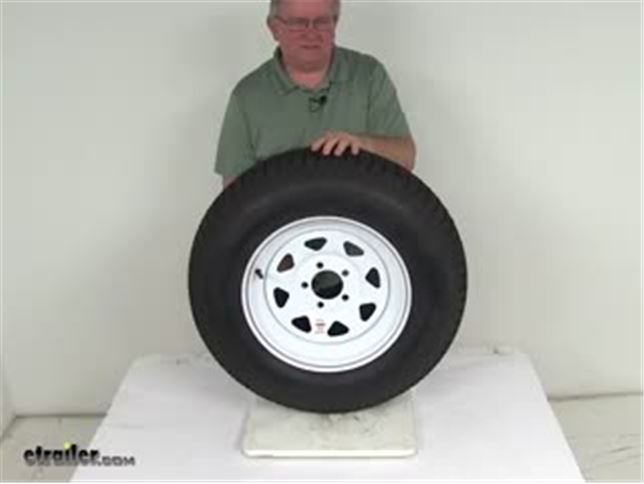

Today we are going to review part no Am3S862. This is a Kenda Loadstar tire size ST225/75D15 bias trailer tire. It is mounted on the 15-inch Dexstar white spoke steel wheel. This wheel has a white powder coat finish on the front of the wheel and on the back of the wheel. This finish will help protect against corrosion. I will do a few the measurements on the wheel.

Its a 15-inch diameter so to measure that we do inside to inside which will measure 15 inches. The overall width on this wheel is 6 inches wide. This wheel does have bolt pattern of 5 bolt 4 -inch bolt pattern. And on a wheel that has an odd number lug holes like in this case 5 there are couple ways you can go about measuring the bolt pattern and Ill show you. First way is if you drew a circle through the center of all five of the lug holes and then measure the diameter of that circle so this case we measure from the center of this bolt hole to the edge of that circle we drew and 4 inches.

So that will mean this wheel is 5 on 4 -inch bolt pattern. The second way is if you pick a lug hole, any lug hole, and then measure from the center of that lug hole to the center of the lug hole right next to it, either way. So in this case the measure will be 2 5/8 inches and then what you need to do is go to the product page of this part number and at the bottom of the page there will be a chart and that will show. Thatll measurement from lug hole to lug hole is 2 5/8 inches that will mean this is a bolt pattern wheel of 5 on 4 inches. This wheel does have a weight capacity of 2,050 lbs at 75 psi.

It does use a wheel bolt size of -inch by twenty and another critical measurement is the pilot hole which is the large hole on the center of the wheel. This is what will go over the hub on your trailer. We measure that diameter. When we measure that I will be 3.19 inches. Now move on to the tire.

This is a Kenda Loadstar tire size ST for special trailer 225/755D15 the D will designate that it is a bias-constructed tire. This tire is a load range D tire which is a 8-ply rated tire. The maximum load capacity on this tire 2,540 pounds at 65 psi and we are going to the overall diameter to give you an idea. Overall diameter on this would be 28 inches and I did mention this is bias-constructed tire and when we say that it means that the belts or the cords on the inside of the tire will run the length of the tire as opposed to a radial where they run from bead seat to bead seat on the radius of the tire. And a bias tire when it is constructed is usually the side wall will be a little bit more firmer when compared to a radial. This tire/wheel combo does comes with a limited 2-year warranty and that should do it for part no Am3S862.
