Tires and Wheels > Tire with Wheel > Bias Ply Tire > 13 Inch > 5 on 4-1/2 Inch > Load Range D > Steel > 185/80-13 > Kenda

Loadstar ST185/80D13 Bias Trailer Tire with 13" White Wheel - 5 on 4-1/2 - Load Range D

Rating: rating rating rating rating rating
48 reviews

Code: AM3S331

Price:$111.95

Shipping Weight: 34 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Kenda Tires and Wheels AM3S331 Review - Video

Kenda Tires and Wheels - AM3S331

Bias tire has a ply rating of 8 and a 1,725-lb maximum load at 65 psi. The 13" diameter x 4-1/2" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.

Features:

Loadstar special trailer tire outshines other bias tires
- Flatter tread offers improved stability for excellent handling
- Special trailer tire design
  - Couples the strength of a bias tire with the durability and stability of a radial tire
  - Created specifically for trailers and not intended for use on other vehicles
- Advanced rubber compound
  - Longer tread wear
  - Low rolling resistance for smooth ride
8-Spoke steel wheel by Dexstar
- Resists rust with e-coat and white powder coat finishes
Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

Rim dimensions: 13" diameter x 4-1/2" wide
Bolt pattern: 5 on 4-1/2"
Wheel capacity: 1,660 lbs at 65 psi
Wheel bolt size: 1/2"-20
Pilot diameter: 3.19"
Tire size: ST185/80D13
- Section width: 7.2"
- Outer diameter: 24.4"
Tire capacity:
- Load range: D
- Ply rating: 8
- Maximum load: 1,725 lbs at 65 psi
Limited 2-year warranty

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
If D = 3", then the bolt pattern is 5 on 5"
If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

3S331 Dexstar 8-Spoke 13" White Wheel and Loadstar K550 Bias Tire - LR D

Video of Loadstar ST185/80D13 Bias Trailer Tire with 13" White Wheel - 5 on 4-1/2 - Load Range D

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Kenda Tires and Wheels AM3S331

Kenda Tires and Wheels AM3S331 Review

Video Transcript for Kenda Tires and Wheels AM3S331 Review

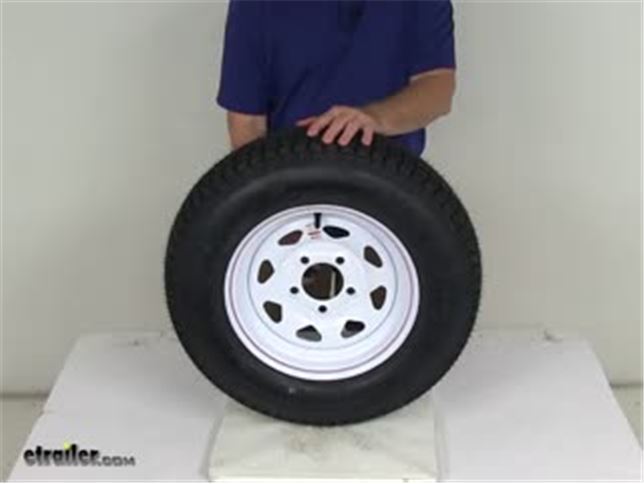

Today, we're going to review part number AM3S331. This is a Kenda Loadstar Tire size ST185/80D13. It's a bias trailer tire. It's mounted on a 13-inch Dexstar white spoke wheel. This wheel has a white powder coat finish for superior corrosion resistance on the front and on the back. A few measurements we'll do on this wheel is the diameter, which is 13 inches.

It will be measured from the inside to inside. It would be 13 inches. The width of this wheel would be 4-1/2 inches wide. The bolt pattern on this wheel is a 5-bolt, 4-1/2-inch bolt pattern. And there are a couple of ways you can go by measuring the bolt pattern on your wheel, especially if it's an odd number of lug bolts like this one, being five lugs.

The first way is if you draw a circle through the center of all five lug holes and then measure the diameter of that circle. So in this case, we'll measure from the center of this bolt hole to that outer edge of that circle. It would be 4-1/2 inches. That will be a 5 on 4-1/2-inch wheel. Another way is you could measure from the center of this bolt hole and you can go to a bolt hole right next to it to the center.

If you do that measurement, it will give you 2-5/8 inches. And what you need to do is go to the product page for this wheel and tire part number, and at the bottom of the page we list measurements that if it says 2-5/8, it will mean it's a 5 on 4-1/2-inch bolt pattern. This wheel also has a capacity of 1660 lbs at 65 psi. It uses a wheel bolt size of a 1/2 inch by 20. Another critical measurement is the pilot hole diameter, which is the large hole here on the center of the wheel.

This will go over the hub on your trailer. When we measure the diameter of this pilot hole, it would be 3.19 inches. Now, we'll move on to the tire. The tire is a Loadstar. Again, the size is ST for Special Trailer, 185/80D13. The D signifies it is a bias belted tire. This tire has a load range D, which means it is an 8-ply rated tire. This tire has a maximum load capacity of 1725 lbs at 65 psi. And we'll measure the overall diameter of this tire and it is 24-1/2 inches. This tire is of bias construction, which will mean that the belts, when it's built inside the tire, will run the length of the tire, as opposed to a radial where they run from bead to bead. A bias tire, the side wall will be a little bit firmer when compared to a radial designed tire. This tire and wheel combo has a limited two-year warranty. And that should do it for part number AM3S331.

Customers compare AM3S331 to these similar products

Loadstar ST185/80D13 Bias Trailer Tire - Load Range D $86.95

Karrier ST175/80R13 Radial Trailer Tire with 13" White Wheel - 5 on 4-1/2 - Load Range D $106.95

Loadstar ST185/80D13 Bias Trailer Tire with 13" Galvanized Wheel - 5 on 4-1/2 - Load Range D $117.95

Loadstar ST175/80D13 Bias Trailer Tire with 13" White Wheel - 5 on 4-1/2 - Load Range D $100.95

Karrier ST175/80R13 Radial Trailer Tire with 13" Galvanized Wheel - 5 on 4-1/2 - Load Range D $111.95

Customers Who Purchased This Tires and Wheels Also Bought...

Trailer Wheel Lug Nut - 1/2"(Each) $0.58

Chrome Trailer Wheel Lug Nut - 1/2" (Each) $0.99

Jacketed 2 Wire, 10 Gauge, Brake Wire - per Foot $1.21

Loadstar ST185/80D13 Bias Trailer Tire - Load Range D $86.95

Lockwasher for Brake Mounting Bolt for 7" and 10" Brake Assemblies $0.15

Replacement parts available for this product

Americana Rubber, Snap-In Valve Stem - 1-1/4" Long - Up to 65 psi $0.55

Loadstar ST185/80D13 Bias Trailer Tire - Load Range D $86.95

Dexstar Steel Spoke Trailer Wheel - 13" x 4-1/2" Rim - 5 on 4-1/2 - White Powder Coat $25.95

Ask the Experts about this Kenda Tires and Wheels

Need a 13 Inch Trailer Tire and Wheel, Load Range D, 5 on 4-1/2 Bolt Pattern, With Metal Valve Stem
The Loadstar Americana Tire and Wheel, # AM3S331, does not come with a metal valve stem. I have found a few tires and wheels, load range D, 13 inch, 5 on 4-1/2 bolt pattern that do have metal valve stems. They use a galvanized wheel to prevent corrosion. Check out Americana Tires and Wheels, # AM3S334 and # AM31242.
view full answer...

Do Trailer Tires and Rims Like Kenda # AM3S331 Come Already Balanced
We do recommend that you have the tires/rims balanced at a local shop prior to use. The tire and rim combos we carry arrive balanced in a certain way but not like a tire shop would balance a tire. Each tire and each wheel has a heavy spot and a light spot. What the manufacturers do is to offset the heavy spot on one with the light spot on the other to achieve some balance.
view full answer...

Comparison and Recommendation for ST175/80D13 or ST185/80D13 Trailer Tires on a 3,300 lb Popup
When comparing the Loadstar ST175/80D13 Bias Trailer Tire and Wheel, # AM31233, and the Loadstar ST185/80D13 Bias Trailer Tire and Wheel, # AM3S331, there is not much difference other than what you have mentioned. The capacity of the wider and taller 185 mm tire in D load range is a bit more at 1,725 lbs each as compared the the 175 mm tire which is rated for 1,610 lbs each. The 175 mm wide tire is 6.6 inches wide and 24 inches diameter, compared to the 185 mm wide tire which equates to 7.2 i
view full answer...

Recommended Replacement Wheels and Tires for Tracker Boat Trailer
The B78-13 tires you mention convert to metric size 175/80-13. The 175/80-13 tires are available in three load ratings. B: 1100 lb at 35 psi C: 1360 lb at 50 psi D: 1610 lb at 65 psi You would choose the load rating based on the capacity of your axle. Two A rated tires would have a 2200 lb rating. You can go with tires that have a greater weight rating than your axle, but you will still be limited by the axle capacity. You will also need to match the bolt pattern of the wheel yo
view full answer...

Will 175/80-14 Tires Replace 175/80-13 Trailer Tires
The only difference between a 175/80-13 and a 175/80-14 is the height. The 14 inch model will be 1 inch taller. You need to make sure there is 1/2 inch of space available above the existing tires size to accommodate the larger size. I have included a couple of links on trailer tires for you. Also, a 14 inch tire will not fit a 13 inch wheel so you would need to replace the wheels as well. A 175/80-14 is not a common trailer tire size. If you meant a different size, let me know.
view full answer...

Will ST175/80-13 and ST185/80-13 Trailer Tires Fit on the Same Size Wheel
Yes, both an ST175/80-13 and ST185/80-13 will fit on wheels that are 4-1/2, 5. or 5-1/2 inches wide. The main difference in these 2 sizes is the overall width of the mounted tire and the overall diameter. 175/80-13 will be 6.895 inches wide and have a diameter of 24.1 inches. 185/80-13 will be 7.289 inches wide and have a diameter of 24.4 inches. I have included a couple of tire FAQ article links for you.
view full answer...

Can a Light Truck Be Used in Place of an 8-14.5 Trailer Tire
An 8-14.5 tire is normally seen on a motor home axle, which is designed for one time use only. We do have one tire that will fit, # AM10321. Some trailers can use a light truck tire but you do not want to use a passenger vehicle tire. The problem is that passenger vehicle tires are not rated and constructed to handle vertical load like a trailer tire is. Trailer tires have a thicker side wall. I have included a link to our FAQ on trailer tires for you to view.
view full answer...

Diagnosing Cause of Uneven Tire Wear
Typically, when a tire displays excessive wear on the inside of the tread (closest to the trailer), it means that the trailer is consistently being overloaded. When the trailer carries more weight than the axle is rated for, the trailer wheels can bow as shown in the diagram I provided. Broken or excessively worn suspension components can cause this as well. Examine the components like the leaf springs and shackle links and replace if necessary. You will also want to make sure that your ti
view full answer...

Radial or Bias Ply Wheel and Tire Combo for Boat Trailer
The only instance where we might conceivably recommend a bias ply tire over a radial tire would be for farm or agricultural use where the tire would primarily be used on non-paved surfaces. This is due to the fact that the thicker sidewalls used on bias-ply tires would offer more stability. For a boat trailer, or any other trailer used on pavement a radial tire is preferable. A radial tire will have a more flexible sidewall, which provides better tread contact with the pavement. Radial tires
view full answer...

Changing Trailer Hubs to Accommodate Tubeless Tires on a Trailer with 8 x 14.5 Donut Rims
In order to recommend replacement hub and drum assemblies for your trailer, we will need to know the trailer axle weight ratings for each axle, the bolt pattern on the new wheels you intend to use, the type of braking system used on your trailer (electric, electric-over-hydraulic or hydraulic) and the inner/outer bearing numbers. The bearing numbers will enable us to identify a hub that is compatible with your spindle. We recommend replacing all components on an axle at the same time, rather
view full answer...
