Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 5 on 4-1/2 - Load Range C

Rating: rating rating rating rating rating
20 reviews

Code: AM3H390

Price:$83.95

Shipping Weight: 27 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Kenda Tires and Wheels AM3H390 Review - Video

Kenda Tires and Wheels - AM3H390

Bias tire has a ply rating of 6 and a 1,100-lb maximum load at 50 psi. The 10" diameter x 6" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.

Features:

Kenda Loadstar trailer tire offers excellent handling
- Bias cut provides superior stability
- Modern tread design reduces rolling resistance for a smooth ride
Steel wheel by Americana resists rust and corrosion
- White powder coat finish over e-coat primer
Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

Rim dimensions: 10" diameter x 6" wide
Bolt pattern: 5 on 4-1/2"
Wheel capacity: 1,650 lbs
Wheel bolt size: 1/2"-20
Pilot diameter: 2.8"
Tire size: 205/65-10
- Section width: 8.3"
- Outer diameter (when inflated): 20.5"
Tire capacity:
- Load range: C
- Ply rating: 6
- Maximum load: 1,100 lbs at 50 psi
Limited 2-year warranty on tire
Limited 1-year warranty on wheel

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
If D = 3", then the bolt pattern is 5 on 5"
If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

A good alternative to 20.5 x 8-10 tires

3H390 Americana Solid 10" White Wheel and Kenda Loadstar K399 Bias Tire - LR C

Video of Kenda 205/65-10 Bias Trailer Tire with 10" White Wheel - 5 on 4-1/2 - Load Range C

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Kenda Tires and Wheels am3h390

Kenda Tires and Wheels AM3H390 Review

Video Transcript for Kenda Tires and Wheels AM3H390 Review

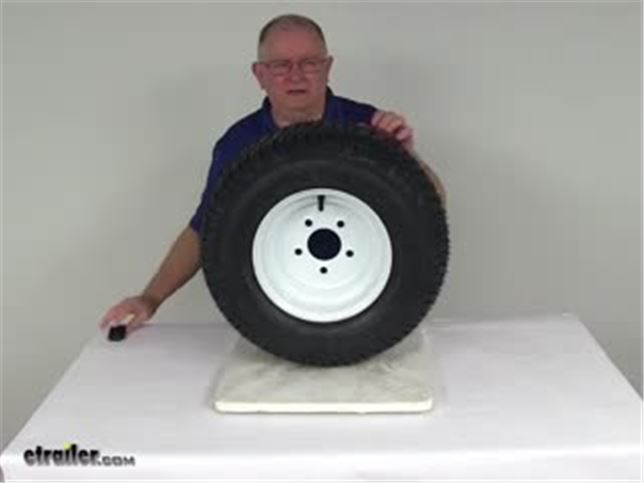

Today, we're going to go over product number AM3H390. And this is a Kenda 205/65-10 Bias Trailer Tire with 10" white spoke wheel. This tire wheel combo will have 10" x 6" wide wheel. The 10" diameter would be measured from here-to-here. And it's a 6" wide wheel. A critical measurement would be the bolt pattern.

On this wheel, it is 5-lug wheel on 4-1/2" bolt pattern. And on an odd number of bolt pattern wheel, the best way to measure the bolt pattern is if you drew a circle through the center of all 5 lug holes and then measured from center of one bolt hole to that outer diameter of that imaginary line you drew in that circle and that it is 4-1/2". So this would be 5 on 4-1/2" bolt pattern. Another measurement would be the pilot hole diameter. This is critical, because this would go over the hub that is on your trailer.

When we measure the diameter on this one, it is 2.8". This wheel uses a wheel bolt size of 1/2"-20. And now onto the tire, this is a Kenda 205/65-10 tire size. This is a load range: C. It is a 6-ply rated tire, which has a maximum load capacity of 1,100 pounds at 50 psi.

This tire is of bias construction, which means the belts inside the tire would run the length of the tire which will give a little bit firmer ride as opposed to a radial constructed tire. This package will come with a limited 2-year warranty. And that should cover product number AM3H390, The Kenda 205/65-10 Bias Trailer tire and Dexstar 10" white spoke wheel.
