Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 5 on 4-1/2 - Load Range D

Rating: rating rating rating rating rating
27 reviews

Code: AM3H323

Price:$67.95

Shipping Weight: 20 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Kenda Tires and Wheels AM3H323 Review - Video

Kenda Tires and Wheels - AM3H323

Bias tire has a ply rating of 8 and a 1,165-lb maximum load at 70 psi. The 8" diameter x 7" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.

Features:

Kenda Loadstar trailer tire offers excellent handling
- Bias cut provides superior stability
- Modern tread design reduces rolling resistance for a smooth ride
Steel wheel by Americana resists rust and corrosion
- White powder coat finish over e-coat primer
Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

Rim dimensions: 8" diameter x 7" wide
Bolt pattern: 5 on 4-1/2"
Wheel capacity: 1,040 lbs
Wheel bolt size: 1/2"-20
Pilot diameter: 2.8"
Tire size: 215/60-8
- Section width: 8.9"
- Outer diameter: 18.1"
Tire capacity:
- Load range: D
- Ply rating: 8
- Maximum load: 1,165 lbs at 70 psi
Limited 2-year warranty on tire
Limited 1-year warranty on wheel

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
If D = 3", then the bolt pattern is 5 on 5"
If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

3H323 Americana Solid 8" White Wheel and Kenda Loadstar K399 Bias Tire - LR D

Video of Kenda 215/60-8 Bias Trailer Tire with 8" White Wheel - 5 on 4-1/2 - Load Range D

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Kenda Tires and Wheels AM3H323

Kenda Tires and Wheels AM3H323 Review

Video Transcript for Kenda Tires and Wheels AM3H323 Review

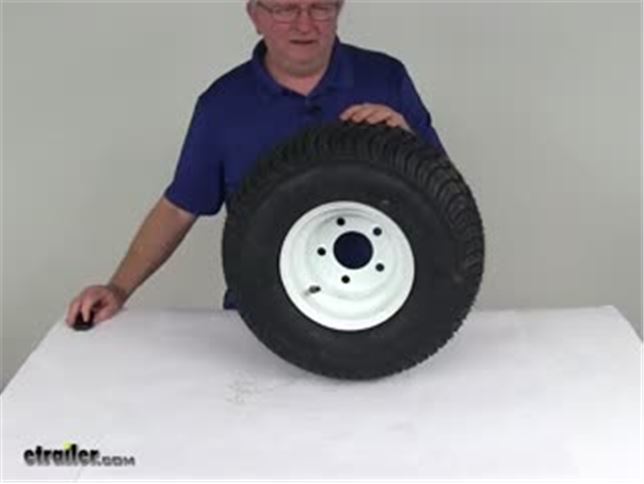

Today, we'll be looking at part number: AM3H323. The Kenda 215/60/8 Bias Trailer Tire with 8" White Wheel. This wheel does have a white, powder coat finish over an e-coat primer. This will help to resist rust and corrosion. This wheel measures 8" in diameter by 7" wide. It has a 5 on 4-1/2" bolt pattern, and to determine this bolt pattern, there are a few ways you can do this.

We'll go ahead and show you two. If you draw a circle through the center of each of the 5 bolt holes and then measure the diameter of that circle, that will give you your 4-1/2" measurement. You can also measure from the center of one bolt hole to the center of the very next bolt hole, in this case that is 2-5/8". If you look at the product page for this wheel and tire combo, there is a chart telling you that the 2-5/8" means that it has a 4-1/2" bolt pattern. This wheel has a 1,040 lbs capacity, and has a 1/2" X 20" bolt hole diameter.

You also need to know the pilot hole diameter, which is the large hole in the center of the wheel that the hub of the axle will fit through. This wheel has a 2.8" pilot diameter. Now, we'll now move on to the tire: This is a Loadstar 215/60/8. It has a load range D, 8-ply rating, giving it a maximum load capaciy of 1,165 lbs at 70 psi. It's overall diameter is 18".

This tire is of bias construction, which means that the belts within the tire run the length of the tire. This wheel and tire combo does come with a limited two-year warranty. And that does it for part number: AM3H323. .
