Bias tire has a ply rating of 6 and a 935-lb maximum load at 50 psi. The 8" diameter x 7" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant galvanized finish.
Features:
Specs:
Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
Video of Kenda 215/60-8 Bias Trailer Tire with 8" Galvanized Wheel - 4 on 4 - Load Range C
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

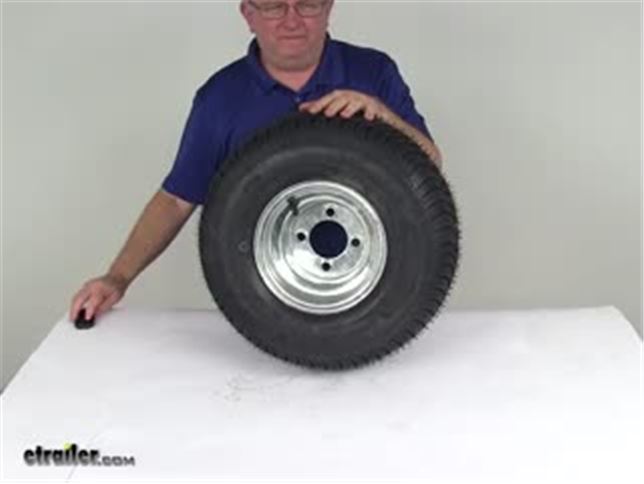

Today, we're going to review part number: AM3H300.This is the Kenda 215/60 X 8" Bias Trailer Tire mounted on an 8" Dexstar Galvanized Wheel. This wheel does have a galvanized finish. Finished for superior corrosion-resistance. A few measurements on the wheel: The diameter of the wheel, which is 8" be measured from inside to inside. The width of this wheel is 7" wide. This wheel does have a bolt pattern of 4 lug, 4" bolt pattern.
The best way to measure that bolt pattern is from the center of the one lug hole to the center of the other lug hole directly across from it. So if we measure that from center to center, it will be 4". This wheel has a weight capacity of 1,165 lbs. This wheel does use a wheel bolt size of 1/2" X 20". Another critical measurement would be the pilot hole diameter, which is the large, center hole in this wheel.
This will go over the hub on your trailer. If we measure that diameter, it would be 2-1/2". Now, we'll move onto the tire: The tire is a Loadstar, again size 215/60/8. This is a load range C tire, which means it has a 6-ply rating. The maximum load carrying capacity on this tire is 935 lbs at 50 psi.
Overall diameter on this tire will be 18-1/2". This tire is of bias construction, which will mean the belts on this tire will run the length of the tire. This tire and wheel combo will come with a limited two-year warranty. That should do it for part number: AM3H300. .
