Kenda 5.30-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C

Rating: rating rating rating rating rating
45 reviews

Code: AM30780

Price:$66.95

Shipping Weight: 22 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Kenda Tires and Wheels AM30780 Review - Video

Kenda Tires and Wheels - AM30780

Bias tire has a ply rating of 6 and a 1,045-lb maximum load at 80 psi. The 12" diameter x 4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.

Features:

Trailer tire by Kenda is designed for excellent handling at high speeds
8-Spoke steel wheel by Dexstar
- Resists rust with e-coat and white powder coat finishes
Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

Rim dimensions: 12" diameter x 4" wide
Bolt pattern: 4 on 4"
Wheel capacity: 1,250 lbs at 90 psi
Wheel bolt size: 1/2"-20
Pilot diameter: 2.84"
Tire size: 5.30-12
- Section width: 5.6"
- Outer diameter: 21.9"
Tire capacity:
- Load range: C
- Ply rating: 6
- Maximum load: 1,045 lbs at 80 psi
Limited 2-year warranty

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
If D = 3", then the bolt pattern is 5 on 5"
If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

30780 Dexstar 8-Spoke 12" White Wheel and Kenda K353 Bias Tire - LR C

Video of Kenda 5.30-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Kenda Tires and Wheels am30780

Kenda Tires and Wheels AM30780 Review

Video Transcript for Kenda Tires and Wheels AM30780 Review

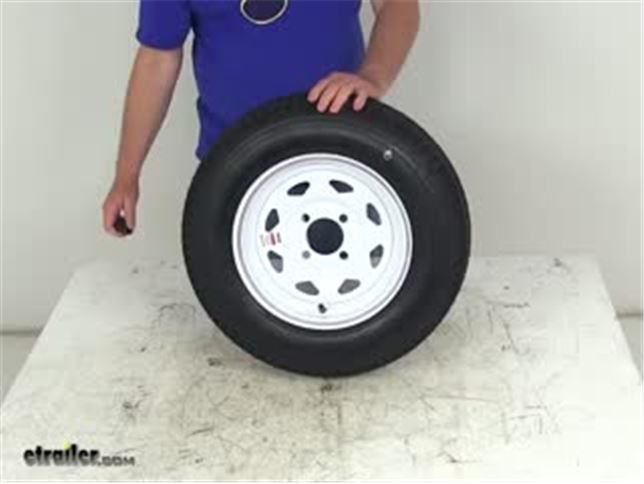

Demo-Kenda-Tires-and-Wheels-AM30780 Today we're going to review product number AM30780. It is the Kenda 5.30-12 Bias Trailer Tire mounted on a 12'' Dexstar white spoke wheel. First we'll start with the Rim dimension on the wheel. The diameter of this wheel is 12" which will be measured inside-to-inside, the width of this wheel is 4'' wide. This wheel does come with a 4-lug, 4'' bolt pattern. So we will measure the bolt pattern, you go from a center of one hole directly across to the center of the other bolt hole.

In this case, it would be 4''. So that's a 4 on 4" bolt pattern. The weight capacity on this wheel is 1250 pounds at 90 psi. It uses a wheel bolt size of 1/2"-20. Another critical measurement is the pilot-hole diameter which is the large hole in the center.

This is what will go over the hub on your trailer. When we measure the diameter of that, it would be 2.84". This wheel does come with a white powder coat finishes. Now move on to the tire. This tire is a Loadstar, tire size 5.30-12.

This tire is a Load range: C tire which is a 6-ply rated tire. Has a maximum load carrying capacity of 1045 pounds at 80 psi. This tire is a bias constructed tire which will mean the tread the belts will run the length of the tread which will give a little bit firmer ride when compared to a radial design tire. One last measurement, will be the overall diameter, so if we go across from edge-to-edge would be 22''. This tire wheel combo does come with a limited 2-year warranty.

And that should do it for product number AM30780.
