Tires and Wheels > Tire with Wheel > Bias Ply Tire > 12 Inch > 5 on 4-1/2 Inch > Load Range C > Steel > 4.80-12 > Kenda

Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range C

Rating: rating rating rating rating rating
49 reviews

Code: AM30660

Retail:$55.96

Price:$55.95

Shipping Weight: 21 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Kenda Tires and Wheels AM30660 Review - Video

Kenda Tires and Wheels - AM30660

Bias tire has a ply rating of 6 and a 990-lb maximum load at 90 psi. The 12" diameter x 4" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.

Features:

Trailer tire by Kenda is designed for excellent handling at high speeds
8-Spoke steel wheel by Dexstar
- Resists rust with e-coat and white powder coat finishes
Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

Rim dimensions: 12" diameter x 4" wide
Bolt pattern: 5 on 4-1/2"
Wheel capacity: 1,250 lbs at 90 psi
Wheel bolt size: 1/2"-20
Pilot diameter: 3.19"
Tire size: 4.80-12
- Section width: 4.9"
- Outer diameter: 20.7"
Tire capacity:
- Load range: C
- Ply rating: 6
- Maximum load: 990 lbs at 90 psi
Limited 2-year warranty

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
If D = 3", then the bolt pattern is 5 on 5"
If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

30660 Dexstar 8-Spoke 12" White Wheel and Kenda K353 Bias Tire - LR C

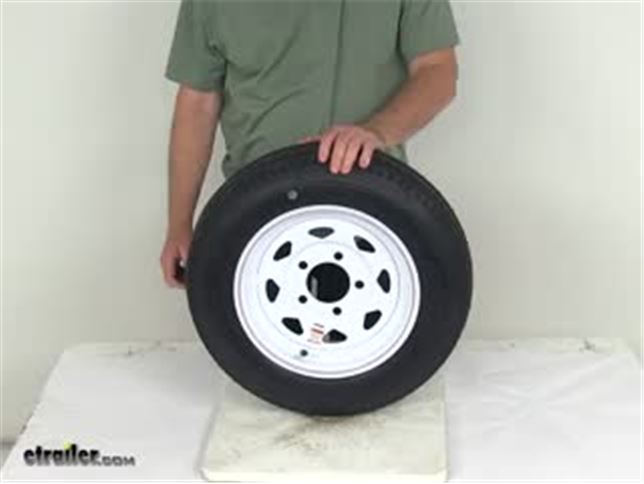

Video of Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range C

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Kenda Tires and Wheels am30660

Kenda Tires and Wheels AM30660 Review

Video Transcript for Kenda Tires and Wheels AM30660 Review

Today we're going to review part number AM30660. This is the Kenda 4.80-12 bias trailer tire mounted on a 12" Dexstar white spoke wheel. Starting with the rim dimensions, the 12" diameter would be measured inside-to-inside, which would be from here to here, just 12". Bolt pattern on this wheel is a 5 bolt 4-1/2" bolt pattern. And the best way to measure a bolt pattern that is odd bolt holes is to measure, if you take and draw a circle through the center of each bolt hole and then measure the diameter of that circle, that will give you the bolt pattern. So this space we'll measure from the center of this bolt hole across toward that other edge of that circle would be, that we drew, and is 4-1/2".

So this bolt pattern would be a 5 both 4-1/2" bolt pattern. The weight capacity on this wheel is 1,250 pounds at 90 psi. It uses a wheel bolt size of a 1/2"-20. Another critical measurement would be the pilot hole diameter. This is the large hole in the center of the wheel that will go over the hub on your trailer.

This will measure 3.19". This wheel is a white powder coat finish. Now, we'll move on to the tire. This is a Loadstar, size 4.80-12. This tire is a load range C tire, which means it is a 6 ply rated tire.

This tire has a maximum load carrying capacity of 990 pounds at 90 psi. The overall diameter on this tire, when we go would be 20-3/4". This tire is a bias constructed tire, which will mean the belts will go the length of the tire, which will give a little bit firmer ride when compared to a radial tire. This tire/wheel combo will come with a limited 2-year warranty. That should do it for part number AM30660..

Customers compare AM30660 to these similar products

Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C $55.95

Kenda 5.30-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range C $66.95

Kenda 4.80-12 Bias Trailer Tire with 12" Galvanized Wheel - 5 on 4-1/2 - Load Range C $61.95

Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range B $53.95

Kenda 5.30-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C $66.95

Customers Who Purchased This Tires and Wheels Also Bought...

Trailer Wheel Lug Nut - 1/2"(Each) $0.58

Fulton Hi-Mount Spare Tire Carrier - Fits 4- and 5-Lug Wheels $27.95

Bonded 4 Wire - per foot $0.57

2-1/4" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.24

1-1/2" Long Torx Trailer Floor and Wall Liner Screw for ACQ Treated Wood $0.18

Replacement parts available for this product

Americana Rubber, Snap-In Valve Stem - 1-1/4" Long - Up to 65 psi $0.55

Kenda K353 Bias Trailer Tire - 4.80-12 - Load Range C $42.95

Dexstar Steel Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - White Powder Coat $26.95

Ask the Experts about this Kenda Tires and Wheels
Expert Answers about Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range C - AM30660 Do you have a question about this Tires and Wheels?

Pilot Hole Diameter of the Kenda 4.80-12 Bias Trailer Tire with White Wheel # AM30660
The center pilot hole diameter of the Kenda 4.80-12 Bias Trailer Tire with White Wheel # AM30660, is 3.19 inches.
view full answer...

Can a Load Range C Tire and Wheel Replace a Load Range B Tire and Wheel on a Trailer
Yes, you can use a load range C tire instead of a load range B tire as long as the new tire and rim are the same size and have the same bolt pattern as the old tire and rim. In this case, the potential new tire you reference, Kenda 4.80-12 Bias Trailer Tire with 12 inch White Wheel, # AM30660, has the same tire size (4.8-12). It is on a 12 inch diameter by 4 inch wide wheel with a 5 on 4-1/2 bolt pattern. As long as those dimensions match your existing tire and wheel, you can use this tire a
view full answer...

What is the Difference Between Load Range B and C Trailer Tires of the Same Size
Trailer tires that are the same size but with different load ratings will have different capacities. A load range C tire will have a higher capacity than a load range B tire of the same size. The Kenda 4.80-12 Bias Trailer Tire with 12 Inch White Wheel, # AM30660, that you have referenced has a capacity of 990 pounds at 90 psi and it is a load range C. The Kenda 4.80-12 Bias Trailer Tire with 12 Inch White Wheel, # AM30580, has a capacity of 785 pounds at 60 psi and is a load range B.
view full answer...

Correct Tire Inflation Pressure for Load Range C Tires
Trailer tires should be inflated to their max psi for best performance and longevity. Since your tire is a load range C, it will need to be at the max of 90 psi at all times.
view full answer...

Recommendation for Spare 4.80-12 Tire and 5 On 4-1/2 White Wheel on a PWC Trailer
The Kenda 4.80-12 Bias Trailer Tire with White Wheel - 5 on 4-1/2 - Load Range C, part # AM30660 will be the correct size tire and wheel for your trailer. What you will need to check is the load range of the tire that is recommended for your trailer and it should match the other tires on your trailer. The load range is listed on the tire as load range B or load range C in the 4.80-12 tire size. The load range C tire which is included in the # AM30660 has a maximum load capacity of 990 lbs
view full answer...

Do the Trailer Tire and Wheel Combinations Come Balanced
The wheel and tire combos that we carry, like # AM30660, do not come balanced like a passenger vehicle would be balanced at a tire shop. What manufacturers try to do is balance the heavy spot on the tire with the light spot on the wheel. Trailer tires do not have to be balanced beyond that unless you want them to be. Any local tire shop can balance them for you. I have included a link to an FAQ article on trailer tires for you.
view full answer...

Shorter Wheel and Tire Needed for Refurbishing an Older Trailer are New Hubs Required
I did a bit of math and a 195/60R15 tire should measure to be 24.2 inches overall diameter. If you need 1.5 to 2 inches at the top of the tire you would need a tire that has an overall diameter 3 to 4 inches less than the 195/60R15 tires you have now. A 4.80-12 trailer tire and wheel combination, # AM30620, would be the next size down that would fit with the clearance you need, if the bolt pattern on your wheel is 4 bolts on a 4 inch bolt circle. All of the 12 inch steel trailer wheels with 4 on
view full answer...

Replacement Trailer Tire for a Pop-Up Camper with 145/12R Tires Load Range C
You can go with a different load range tire as long as it has the capacity for the gross trailer weight. Going to a larger size will not allow the trailer to carry any more weight because its capacity is set by the axle. For a 145/R12 I recommend the radial tire # AM10130. Radial tires track better and run cooler than bias ply tires. This tire is a lad range D rated for 1,220 pounds at 65 psi. I have included some links to trailer tire FAQ articles for you.
view full answer...
