Kenda Tires and Wheel Kenda Tires and Wheel Kenda Tires and Wheel Kenda Tires and Wheel Kenda Tires and Wheel
Video Demo Kenda Tires and Wheels am30630

Kenda Tires and Wheels AM30630 Review

Kenda 4.80-12 Bias Trailer Tire with 12" Galvanized Wheel - 4 on 4 - Load Range C

Kenda Tires and Wheels

(1184 reviews)

Code:   AM30630


Price: $53.95

Shipping Special

Shipping Weight: 19 pounds


Kenda Tires and Wheels - AM30630

Bias tire has a ply rating of 6 and a 990-lb maximum load at 90 psi. The 12" diameter x 4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant galvanized finish.


  • Trailer tire by Kenda is designed for excellent handling at high speeds
  • 8-Spoke steel wheel is galvanized to resist rust
  • Tire-and-wheel assembly meets Department of Transportation specifications


  • Rim dimensions: 12" diameter x 4" wide
  • Bolt pattern: 4 on 4"
  • Wheel capacity: 1,250 lbs
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 2.84"
  • Tire size: 4.80-12
    • Section width: 4.9"
    • Outer diameter (when inflated): 20.7"
  • Tire capacity:
    • Load range: C
    • Ply rating: 6
    • Maximum load: 990 lbs at 90 psi
  • Limited 2-year warranty

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

30630 8-Spoke 12" Galvanized Wheel and Kenda K353 Bias Tire - LR C

Related Products

Customers compare AM30630 to these similar products

Customers Who Purchased This Tires and Wheels Also Bought...

Replacement parts available for this product

$19.00 Less

Kenda K353 Bias Trailer Tire - 4.80-12 - Load Range C

Kenda K353 Bias Trailer Tire - 4.80-12 - Load Range C
Kenda Tires and Wheels

730 reviews

Code: AM10062


Price: $34.95

Tire Only

Top-quality, bias trailer tire has been rigorously tested to ensure that it exceeds Department of Transportation standards. This tire fits 12" x 4" wheels; its maximum load is 990 lbs at 90 psi.

more information →
$5.00 Less

Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C

Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C
Kenda Tires and Wheels

2583 reviews

Code: AM30620


Price: $48.95

Bias tire has a ply rating of 6 and a 990-lb maximum load at 90 psi. The 12" diameter x 4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.

more information →
$34.00 More

Loadstar ST175/80D13 Bias Trailer Tire with 13" Galvanized Wheel - 4 on 4 - Load Range C

Loadstar ST175/80D13 Bias Trailer Tire with 13" Galvanized Wheel - 4 on 4 - Load Range C
Kenda Tires and Wheels

1184 reviews

Code: AM3S130


Price: $87.95


13 Inch

Bias tire has a ply rating of 6 and a 1,360-lb maximum load at 50 psi. The 13" diameter x 4-1/2" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant galvanized finish.

more information →

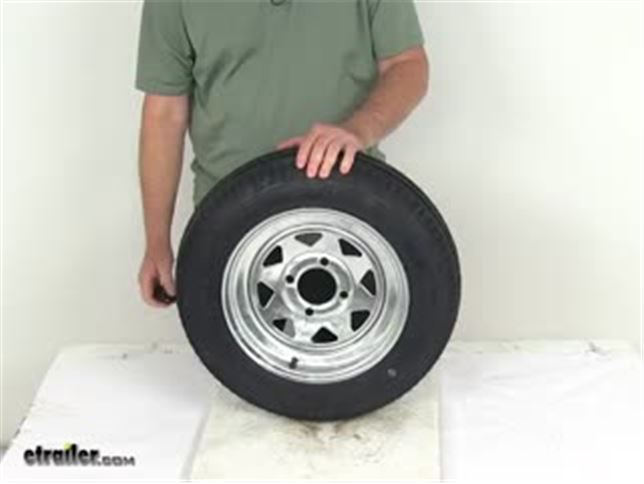

Video of Kenda 4.80-12 Bias Trailer Tire with 12" Galvanized Wheel - 4 on 4 - Load Range C

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Kenda Tires and Wheels AM30630 Review

Today we're going to review part number AM30630. This is the Kenda 4.80-12 bias trailer tire on a 12" Dexstar galvanized wheel. Dimensions on this wheel are 12" in diameter, which when measured would be inside-to-inside that would be 12". It is a 4" wide wheel. The bolt pattern on this wheel is 4 bolts, 4" between the bolts. To measure that we will go from center of 1 bolt hole to the center of the other to show 4", so this is a 4 on 4" bolt pattern.

This wheel has a weight capacity of 1,250 pounds at 90 psi. It uses a wheel bolt size a 1/2"-20. Another critical measurement is the hub pilot hole size, which is the hole that will fit over the hub on your trailer and when measure this it will be 2.8".This wheel has a galvanized corrosion-resistant finish. Now, this tire is a Loadstar, size 4.80-12. This tire has a load range C.

It is a 6 ply rated tire, which means the maximum load capacity on this tire is 990 pounds at 90 psi. The overall diameter, when we measure this tire will be 20-3/4". This tire is a bias tire, which will mean the belts on this tire will go and run the length of the tire, which will mean a little bit firmer ride when compared to a radial tire. This tire/wheel combo will come with a limited 2-year warranty. That should do it for part number AM30630..
