Bias tire has a ply rating of 4 and a 715-lb maximum load at 50 psi. The 8" diameter x 3-3/4" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant galvanized finish.
Features:
Specs:
Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
Video of Kenda 5.70-8 Bias Trailer Tire with 8" Galvanized Wheel - 5 on 4-1/2 - Load Range B
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

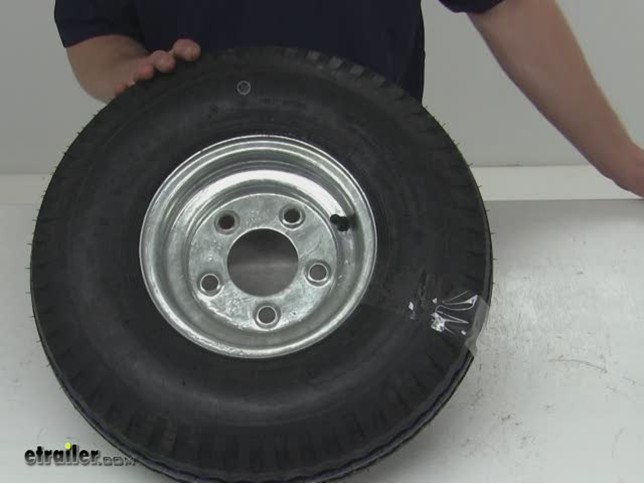

Today, we're going to be talking about part number: AM30110 - the Kenda 5.7 X 8 Bias Trailer Tire on 8" Galvanized Wheel. This wheel has a galvanized finish offering superior rust-resistance. It measures 8" in diameter by 3-3/4" wide. It has a 5 on 4-12" bolt pattern, and there are a few ways you can get these dimensions. It has 5 lug holes, and if you draw a circle through the center of each of the 5 lug holes, and measure the diameter of that circle, you get your 4-1/2". You can also measure from the center of one bolt hole to the center of the very next, giving you 2-5/8".
When you use the chart found on our information page, you know that that is a 5 on 4-1/2" bolt pattern. The wheel has a capacity of 910 lbs. and the bolt holes are 1/2" X 20" bolt size. One more piece of information that you'll need to know is the pilot diameter. This is the hole in the center of the wheel, which will go over the hub of the axle.
This wheel has a 2.8" pilot diameter. Now, moving on to the tire: this is a Loadstar tire measuring 5.7 X 8". It has an outside diameter of 18". It has a load range B, 4-ply rating, giving it a maximum load of 715 lbs at 50 psi. It is of bias construction, which means that the belts within the tire run the length of the tire.
This wheel and tire combo comes with a limited two-year warranty. And that does it for part number: AM30110. .
