Tires and Wheels > Tire with Wheel > Bias Ply Tire > 8 Inch > 4 on 4 Inch > Load Range B > Steel > 4.80/4.00-8 > Kenda

Kenda 4.80/4.00-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range B

Rating: rating rating rating rating rating
33 reviews

Code: AM30000

Price:$33.95

Shipping Weight: 11 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Kenda Tires and Wheels AM30000 Review - Video

Kenda Tires and Wheels - AM30000

Bias tire has a ply rating of 4 and a 590-lb maximum load at 60 psi. The 8" diameter x 3-3/4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.

Features:

Trailer tire by Kenda is designed for excellent handling at high speeds
Steel wheel by Americana resists rust and corrosion
- White powder coat finish over e-coat primer
Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

Rim dimensions: 8" diameter x 3-3/4" wide
Bolt pattern: 4 on 4"
Wheel capacity: 910 lbs
Wheel bolt size: 1/2"-20
Pilot diameter: 2.5"
Tire size: 4.80/4.00-8
- Section width: 4.6"
- Outer diameter: 16.1"
Tire capacity:
- Load range: B
- Ply rating: 4
- Maximum load: 590 lbs at 60 psi
Limited 2-year warranty on tire
Limited 1-year warranty on wheel

Note: These 4.80/4-8 tires fit in the same space as a 4.80-8 size tire, but are not an exact match. On a trailer with 4.80-8 tires, we recommend either replacing all tires/wheels with 4.80/4.8 tires, or replacing one or more with 4.80-8 tires.

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
If D = 3", then the bolt pattern is 5 on 5"
If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

30000 Americana Solid 8" White Wheel and Kenda K371 Bias Tire - LR B

Video of Kenda 4.80/4.00-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range B

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Kenda Tires and Wheels am30000

Kenda Tires and Wheels AM30000 Review

Video Transcript for Kenda Tires and Wheels AM30000 Review

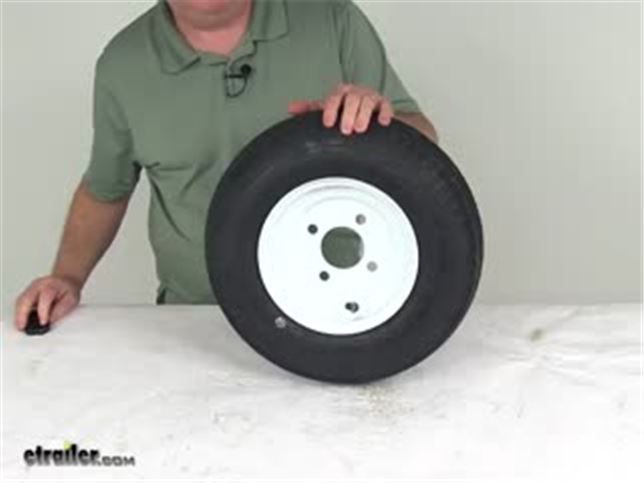

Today we will review part AM30000. This is the Kenda 4.80/4.00-8 Bias Trailer Tire mounted on an 8" Dexstar White Spoke Wheel. First we'll do the rim dimensions. This is an 8" diameter wheel, so if we measure inside-to-inside it would be 8" and is 3-3/4" wide wheel. The bolt pattern on this wheel is a 4-lug, 4" bolt pattern and the best way to measure that bolt pattern is from the center of the lug hole to the center of the lug hole directly opposite. So if we measure center-to-center, would be 4".

The weight capacity on this wheel is 910 pounds. This wheel uses a bolt size of 1/2"-20. Another critical measurement, is the pilot hole diameter which is the hole at the center of the wheel, that is what will fit over the hub on your trailer. If we measure the diameter on that would be 2.5". This wheel has a white powder coat finish.

Now move on to the tire. The tire is a Loadstar, size 4.80/4.00-8". This is a load range: B tire which is a 4-ply rated tire. Has a maximum load carrying capacity of 590 pounds at 60 psi. This tire is a bias construction which should mean the belts inside the tire will run the length of the tire.

Another measurement we're going to do is the overall diameter which if we measure across would 16". This tire wheel combo comes with a limited 2-year warranty. That should do it for product number AM30000.
