Tires and Wheels > Wheel Only > 15 Inch > 5 on 4-1/2 Inch > Steel > 6 Inch Wide > Dexstar


Dexstar Conventional Steel Wheel with Offset - 15" x 6" Rim - 5 on 4-1/2 - Black

Dexstar Tires and Wheels

ratingratingratingratingrating (17 reviews)


Code:   AM20504

Price:$54.95


Shipping Special

Shipping Weight: 19.77 pounds

Quantity:






Dexstar Tires and Wheels - AM20504

Black powder coated, 15" steel trailer wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.

Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • Black powder coat finish over e-coat primer
  • Conventional design does not have spokes
  • Positive offset ensures that the wheel is positioned closer to the trailer frame
  • High-quality wheel meets DOT specifications
  • Made in USA


Specs:

  • Rim dimensions: 15" diameter x 6" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 2.62"
  • Offset: +0.5"
    • Mounting surface of wheel sits outside of rim centerline
  • Capacity: 1,820 at 75 psi
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


20504 Dexstar Conventional Black Steel Wheel - 15"

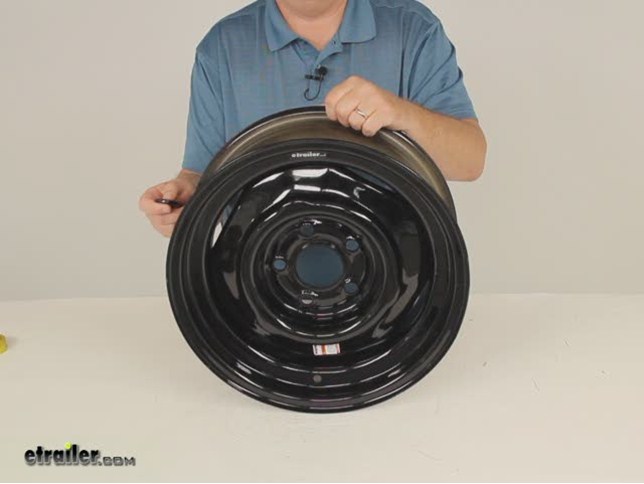

Video of Dexstar Conventional Steel Wheel with Offset - 15" x 6" Rim - 5 on 4-1/2 - Black


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Dexstar Tires and Wheels AM20504
Dexstar Tires and Wheels AM20504 Review

Video Transcript for Dexstar Tires and Wheels AM20504 Review

Today we're going to review part number AM-20504, this is the Dexstar 15 inch by 6 inch conventional steel trailer wheel, with the positive .5 inch offset and the 5 on 4.5 inch bolt pattern. This wheel is a sturdy steel construction, has a nice black powder coat finish over Eco Primer over the whole wheel. This is for excellent corrosion resistance. This wheel is a conventional design wheel; it does not have any spokes or holes to it. This design is basically what was used on a lot of the automobiles that would accept hubcaps; it's designed to accept a hubcap. It has a positive offset, which insures in the wheel's position closer to the trailer frame. This is a high quality wheel that meets the Department of Transportation specifications.

Now a few specs on this is the dimensions is a 15 inch diameter, by 6 inches wide. If you go to measure the wheel, what you'll be measuring is actually the inner to inner, which is the bead seat to bead seat. Basically when a tire is mounted on to this wheel, the beads of the tire would seat right here, so you're going to measure inside to inside. When you do measure it you can see it coming up to a 15 inch diameter, and on the width we'll do the same thing. Measure inside to inside which is the bead seat to bead seat. Put a ruler on that, we can see it's right at 6 inches wide, so this wheel would be 15 inch diameter, 6 inches wide.

It's supposed to have a bolt pattern of 5 lug 4.5 inch bolt pattern, and if you're going to measure the bolt pattern, especially on a wheel that has an odd number of lugs, what you want to do is pick 1 of the lug holes, then start with that hole, and just measure from the center of that hole to the furthest edge on the whole right across from it. You can go to either this hole, or this hole; either one of those holes will get you the correct measurement. What we're going to do is I'm going to start with this hole and go over to the furthest edge on that one. The starting hole you'd go to center, and over here to the outer edge is 4.5 inches, so 5 lug 4.5 inch bolt pattern. It does have a wheel lug size of .5 inch by 20. The pilot hub diameter which is the hole here at the center of the wheel goes over the hub on your trailer.

The diameter of that is going to be right at 2.62 inches for the pilot hub diameter. Now this wheel does have a weight capacity of 1,820 pounds, and the last thing, very important, is that this wheel has the .5 inch positive offset. Basically what that's saying is an offset on a wheel is when this center plate is - right at the centerline of the wheel that's the zero offset - so if this mounting surface plate back here that goes on to your hub or drum on your trailer - if that position of that plate would move towards the outside of the wheel or trailer, that would be positive offset. If it went deeper, then it would be a negative offset. This has a .5 inch positive so this mounting surface, if you measured it, would be .5 inch from the centerline of this wheel, positive to the outside of the wheel. What that does is this will allow the entire wheel to move closer to the trailer frame. Sometimes on some applications the reason they put offset on some wheels is to give extra clearance in here.

If there's something on the axle that needs to clear. That should do it for the review on part number AM-20504, a Dexstar 15 inch by 6 inch conventional steel trailer wheel, with the .5 inch positive offset and the 5 on 4.5 inch bolt pattern. .




Customer Reviews

Dexstar Conventional Steel Wheel with Offset - 15" x 6" Rim - 5 on 4-1/2 - Black - AM20504

Average Customer Rating:  ratingratingratingratingrating4.9 out of 5 stars   (17 Customer Reviews)

Black powder coated, 15" steel trailer wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.


- AM20504

ratingratingratingratingrating by: John C06/29/2012


Shipped and arrived as expected. Looks just like the picture, only bigger ;-) Forgot to order valve stem with the rim, but any place that sells me a tire and mounts it should have one that will work. 46264






- AM20504

ratingratingratingratingrating by: richard J04/16/2014


product was delivered quicker than expected. the item was of high quality and was all what the salesman said it was to be, 125552






- AM20504

ratingratingratingratingrating by: H T Smith10/03/2014


Service was wonderful! Guide showing how to determine wheel measurements was extremely helpful. 154229






- AM20504

ratingratingratingratingrating by: Greg O.06/23/2011


Great Product! Very Fast Shipping! Very Happy... 17774






- AM20766

ratingratingratingratingrating by: Steve M.12/28/2012

Review from a similar Dexstar Conventional Steel Wheel with Offset


Great transaction! Quick delivery. Will look great on my 54 chevy truck! 62132


Comments

Hi Steve, I have the same truck as you, a 1954 3600 Chevy. Im also sick of these split rims, mine are 17 x 7.5. I want to replace them with a 16 chrome steel or aluminum wheel and get this truck a little lower to the ground. Now that you have the Dexstar wheels a while, how do you like them. Did their installation require any modification? Thanks for any advice you could offer. Keep drivin! Larry F.

comment by: Larry F - 05/30/2014


4539


Comments

I like the look of the wheels and plan on using the clips off the old wheels for my hubcaps. I havent mounted them yet, Im still using the old wheelstires during restoration. I was glad to find them though. Good luck with your truck! Send a pic of your truck/

comment by: Steve M - 06/07/2014


4716



- AM20766

ratingratingratingratingrating by: Phil F.03/06/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


Wheels arrived well packed. Just what I needed, in fact will be ordering two more next week! Plan on using these on my 51 Chevy. Tomorrow will attach hubcap clips so I can mount the original hubcaps. Glad I found this company. I'll be using them for all my trailer needs. 119738


Comments

Phil, did you buy the rims and, how do they fit? I also have a 51 GMC 3/4 ton and I am looking to buy the Dextar rims. I appreciate your feedback. Thanks.

comment by: David - 08/14/2014


6268


Comments

David, rims fit my 51 3800 perfect. Im sure you will like them on your GMC. You can get the clips from most of the vintage truck vendors. Hope this helps!

comment by: Phil F - 08/17/2014


6314



- AM20766

ratingratingratingratingrating by: Ronnie M11/05/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


I got exactly what I ordered and quickly! These rims are replacing the old split rim wheels on my 1954 Chevy 3600 Truck. They fit perfectly and there's no issue with tie rod end clearance. Do tell your tire shop to put the balance weights on the outside. Thanks ETrailer.com , I love it when as plan comes together! 159416



- AM20766

ratingratingratingratingrating by: J.D.10/10/2013

Review from a similar Dexstar Conventional Steel Wheel with Offset


Excellent wheels, perfect replacement option for 1954 Chevrolet 3600 (3/4 ton). Great fit with LT215/85R16s...1/2" clearance from the problematic factory tie rod ends. Original (dog dish) hubcaps fit the raised ring perfectly, just need to install the finger-clips to hold them. Best of all no more split rims!! 103382



- AM20404

ratingratingratingratingrating by: Matt sierramadrecabinetco03/27/2013

Review from a similar Dexstar Conventional Steel Wheel with Offset


Great product and service! I'm a returning customer and will continue to use etrailer in my future builds! 72769



- AM20404

ratingratingratingratingrating by: Russ P.11/11/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


These wheels are just what I needed to get my travel trailer back on the road. Great price and they got here QUICK. Will definitely buy two more in the near future. 160380



- AM20766

ratingratingratingratingrating by: Phil F08/30/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


These wheels are the answer for 47-53 Chevy 3/4 and 1 ton trucks! Added clips for original hubcaps, couldn't be happier. Great service from e trailer also! 149304



- AM20404

ratingratingratingratingrating by: Robert J Roberts07/12/2013

Review from a similar Dexstar Conventional Steel Wheel with Offset


Great replacement wheel for my boat trailer...Fair price and fast shipping..A real pleasure to deal with....Thanks Bob 89231



- AM20404

ratingratingratingratingrating by: Steve R02/24/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


Hard time finding this item anywhere else. Etrailer had it and shipped in timely manner. Great to do business with 117495



- AM20766

ratingratingratingratingrating by: Steve M.12/18/2012

Review from a similar Dexstar Conventional Steel Wheel with Offset


Great transaction! Wheel fits my 54 Chevy truck. Getting ready to order four more. 61745



- AM20404

ratingratingratingratingrating by: Barry R.10/21/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


The wheels are of excellent quality and product was delivered ahead of schedule. 157067



- AM20404

ratingratingratingratingrating by: Shawn R.10/21/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


We are very happy with these rims. 157317



- AM20766

ratingratingratingratingrating by: sim08/28/2014

Review from a similar Dexstar Conventional Steel Wheel with Offset


good produc 149100

19
19


Ask the Experts about this Dexstar Tires and Wheels
Expert Answers about Dexstar Conventional Steel Wheel with Offset - 15" x 6" Rim - 5 on 4-1/2 - Black - AM20504Do you have a question about this Tires and Wheels?


  • Spare Tire and Wheel Recommendations for a Nitro Dual Axle Boat Trailer
  • The 14 inch tire on your boat trailer is most likely a 5 on 4-1/2 bolt pattern. You will need a 14 inch wheel to match the other wheels on your trailer. I have included a link to an FAQ that shows how to measure for bolt pattern. The wheel that you referenced, # AM20504, is a 15 inch wheel and it has an offset which is not all that common. If you just want a wheel, # AM20352, is the most common. In the event that your wheels do have an offset, you would use # AM20304. For a standard...
    view full answer...

  • Will Americana Baby Moon Trailer Wheel Center Cap Part # AM90086 Fit 15-Inch Rims on VW Trike
  • The Americana Baby Moon Trailer Wheel Center Cap, part # AM90086, is intended for 13-, 14- and 15-inch conventional 5-lug trailer wheels. Since your VW Trike wheels are 15 inches and have roughly a 9-1/2 inch snap ring around the hub, these 9-1/2-inch center caps may work. I have provided a link to one of the 15-inch wheels we offer that this center cap fits. I have also included a photo of the wheel with measurements that I took from a sample in our warehouse. You can compare these...
    view full answer...

  • Spare Tire and Wheel Recommendation for a Livestock Trailer
  • For that tire size you will need a 16 inch rim with a width range of 6-7-1/2 inches. It sounds like you have a 6 on 5-1/2 inch bolt pattern (check the FAQ article to confirm this) so I would recommend you get a Dexstar Conventional Steel Wheel # AM20758. This is a black, steel rim that is 16 inches in diameter and is 6 inches wide, as well as seemingly has the right bolt pattern you need. Check out the FAQ article on determining bolt patterns to confirm your bolt pattern. I would...
    view full answer...

  • Will the Baby Moon Center Cap Fit a 15 Inch Wheel on a 1938 Chevy Master Deluxe
  • You should not have a problem using the Americana Baby Moon Trailer Wheel Center Cap, # AM90086, with the 15 inch wheels on your 1938 Chevy Master Deluxe as long as the wheels you are using are the standard steel car wheels. This cap is designed to fit 13 to 15 inch conventional steel wheels with a 5-lug pattern. There should be a ring that sticks out surrounding the bolt holes. This cap will snap around the outer edge of that ring. I have attached a photo showing the ring I am...
    view full answer...

  • What is the Weight Limit of the Dexstar Conventional Steel Wheel # AM20504 for a 7000 lb. Trailer
  • The Dexstar Conventional Steel Wheel + 1/2 inch Offset - 15 x 6 inch Rim - 5 on 4-1/2 - Black, item # AM20504, has a weight capacity of 1870 lbs. and would work great on your 7000 lb. GVW trailer. The only concern is the 1/2 inch positive offset of the wheel. Most trailer wheels and tires have a 0 offset which means that the part of the wheel that bolts to the hub is centered in the wheel. Trailer wheels are designed this way to carry the loads required of them. The 1/2 inch positive...
    view full answer...

  • What Size Trailer Wheel Will Fit a 7.00 x 15 Inch Tire
  • The closest size to a 7.00x15 tire would be a 225/75-15. These tires can fit on a 6 to 7 inch wide rim. But they are a little taller at 28.4 inches versus 27.88 for a 7.00x15. So basically, going to a 6 inch wide rim would be ideal. The black steel wheel that you have referenced, # AM20504, is a 15x6 inch with a 5 on 4-1/2 bolt pattern. But it also has a positive 5mm offset meaning the tire will be closer to the trailer frame by 5mm. You would have to make sure you have the available...
    view full answer...

  • Trailer Wheel for a 15 by 5 Inch Wheel with a 5 on 5-1/2 Bolt Pattern
  • With a bolt hole measurement of 3-1/4 inches on a 5 bolt pattern that would mean you have a 5 on 5-1/2 bolt pattern. We have one wheel with that bolt pattern, # WHI155-555WS-T. This wheel has a pilot hole that measures 4-1/2 inches in diameter. If your existing wheels center on the hubs using wheel bolts and not lug nuts then this wheel will not work. If it uses lug nuts then you can use this wheel because having a larger pilot hole is fine. With this wheel size you will need to use...
    view full answer...

  • Tires and Wheels for a 1995 Nitro F/S Boat Trailer
  • Not knowing the original tire size will make this a bit more challenging, but it can be done. If you can provide more information about your trailer, it would make choosing the correct wheel/tire combo easier. The following would be very helpful- The bolt pattern of your hubs (see FAQ article) The axle or trailer capacity (should be listed on a plate or sticker somewhere on the trailer) Center of spindle to inside of fender measurement My hope was that with the serial # or...
    view full answer...

  • Black 15 Inch Wheels with 5 on 4-1/2 Bolt Pattern and 2-5/8 Inch Center Hole for Cronkite Trailer
  • We have a 15x5 inch, # AM20404, and a 15x6 inch, # AM20504. Each of these wheels has a 2.62 pilot hole. Each has the 5 on 4-1/2 bolt pattern. And each has a 1/2 inch positive offset. So the mounting surface is closer to the outside of the wheel moving the tire and wheel closer to the trailer frame. I have linked video reviews of both wheels for you. Based on the measurements I believe you need the 15x6 inch version, # AM20504.
    view full answer...

  • Availability of 15-Inch Wheels With 5-on-4-1/2-Inch Bolt Pattern
  • The wheels you referenced, Dexstar 15 x 6-inch wheel # AM20504 and 15 x 5-inch wheel # AM20404, both feature the 5-on-4-1/2-inch bolt pattern. These wheels also feature 3 projections around the hub area to allow a friction-fit of a hub cap like the 9-1/2-inch Americana Baby Moon # AM90086 for example. Since these wheels are not designed for use with any specific hub cap the fit of this particular Americana part, or your original hub caps, cannot be absolutely assured. I did go to...
    view full answer...

  • Max Tire Height and Width for Use with a Timbren Offroad Axle-Less Trailer Suspension System
  • Since you are building an off-road trailer you would want the Timbren Heavy-Duty Axle-Less Trailer Suspension # ASR2KHDS02. This comes with a longer spindle to let you use a wider wheel and tire than the Timbren Axle-Less Trailer Suspension System with Hubs # A20RS545 that you referenced. The max height of the wheel and tire would only be limited by a fender and where you chose to install it. For a max width you have plenty of room there to. From the hub face to the trailer frame you...
    view full answer...

  • Will an ST205/75D15 Tire Fit on a 15 x 5 Inch Wheel
  • Yes an ST20575D15 tire will fit on a 15 x 5 inch wheel # AM20404. Any given tire size has a range of wheels it will fit. For this particular tire size it will fit 15 x 5, 5-1/2, 6, or 6-1/2 inch wheels. A 15 x 6 inch wheel would be more ideal, # AM20504.
    view full answer...

  • Replacement Wheel and Tire Recommendation for a 1998 Nitro Trailer
  • For a 14 inch rim with a 5 on 4.5 inch bolt pattern similar to the one you referenced you would want the part # AM20304. For a tire in the size you have to use as a spare you would want the part # AM1ST90. The pilot diameter of the wheel I referenced is 2.62 inches. This shouldn't matter as long as your wheel is attached with lug nuts and not wheel bolts.
    view full answer...
