Tire Chains > 2005 > Toyota > Sienna

2005 Toyota Sienna Thule Premium Self-Tensioning Snow Tire Chains - Diamond Pattern - D Link - K-Summit - Size K45

Thule Tire Chains

(5 reviews)


Code:   TH02230K45

Retail:$519.95

Price:$399.98


Shipping Special

Shipping Weight: 18 pounds

Quantity:






Thule Tire Chains - TH02230K45

Because they are designed to ride solely on your vehicle's tire tread, these chains are the perfect solution for cars with limited wheel-well clearance. Chains automatically tighten and align as you drive for the simplest installation possible.


Features:

  • Patented self-centering, self-tensioning system
    • Fastest, easiest installation of any Thule chains
      • Place chain on top of tire, attach to wheel nut or bolt and drive off - chains tighten and center on the tire as the wheels spin
  • Exclusive steel tensioning springs create a perfect fit, even on worn tires
  • External quick-release system for fast removal
  • Exceptional grip on snow and ice
    • Dual-sided, D-shape links for increased traction
    • Icebreaker reinforcements help bust apart ice beneath the tires
  • High-quality manganese nickel alloy steel construction is durable and corrosion resistant
  • Plastic traction plates are durable and flexible to accommodate different temperatures
    • Rivets help to protect plates from wear and allow for increased traction
    • Sturdy arms can be folded for compact storage
    • Strong materials and special geometric design ensure that no slipping occurs
  • Chains sit on tire treads only, leaving alloy wheels untouched
  • Painted, non-tread sections won't freeze your fingers like standard, unfinished metal chains
  • Compatible with anti-lock brakes (ABS) and electronic stability control (ESP or ESC) systems
  • Mounting instructions, nylon storage bag and lug nut adapters (17 mm and 19 mm) included
    • 21-mm Lug nut adapters (TH0223021MM - sold separately) and 22-mm lug nut adapters (TH0223022MM - sold separately) available
  • Made in Italy


Specs:

  • Application: 15" - 20" tires (for exact sizes, see below)
  • Attaches to 17 mm and 19 mm sized lug nuts/bolts
    • 21 mm attachment adapter is available
  • Quantity: 2 tire chains
  • Internal clearance required: 0 mm
  • 5-Year warranty


Form meets function in Thule's K-Summit tire chains. Unlike typical snow chains, the K-Summit chains require no attachments behind the wheel. Simply place two of the traction plates on top of the tire and fasten the K-Summit to the wheel's lug nut or bolt with the easy-to-use fixing key. Activate the chain's ratcheting mechanism and you'll be ready to roll. As you drive away, the traction plates clamp onto the tire surface, and the chain adjusts to conform to the tire perfectly, providing a precise fit even on worn tires. After use, fold up the tire chains and store them in the compact, reusable carrying case.


The K-Summit delivers an extremely user-friendly design. Each chain sits on top of your tire's treads instead of wrapping around the entire wheel. This design not only eliminates the threat of scratches to your wheels, but it also ensures that there is no interference with any suspension or braking components on the inside of the wheel well.


Thule snow chains are handmade in Italy of hardened manganese-nickel alloy steel for durability. The reduced-clearance, D-shape links provide superior traction for excellent grip on snow and ice. The durable plastic traction plates have metal studs to give you superior grip while also providing a high level of driving comfort.


K-Summit Installation

How to Install the K-Summit Snow Chain:

  1. Lay 2 of the chains traction plates on top of the tire.
  2. Attach chain to 1 wheel nut.
  3. Activate the ratchet, which tightens as you drive away.

K-Summit Lug Nut Adapter

Lug Nut Adapter

Attach the lug nut adapter that matches your wheel bolt size to the fixing key. The most commonly used adapters are included with your K-Summit snow chains. (etrailer.com's custom fitguide will indicate whether your vehicle requires an adapter that is sold separately.) The fixing key then mounts to the wheel bolt on the end where the adapter has been affixed. The other end attaches to the K-Summit base, which includes the ratcheting mechanism that tensions the chains as you drive.



How to Choose Snow Chains for Your Vehicle

To choose the right snow chains, you must match your tire size. Those measurements can be found on the side of your tire, as shown below.

Tire size on sidewall

185/60-15

  1. (185) - indicates the width
  2. (60) - gives you the aspect ratio (sidewall height as percentage of width)
  3. (15) - denotes the diameter of the wheel expressed in inches




2004505745 Thule K-Summit Snow Chains - Size K45

Replaces 02230K45



TH02230K45 Installation InstructionsInstallation Details TH02230K45 Installation instructions

These chains fit the following tire sizes:

  • 185/70-17
  • 195/75-16
  • 195/80-15
  • 205/65-17
  • 205/70-16
  • 215/55-18
  • 215/75-15
  • 215/80-14
  • 225/55-18
  • 225/60-17
  • 225/65-16
  • 225/70-15
  • 225/75-14
  • 235/40-20
  • 235/45-19
  • 235/50-18
  • 235/55-17
  • 245/35-21
  • 245/40-20
  • 245/45-19
  • 245/50-18
  • 245/50-18K
  • 245/55-17
  • 245/60-16
  • 265/35-20
  • 265/35-20K
  • 265/40-19
  • 265/45-18
  • 275/30-21
  • 275/35-20
  • 275/40-19
  • 275/45-18
  • 275/45-18K
  • 285/30-21
  • 295/40-18
  • 295/50-16







Video of Thule Premium Self-Tensioning Snow Tire Chains - Diamond Pattern - D Link - K-Summit - Size K45


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Thule Self-Tensioning Snow Tire Chains Review - 2014 Jeep Patriot

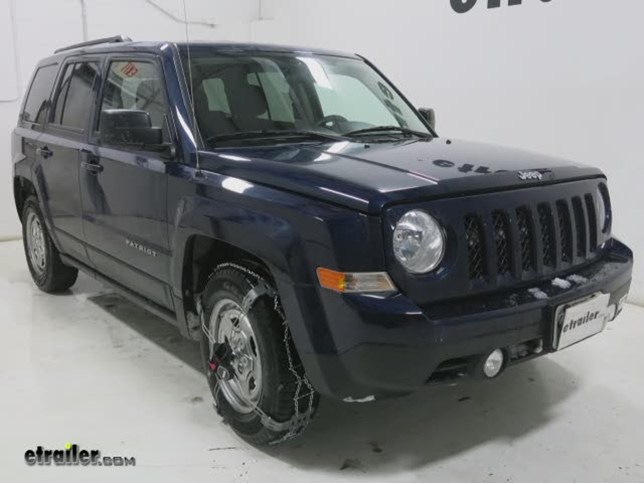

Today on our 2014 Jeep Patriot with tire size 205, 70, 16, we're going to be test fitting the Thule Premium Self-Tensioning Snow Tire Chains for passenger vehicles, part number TH02230K45. Now, to begin our test fit, we'll refer to the instruction manual. In here we're going to find, per our tire size, how many of these links need to be removed. As you can see in this gap here, for the 205, 70, 16 tire that's on the vehicle, we just had to remove one. You want to grab your tire chain, stretch the top of it out. Make sure you don't have any kinks or any tangles. We're simply going to place it over the top of our tire here, and we're going to push in far enough here to where our tire meets the curve right here in this plastic piece. Now we take the appropriate adapter here, which is going to slide onto our lug nut; it comes with a 17 or a 19 millimeter.

We'll take an an anodized aluminum spacer that we have here, and in our application we're using the shorter of the 2 bolts provided, also the shorter of the spacers. Slide your spacer onto your bolt, and then we'll thread it in to our adapter. Now be sure your adapter is pressed in all the way, that way it gets a good, firm grip. One of the keys when we're tightening this down, is to be sure that the arrow here is pointed away from our lug nut. We want that to be in the center; we don't want this to be pointed out towards the outside of the tire. We'll bring it in to here. Now that we've got our bolt down there hand tight, we're going to take the wrench that was provided to us by Thule in our K-Summit kit, and we're going to go ahead and tighten that down.

As far as the specification on that, there isn't one. They say tighten it as tight as you can get it. With that installed tightly, with that pointed towards the middle of the tire, we'll now come to our ratchet strap, which is the tensioning device for it. We'll ratchet this down. As we'll see, it's going to start sucking our chain in. Now these spring arms help to push our spacers in as we go.

Now to get this on there, we will drive forward. Be sure that's pressed down firmly around there. Now we'll drive forward to get it to suck on the rest of the way. As you're driving, it provides a constant force inward that's going to keep your chain tensioned for you. To get to here, we'll want to bring that edge up and around over the top, and now as we drive on the street, usually it takes 50 yards or so, all of these are going to be sucked in. I'll just do it manually here so you can see what it will look like fully installed. With these spring arms, push those in, and as you can see, makes contact here at all 4 points all the way around.

With our chains secure and snug to our tire, that does complete today's test fit of the Thule Premium Self-Tensioning Snow Tire Chains, part number TH02230K45, on our 2014 Jeep Patriot, using tire size 205, 70, 16. .


Customer Reviews

Thule Premium Self-Tensioning Snow Tire Chains - Diamond Pattern - D Link - K-Summit - Size K45 - TH02230K45

Average Customer Rating:  4.4 out of 5 stars   (5 Customer Reviews)


Because they are designed to ride solely on your vehicle's tire tread, these chains are the perfect solution for cars with limited wheel-well clearance. Chains automatically tighten and align as you drive for the simplest installation possible.


- TH02230K45

by: Sherri12/23/2013

2014 Ford Mustang


These chains fit like a glove on my 2014 Mustang. Although the price is high, they are well worth it! 110953



- TH02230K34

by: John S.09/03/2015

2015 BMW 3 Series

Review from a similar Thule K-Summit in Tire Chains


Bought chains for a 2015 3 Series BMW with M Sport Package. You just can't buy chains for these at your local auto parts store. Got exactly what I want, the Thule chains that have nothing on the back side of the tire, the Thule K-Summit series and the price was substantially less than buying directly from Thule. Service was quick, got updated status from eTrailer periodically, and overall an excellent experience. Having a video from eTrailer showing how to install was a great idea. 223741



- TH02230K44

by: Carlos03/02/2011

Review from a similar Thule K-Summit in Tire Chains


After having a hard time figuring out how to assembly it due to lack of written instructions along with the illustration, I was able to mount them with technical help from the manufacurer engineering dept. I am very unsure if I made a good choice in purchasing this product. I was led by the marketing of easiness of installation. Now I realize that if one link on the chain breaks, the whole chain safety is compromise whereas in a standard cheaper model (+- $40) you can just remove one link across the tire and replace it easily. According to Tech. dept. from Thule if on single linkin this chain breaks you can use an emmergency link tighted with plier, but the chain needs to be mailed back to Thurle for repair or replacement. This is a hassle for such a high priced, premium, "ahead of time design". Sure the idea is good, but needs improvement. The same design that makes it easy of use, renders it useless in case of a broken link. I have not driven with them on snow, but I already see its flaw and I am unsure if I made a wise investment. It came with one year warranty, but you get the hassle of having to return them for replacement while you go to Pep Boys and buy a cheaper reliable cable chain while the white elephant is in the shop. What if it breaks after the one year warranty? Waht happened to your U$ 405 plus shipping investment that should bring you peace of mind? These are a few thought I want to share with you. Have a great day. 8216



- TH02230K34

by: Mike w03/09/2015

Review from a similar Thule K-Summit in Tire Chains


the snow chains go on in a breeze. It takes us than 5 minutes to put them on and away you go. highly recommend getting these chains. You don't have to reach around the tire and get wet and muddy. There prefect 177572



- TH02230K23

by: LTC Mike03/06/2015

Review from a similar Thule K-Summit in Tire Chains


Easy to order, easy to install. 177339

5
5


Ask the Experts about this Thule Tire Chains
Do you have a question about this Tire Chain?


  • Snow Tire Chain Recommendation for a 2012 Volkswagen Tiguan that Will Not Scratch Wheels
  • Anytime you put snow chains on a wheel there is always a chance that the rim could get scratched up. The Thule Snow Chains # TH2004205104 that your referenced have anti-scratch nylon bumpers to protect the rims, but there is still a chance that the rims could get scratched up. If you want the absolute best option for snow chains that would nearly eliminate the possibility for your rims getting scratched you would want Thule K-Summit Chains # TH02230K45. The chains sit on the tire treads...
    view full answer...

  • Will the Thule K Summit k45 Snow Tire Chains fit on a 2008 BMW 750 LI with P275/40-R19 Tires
  • The Thule K-Summit Size K45 Premium Self-adjusting Snow Tire Chains, item # TH02230K45, are properly sized for the P275/40-R19 tires on your 2008 BMW 750 LI. You will need to check your owners manual or with the BMW dealer to determine if snow chains are recommended for use on your vehicle. There may be clearance issues that limit snow chain size or prohibit the use of snow chains on your vehicle. The K-Summit chains are designed to eliminate clearance issues on the inside of the tire,...
    view full answer...

  • Clearance of Thule K-Summit Snow Chains, Mounting Locations, and Availability of Replacement Parts
  • On the Premium Self-adjusting Snow Tire Chains by Thule - K-Summit - Size K45, # TH02230K45, the internal clearance required is 0 millimeters for the back of the tire. On the top the part that sticks up furthest from the tire is 1/2 inch. So that small gap on your 2010 Subaru Outback will need to be just a hair more than a 1/2 inch for this set of chains. The tire chains will install on the main driving wheels meaning if the car is front wheel drive, they go on the front. If the car...
    view full answer...

  • Availability of Snow Chains for a Tesla Model S with 245/35-21 Wheels/Tires
  • For the tire size you listed the Thule K-Summit Chains part # TH02230K45 are confirmed to fit and would be the best shot at a set of chains that would fit without issue on your vehicle. Most of the time the reason tire chains aren't recommended for certain vehicles is due to inner wheel clearance between the tire and the vehicle body or frame. What is great about these chains is that they do not drape of the inner sidewall of the tire at all so there would be no clearance issue there....
    view full answer...

  • Tire Chains for a 2014 Ford Mustang with 235/50-18 Tires
  • This is the old tire chain paradox. Basically in some areas of the country chains are required by law but some vehicle owners manuals say not to use chains. What you can do is contact the dealer or Ford directly and ask them what you are supposed to do if chains are required by law. The issue they are concerned about is clearance above the tire and on the inside sidewall of the tire and the components closest to it. Your best option is going to be the Thule K-Summit chains, # TH02230K45....
    view full answer...

  • Do Thule K-Summit Chains TH02230K45 Come with Correct Size for 2016 Jeep Cherokee Latitude
  • The Thule K-Summit Chains part # TH02230K45 are the correct size for your 225/60-17 tires and come with the correct size lug adapter. I did some checking and it looks like your vehicle uses 19mm or 3/4 inch size lugs and these chains come with that size. The height above the tire that chains will sit is 9.9mm.
    view full answer...

  • Recommended Tire Chains For 2016 Ford Mustang With 265/35-20 Tires
  • The Glacier Cable Snow Tire Chains, part # PW1042 will work on your 20 inch tires you have on your 2016 Mustang. These chains are a nice option for occasional travel. I recommend using a tire chain tensioner like part # PW99 to hold the chains in place when installed. Depending on how much you plan on driving with the tire chains on the car you may want to look for tire chains that feature rim protection like the Premium Self-Tensioning Snow Tire Chains, part # TH02230K45. These...
    view full answer...

  • Tire Chain Availability for a 235/50-18 with Limited Clearance
  • You will want to check with a Ford dealer, but the K-Summit Chains like part # TH02230K45 which are confirmed to fit the tire size 235/50-18 that you have, are a very unique tire chain in that they do not require any inner wheel clearance since they do not drape over the inside of the tire at all, they have a very small profile above the tread, and they attach to the lug nut. Typically vehicle's will state that chains aren't recommended for a vehicle because of inner clearance issues....
    view full answer...

  • What Snow Tire Chains Are Recommended For A 2009 Ford Taurus SEL FWD
  • Before buying snow tire chains you will want to check your owners manual or with the Ford dealer if you can install snow tire chains on your 2009 Ford Taurus SEL-FWD, or if there are any limitations. If you have the 215/60R17 tire size on your 2009 Ford Taurus SEL-FWD the Thule CS10 Snow Tire Chains # TH00204103 is an excellent choice. They are self-centering and auto-tensioning chains that are simple to install. They have an internal clearance measurement of 10 mm which means they...
    view full answer...

  • Tire Chain Recommendation for 2016 Subaru Forester 225/60-17 Sized Tire
  • I can help you find a tire chain that will work for your needs. Typically, when the owners manual states not to use tire chains it is because there isn't enough clearance between the tire and the vehicle body. The tire chains # TH2004205104 you were looking at require a clearance of 10mm all the way around the tire to prevent it from coming in contact with the body. I recommend the Thule K-Summit Premium Self-Tensioning Snow Tire Chains # TH02230K45. These chains differ from most...
    view full answer...

  • Tire Chain Recommendation for a 2015 Subaru Forester with P225/60R17
  • For your 2015 Subaru Forester the reason tire chains aren't recommended is because there isn't enough clearance in the wheel wells for the chains to clear and not damage the vehicle. For vehicles like this the best option is going to be the Thule K-Summit Chains like part # TH02230K45. These chains do not drape over the inside of the tire at all so basically they do not cause any clearance issues at all. We always go with the vehicle manufacturer as the final word on whether or not...
    view full answer...

  • Self-Tensioning Snow Chains for 2011 BMW X3
  • The only self tensioning tire chain we offer for the 245/55-17 tire size is the Thule K-Summit, part # TH02230K45. The chains are self tightening and aligning and will not extend past the inside edge of the tire, so they are perfect for vehicles with limited clearance between the inside of the tire and the suspension components. The chains offer a 5 year warranty, and are very easy to install and remove as you can see by watching the video I linked you to. If you like the cable...
    view full answer...

  • Tire Chains for a 2016 Bentley Continental with 275/35-20 Tires
  • We do have a set of tire chains that will work well for the 275/35-20 Tires on your 2016 Bentley Continental. You can use Thule tire chains # TH02230K45. These chains require no clearance behind the tires on the in board sidewalls so they are Class S compatible. The chains feature rim protection and ice spikes so they are great in both snow and ice. Take a look at the video I have linked on these chains for you.
    view full answer...

  • Does Thule Self-Tensioning Snow Chain Kit TH02230K45 fit a 2013 BMW X3 with 245/45-19 Tire Size
  • The # TH02230K45 Thule self-tensioning tire chains are a fit for the 245/45-19 tire size, but it does not look like they have been specifically tested on a 2013 BMW X5 yet. The best thing to do would be to check the owners manual or with a BMW dealer to determine if snow chains are recommended for use on the 2013 X5 models. There may be clearance issues that limit snow chain size or prohibit the use of snow chains on your vehicle. The # TH02230K45 chains have a design that does not...
    view full answer...

  • Tire Chains for a 2014 Jeep Compass with 225/60-17 tires
  • This is the old tire chain paradox as I call it. This is when the owners` manual says not to use chains yet you live in or will be traveling through an area that requires them by law. In this situation you will need to call the dealer and state this issue and ask them what you are supposed to do in this situation. The concern is not going to be the clearance between the top of the tire and the wheel well. The issue is going to be the clearance from the inside of the tire to the nearest...
    view full answer...

  • Availability of Snow Socks for 2007 Bentley Continental with 275/35/ZR20 Tires
  • The Heininger Ultra Snow Socks for Passenger Vehicles # HE9110 that you referenced are the only such item we offer. These, like all tire chains, fit multiple tire sizes but not the 275/35/ZR20 size you have on your Bentley. We do offer a variety of S-Class passenger vehicle tire chains for your tire size from several makers, all of which are suited for on-road use only. The link at right will let you see all offerings. S-Class chains do not require a lot of clearance within the wheel...
    view full answer...

  • 2013 Ford Escape SEL Tire Chain Recommendation 235/50R18
  • The Thule Chains part # TH01571240 will fit the tire size you have on your 2013 Ford Escape SEL. However, you will need to check with Ford to see if they will allow you to use the chains on your vehicle. In some areas you have to have chains to be able to get around so we realize the need for them even when the owners manual says not to use them. If the reason they do not recommend the chains is due to inner wheel clearance issues you should still then be able to use the part # TH02230K45...
    view full answer...

  • Snow Chain Recommendation for a 2011 Ford Mustang GT500
  • First thing you need to do is check the owners manual of your 2011 Ford Mustang for any restrictions on running snow chains. I would hate to see you damage anything by attempting to run chains on a muscle car as nice as yours. For a set of chains that will provide you with the best possible clearance and are confirmed to fit your tire size you would want the Thule K-Summit chains part # TH02230K45. These chains do not install on the inside of the tire so they wouldn't require any clearance...
    view full answer...

  • Recommendation for Tire Chains with Adequate Clearance for a 2014 Nissan Quest with 225/65-16 Tires
  • Yes, I am confident that once you have the Titan chains # TC1547 installed on your 2014 Nissan Quest with 225/65-16 tires there will be adequate clearance between the outer edge of the wheel and the tire chains. On the off chance that there isn't right out of the box the chains do offer a little bit of adjustability. I have included a link to a video review of these chains for you. Another option that will work for sure and have no part of the chains on the back side of the tire I recommend...
    view full answer...
