RV and Motorhome Bike Racks > Platform Rack > 4 Bikes > Wheel Only Mount > RV Bumper Rack > Locks Not Included > Swagman

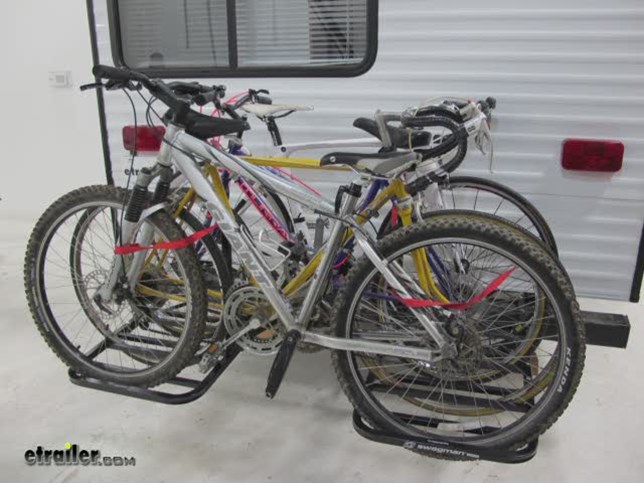

Swagman 4 Bike Carrier RV Mounted Bike Rack

Swagman RV and Motorhome Bike Racks

ratingratingratingratingrating (8 reviews)


Code:   S80600

Retail:$184.00

Price:$165.60


Shipping Special

Shipping Weight: 41 pounds

Quantity:







Swagman RV and Motorhome Bike Racks - S80600

Carry up to four bikes with this simple to use and easy to attach RV bike carrier. Tire rails support several sizes of frames and wheels on this corrosion resistant, solidly constructed rack.

This reliable mount rack is constructed with steel and carries up to four bikes. Built for 4" to 4-1/2" continuous welded steel square bumpers, this rack is simple to attach and easy to use. The tire rails support several sizes of frames and wheels.

Features:

  • Carries up to 4 bikes
  • Steel construction
  • Measures 13-1/2" from wall out to center of hanger
  • Tire rails support several sizes of wheels and frames
    • However, both bikes need to be of similar length
  • Upright bars add additional support for bikes
  • Powder-coated to resist corrosion

Specs:

  • Built for continuous welded steel square bumpers at least 4" and no more than 4-1/2" wide
    • Not for use on aluminum or spot welded bumpers
  • Distance from bumper to end of rack: 34"
  • First bike sits 4-3/4" out from bumper
  • Limited lifetime warranty


bike rack

80600 Swagman RV 4-Bike RV Bumper Mount Rack






Customer Reviews

Swagman 4 Bike Carrier RV Mounted Bike Rack - S80600

Average Customer Rating:  ratingratingratingratingrating4.4 out of 5 stars   (8 Customer Reviews)




- S80600

ratingratingratingratingrating by: Murray L08/06/2012

Is this review helpful?


solid construction, easy assembly, I had to make some adjustments to work around my spare tire.(moved the tire over 4 inches)The two bike model would not have worked. I am using the 4 bike carrier for two bikes and could carry a third in the outer slots if necessary.50793


Comments

I like the looks of this bike carrier. It would appear the bikes will not bang together while traveling. Not sure if I understand how the bikes are tied down. Doesnt appear to be any uprights to tie the bike to. Please clarrify. Thanks.

comment by: Bob - 8/10/2013


1880

The tie-down method is up to the end user. We recommend something like ratchet straps or cam-buckle straps that will not give or flex like a bungee cord would. Part 05605 is a 4 pack of cam-buckle straps that we recommend for this rack.

Patrick B - 8/14/2013





- S80600

ratingratingratingratingrating by: Dirkjan08/28/2009

Is this review helpful?


A winner, especially mnt.bikes We ahd nowhere to mount the conventional bike racks as we also take our 4 kayaks on the roof top. Whit the different types of bikes the rack could accomodate both mountain bikes and conventional bieks.2317



- S80600

ratingratingratingratingrating by: joe s03/24/2009

Is this review helpful?


works great, easy installation took all 4 bicycles on it for spring break and it worked great and it was simple and easy to install. the only drawback was i had to remove my spare tire and holder, but i thought i might have to do that when i bought it.1677



- S80600

ratingratingratingratingrating by: Travis S.07/16/2013

Is this review helpful?


heavy duty, built better than expected! Should last for years!89746



- S80600

ratingratingratingratingrating by: kristi v08/23/2012

Is this review helpful?


Looks great. Doesnt bounce while parked, hopefully works great ehile driving.52655



- S80600

ratingratingratingratingrating by: Jim P.08/19/2012

Is this review helpful?


}Well made product. Easy to install. Works great!52294



- S80600

ratingratingratingratingrating by: Dennis G08/04/2012

Is this review helpful?


Very well made,but,where tires go could be a little wider. Does not fit my mountian bikes very well!50553



- S80600

ratingratingratingratingrating by: Marcia S.04/19/2012

Is this review helpful?


the product was found to be very well made and easy to install, we look forward to getting much use from it all summer long.37757



Ask the Experts about this Swagman RV and Motorhome Bike Racks
Expert Answers about Swagman 4 Bike Carrier RV Mounted Bike Rack - S80600                                            Do you have a question about this RV and Motorhome Bike Racks?


  • Tying Down Adult and Childrens Bike Frames on RV Platform Bike Rack # S80600
  • The bikes being carried by this rack need to be of similar length. Once you position the racks the appropriate width to fit the adult bikes you can then see if they are close enough to accommodate the childrens bikes. Once placed on the rack you would use tie downs to keep them in place. I have included a link to a page with our tie downs.
    view full answer...

  • 4 Bike Rack for a 2008 Surveyor 19 Foot Camper
  • The Swagman 4 Bike Carrier RV Mounted Bike Rack # S80600 is meant to be mounted only on continuous welded steel tubular bumpers and not spot or stitch welded bumpers or on non-steel bumpers. If your bumper does not fit into these parameters then the Swagman # S80600 will not work. If your RV has a trailer hitch in the back there are more options like the Standard 4 Bike Rack for 1-1/4 inch and 2 inch Trailer Hitches - Swagman Original # S64400. The Swagman 4 Bike Carrier RV Mounted Bike
    view full answer...

  • What is the Capacity of the Swagman 4 Bike Carrier RV Mounted Bike Rack, # S80600
  • I spoke with my contact at Swagman. She stated that the 4 Bike Carrier RV Mounted Bike Rack, # S80600, can hold 4 bikes at 30 pounds per bike. She also said that, though that totals out to 120 pounds, you cannot put one 120 pound bike (for example) on the rack. The heaviest bike would need to be loaded closes to the RV and so on. I have included a link to the installation details below. Also, to install this rack, your RV must have a 4 to 4-1/2 inch square continuous welded steel bumper.
    view full answer...

  • Suitability of Swagman 4 Bike Carrier RV Mounted Bike Rack Part # S80600 on 1996 Jayco Pop-Up Camper
  • The short answer is maybe. This carrier is designed to be used only on 4 or 4-1/2 inch square continuously welded steel bumpers. The aluminum or spot-welded steel bumpers are not strong enough to carry the combined weight of the rack and the bicycles placed upon it. I will provide a link to the instructions below for your review.
    view full answer...

  • Trailer Hitch Mount 4 Bike Rack Recommendation for Use Beyond a 5th Wheel Trailer
  • Only certain bike racks are rated for use behind a trailer. I have included a link to the available options for you to view. The hitch mount platform racks that can be used hold a maximum of 2 bikes. For a 4 bike rack, we have the Swagman Standard Rack, # S64400. In order to use this rack, you will need at least 15 inches from the ground to the bottom of the receiver tube. From the center of the hitch pin hole on the rack to the back of the upright bar measures 13 inches. If the spare tire st
    view full answer...

  • Rack with 4 Bike Capacity Needed for Rear of a Salem RV
  • We do offer bike racks that can utilize the ladder on the rear of the trailer, like the Swagman RV and Motorhome 2 Bike Carrier, part # S80630. Unfortunately, these racks only have a two bike capacity. Depending on the size and construction of the rear bumper, a bumper mounted receiver like the Swagman part # S64025 would be a good option for a 4 x 4 inch continuous-welded steel bumpers. This receiver is not compatible with aluminum or spot-welded steel bumpers. Using a bolt on receiver woul
    view full answer...

  • Can Swagman 4 Bike Carrier RV Mounted Bike Rack Be Used on a Tent Trailer
  • As long as your tent trailer has a 4 inch square continuous welded steel bumper, AND it has the capacity for the weight of the rack plus the bikes, then you will be able to use the Swagman 4 Bike Carrier RV Mounted Bike Rack, # S80600. I have incldued a link to the installation details for you to view.
    view full answer...

  • Installing the Swagman RV Bumper Mount Bike Rack on a 5th Wheel Trailer Bumper with Limited Space
  • As long as there is 3/8 inches of space between the bumper and the body of the trailer, you should be able to install the Swagman RV and Motorhome Bike Rack, # S80600, because that is how wide the bolt is that goes behind the bumper. If you look at the instructions I have linked, at the bottom of page one is a drawing showing how the rack fits together. If you put everything together except bolts G and F, you should be able to fit the rack around the bumper and then install the bolts, washer
    view full answer...

  • Will the Swagman 4 Bike Carrier RV Mounted Bike Rack Fit a Motor Home with a Spare Tire on the Back
  • I suppose you technically could move the nearest upright to make room for the spare tire if needed. But you can also make the 2 parts of the rack far enough apart to accommodate the spare tire. The problem with moving the upright forward is that it can only be positioned as far back as the second one is in the product page pictures so the bike furthest away may not be able to be safely secured to the rack. You would need to put your 2 bikes in the center two bike slots. I have included a lin
    view full answer...

  • Trailer Hitch and Hitch Mounted Bike Rack Recommendation for a 2012 Shadow Cruiser
  • A bumper labeled as Alumi-X would most likely have at least some percentage of aluminum in its construction. The Swagman 4 bike rack, # S80600, is only meant for a welded steel bumper so I cannot say that it will work on an Alumi-X bumper. What I recommend is a trailer hitch and hitch mount bike rack. To add a trailer hitch to your RV, I recommend # 13703. This hitch fits box frames, I-beam frames, and C-Channel frames. It can be welded or bolted on, but any welding should be performed by a
    view full answer...

  • Rear Bumper Mounted Bike Rack for 1995 Starcraft Tent Trailer
  • As long as the bumper on your Starcraft is 4 inches square and is continuously welded (not spot welded) the would be a good solution for you. The rear most upright bar could simply be left off to allow clearance for the spare tire. Swagman also makes a rack that is specifically designed to fit around a spare tire, the Mighty Rack part # S80500. Unless you have a strong preference for the platform-type # S80600, the Mighty Rack might be a better alternative for you. For install details for
    view full answer...

  • Tubing Dimensions of Swagman RV 4 Bike Carrier
  • The Swagman RV Mounted 4 Bike Carrier you mentioned, part # S80600 is constructed of 7/8 inch square steel tubing. If you only have 3/4 inches of clearance above your bumper, the rack will not fit as the tubing will be just a little too thick. For 4 bikes, your best bet would be to use a bolt-on receiver like part # UF35-946402 along with a hitch mounted bike rack. Bike racks installed on an RV or towed camper is subjected to additional bouncing than what would be experienced when installed o
    view full answer...

  • How to Carry a Bike Rack and Tow a 1996 Coleman Laredo Camper
  • To carry your bike rack and tow your 1996 Coleman Laredo at the same time, I would recommend looking at the Curt Multipurpose Ball Mount, # D210. This ball mount will allow you to tow your trailer and carry your bike rack at the same time. When using this ball mount, the bikes will hang over the tongue of your trailer. This ball mount has a towing capacity of 7,500 lbs and a tongue weight capacity of 750 lbs. The receiver portion of the ball mount has a weight capacity of 350 lbs. Keep in mi
    view full answer...

  • Bumper Mounted Bike Rack Compatibility with a 2012 Ever-Lite 29ft Travel Trailer
  • I spoke with Evergreen and the bumper on your 2012 Ever-Lite 29 ft travel trailer is a steel bumper that is welded to the I-beam frame of your trailer. Your bumper has a 150 lb weight capacity. You can use any of the Swagman bumper mounted bike racks to carry your two bikes on your travel trailer as long as the total weight of both bikes and the bike rack does not exceed 150 lbs and if the bumper is at least 4 inches tall and no wider than 4-1/2 inches. I have attached a link to all of the S
    view full answer...

  • What is the Swagman RV Bike Rack Designed to Fit
  • The Swagman 4 Bike Carrier RV Mounted Bike Rack # S80600 that you referenced is designed to work on continuous welded steel square bumpers at least 4 inches and no more than 4-1/2 inches wide. If the bumper on your 2013 Coachman 292BHDS fits those requirements then this bike carrier will work great for you. If not, I attached a link to all of the other bike racks we carry that are confirmed to work on RVs for you to check out also.
    view full answer...

  • Will the Swagman 4 Bike Carrier RV Mount Rack Fit 1993 Fleetwood Wilderness 23 ft Travel Trailer
  • To carry 4 bikes on the bumper of your 23 ft, 1993 Fleetwood Wilderness Travel Trailer you will need to install a RV Bumper Hitch such as Curt # E-100. This receiver is 2 inches and mounts on a standard 4 inch bumper. A hitch mounted 4 bike rack that would work nicely for your RV is the Swagman Original # S64400 which has great reviews from RV owners. I have attached two short video covering the Swagman # S64400 as well as the adapter # S64030. If you plan on carrying a womans, childs
    view full answer...

  • How do Bikes Attach to the Swagman 4 Bike Carrier # S80600
  • There is an upright bar on the Swagman 4 Bike Carrier RV Mounted Bike Rack # S80600 for bikes to attach to. If you check out the picture I attached you will see it. Here is what the installation instructions say about attaching bikes to this rack: For your safety and the safety of others while traveling, the bike(s) MUST BE secured with BUNGEE CORDS OR STRAPS NOT SUPPLIED with this rack. It is recommended to secure the bike(s) to the safety chain plate holes of a hitch or any other permane
    view full answer...

  • Options for Carrying 4 Bikes on a Winnebago Adventurer When Flat Towing a Vehicle
  • It would be possible to mount a tow bar and the Swagman 4 Bumper Mount Bike Rack, # S80600, on a motor home, but an issue that you could run into is limited turning clearance for the towed vehicle. The Swagman bike rack will stick out 34 inches from the bumper. If you find yourself is a tight turning situation, the vehicle may hit the bike rack or bikes depending on the length of your tow bar and the position of the bike rack on the bumper. A better option would be to carry the bikes on the t
    view full answer...

  • Can Two 8 Foot Long Tandem Bikes be Carried at the Back of an RV
  • First, a 250 cm bike by my calculations is over 8 feet wide. Depending on the RV the bikes could overhang the RV and cause clearance issues with other vehicles so you will want to be very cautious about that. If the RV has a 4 inch to 4-1/2 inch continuously welded steel bumper that is rated for carrying the weight of the bikes it is possible that you could use bike rack # S80605 to hold the tandem bikes. This is a 2-bike version of the rack you referenced. The bumper would also have to be lo
    view full answer...
