Boost the power output of your diesel engine with this tuner, monitor and diagnostic device in one. Choose from 4 different levels to get gains of up to 130 hp and 260 ft-lb of torque. Unique Driving Coach program helps you maximize fuel economy.
Note: This performance module is not legal for sale or use on pollution-controlled vehicles in the state of California.
Easily tune your diesel engine on the fly and monitor vital data with the Triple Dog Gauge Tuner. The full-color, customizable screen lets you monitor up to four different parameters at once. In addition to these parameters, the screen also features a large display that can be customized to show one of three different gauge styles (analog, analog with mini-graph, or full graph) or the Driving Coach display.
Get more horsepower and torque with the press of a button. On-the-fly adjustment means that you can go from OEM settings to extreme power in a moment's time. Choose from four different power levels to fit your driving needs.
|Stock||None||Maintains factory default settings|
|Tow||Up to 50 hp|
Up to 100 ft-lb
Great for everyday towing
|Performance||Up to 75 hp|
Up to 150 ft-lb
|Dramatically increases power|
Best for heavy-duty towing and driving through hilly terrain
|Extreme||Up to 130 hp|
Up to 260 ft-lb
Intended mainly for racing
The GT tuner lets you monitor more than fifteen different parameters so that you can be aware of the function and performance of your Ram 2500 at all times. Set parameters quickly and easily through the Gauge Setup Menu. Note: Not all of the following are available for all applications.
You can monitor up to four parameters at a time, with each displayed along the left side of your screen. To view detailed information about any one of those factors, touch the button next to it, and the large gauge area on the right will display the information for that parameter.
Running the Driving Coach program turns your gauge display into an information hub for tracking your fuel economy. Monitoring the information presented here will give you a good indication of how your driving habits affect your fuel economy and overall engine performance.
The Instant Fuel Economy graph shows real-time fuel usage. This can be displayed in either miles per gallon or kilometers per liter. The Wasted Energy graph shows your acceleration and deceleration in relation to a base centerline. The centerline represents zero wasted energy. If you accelerate or decelerate too quickly, a color bar will extend out from the centerline, so you can see how much energy that move just cost you.
The Report Card graph indicates your overall engine performance and fuel economy, and it ranges from "A" for optimal performance to "Epic Fail," indicating the need for a tune-up, as well as a change in driving habits.
If you're not interested in fuel economy and are really only in this for the extra horsepower and torque, you can remove the Driving Coach from your monitor and instead view a large gauge of any chosen data.
The Triple Dog GT has several features that are unique to Dodge diesel applications. You can, for example, set up your GT to control when the door locks engage and disengage on your Ram 2500. The headlamp delay (the amount of time that the headlights remain on after the engine is turned off) can be adjusted to suit your preferences. Set certain audible or visual notifications, such as the seat belt reminder chime or the chirp emitted when you remotely lock your Ram 2500, as you see fit. And you can limit or extend the amount of time that accessories, such as the radio, stay on after the engine has been turned off. Note: These features may not be available for all models and years.
Video of Bully Dog Triple Dog GT Gauge Tuner - Color Screen - Diesel - Dodge
installation instructions and specs for complete information.

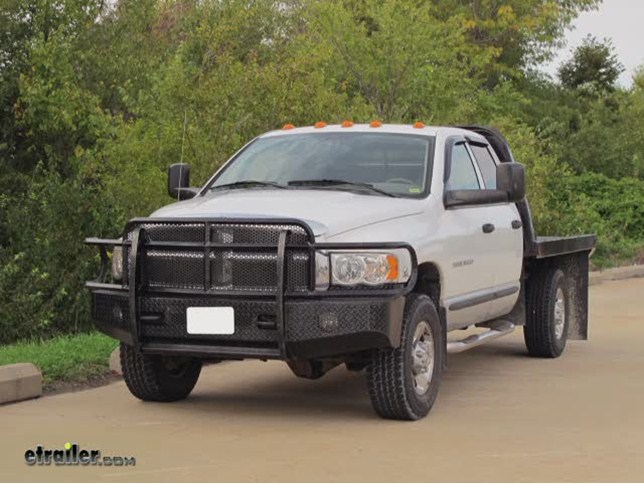

Today on our 2005 Dodge Ram with the 5.9 Cummins Diesel well be installing the Bully Dog Triple Dog GT Gauge Tuner part number BY40420D. Now this performance chip will boost the power up whatever your vehicles diesel engine as well as monitor and diagnose all in one. Youll be able to get gains and horsepower and torque. The unique driving coach program helps you maximize fuel economy. Now to begin our installation, well need to run our power wire. Well run it through the firewall here in this grommet where this cable passes through.
Now that were out here in our engine compartment, well run it up and out of the way following our factory harness to the fuse panel here. Now that we found the fuse, it powers up when the key is turned on, well use our inline fuse circuit tap kit part number F2526. Well remove the fuse, install the two fuses into the fuse holder and reinstall the holder into the fuse location that will enable this wire here coming out of our fuse block to be energized. We can then connect the power wire for our Bully Dog programmer to it. With that done, well simply take off the excess wire here in the engine compartment leaving enough wire to plug in to our DLC3 connector here under the dash.
Well then route it up towards the top of the dash. Well use the suction cup mount to mount the program or monitor in place. We can attach our bully dog programmer monitor into the other side. Now, with our monitor in place, were now ready to turn our key to the on position. Youll notice the Bully Dog programmer then comes on.
It will walk you through downloading the programming to the vehicle. That completes our installation of the Bully Dog Triple Dog GT Gauge Tuner with colored screen part number BY40420D on our 2005 Dodge Ram with 5.9 Liter Cummins Diesel.
Average Customer Rating: 4.0 out of 5 stars (1 Customer Reviews)
by: Ben B.05/28/2013
I would give this an excellent but the power cord had a loose connection on the positive side, it took a while to figure it out with an ohm meter. I went to Radio Shack and bought a power adapter for a cell phone $17, as I was on the road and had no soldering iron. I am amazed that you can get more power and better fuel economy at the same time. I made the same trip with the same load from Florida to Maine with about a five mpg increase and no need to be in the right hand lane going up the mountains. I am impressed!82217
