Mirrors > ATV - UTV Mirror > Roll Cage Mount > CIPA


CIPA UTV Adjustable Side Mirror - Black - Right Hand

CIPA Mirrors

ratingratingratingratingrating (22 reviews)


Code:   CMM38

Retail:$18.49

Price:$14.99


Shipping Special

Shipping Weight: 1 pounds

Quantity:






CIPA Mirrors - CMM38

This adjustable, right-hand, UTV side mirror attaches to your roll cage for superior visibility.

Features:

  • Attaches easily to your roll cage with included hardware
  • Adjusts to provide you with excellent side vision
    • Flat mirror provides a true representation of the size and distance of reflected objects - objects are actually as close as they appear to be
  • Black housing


Specs:

  • Fits roll cage diameters 1-3/4"
  • Includes 1 right-hand (passenger's-side) mirror, bracket and hardware
  • 1-Year limited warranty


01138 CIPA Adjustable UTV Side Mirror - Black - Right Hand







Video of CIPA UTV Adjustable Side Mirror - Black - Right Hand


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install cipa utv adjustable side mirror 2014 polaris ranger crew cmm38
CIPA UTV Adjustable Right Hand Side Mirror Installation - 2014 Polaris Ranger

Video Transcript for CIPA UTV Adjustable Right Hand Side Mirror Installation - 2014 Polaris Ranger

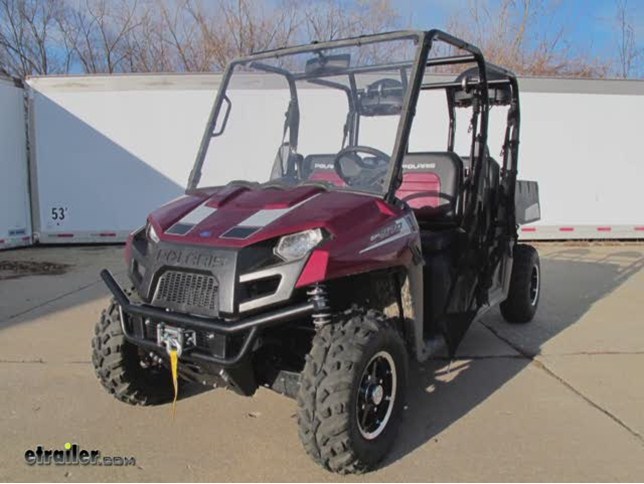

All right, today on this 2014 Polaris Ranger Crew 570 we're going to install part number CMM38 from CIPA. This is the CIPA UTV Adjustable Side Mirror for the right-hand side. We'll go ahead and layout the parts first. We have the mirror assembly and then the machined mount that the mirror threads into and then the clamp. Now, we have the clamp and machined mount already put together to show you how the hardware works together where 0:26 the machine mount, a lock washer, then the clamp, then another lock washer, and then the nut. Now, inside the clamp will be a rubber strip as well.

Now, we'll start of by disassembling the clamp from the machine mount and we'll go ahead and fit it around our roll cage on our UTV. We'll go ahead and spread it out and slip it over make sure we have it wide enough, then we'll take it out and then we'll go ahead and reinstall this time with the rubber strip. We'll go ahead and push it back together and then loosely install the machined mount. In this case, the holes didn't lined up pushing it back together, so we use an alignment tool to help bring them back together. This also could be a small screwdriver. We'll go ahead and install the machined mount with the lock washer on one side and then through the clamp and then the lock washer and nut.

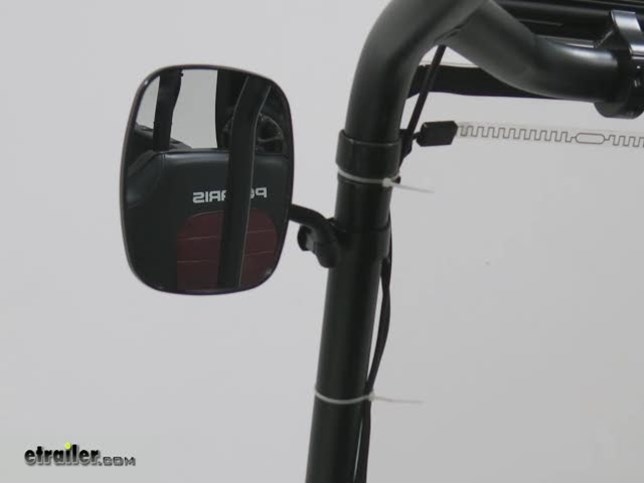

We'll loosely install them and we'll go ahead and take up of the slack so that it doesn't move around. Then we'll install the mirror into the machined mount. We'll start a few threads in inaudible 1:19 secure and then, we'll alternate back and forth tightening them down to make sure the mirror stays in position that we want. Now, when we thread the mirror into the machined mount, we'll go ahead and run the threads all the way down till they stop. You definitely do not want to over tighten here.

Then we'll go ahead maneuver the clamp to it's final position then tied it down for good. All for a few minutes our mirror is already installed and ready to go. Let's go ahead and take it for a test ride. That will finish it for part number CMM38 from CIPA on our 2014 Polaris Ranger Crew 570. .




Customer Reviews

CIPA UTV Adjustable Side Mirror - Black - Right Hand - CMM38

Average Customer Rating:  ratingratingratingratingrating4.0 out of 5 stars   (22 Customer Reviews)

This adjustable, right-hand, UTV side mirror attaches to your roll cage for superior visibility.


- CMM38

ratingratingratingratingrating by: Mac M.12/24/2010


JUST WHAT THE GATOR NEEDED AFTER BEING DISSATISFIED WITH A COUPLE OF $40 A PIECE MIRRORS .I THOUGHT I'D GIVE THESE A TRY ...PUT THEM LOW ON THE ROLL CAGE ON MY 2011 XUV GATOR...LEFT THEM ALITTLE LOOSE INCASE OF CONTACT WITH SOMETHING ..REALLY PLEASE WITH THE PRODUCT AND ESPECIALLY THE LIGHTENING FAST DELIVERY ..I'LL BE BACK FOR MORE STUFF.. 4565






- CMM38

ratingratingratingratingrating by: RB12/23/2013


The machined male/female threaded connector between the clamp and mirror arm is low grade metal and the male threads will strip very easily. This makes it difficult to tighten enough to prevent excessive vibration if mounted on an ATV which will be used off road. 111029






- CMM38

ratingratingratingratingrating by: Rusty K06/08/2013


Decent for the price. They're perfect for my application (Kawasaki Mule, running on wide trails and for groundskeeping), but I don't know if they'd be sturdy enough for ATV in brush. They were shipped with etrailer.com's usual fine attention to customer service 83826






- CMM38

ratingratingratingratingrating by: Richard03/25/2013


Just what you described and what I ordered,,Nothing fancy about the mirrors but just what I wanted. Mounted them on the cab of my snow plow and they helped keep me safe from behind!! Thanks for the fast overland delivery. I would recommend you to anyone..... 72364






- CMM38

ratingratingratingratingrating by: Sherrie H.06/02/2011


I ordered both the right and left side. These were installed on our Gator. I like that you see a true view of what is behind you. The service is great. I ordered on 5-30-11 and rec'd on 6-2-11. I will be ordering from this company again. 15982






- CMM38

ratingratingratingratingrating by: BT05/28/2012


Mirror is overall a good product. Be careful tightening, the bolt will twist off. It is a fine balance between keeping the mirror tight enough to keep from moving and twisting it off. Once on, they work well. 41836






- CMM38

ratingratingratingratingrating by: Vern T.04/10/2014


Product is as advertised, I am adapting mirrors to my small tractor, worked out well. Fast easy ordering and delivery as well. 124600






- CMM38

ratingratingratingratingrating by: wally perry10/23/2012


same as the other one, love it...... 57990






- CMM38

ratingratingratingratingrating by: Elwood Holmes04/16/2014


It is just what I wanted. 125376






- CMM37

ratingratingratingratingrating by: John S.09/26/2014

Review from a similar CIPA UTV Adjustable Side Mirror


All of the products that I have received from etrailer to date have been great and the service and communications are exemplary. Previous purchases include a whole list of trailer hitches, brake controllers, wiring devices etc. Not so with this mirror. I knew that I was in trouble when the warning on the bag said to not tighten the nut on the stem to more than 7 inch/pounds. Not foot/pounds mind you, INCH/pounds. I don't have a torque wrench that goes that low and doubt that you can find one outside of a research lab. The reason was apparent enough. The soft plastic stem is inadequate for the service intended and causes the mirror to vibrate excessively when mounted to the UTV and the engine is running. Will I order from etrailer again? YOU BET I WILL, but it won't be for another one of these mirrors. 153257






- CMM37

ratingratingratingratingrating by: wally perry10/23/2012

Review from a similar CIPA UTV Adjustable Side Mirror


this is just what i wanted. the band that holds it to the bar needs to be about half an inch bigger because i couldnt use the rubber pads, it just wasnt big enough but i managed.. works wonderful, love them,....... 57988






- CMM37

ratingratingratingratingrating by: BT05/28/2012

Review from a similar CIPA UTV Adjustable Side Mirror


Mirror is overall a good product. Be careful tightening, the bolt will twist off. It is a fine balance between keeping the mirror tight enough to keep from moving and twisting it off. Once on, they work well. 41837






- CMM37

ratingratingratingratingrating by: Richard04/08/2013

Review from a similar CIPA UTV Adjustable Side Mirror


Placed it on my Kawasaki Mule, it's perfect, might even get one for the other side and maybe one for my rowing shell 74913






- CMM37

ratingratingratingratingrating by: SDJ 4508/30/2012

Review from a similar CIPA UTV Adjustable Side Mirror


Received mirror 8/29/12 and installed on JD Gator. It met all advertised claims. It works well and I'm satisfied. Thanks 53587






- CMM37

ratingratingratingratingrating by: Wayne Mc05/28/2011

Review from a similar CIPA UTV Adjustable Side Mirror


Installed today. Look good and will be testing soon. Should work great and appears to be excellent product for the money 15628






- CMM37

ratingratingratingratingrating by: Randy CC03/08/2012

Review from a similar CIPA UTV Adjustable Side Mirror


Great mirror for my Polaris Ranger. I have been looking for a mirror for quite a while and found it on e-trailer. 33304






- CMM37

ratingratingratingratingrating by: Chad R05/26/2011

Review from a similar CIPA UTV Adjustable Side Mirror


I bought these mirrors for my utv they fit perfect and look great. Very good quality. And super fast shipping. 15419






- CMM37

ratingratingratingratingrating by: Vern T.04/10/2014

Review from a similar CIPA UTV Adjustable Side Mirror


Is as advertised, adapting to small tractor, worked out well. Also easy ordering and fast delivery, 124601






- CMM37

ratingratingratingratingrating by: pv06/21/2013

Review from a similar CIPA UTV Adjustable Side Mirror


No way will it fit my Kawaski 250 handlebar. The clamps WAY to big!! 85472






- CMM37

ratingratingratingratingrating by: Gerald F.06/11/2012

Review from a similar CIPA UTV Adjustable Side Mirror


This product will not fit a Can-am 2" roll bar frame!!!!!!!!!!!!! 43709






- CMM37

ratingratingratingratingrating by: Darrel L09/23/2012

Review from a similar CIPA UTV Adjustable Side Mirror


a little light duty for a utv 55573






- CMM37

ratingratingratingratingrating by: Elwood Holmes04/16/2014

Review from a similar CIPA UTV Adjustable Side Mirror


It is just what I wanted. 125377
