Hitch Cargo Carrier > Flat Carrier > Fixed Carrier > Fits 1-1/4 Inch Hitch > Class 2 > 6.7 Square Feet > Steel > 300 lbs > 20 x 48 Inch > Tow Ready

20x48 Cargo Carrier for 1-1/4" (Class II Only) Trailer Hitches

Rating: rating rating rating rating rating
13 reviews

Code: 63154

Retail:$209.38

Price:$164.95

Shipping Weight: 70 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

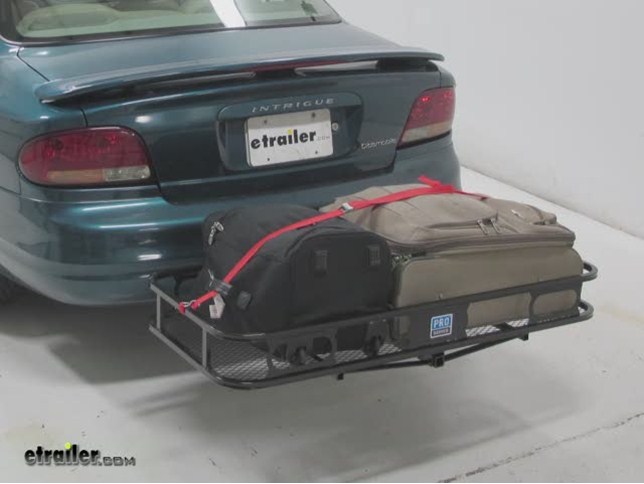

Tow Ready Hitch 20X48 Cargo Carrier Review - Video

Tow Ready Hitch Cargo Carrier - 63154

2-Piece design has a welded together platform with side rails, simply attach the shank and it is ready for use. Raised shank for easier loading. Rails make securing your cargo a breeze. Built-in light brackets make it easy to add lights if needed.

Features:

Raised shank elevates carrier platform for better ground clearance
Stylish design
Black powder coat finish resists rust and corrosion
No assembly required
Optional light kit available
Capacity: 300 lbs

Specs:

Fits 1-1/4" x 1-1/4" Class II trailer hitches
Measures 11" from the center of the hitch pin hole to the carrier platform
- Bend in support arm raises platform 3" from the top of the 1-1/4" x 1-1/4" hitch opening
- Inside Dimensions: 20" (width) x 47-7/8" (length) x 5-1/2" (rails)
- Overall Dimensions: 21-1/2" (width) x 49-1/2" (length) x 5-1/2" (rails)
- Measures 3" from the center of the hitch pin hole to the beginning of the bend on the support bar
Weight Capacity: 300 lbs
Actual weight: 45 lbs
- Because of its size, carrier ships as 70lbs
Pin and clip sold separately

Video of 20x48 Cargo Carrier for 1-1/4" (Class II Only) Trailer Hitches

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video review tow ready 20x48 cargo carrier 63154

Tow Ready Hitch 20X48 Cargo Carrier Review

Video Transcript for Tow Ready Hitch 20X48 Cargo Carrier Review

Customers compare 63154 to these similar products

Curt 20x48 Cargo Carrier for 1-1/4" and 2" Hitches $90.31

20x48 Cargo Carrier for 1-1/4" (Class II Only) Trailer Hitches $148.95

20x48 Cargo Carrier Fits 1-1/4" Trailer Hitch Receiver Hitch $148.95

20x48 Cargo Carrier For 1-1/4" Trailer Hitch Receiver $169.95

23x56 Railed Cargo Carrier for 1-1/4" (Class II) Trailer Hitches $209.95

Customers Who Purchased This Hitch Cargo Carrier Also Bought...

Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers $31.36

Rola Expandable Cargo Bag, 9.5 to 11.5 cubic feet $63.95

Pin and Clip For Class I and II Trailer Hitch Receiver Hitch $4.71

Cargo Carrier Stretch Net $25.95

Anti-Rattle with Lock for 1-1/4" Trailer Hitches $19.37

Customer Reviews

20x48 Cargo Carrier for 1-1/4 - 63154

Average Customer Rating: rating rating rating rating rating 4.8 out of 5 stars (13 Customer Reviews)

- 63154

rating rating rating rating rating by: Dave R.05/18/2013

Is this review helpful?

Fantastic product! Exactly as described on the website, no surprises. etrailer's shipping process is unparalleled... best shipping experience ever! Available to take my call (twice), and the online updates let me track the package to the delivery destination. The assembly process was simple, 3 bolts and pop it into the hitch receiver. I added some reflective tape as per a few suggestions from other reviews. This is exactly what I wanted, can't wait try her out. 80827

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

Click to Enlarge

- 63154

rating rating rating rating rating by: Mike K11/05/2012

Is this review helpful?

Great product. Would highly recommend. Outstanding service,delivered on time. 58853

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: Joshua M09/21/2012

Is this review helpful?

I just received our rack. Assembled it with the the three bolts and lock nuts provided. Just bolting the stem to the rack itself through a channel piece. A handsome rack and the LED lights will look great in it. It is four stars because the bolts are too small for the install. I think they are 1/2" bolts and are too sloppy in the holes provided, causing the rack to pivot around the stem from side to side like a teeter ride. So the bolts are too small AND the stem is not a tight fit into the channel on the rack. I will be correcting the problem with 9/16" x 3" long bolts with washers on outside of channel AND inside the channel between the channel and stem. So hex head, washer, channel leg one, washer, stem, washer, channel leg two, washer, and lock nut. X3 holes, should correct the wobble. Disappointed that it isn't just a bolt and go item as I would have expected. 12 bucks in bolts and hardware isn't too bad if the rack preforms as described. still pretty happy.55365

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: The Big Daddy06/01/2012

Is this review helpful?

Two parts to put together with three bolts. It couldn't be any easier. I asked the local car shop to torque it for me, not having a torque wrench collection of my own. I will be happy with this carrier. I will get a whisper hitch lock at Home Depot or somewhere and be on my way.42291

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: Gary B02/13/2012

Is this review helpful?

Everything I expected and more. Etrailer second to none.31783

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: 6315410/20/2011

Is this review helpful?

Great rack. Fit perfect on my 2004 Mountaineer. Easy assembly--3 bolts. Just needed to add 3 washers to get it snugged tight. Quick shipping to VA. Took 4 days. Totally satisfied with complete transaction. 25902

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: Jose10/11/2011

Is this review helpful?

Good condition. Fast delivery. 25442

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: Nate06/21/2011

Is this review helpful?

Thanks for the great service. Product was here in four days and e-mail alerts along the way so I could easily track. They also upgraded my free delivery to 3-5 business days for free! thanks again.17536

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: John B.03/26/2011

Is this review helpful?

I really like the one piece construction...fits great on 2000 jeep...does not rattle like others I've seen....I like the light kit I ordered to go with it ...ordered the Rola expandable bag also...all this together made a great addition to my jeep...great customer service and fast shipping....highly recommend this product...thanks etrailer.com 10457

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: Joe P03/22/2011

Is this review helpful?

Great quality as advertised. Tremendous company! Fastest delivery and customer service. Received notification of shipping and expected delivery date and arrived speedy quick. Will definitely purchase here again. 10125

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: Bob B.03/19/2011

Is this review helpful?

Exactly as described and surpasses my expectations as far strength. This carrier is really manufactured of good quality materials.9795

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: Ken N.12/31/2010

Is this review helpful?

Great cargo carrier This is exactly what I was looking for to haul items that I didn't want to carry inside my Ford Escape. The carrier is a one piece design, just bolt on the bar that goes in the hitch and it's ready to go. Also the carrier bag was a great bonus! I've used etrailer in the past and they are top notch. Super fast handling of the order and shipped on time with a nice tracking feature, Delivered fast even with the blizzard here in NJ. You'll surely be happy with this item and this company4815

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

- 63154

rating rating rating rating rating by: D08/10/2010

Is this review helpful?

Love this product The cargo rack gives me the expanded hauling ability I needed. It went on in a snap and looks great. I will be adding a light kit soon. 3339

comment on this review

Ask your question or add a comment to this product review?

Name: (example: John S.)

Contact email:

* please make sure your email address is correct (should look like name@domain.com)

Comment

Yes, I would like an email notification if someone replies to my comment?

Ask the Experts about this Tow Ready Hitch Cargo Carrier
Expert Answers about 20x48 Cargo Carrier for 1-1/4" (Class II Only) Trailer Hitches - 63154 Do you have a question about this Hitch Cargo Carrier?

What is the Difference Between Cargo Carrier 63154 and Cargo Carrier 63155
The 20x48 Cargo Carrier for 1-1/4 inch (Class II Only) Trailer Hitches - One Piece Design, # 63154, comes welded together, so only the shank needs to be bolted on. Plus, the welded carrier is more sturdy than the bolted model. The 63155 is the same carrier but it requires assembly, bolting together three parts. You may also need lights for the carrier if your load blocks the vehicle lights. Use Light Kit for Draw-Tite, Tow Ready, and Rola Railed Cargo Carriers, # 20174. I have included a link
view full answer...

Trailer Hitch Mounted Cargo Carrier Recommendation for Use on a 5th Wheel Trailer
You will be able to use a hitch mounted cargo carrier on the back of your 5th wheel trailer. I recommend going with the Curt 20x48 Cargo Carrier, # C18145, because it will fit in class I, II, and III trailer hitches. It comes with an adapter to be used in a 2 inch receiver so you will not need to use a separate one when using it on the truck. This carrier does not have the mesh deck like # 63154 but you could easily place a flat piece of solid material down if needed. When used on a class I t
view full answer...

Is the Tow Ready Cargo Carrier Compatible with a 2007 Honda Fit
Assuming you have a 1-1/4 inch hitch on your 2007 Honda Fit base model you will need to take one important measurement to know for certain if this Tow Ready Cargo Carrier # 63154 will work on your vehicle. You will need to measure from the hitch pin of your hitch out to the furthest point out on your bumper. If this measurement is less than 11 inches you will know that you will have adequate clearance for this cargo carrier as this product has 11 inches from the center of the hitch pin to the
view full answer...

Recommended Cargo Carrier for 2012 Subaru Outback with Dealer-Installed Class II Receiver
With a 300 lb tongue weight capacity, I will assume the dealer installed a Class II receiver for you. The actual weight of the Tow Ready # 63154 is 45 lbs, which is pretty typical for the cargo carriers designed for the 1-1/4 inch receiver. The Pro Series # 63155 is actually the same carrier, but would require assembly. The carrier features an angled shank to provide 3 additional inches of ground clearance. If the carrier or the gear carried on it will obscure your tail lights, a light kit li
view full answer...

Recommended Cargo Carrier for Maximum Ground Clearance on 2008 Honda Civic with Class I Receiver
Although the Tow Ready # 63154 is an excellent cargo carrier, it is only compatible with a Class II receiver, not the Class I receiver on your Civic. The hitch manufacturers will typically punch or weld a stop into the receiver that will prevent the shank from a Class II accessory like the # 63154 cargo carrier from being slid into the receiver far enough for the hitch pin holes to line up. This is done because the Class I receiver has a very limited tongue weight capacity of 200 lbs. We hav
view full answer...

Trailer Hitch Mount Cargo Carrier Recommendation for a 2011 Honda CR-V with Class I Hitch
Actually, for a cargo carrier for your 2011 Honda CR-V, I would go with Draw-Tite carrier, # 6500, because it will fit a Class I or Class II trailer hitch and it is adjustable to be closer or further away from the vehicle depending on how much clearance is needed. I have included a link to a video review of this carrier for you. You can also add a light kit to this carrier using # 6504. To use the light kit the vehicle will have to have trailer wiring installed using # 118427. Most likely,
view full answer...
