Rage Powersports Hitch Cargo Carrier - AMC6002
Easily transport 2 dirt bikes with this sturdy, easy-to-use double motorcycle carrier. Steel shank provides extra support for the increased load, and aluminum rails deliver lightweight durability. Includes 45" long loading ramp.
Features:
- Holds 2 motorcycles - combined weight not exceeding 600 lbs
- Perfect for motocross and dirt bikes
- Mounts in standard 2" hitch receiver
- Designed for heavy loads - steel shank adds extra support
- Constructed of lightweight, durable, rustproof aluminum

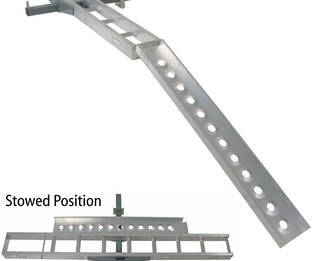

- Includes aluminum ramp for easy loading and unloading
- Ramp secures to carrier during travel
- Has built-in tie-down loops for simple securing

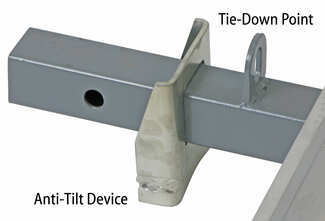

- Prevents carrier sway and shift with anti-tilt device
Note:Not recommended for use behind fifth wheel trailer or motorhome.
Specs:
- Application: 2" x 2" trailer hitches
- Capacity: 600 lbs
- Ramp length: 45"
- Track length: 75"
- Track width: 5-1/2"
- Additional dimensions:
- Outside of one track to outside of the other: 32-5/8"
- Outer track width: 7-1/2"
- Distance between tracks: 17-3/4"
- Center of hitch pin hole to closest edge of track: 12-1/2"
Transporting your dirt bikes has never been easier. This convenient, hitch-mounted carrier includes a sturdy, lightweight ramp that attaches to the aluminum frame, making loading and unloading your motorcycle a snap. Once your bike is secured on the carrier, the ramp detaches and mounts parallel to the track for simple storage.
Security and stability are no longer concerns because this carrier includes integrated attachment points for tie-down straps and a reinforced, powder coated steel hitch tube for absolute support. In addition, the Rage PowerSport rack features a built-in anti-tilt device to prevent the carrier from leaning, thus keeping your motorcycles steady and stationary during transport.
AMC-600-2 Rage PowerSport Aluminum Hitch-Mount Motorcycle Carrier for Two Bikes
Video of Rage PowerSport Aluminum Double Motorcycle Carrier for 2" Hitch Receiver - 600 lbs
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
Video Transcript for Rage Hitch Mounted Double Motorcycle Carrier Review
Today we are going to show you the rage dirt bike carrier part number AMC6002. It is a two bike dirt bike carrier designed for a two inch receiver. It comes with an anti-rattle device which is located back here and you simply tighten down these screws to lock it down into place. It is made of aluminum and steel construction, it comes with hangars here to strap down the dirt bike, so you have two here and two back here. The dirt bike carrier also comes with these pins which we will slide in here for bikes with smaller tires. If you have a larger bike, simply take the pin out and your tire will rest in the larger crevice there which will help with stability while you are towing. 1:17
It also comes with this ramp that you see here, which detaches and you set it on the rear of the dirt bike carrier for loading and off-loading of the bikes, the max weight for this carrier is 600 pounds. Now we will go ahead and load a bike onto the carrier. We will start by taking this ramp off here, you have two little wing nuts and the ramps slides off the front. Now I am going to attach the ramp back here in the back, there is a little lip right here so this will rest right on that lip. I am going to load the bike now. 2:04
Now that we have the bike loaded here, I am going to grab a ratchet strap and attach it to the attachment point down here, then I will find some point to attach to up here at the motorcycle. Now that I have this side we will move to the other side and do the same thing. Now that your bikes are securely in place we will take the ramp off here and place it back onto the front and we will put our wing nuts back into place. And this will conclude our demo of part number AMC6002 the two dirt bike carrier from Rage. 3:50
Customers compare AMC6002 to these similar products
Customers Who Purchased This Hitch Cargo Carrier Also Bought...
Ask the Experts about this Rage Powersports Hitch Cargo Carrier
Do you have a question about this Hitch Cargo Carrier?
- Will A Suzuki DRZ 400 Bike That Is 88 Inches Long Fit On Rage Hitch Cargo Carrier, # AMC6002
- The overall length of the tracks on the Rage Powersports Hitch Cargo Carrier, # AMC6002, is 75 inches. I looked up the wheelbase on a Suzuki DRZ400 and it was around 60 inches and the overall length was around 88 inches. The curb weight on the bike was 320 lbs. The bike will fit on the carrier with the tires overhanging about 6-1/2 inches on each end.
This hitch cargo carrier fits 2 inch trailer hitches and has a weight capacity of 600 lbs. The weight capacity will be determined by the tong
view full answer...
- What Hitch Cargo Carrier Should I get to Haul a 90cc ATV
- For a small 90cc ATV I would recommend a 32x48 Pro Series Steel Solo Cargo Carrier and Folding Ramp for 2 inch Hitches - 400 lbs, part # PS10401-10402. This carrier would make it very easy to load and unload using the folding ramp.
The Rage PowerSport Aluminum Double Motorcycle Carrier, part # AMC6002, is designed to be used with 2 wheeled motorcycles.
You should always consult your vehicle and hitch manufacturers recommendations on weight capacity and go with the lower of the two weight l
view full answer...
- Can The Rage PowerSport Aluminum Double Motorcycle Carrier # AMC6002 Be Used On 2001 Toyota Sienna
- To install the Rage PowerSport Aluminum Double Motorcycle Carrier, part # AMC6002, on your 2001 Toyota Sienna, you would need to have a 2 inch hitch. If you have a 2 Inch hitch on your Sienna, you will be able to use part # AMC6002.
You will also need to stay within the tongue weight capacity of your vehicle and hitch. The carrier weighs about 75 pounds, add the weight of the carrier plus the weight of the motorcycles you will be carrying and the total will be the tongue weight. Make sure tha
view full answer...
- Trailer Hitch Mount Motorcycle Carrier for a Yamaha TW200 with 7 Inch Wide Rear Tire
- The front tire would fit but the 7 inch back tire will not fit on the Rage PowerSport Aluminum Double Motorcycle Carrier, # AMC6002. Modifying the carrier would void the warranty and there is no guarantee that it would work.
You could use the Rage PowerSport Motorcycle Carrier, # SMC600. The platform is right at 7 inches wide so it would be a tight fit. This is the carrier that is most likely to work with your Yamaha TW200. I have included a link to a video review of this carrier for you.
view full answer...
- Cross Bar Spacing of Rage PowerSport Aluminum Double Motorcycle Carrier Part AMC6002
- As a picture is worth a thousand words, take a look at the photo that accompanies this response. I have shown the distance between all of the cross bars of the Rage PowerSport Aluminum Double Motorcycle Carrier, part # AMC6002. Both the inner and outer rails have the same dimensions, they are just reversed.
The carrier itself has a 600 lb capacity, but this capacity can be limited to the tongue weight capacity of the receiver on your vehicle, if it is lower. The tongue weight capacity of the
view full answer...
- Would a Rage Powersport Motorcycle Carrier Carry a Honda CRF-250R and CRF250X
- As long as the combined weight of your Honda CRF-250R and CRF250X are less than 600 lbs (and they should weigh less than that) you would be able to use this Rage PowerSport Aluminum Double Motorcycle Carrier # AMC6002 to transport them.
I attached a review video for this product for you to check out also.
You will also want to check the tongue weight capacity of your vehicle and hitch to make sure that they you can carry the weight of your bikes plus the weight of this carrier (74 lbs).
view full answer...
- Will the Rage PowerSport Motorcycle Carrier # AMC6002 Carry two Bikes on 2007 GMC Yukon
- Rage PowerSport Aluminum Double Motorcycle Carrier, part # AMC6002 has a 600 lb weight capacity, so it will have no problem handling the dirt bikes.
The 450 lb weight of the two bikes plus the 75 lb weight of the carrier would add up to 525 lbs. You will need to make sure that the tongue weight capacity of the hitch and the vehicle itself is not exceeded. The hitch itself should have a sticker listing the tongue weight capacity, and the vehicle tongue weight capacity should be listed in the o
view full answer...
- Could I Carry 2 Dirt Bikes on my 2011 Lexus RX450H With a Motorcycle Carrier
- The first thing you will need to determine is the tongue weight capacity of the hitch that is on your 2011 Lexus RX450H. Next you will need to check the owners manual of your vehicle and see what the tongue weight capacity of your vehicle is. You will need to take the lower of the two numbers if they are different as your overall tongue weight capacity since the lowest rated component in your setup will always be your overall capacity.
Next you will need to add the weight of your bikes plus t
view full answer...
- Will a Yamaha Zuma and Honda Metropolitan Fit on the Rage Motorcycle Carrier # AMC6002
- On the Rage motorcycle carrier, # AMC6002, from the center of the hitch pin hole to the center of the first platform is 18 inches. Measure from the center of the hitch pin hole on your vehicle out 18 inches, then subtract half the total width of a scooter at its widest point. If this measurement does not clear the rear of the vehicle you cannot use the carrier.
The distance between platform centers is 17-3/4 inches. If you measured half the width of one scooter and half the width of the other
view full answer...
- Carrying Two Honda 50cc Scooters Using Rage Motorcycle Carrier # AMC6002 on 2006 Toyota RAV4
- The distance from the hitch pin hole on the shank of the AMC6002 carrier to the closest portion of the track is 12-1/2 inches. If the distance from the hitch pin hole of your receiver to the furthest rearward portion of the spare tire is less than 12-1/2 inches, the carrier will most likely clear the spare. Anything on the scooters that is wider than the tires will cut into this amount of clearance.
The AMC6002 can accommodate tires up to 5-1/2 inches wide, and has a capacity of 600 lbs. This
view full answer...
- Will Two 2009 Honda Metropolitan Scooters Fit on the Rage PowerSport Motorcycle Carrier
- There are a few things to consider when choosing a carrier. I did some research on the Honda Metropolitan scooters and found that the wet weight of one scooter is 176 pounds. The combined weight of the scooters and the carrier would be approximately 425 pounds.
The trailer hitch and your 2007 Chevy Tahoe would need to have a tongue weight capacity that exceeds this 425 pounds. The Chevy Tahoe comes with a factory trailer hitch so you will need to check for a sticker on the hitch that lists t
view full answer...
- Carrier Recommendations for Carrying a Yamaha XT225 and Bicycles on a 2010 Dodge Ram
- As long as the tongue weight of the hitch that is on your 2010 Dodge Ram can handle the weight of your Yamaha XT225 plus the weight of the Rage PowerSports Motorcycle Carrier # AMC6002 you could carry your motorcycle on this carrier with your vehicle.
Check out the review video for this product I attached also.
Most likely you would be able to find a way to secure your bicycles to this rack, but since it is not designed for carrying bicycles I would not recommend you do so. For an economic
view full answer...
- Parts Needed to Carry 2 Honda Elite 80 Scooters Behind a Motor Home
- The reason that a carrier like # AMC6002, cannot be used on the back of an RV or trailer is because the back ends of them are too far from the rear axle. This creates a lot of extra bouncing, jarring, and movement which equals more stress that the carrier is not designed to handle.
You would need a more robust carrier that has 3 shanks instead of just 1 and would require a special 3-receiver trailer hitch. We do have these items. For the special hitch, you would use # SC9000. You can install
view full answer...
- Determining Motorcycle Carrier Capacity on 2011 Honda Pilot With Class III Hitch
- The Rage PowerSport Aluminum Double Motorcycle Carrier, part # AMC6002, can carry up to 600 pounds.
I researched the weights of your two Vespas, 150cc and 250cc, and they can vary somewhat based on specific model. Approximate dry weight for the 150cc is 243 pounds, and 322 pounds dry weight for the 250cc. Even without the weight of fluids in the scooters your total weight load will already be near to the carrier limit. This weight makes the Rage carrier unsuitable for your application..
G
view full answer...
- Would the Rage Powersports Double Motorcycle Carrier Carry 2 Dirt BIkes or 1 Street Bike
- The Rage PowerSport Aluminum Double Motorcycle Carrier # AMC6002 that you referenced has a 600 lb capacity so as long as your 2 dirtbikes weight less than that you should be fine. Most dirt bikes weight less than 300 lbs a piece but if you have a dual sport dirt bike you will need to be sure.
I would recommend you weigh each bike to be sure that they weigh less than a combined weight of 600 lbs.
For your street bike that weights 450 lbs this should work very well for you. I would recommend
view full answer...
- What Carrier Would Be Used for a Dirt Bike on the Front of a Truck
- In determining whether or not a rack on the front of your Ford F250 truck to carry a dirt bike will work, you have a lot of variables to consider. First and foremost, although your hitch will support 600 pounds, you have to check your owners manual to find out what weight your axles will support.
If you determine that your truck does have the capacity to carry your dirt bike while taking into consideration the weight of the carrier, I would recommend the Rage Power Sport Carrier part # MX600.
view full answer...
- What are the Dimensions of Rage PowerSport Hitch Mounted Aluminum Double Motorcycle Carrier
- We had the Rage PowerSport Aluminum Double Motorcycle Carrier, part # AMC6002, assembled for a video we are adding to our site, so I took some measurements.
From the outside of one track to the outside of the other is 32-5/8 inches. The outer track width is 7-1/2 inches. The distance between the tracks is 17-3/4 inches.
Measure the scooters and see how far the foot board extends pass the tires. You can go about 8-3/4 inches from the edge of the tire to the edge of the foot board if the sco
view full answer...
- Recommended Accessories for Use with Rage Hitch Mounted Double Motorcyle Carrier Part # AMC6002
- In addition to a receiver lock and straps, the only other things I think you might need are lights or reflectors to comply with your State Department of Transportation laws. This is something you would need to contact your State DOT to find out. Laws and regulations can change frequently so the best way to make sure you are in compliance is to call the DOT.
We do carry reflectors and reflector tape that will work with the Bike Carrier. We have reflector tape strips, part # RE418T in addition
view full answer...
- What is the Dimension of the Front Wheel Opening for Rage 2 Bike Motorcylce Carrier
- The front wheel space can be adjusted. There are holes and pins included for the carrier to adjust for smaller wheel sizes. Without the pin, the front wheel opening measures 15-1/2 X 7-1/2 inches. With the pin installed, it measures 13 X 7-1/2 inches, and should fit your wheel and tire nicely. I have included a link to our video reviewing and demonstrating this product and at 00:55, he shows how to adjust for smaller size bike tires.
view full answer...
- Use of the Rage Hitch Mounted Double Motorcycle Carrier Behind a Trailer or Motor Home
- The Rage Hitch Mounted Double Motorcycle Carrier, item # AMC6002 is not designed to be used behind fifth-wheel trailers or large motor homes because the ride behind these vehicles is significantly more harsh than behind a vehicle. There would be no way of attaching the motorcycles good enough to keep them adequately secured in these locations.
At this time we do not have a motorcycle carrier rated for use in these positions.
view full answer...
by: Laura L12/09/2012
