32x48 Pro Series Steel Solo Cargo Carrier and Folding Ramp for 2" Hitches - 400 lbs

Pro Series Hitch Cargo Carrier - PS10401-10402

Haul all your heavy, wheeled products, such as wheelchairs, lawnmowers and snowblowers, with this hitch-mounted cargo carrier and 44" long folding ramp. The ramp attaches to the side of the carrier and folds out for easy loading and unloading.

Features:

• Hitch-mounted, platform-style cargo carrier with side-mounted folding ramp
  • Wide design enables you to haul large items, such as scooters, lawnmowers or snowblowers
  • Easy loading height and more aerodynamic design when compared with roof-mounted cargo carriers
  • Exterior cargo-carrying option increases your vehicle's overall storage capacity
    • Allows you to transport wet or messy items outside your vehicle
• Folding ramp allows you to easily load and unload heavy equipment
  • Secures in place with included lock pins and spring clips
• Mesh bottom is quickly and easily cleaned
• 10 Integrated tie-down holes allow you to attach a cargo net (7330; sold separately) or other tie-downs
• Rear reflector tape improves the cargo carrier's visibility
• Convenient attachment points provided for relocating your license plate or mounting a light kit (6504; sold separately)
  • Required if cargo carrier blocks your vehicle's tail lights or covers up the license plate
• Rugged steel construction with corrosion-resistant black powder coat finish
• Minimum assembly required - ramp mounts to cargo carrier with bolts (included)
  • Requires removal of cargo-carrier side rail for installation
• 5/8" Pin and clip included for mounting the cargo carrier to your hitch
  • Hitch lock (sold separately) further secures the cargo carrier to your hitch and reduces rattling

Specs:

• Application: 2" x 2" trailer hitch receivers
• Overall cargo-carrier dimensions: 48" long x 32" wide x 3" deep
• Usable cargo-carrier dimensions (with ramp folded up): 47-3/4" long x 31-3/4" wide x 2-3/4" deep
• Ramp dimensions: 48" long x 31-1/2" wide
• Distance from center of hitch pin hole to cargo-carrier platform: 12"
• Shank rise: 4"
• Weight capacity: 400 lbs
• Weight: 120 lbs
• 1-Year limited warranty

1040100 and 1040200 32x48 Pro Series Steel Solo Cargo Carrier and Folding Ramp for 2" Hitches - 400 lbs

Video of 32x48 Pro Series Steel Solo Cargo Carrier and Folding Ramp for 2" Hitches - 400 lbs

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

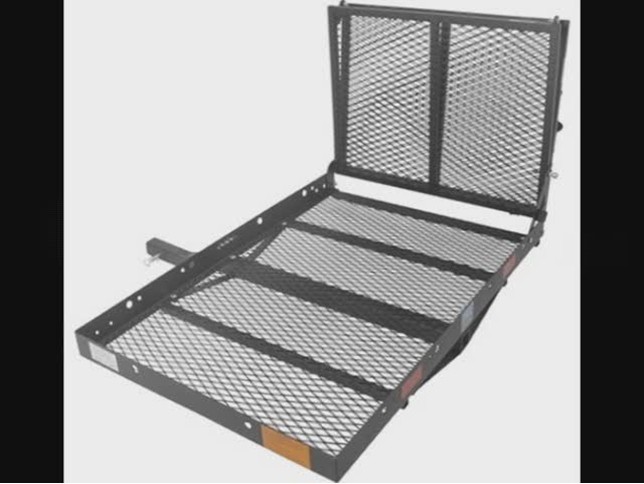

Pro Series Cargo Carrier with Ramp Review

Customers compare PS10401-10402 to these similar products

28x48 Hitch Mounted Wheel Chair and Scooter Carrier with 60" Long Ramp$289.95

48x32 Cargo Carrier with Side Rails and Ramp - The Moover Transporter System for 2" Hitches$381.95

Rage PowerSport Swing-Away, Hitch-Mounted Wheelchair and Scooter Carrier - 60" Ramp$399.95

Trailer Hitch Mounted Mobility Scooter Carrier with Fold Down Ramp$249.95

32x48 Pro Series Solo Steel Cargo Carrier for 2" Hitches - 400 lbs$185.95

Customers Who Purchased This Hitch Cargo Carrier Also Bought...

Anti-Rattle Device and Lock for 2" Trailer Hitches $25.95

American Flag 2" Trailer Hitch Receiver Cover $14.95

10' Ratchet Tie Down with Coated Hooks, 900 lbs (Qty 4) $17.95

Trailer D-Ring Tie Down, Bolt-on, 5K $5.49

E-Track Tie-Off Ring, 4K $4.59

Ask the Experts about this Pro Series Hitch Cargo Carrier
Do you have a question about this Hitch Cargo Carrier?

• Dimensions Of Steel On Pro Series 32x48 Steel Cargo Carrier and Folding Ramp # PS10401-10402

• I had a Pro Series 32x48 Steel Solo Cargo Carrier and Folding Ramp # PS10401-10402 in our showroom, so I took some measurements. On the cargo carrier the four smaller square steel tubes are 1 inch outer diameter. The center square tube is 2 inch outer diameter. The two straps that support the center tube are 1/8 inch thick. The steel side rails are 3 inches tall and 1/8 inch thick. The steel mesh on the bottom of the carrier is 1/16 inch thick (16 gauge). On the folding steel ramp the squ
  view full answer...


• Review and Thoughts For Using Pro Series Hitch Cargo Carrier # PS10401-10402 To Carry Snow Blower

• The item you selected, Pro Series Hitch Cargo Carrier, part # PS10401-10402, has a black powder coat paint finish to withstand the elements and help prevent rust. The weight capacity of the Pro Series Hitch Cargo Carrier is 400 pounds, but you will want to make sure to stay within the tongue weight capacity of your hitch and vehicle. Part # PS10401-10402 weighs 120 pounds, which will also be considered tongue weight, in addition the weight of your snow blower or other cargo you carry. One
  view full answer...


• Will the Ramp on the Pro Series Solo Cargo Carrier Fold Flat onto the Platform for Compact Storage

• I spoke with our contact at Reese and with my coworker who did the video review on this carrier and found that the ramp on the Pro Series Solo Cargo Carrier, # PS10401-10402, will not fold flat onto the carrier platform. The ramp does fold up and in half for somewhat more compact storage though. You might want to check out the Rage Powersports cargo carrier, # SC500, if your storage space is limited. The ramp on this carrier folds flat onto the carrier for more compact storage and the carrier
  view full answer...


• Trailer Hitch and Wheel Chair Carrier Recommendations for a 2008 Scion xB

• I do have a couple of options for you. First, I recommend installing the available Class II trailer hitch from Curt, # 12490, on your 2008 Scion xB. This hitch has a 350 pound tongue weight capacity but you will also need to consult the vehicle owners manual for the capacity of the vehicle and go by the lower of the 2 ratings. You could then use the Trailer Hitch Mounted Scooter / Wheel Chair Carrier, # RHWC1114. This carrier weighs about 90 pounds, so you have to subtract from the tongue wei
  view full answer...


• Will the Pro Series Trailer Hitch Mount Cargo Carrier with Ramp Fit a 2012 Toyota Sequoia

• To determine what size receiver you have on your 2012 Toyota Sequoia, you will need to measure the receiver opening (the inside width, not the outside width) like in the FAQ article I have linked for you. There is often a sticker on the hitch itself that states the towing and tongue weight capacities of the hitch. You should also be able to find this information in the vehicle owners manual. If you determine that you have a 2 inch trailer hitch then the Pro Series carrier with ramp, # PS10401
  view full answer...


• What are the Dimensions of the Tray on the Pro Series Cargo Carrier # PS10401-10402

• If the Pro Series Hitch Cargo Carrier # PS10401-10402 was mounted in the hitch of a vehicle and you were directly behind the vehicle it would be 48 inches from left to right and 32 inches from front to back. Check out the picture I attached to see these measurements. If whatever you have is 23-1/2 inches wide and 42-1/2 inches long you should have no problem transporting it with the # PS10401-10402. You will want to make sure you do not exceed the carrying capacity of this carrier and the
  view full answer...


• Carrying a 400 Pound Power Chair Behind a Class A 40 Foot Motor Home

• I will be happy to help you determine the best option for carrying your power chair on the motor home. First, since the weight of the chair is 400 pounds, you are going to want a carrier that has a higher capacity than # PS10401-10402. Also, the trailer hitch must be rated higher than the combined weight of the chair and the carrier. For example, carrier # MT70260, is rated for 500 pounds. It weighs about 99 pounds. The chair plus the carrier would weight 499 pounds. The tongue weight capaci
  view full answer...
