Hitch Accessories > Hitch Adapter > Hitch Expander > Fits 1-1/4 Inch Hitch > 1-1/4 Inch to 2 Inch > Class I and Class II Compatible > 6-1/2 Inch Long > Steel > Brophy


Hitch Adapter 1-1/4" to 2" Trailer Hitch Receiver with 5" Rise

Brophy Hitch Accessories

ratingratingratingratingrating (17 reviews)


Code:   HT5R

Price:$52.95


Shipping Special

Shipping Weight: 5 pounds

Quantity:






Brophy Hitch Accessories - HT5R

Features:

  • Convert any 1-1/4" (Class I and II) receiver to a 2" receiver (not to be used for towing or with snow plows)
  • Powder coated black finish
  • Extends 7" and raises 5-1/2"
  • 1-1/4" shank is solid
  • 2" shank is hollow
  • Maximum tongue weight: 300 lbs
  • Made in the USA


Note: Tongue weight capacity of hitch will be reduced by 50% with use of adapter



HT5R Brophy Trailer Hitch Receiver Adapter

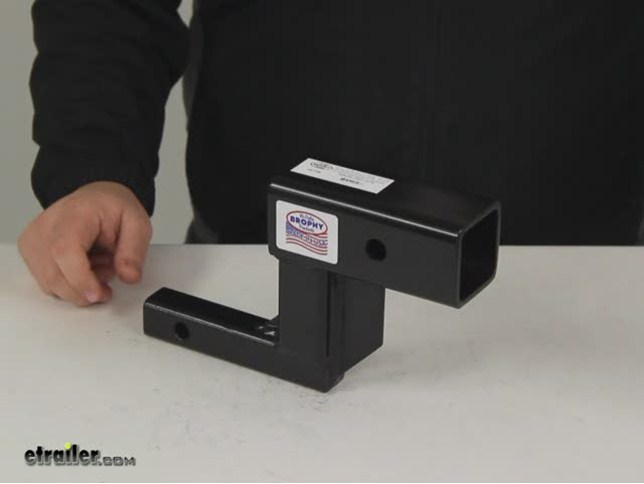

Video of Hitch Adapter 1-1/4" to 2" Trailer Hitch Receiver with 5" Rise


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Brophy Hitch Accessories HT5R
Brophy Hitch Accessories HT5R Review

Video Transcript for Brophy Hitch Accessories HT5R Review

Today we'll be taking a look at part number HT5R. This is the Brophy Hitch Adapter, converting an 1-1/4" hitch to a 2" trailer hitch receiver. It does provide a 5" rise. Our rise is measured from the top of the 1-1/4" shank to the inside top edge of the 2" by 2" receiver opening. This is going to help convert our 1-1/4" hitch or class 1 and 2 receiver to a 2" receiver. Just keep in mind it's not to be used for towing or with snow plows.

It also has a really nice powder coated black finish that's going to help withstand up against rust and corrosion. Our extension is 7", and that's measuring from the center of one pin hole to the center of the other. And this raises 5-1/2", and that's measured from the bottom of the 1-1/4" shank to the center of our hitch pin hole and the 2" by 2" opening. The 1-1/4" shank is a solid shank, and the 2" by 2" receiver tube is completely hollow. This is going to provide a maximum towing weight of 300 pounds, and it's made in the USA. You just want to keep in mind the capacity of your hitch will be reduced by 50% with use of an adapter. This part here, the 1-1/4" part, is going to be the section that slides into your hitch.

Line up your pin hole and install your 1/2" pin and clip. That's not included, but can be found on our website with part number PC2. And then to load your accessory, you would slide it into the 2" by 2" opening, line up your pin hole, and install your 5/8" pin and clip. That's also not included, and can be found on our website with part number PC3. Now to go over a few more measurements. We have an overall length of about 10-3/4", and to make sure that you have enough clearance between the rear of your vehicle and the back of this 2" by 2" receiver opening, I'm going to measure from the center of the pin hole to the back of this upright bar, and we have a measurement of 3-1/2".

The measurement from the center of the pin hole to the beginning of this weld is right at 2-1/4". The amount of space we have from the back of our 1-1/4"shank to the center of our pin hole is 1-1/2. That's going to complete today's review of part number HT5R. This is the Brophy Hitch Adapter, converting an 1-1/4" hitch to a 2" trailer hitch receiver. .




Customer Reviews

Hitch Adapter 1-1/4" to 2" Trailer Hitch Receiver with 5" Rise - HT5R

Average Customer Rating:  ratingratingratingratingrating4.4 out of 5 stars   (17 Customer Reviews)



- HT5R

ratingratingratingratingrating by: Keitha Yager01/05/2014


Thank you for the personal touch on the order. Not many company's do this. This is a good product and a good price. My car sits low and we needed to raise the carrier up. Looks like this will work out. 111921






- HT5R

ratingratingratingratingrating by: Eric O.10/05/2014


Perfect for my 2015 honda fit It helped a lot by adding that 5 inch rise No more scraping on the driveways or dips. I highly recommend to anyone that owns or is planning to buy a cargo hitch basket those who own a smaller car. 154532






- HT5R

ratingratingratingratingrating by: Tom M05/28/2014


So far, so good. Had to cut into the bumper if my 2011 Jetta in oder to make it work. Here is a picture. 132959






- HT5R

ratingratingratingratingrating by: Dan S.10/26/2013


This item is not compatible with the bumper on newer models of Nissan Versas. The upright portion rubs the bumper and presses into the bumper when there is a load on. It may crack the bumper. It needs to extend about 1 inch further horizontally, to work with the Nissan bumpers. 105278






- HT5R

ratingratingratingratingrating by: Dewayne G.08/22/2013


Package arrived as stated with no holes or damage. Installation went well per instructions I did have to watch video to find out how to install bolts in frame. There was no figrue 5 in instructions. Bolts in frame would not fit in frame hole ended up grinding flats on two sides. 96347






- HT5R

ratingratingratingratingrating by: Mike F.05/06/2014


I needed the riser to get my bike rack higher off the ground. I wish there was a larger rise and extended longer. I need to add an extension to get the riser passed the bumper 129109






- HT5R

ratingratingratingratingrating by: Jay R.08/01/2013


Great overall product. Only thing that the website does not tell you is that this is not compatible with any anti-rattle lock due to the bottom being solid construction. 92723






- HT5R

ratingratingratingratingrating by: Jeff h07/27/2014


Had to modified it to make it work .would have sent it back but I had to leav on vacation . 143085






- HT5R

ratingratingratingratingrating by: Spence11/25/2013


Excellent product and exceptional service. I will do business with etrailer.com again. 108486






- HT5R

ratingratingratingratingrating by: monah07/11/2014


direction were great. fits great. Tools were great. Perfect 140820






- HT5R

ratingratingratingratingrating by: mac09/27/2014


part worked as designed, shipping was great as usual 153361






- HT5R

ratingratingratingratingrating by: Ron W.09/16/2014


works as designed, construction is of high quality. 151298






- HT5R

ratingratingratingratingrating by: Lee B.11/05/2013


Very happy with the quality of your pro ducts 106329






- HT5R

ratingratingratingratingrating by: Hubert DeRossett09/18/2014


Excelent product very well built 151902






- HT5R

ratingratingratingratingrating by: Skip Buerger08/20/2014


Perfect for my application. 147722






- HT5R

ratingratingratingratingrating by: Christopher04/23/2014


Works very well.... 126782






- HT5R

ratingratingratingratingrating by: Chuck G11/19/2014


Everything went as they said. Happy 161877




18
18


Ask the Experts about this Brophy Hitch Accessories
Expert Answers about Hitch Adapter 1-1/4" to 2" Trailer Hitch Receiver with 5" Rise - HT5RDo you have a question about this Hitch Accessories?


  • How to Raise the Height of a Draw-Tite Trailer Hitch Mount Cargo Carrier for More Ground Clearance
  • The shank for Pro Series cargo carrier # 6500 is not available as a separate part. While there are other replacements they are either for specialty carriers or only fit 2 inch receivers and would not work. What I recommend is to use the MaxxTow receiver adapter, # HT5R, which will give you a 5 inch rise. You will also need to use a reducer sleeve, # HT02, to use the 1-1/4 inch shank on the cargo carrier in the 2 inch receiver in the adapter. I have included a link to a video review of the...
    view full answer...

  • Tongue Weight Capacity of the Brophy 1-1/4 to 2 inch Hitch Adapter # HT5R
  • The maximum tongue weight of this adapter is 300 pounds. Please be aware when using any hitch adapter the tongue weight capacity of your hitch will be decreased by 50 percent. According to Brophy, the Hitch Adapter 1-1/4 to 2 inch Adapter # HT5R the weight capacity of the adapter will exceed the weight capacity of the 1-1/4 inch hitch. Therefore the capacity of the hitch will be the limiting factor. For example if the hitch has a tongue weight capacity of 300 pounds then the hitch adapter...
    view full answer...

  • Adapter for 1-1/4 Inch Hitch to 2 Inch Receiver with Rise for a 2006 Acura TSX and Bike Rack
  • When we installed Hidden Hitch trailer hitch # 60831 on a 2006 Acura TSX it measured 4 inches from the center of the hitch pin hole to clear the rear bumper. The Curt adapter # D-192 will not fit because it only fits in 2 inch trailer hitch receiver openings. And the MaxxTow one, # MT70355, will not fit since it is for Class II hitches. That leaves Brophy adapter # HT5R. It will fit a Class I hitch but the issue with it is that the back of the 2 inch receiver does not come out far enough...
    view full answer...

  • Looking for a Hitch Riser that Fits a 2 Inch x 2 Inch Trailer Hitch Receiver
  • The closest adapter that we have to your needs is the MaxxTow Dual Hitch Extender, # MT70070. This adapter fits a 2 inch x 2 inch trailer hitch receiver and it provides a 2 inch x 2 inch receiver with a rise of 6-1/4 inches. Please note, only the bottom receiver on this adapter can be used for towing. The upper receiver should only be used for hitch mounted accessories such as bike racks or cargo carriers. Also, it is important to note that using a hitch extender will reduce the hitch's...
    view full answer...

  • Inadequate Ground Clearance When Using Hitch Mounted Bike Rack on 2011 Honda CR-V
  • If you are carrying women's, children's or alternative framed bikes, one of the easiest ways to increase ground clearance is for the bikes to sit level on the rack with the use of an adapter bar like the Swagman Easy-Out, # 64005. I have attached a video to demonstrate how this bar works. Depending on the type of bike rack that you are using, I may have an option for you to use a hitch adapter that would raise your bike carrier five inches. If your carrier will fit a 1-1/4 and a 2 inch...
    view full answer...

  • Thule Doubletrack Platform-Style 2 Bike Carrier # TH990XT Hits Driveway On Entry and Exit
  • Thank you for your recent purchase of the Thule Doubletrack Platform-Style 2 Bike Carrier # TH990XT. When installed on your 2014 Chevy Malibu with Curt Class II hitch # C12115 the rear of this carrier will extend back from the bumper a substantial 28-1/2 inches. (Please refer to the linked video showing its use on your exact vehicle.) This elongated geometry at the rear of the car will indeed pose a challenge for use on steep driveways like yours. While there are hitch adapters available...
    view full answer...

  • 2 inch Hitch Adapter Availability for 2007 Toyota Prius for Using a Bike Rack
  • All the hitches that we have that are for a 2007 Toyota Prius are Class I hitches and have a 1-1/4 inch receiver opening. Due to the attachment points on the vehicle and the weight rating of a Class I hitch it is limited to carrying 2 bikes. Some manufacturers have have installed stops in the hitches to make them specifically exclusive to using Class I rated hitch accessories, including bike racks. I have included a helpful article that explains this further. A hitch adapter might be...
    view full answer...

  • Hitch Adapter Recommendation for Use with a Cargo Carrier and Class I Hitch on a 2006 Toyota Avalon
  • A high low adapter that would work for your 2006 Toyota Avalon with a 1-1/4 inch receiver and be a compatible fit with your cargo carrier would be the Brophy Hitch Adapter # HT5R. This will work in a 1-1/4 inch receiver and the adapter is a 2 inch receiver opening. This adapter is designed to work with both Class I or Class II hitches. The item that you referenced is intended to be used with a 2 inch receiver hitch. After conducting some research it looks like your 2006 Toyota Avalon...
    view full answer...

  • 1-1/4 Inch to 2 Inch Trailer Hitch Adapter to Carry a 2 Inch Bike Rack with a 2014 Jetta Sportwagen
  • One of our most popular 1-1/4 inch to 2 inch trailer hitch adapters is the Brophy Trailer Hitch Receiver Adapter, # HT5R. This adapter provides a 5 inch rise for improved ground clearance. Keep in mind, using a trailer hitch adapter or extender will decrease the tongue weight capacity of your trailer hitch by 50 percent. All of the trailer hitches we offer for your 2014 Jetta Sportwagen are Class I trailer hitches with a maximum tongue weight capacity of 200 lbs. Using an adapter will...
    view full answer...

  • Availability of 1-1/4 to 2 Inch Hitch Adapter w/ Straight or Rise Shank for Best Ground Clearance
  • We have both a straight adapter, as well as one that has a 5-1/2 inch rise to gain you additional ground clearance. The straight adapter is part # HTAD and the adapter with the rise is part # HT5R. Keep in mind that the best practice is to use a hitch mounted accessory that is compatible with your hitch without using an adapter. Using an adapter will lower the tongue weight capacity of your hitch (maximum amount of weight that can be suspended from it) by half. If your hitch has a 200...
    view full answer...

  • Can 2 Adapters be Used to Carry a Kuat NV Bike Rack on a 2010 Nissan Altima with Class I Hitch
  • As you probably know the use of a hitch adapter or extender will reduce the tongue weight capacity of the trailer hitch by 50 percent. The extender alone will cut the capacity of the 2010 Altima trailer hitch down to 100 pounds. Adding an adapter, # HT5R, will reduce the capacity further. The Kuat NV, # N101, by itself weighs about 60 pounds. Even without bikes loaded the trailer hitch cannot handle the additional stress and damage to the hitch and vehicle will likely occur. The best...
    view full answer...

  • Advisability of Using a Hitch Adapter Along With a Hitch Extender to Carry Bikes With 2007 Acura TL
  • When an adapter or an extender is used, the tongue weight capacity of the hitch is lowered by 50 percent. However, using an extender in addition to an adapter will give an unknown reduction in tongue weight capacity, which is why we don't recommend doing so under any circumstances. The further the load (in this case, the bike rack) is placed away from the receiver tube, the more leverage is applied to the hitch. This will eventually cause the receiver tube to bend and the hitches' attachment...
    view full answer...

  • Trailer hitch Mount Bike Rack Recommendation for a 2007 Audi A4 Avant Wagon
  • I do not recommend the use of a hitch adapter because doing so will reduce the tongue weight capacity of the hitch by 50 percent. For example Curt trailer hitch # C11180 is rated for 200 pounds tongue weight. The use of an adapter will reduce the capacity to 100 pounds. So the combined weight of the bike rack and bikes cannot exceed 100 pounds. The adapter will also increase the amount of stress on the hitch and attachment points on the vehicle. The only adapter with a rise that we have...
    view full answer...

  • Recommended Hitch Adapter with Rise To Clear Rear Bumper
  • Sounds like the distance from your hitch pin hole to the back of the rear bumper is 5 or more inches. The 1-1/4" to 2" adapters with a rise such as # MT70355 and # HT5R, which you reference, would end up making contact with the bumper. I recommend going with a straight adapter, like # HTAD, which measures 7-1/4" from pin hole to pin hole. This adapter is not to be used for towing and will fit only Class II hitches. I have included links to a helpful article on How to Choose a Bike Rack...
    view full answer...

  • Hitch Adapter to Raise Cargo Carrier on 2012 Ford Taurus for Increased Ground Clearance
  • You can use a dual hitch adapter like part # MT70070, to give you some extra elevation, but be aware that using an adapter like this moves the weight being carried by the hitch further out from the receiver, which places additional leverage on the hitch and its attachment point to the vehicle. Because of this, anytime an adapter or extender is used, the tongue weight capacity of the hitch is reduced by 50 percent. The hitches we offer for the 2012 Taurus have a tongue weight capacity...
    view full answer...

  • Adapter to Raise Yakima Bike Rack for Better Ground Clearance on a 2011 Audi A4 Avant Wagon
  • Curt trailer hitch # C11195 sits right under the bottom of the rear fascia on your 2011 Audi A4. This is likely about the same as your current trailer hitch so it would likely not be any better in terms of ground clearance. If your Yakima bike rack is the type that will fit 1-1/4 inch and 2 inch receivers you could use adapter # HT5R. However, using an adapter will reduce the tongue weight capacity of the trailer hitch by 50 percent. The combined weight of the bike rack and the bikes...
    view full answer...

  • How to Gain Ground Clearance for a Thule Bike Rack Installed in a 1-1/4 inch Hitch
  • I have a potential solution for you, but it will require that your Thule bike rack be also compatible with 2 inch hitches. It will also cut the capacity of your hitch in half so you will need to verify that the weight of your rack and bikes is less than half of the weight of the tongue weight capacity of your hitch. If all of that checks out the Brophy Hitch Adapter part # HT5R would give you a 5 inch rise for your bike rack which would give you additional ground clearance. I attached...
    view full answer...

  • Not Enough Ground Clearance using Trailer Hitch Mounted Cargo Carrier on 2010 VW Jetta SportWagen
  • The best solution would be to use a trailer hitch mounted carrier that has a rise in the shank such as # 6500. From the top of the receiver opening to the bottom of the tray is 3 inches. We have included a video to the cargo carrier. If the cargo carrier you have will fit a 2 inch trailer hitch receiver I would recommend hitch adapter # HT5R. But the use of the adapter will decrease the amount of the tongue capacity by 50 percent. As well as putting more stress on the hitch.
    view full answer...

  • Trailer Hitch Adapter with Rise and 2 Inch Receiver for a 1-1/4 Inch Trailer Hitch
  • There is something similar to MaxxTow adapter # MT70070 that fits 1-1/4 inch hitches instead of 2 inch hitches. Take as look at the Brophy adapter, # HT5R. It fits a 1-1/4 inch Class I or II hitch and has a rise with a 2 inch receiver on the top. An adapter that features 2 receivers though is not available for a 1-1/4 inch hitch. Please note the use of an adapter will reduce the tongue weight capacity of the hitch by 50 percent. It will also put more stress on the hitch and vehicle.
    view full answer...

  • Hitch Recommendation for a 1999 Subaru Legacy to Carry a 20x48 Pro Series Cargo Carrier # 6500
  • If you have the Draw Tite # 36234 installed already then to determine if the Hitch Adapter with Rise part # HT5R will clear the rear bumper of your 1999 Subaru Legacy you will only have to take one simple measurement. You will need to measure from the pin hole of your hitch to the outermost portion of your rear bumper. If that measurement is less than 3-5/8 inches the # HT5R would clear. You should note that when you use a hitch adapter like this you cut the weight capacity of the hitch...
    view full answer...
