Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.
Easily attach a variety of accessories to the front of your Dodge Ram Pickup with this fully welded, corrosion-resistant trailer hitch receiver. Perfect for winches, spare tire carriers and more.
Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.
Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.
In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Factory tow hooks are required for hitch installation
Video of Draw-Tite Front Mount Trailer Hitch Receiver - Custom Fit - 2"
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

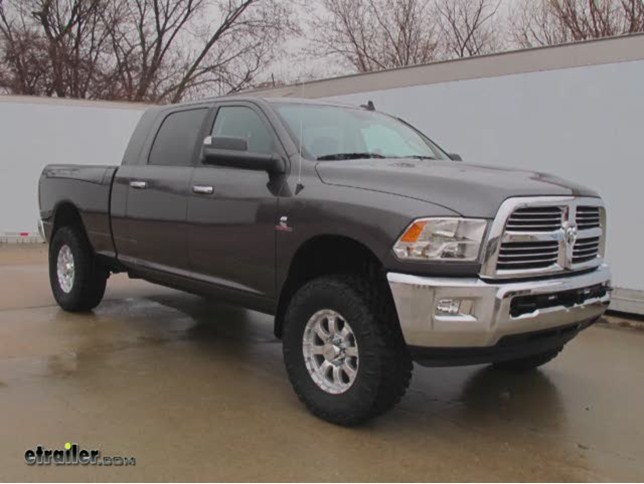

Alright, today it is 2014 RAM 2500. We're going to install part number 65063. Alright so first thing we need to do to get the truck ready is to go ahead and lube these tail hooks. So to do that, we've got to remove these four bolts. We'll do this on each side of the truck. There's a loose nut behind here, it's not weld nut so we'll take a, we'll use an 18 mm wrench so you can get to the back side. Now we'll take our wrench and install it from the bottom to get your nut on this side of the tail hook.
Now we're done with the driver's side, let's going and repeat the same process on the passenger side of the truck. There's a good chance of messing up the edges here, so I was going to use some simple packing tape to protect our edges. Now we can go ahead and install our hitch. Before we install it, we'll go ahead and show you how the hardware works. We got our new bolts and a conical tooth washer. Now set to toe hook first, then it will go through the hitch, then through the bumper structure and the back side will get another conical tooth washer and a nut. Now when you install the conical tooth washers, you always want to make sure of the teeth are facing towards the hitch.
And in this case, towards the tight end hook. And then we have a nut on the backside and that's it. Now, the next set of hands, so go ahead and work the hitch into the opening here. When we saw how we're going to put a couple bolt on each side just to help hold it up. Now it's going to be a tight fit on the inside leaf bolts right here, to install a constitute washer and nut.
Basically we just had to reach your hand up in there and get it started. So now we've got two bolts on top holding the hitch in place and we'll go ahead and go and do same process on the bottom. Now to help us get the nut in that recess spot on the bolts on the inside edge towards the radiator, we'll go ahead and use our 17 mm wrench and some electric tape and we'll use that to hold the nut in place while they thread it in from the outside. All hardware needs to be installed, but holding up the hitch, we'll go ahead and send over the hitch. We got a little bit of left and right movement. Once we're satisfied with the placement we'll go ahead and tighten it down. Once you have your bolts tightened down, then we'll go ahead and torque the bolts down as best finding instructions. With all of the bolts tightened down and torque, we can go ahead and take off the tape.
Alright, and that will finish before we're going to install part number 65063 on our 2014 RAM 2500. .
Average Customer Rating: 4.7 out of 5 stars (74 Customer Reviews)Easily attach a variety of accessories to the front of your vehicle with this fully welded, corrosion-resistant trailer hitch receiver. Perfect for winches, spare tire carriers and more.
by: Kevin Mc06/11/2015
This is a nice if not slightly challenging install. As long as you listen to the tips provided, it is a (almost) painless process. Definitely recommend taping the facade to protect the chrome/paint. We don't have a lift, so we had to install the hitch on the ground. My bride provided the extra set of hands, which is almost definitely a must when placing the hitch and getting the bolts lined up. As advertised, the inside bolts are very difficult to access, especially on the driver side. To further complicate this, the nuts are black making them hard to see without good lighting. If we had to do it again, I probably would have listened to some other reviewers that recommend removing the grill to help with accessing the harder-to-reach bolts. Be careful not to let your wrench get in a bind while tightening the bolt as there are several pinch points that may prevent removing the wrench afterward. Also, if you use s socket to hold the nut when tightening, be aware that the new bolts that come with the hitch are longer and require a deep socket to run up tight. This is problematic with a couple of the bolts due to clearance issues. The final product looks great and fills the gap in the front of the bumper nicely. Both functional and tough looking. Anticipated uses include a winch, tow point and engine access step. Once again eTrailer comes through. I continue to be impressed with their proactive and comprehensive approach to educating their customers and seemlessly filling their needs. 202635
by: Curt G.10/19/2015
Excellent design - form meets function! It looks OEM, but provides front options for bike rack or winch while still allowing use of the factory tow hooks. Installation went exactly as directed. I would recommend this hitch for anyone looking to increase versatility without giving up clearance. 230359
by: Matt A.03/10/2014
Easy to install (with an assortment of sockets, extensions and wrenches). Looks great, barely protrudes beyond the bumper and the tow hooks are even more useable now! Also, the product was eligible for free shipping, 7-10 day, and etrailer upgraded it to 3-5 day for free! One small feature about etrailer that is nice, is that when they send you an email it is from a person, not an auto-mailer! 120025
by: Lee B.06/17/2013
Draw-Tite is the only way to go. A grate clean look, puts the winch right where it needs to be. Took Steve's W advice & took the grill out & maid it easier to install. Taking tow hooks off was the easy part, Reinstalling A bit tough. What I did to make it easier was to tac weld washers to nuts & used A 3/8 x 17mm deep sock & braker bar to hold in place & screw in from front side. 85030
by: Keith J05/25/2015
Read the directions and went to the video to see how they did it. I have a 2015 ram 2500 and had to unhook the bottom of a plastic grille in the way of the back end of the receiver. This pushed the plastic away from the receiver without damaging the plastic grille. It looked too hard to remove the 2 bolts on the top of the grille. used a 2x4 wood to balance the receiver and placed 2 bolts in with the nuts. 6 of the 8 bolts went in fine. The other 2 (1 on each side) I had to hammer in with a brass punch, working them in. After that, the rest was a piece of cake. DO use a torque wrench, it is not an option. The bolts felt funny going in until the end. Even a beginner like me can do this. :) 196648
Product looks well made by Draw tite. I bought this to install on the front of a Ram 3500 4x4 front. I have not had a chance to install as it, in my case looks like a two person job, and am waiting on a friend to come over to help me out. Etrailer shipped it on time and in good condition. Can't give it 4 stars until it is on the truck. 154287
by: Kirk N.01/17/2017
Great product. Installed on 2012 ram 2500 megacab 6.7. Installed this in tandem with Ranch Hand Legend grille guard. Works perfect. When installing I used a breaker bar on the inner tow hook nuts. This allows you a straight shot to the nuts. Used impact on outer bolts. I also used a chain fall mounted to ceiling in garage to hold hitch in place while bolting up. Install time Was 45 minutes . If I had help it would be a 20 minute job. 333410
by: Dave B.12/29/2016
Really nice product. Very pleased with fit and way it looks. Installation was not as easy (2017 Ram 2500) as video shows. Looks like picture. Will use as an alternative for bike rack on back of RV, also for step to access engine compartment. After hitch is in place, many of the bolts are very difficult to access. Struggled with getting washers and nuts on. Found that one of those little picker upper things you can find for a few dollars was very helpful putting washer on bolt. Also would be handy to have a wrench (17MM) twice as long as I have to use the tape trick shown in video. I used a version of the tape trick with a 17MM socket on a 3/8" breaker bar that I extended with piece of 1/2" PVC tubing over handle. 328519
by: Mike R.08/30/2013
excellent product and service 97647
by: John D.07/16/2016
The hitch is solid and all the necessary bolts and hardware came in the package. Once installed it works just as advertised. However, it is NOT as easy to install as the website's video suggests, at least on a 2013 RAM diesel 3500. I suspect the video was done with the gas version of the 2014 RAM. The differences in the diesel meant that getting to the bolt holes on the inside of the bumper was difficult for several of the bolts and impossible for at least one upper bolt; the latter was pushed from inside to outside using a remote "claw" and installed backward. Works fine, but a 20 minute install. Would get the product again, though. 272539
Love the hitch. Installed on s 2016 ram 3500 diesel. easy to install except for the upper inner bolts. Kind of a tight place. I did upgrade the bolts to a grade 8 as the ones included didn't seem heavy enough. 254021
by: James K11/04/2016
After receiving a quote of $1,100.00 from Torklift Central of Kent, WA for a front receiver hitch for my 2016 RAM 4-Dr Pick-up, I did an internet search for the same. Etrailer came up first in a paid Ad, but also in the area based on number visits. Nevertheless I continue to compare products and reviews, but in the end came back to Etrailer. What I bought was a Drawtite front receiver hitch that is simple to install, even better quality that hoped for, best price and arrived in just four days! I would definitely recommend Etrailer as place to do business. 313847
by: Vance T.07/19/2016
Thanks Carrrieann! Great service! Super fast shipping. You wont be disappointed with this company. Very impressed! 273595
by: Josh P05/30/2015
Very sturdy with thick steel plates and cross channels. The instructions warn about when inserting your draw bar to not go in to far so you dont damage the radiator, however my hitch must be a newer model as they added a steel plate behind the receiver opening to prevent it from being inserted to far. I anticipated on having to do this myself, but was surprised it was already done :) Didn't have to sand, weld, and repaint the hitch now. Hitch came within decent time, think from order till received 4 days? 198668
by: max pahmeier03/09/2014
the front hitch appears to be an excellent product. I have installed the hitch but have yet to use it. The hitch is well made and its dimension fits in the available space, I would have given it the highest rating except it is a real bear to install because the bolts are almost impossible to access to start the nut and to get a wrench on to start the nut and torque. A special tool is required to hold the nut and to access the area. Also the bolt is a smaller dia. then the ones taken off. 119960
by: Don C12/30/2016
Love it, and it looks great. It took about an hour to install with my neighbors help. I spray painted the bolts black after install so they don't show. I could not be happier. I ordered on Tuesday, delivered on Thursday and installed Friday morning. Thanks etrailer. 328891
by: Dave H.08/31/2016
I've had a Warn 8274-50 old style 8000 lb. winch in my shop for 20 years and needed a front mount receiver on my 2014 RAM 3500 pickup. This hitch fit the bill. Fit up was great. Installing the bolts was really tight, there is so much stuff up front that I found it easiest to remove the grill. I have used it with my winch to pull down 24 trees 50+ feet tall and move my boat around into some tight places. The product looks great and performs excellent. 289578
by: brent ford09/29/2016
very solid product , i had only one problem, out of 4 holes /side 1 on each side did not line up, 1/8 inch out , no wiggle room, you would think it was not a problem being minimal but, i managed to tweek to get it to fit, overall not complaining . 301499
Install hardware is not up to hitch quality they are smaller diameter (faster install) and lower quality material than factory. Had to buy new bolts & nuts & washers If you want fast installation use included hardware If you want best installation use your own . Tow hooks go there so use better bolts not inferior . if you had it installed by someone other than yourself Then they probably used the thin bolts that came with it 291351
Going on a 2014 Ram 2500 4WD Diesel, needed an 18mm socket and 18mm short, open end wrench to remove OEM nuts and bolts. Needed a 17mm socket and short open end wrench to install. (Different size bolts). The two inside bolts were in a tight spot, especially the passenger side. Taped the nut onto the wrench to get started. Completed the install in about an hour. Very pleased with the professional look. 329128
by: Steve w04/25/2013
Fit perfect and looks great ! The 4 inside nuts wer almost impossible to install .Too much stuff in the way had to pull the grill and still couldn't get a wrench on 2 of them. For a portable winch it's the perfect hight and it hardly sticks out past the bumper not really notisible . Thanks steve 77888
2014 Ram 3500 Draw-Tite Front Mount Trailer Hitch Receiver 2" Draw-Tite Front Hitch Actually received the front mount hitch for my truck sooner / quicker than I thought I would . I have received it a day before going on vacation...so... will not mount it and actually use it till I return . I am sure the product will be all that I expect it to be . I am happy....happy...happy.... 251680
by: Scott J.05/31/2015
Haven't yet installed the front mount hitch, but did a test fit and all seemed good. Do not have the factory tow hooks, so had to machine a set of 1/2" plates to strengthen the hitch to what it would be with the factory hooks in place. Will have it installed this week and should work great for my application - front basket to haul campwood when slide in camper is in the bed of the truck. 199200
by: Dan D.06/01/2015
The front-mount receiver hitch got here quickly. I watched the online video before installing it. Very helpful! It fit perfectly and only took about half an hour. The inside bolts were a challenge, but not impossible. It looks great. I plan to use the front hitch when launching my boat in tight places when the camper on the pickup. ETrailer is an awesome website. Great people! 199631
by: Andy L08/02/2016
Service was excellent, the manufacturer packaged the wrong item, Etrailer went above and beyond to correct an issue that came from the manufacturer. Most other places I have dealt with would have told me to deal with the manufacturer and that would have been it. Ashley E is a great customer service agent. She made sure my isue got addressed in a positive way. I will use them again! 278530
by: Tom M.07/04/2016
Great product, Super fast shipping, Watched the Video's for installation so no surprises about that. I have used the front hitch on several different trailers and it has made things easy to be exact placing the trailer where you want it. Looking forward to backing my boat into the garage when it comes out of the marina at the end of the season. I should have gotten this a lot sooner ! 267925
by: Don S05/02/2015
Disassembled truck to install hitch and found that the (8) M10 bolts were missing. Instead of bolts there were (8) 1/2 conical washers of which there is no use. I had to go to our local farm supply and buy grade 8 bolts and nuts. It seems that whoever packaged the hardware doesn't know the difference between bolts and washers. Not a happy camper! The hitch itself looks good. 189486
fits great was not hard to put on took about 15min thanks ,looks good 86753
by: Mike P01/18/2017
Good product that had everything needed included. Delivery was fast. Took the grille of of the truck to make installation alot easier for the inside frame rail bolts. 333600
by: Martin-Hutchinson, KS12/07/2014
Bought and installed front hitch in my 2011 Ram 2500, so in case of need I can attach a winch to pull me out of trouble (learned the hard way by not having a front hitch in my SUV, where we would have got out easily if we had one while driving around in a trail back in Utah). Shipping came quickly, instructions were simple and installation video aided nicely. 163529
Great product. This gives me additional options and the ability to "drive" my 30' foot cargo trailer into the corner where it lives instead of having to maneuver it in backwards. Much easier and safer, because I can see where the posts and other vehicles in the garage are without relying on the mirrors. After years of backing in, this is much preferred. 276384
by: Bill D.06/16/2015
Good quality receiver...very annoying that Drawtite cheaps out and supplies undersized M10 bolts instead of the OEM stock M12 bolts that are holding the stock tow hooks on. I had to go out and buy 8, 60mm M12 bolts and washers (10.9 grade) for $35.Not a good idea to downsize the hardware which fastens the tow hooks and reciever to a 3500 diesel truck. 203849
Fast shipping from these guys! Perfect fit. I would recommend having a impact gun and a long 18mm box end wrench if you don't want it to take hours. Taking my time on a hot Arizona evening it took me little less than an hour to install. Well worth the money and like I said. got it across country in 3 days. Thanks, Jim in Arizona 217428
by: Alan S.08/28/2016
If you have a difficult time backing a trailer into tight spaces or do a lot of backing things, this front hitch is for you. I have a boat that bearly fits through my garage door and it's a difficult angle too. First time I put it right in. The front hitch makes it so much easier to see what is happening. I love this hitch. 288526
by: 2012 dodge ram front hitch04/21/2014
Need to provide better hardware. Would be nice if black oxide bolts used vs the silver zinc bolts. How bout some American made hardware boys? Putting a bolt in from the back with a grip washer and nuts from the front would make the install a far easier job. Fitment is good and a solid hitch. 126160
by: Blaine R09/14/2013
Easy to install with the right tools without any modifications on my 2013 Ram 3500. Customer service was excellent with effort made to get me the right product the first time. That other big auto parts mail order place(no names but initials JC) could take some lessons from you folks. 99919
by: Will R11/08/2016
Fits perfectly and even came with longer bolts so the tow hooks could stay! 314765
happy with hitch. It was a royal pain to install, you either have to remove front bumper or do as I did and take a dremel tool and cut off wheels and cut the bumper down to allow you to fit hitch. just had to cut away about 1/2 inch on each side where it bolts up. 73445
by: Jim C.06/29/2016
My front trailer hitch arrived within four days from when I ordered it. The hitch fits perfect and can barely be seen unless you're looking for it. It would be nice to have upgraded bolts. I purchased it for a wench receiver, but have not used it yet. 266304
Great company to work with. When I called about the hitch the sales lady was very knowledgeable and steered me in the right direction and I am very happy with the hitch. Shipping was very fast. I will definitely buy from this company again.... 320338
by: Thomas P.09/09/2016
Couldn't be happier, bolted right up. 292890
by: Sean C.10/24/2016
Great product. Solid construction, easy to install, and works well to haul extra gear on our trips. It allows me to haul an ice chest, extra water cans, a generator, or firewood when we take our Lance camper. 310120
by: Paul E.06/30/2016
The hitch was easy to install (although there were a few tight spots where the wife -- who has smaller hands -- had to help out. Seems very sturdy and I think it's going to do the job just fine. 266825
by: jay hendrickson04/04/2016
the receiver was a bit tight,but with a little pry bar action it went right in. The holes aligned fine also.Would recommend to a friend or myself. Also it got hear before schedule. 242911
Watched the vidio,the tape trick really helped out.Taped a piece of kindling to my 17mm wench to make it long enough. Installed by myself in a hour! 175770
by: JOEL M.06/29/2016
A good fit. Fast delivery. As always, great customer service. I had to install it without help so that was so that was a bugger, but I made it. I'm happy. Thanks again 266309
by: Ray B02/09/2015
Bolts up nice and tight looks awesome having another set of hands would make the install a bit easier but was able to do it alone on the shop floor with no special tools. 173046
by: Ron A01/11/2017
I bought this as a front hitch for the Thule goalpost. Installation was easy, especially with a second pair of hands. Out of the way and looks like it came on the truck. 331690
by: Tim B.03/05/2014
shipping was fast, product was easy to install, fit perfectly. i am completely satisfied. Etrailer has great service and will order from them again for sure. 118566
by: Mike Bussey04/05/2016
Easy install, best with a helper to align the holes. The receiver is just what I expected an I'm satisfied completely. Thanks Drawtite an etrailer. Mb 243027
