Reese Fifth Wheel King Pin - RP61410
This premium fifth-wheel pin box coupler replaces your trailer's king pin for worry-free turning with short-bed pickups. Now you can make up to 90-degree turns without having to exit the truck, throw a switch or push a button.
Features:
- 5th-Wheel trailer's pivot point is moved an extra 22" toward the rear of your tow vehicle so that you can easily make 90-degree turns, even with a short-bed pickup truck
- No need to get out of your truck, throw a switch, push a button or mount a 5th-wheel slider
- Trailer tracks more closely to the truck for better driveability
- Sidewinder-and-turret assembly bolts onto your 5th-wheel trailer pin box
- King pin connects to standard 5th-wheel trailer hitch and allows easy hookup and disconnect at any angle
- Included locking wedge prevents king pin from rotating
- Some 5th-wheel hitches may require custom wedge (sold separately)
- 1-Piece, streamlined construction
- C-Channel design of the Sidewinder provides more stability and strength than standard pin box
- Able to support heavier loads
- Made in USA
Specs:
- Designed for use with the following pin boxes:
- Fabex 500, 503, 520, 560, 730 and 765
- Lippert 1116, 1716 and 0115
- RBW 7019 and 7028
- Weight capacity: 16,000 lbs
- Clearance: see formula below to ensure proper clearance
- 3-Year limited warranty
Clearance Formula
Use the formula below to ensure that there will be enough space between your truck cab and trailer when you are executing a 90-degree turn with the Sidewinder installed.
(A + B) - C = Clearance
A = Distance from center of 5th-wheel hitch jaw to truck cab in inches
B = Length of Sidewinder arm in inches (22")
C = Width of trailer in inches divided by 2
For example:
If you are using the 16,000-lb Sidewinder, then B = 22"
If the distance from the center of your hitch to your truck's cab is 36", then A = 36"
And if your fifth-wheel trailer is 102" wide, then C = 51"
102/2 = 51
Therefore,
(36 + 22) - 51 = 7" of clearance

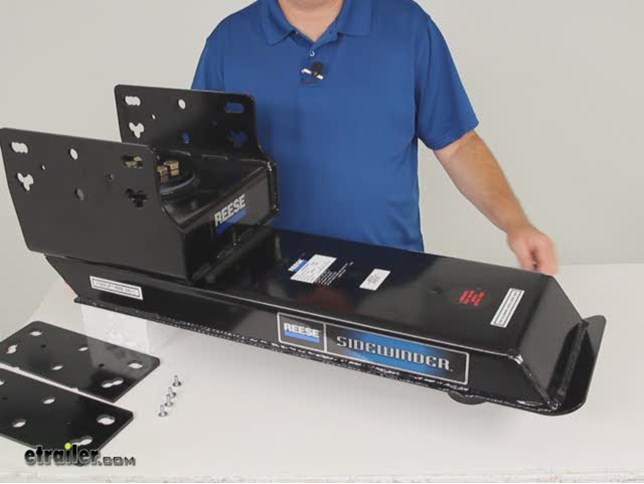

The Sidewinder
- The pivot point sits 22" behind the king pin.
- The rotating turret attaches to the pin box on your trailer to provide the new pivot point.
- The reversible, adjustable king pin locking wedge (not pictured) prevents pivot at the 5th-wheel hitch.
- The king pin connects to the 5th-wheel trailer hitch in your truck bed.
- The arm is rated at 16,000 lbs.
Up to 90-Degree Turning
It is now possible to turn your short-bed truck 90 degrees without having to worry that your trailer will collide with the cab of your truck. The universal king pin locking wedge included with this Sidewinder prevents your trailer from turning or pivoting at the fifth-wheel hitch. Instead, the rotating turret at the end of the Sidewinder allows turning and pivoting to take place an additional 22 inches away from the cab.
King Pin Locking Wedge Locations for Specific Hitches
1. Draw-Tite, Hidden Hitch and Reese (15K, 16K and 20K Select Series); Husky; Owens; Valley; and similar units
2. Reese Signature Series, Elite Series and similar units
3. Holland and similar units
A. Bolt locations
B. King pin
Custom King Pin Locking Wedges: The included universal wedge prevents the king pin from rotating in most fifth-wheel trailer hitches. Certain hitches, however, require a custom wedge (sold separately).
Note: Do not use the Sidewinder with any of the following:
- Curt Q5 5th-wheel trailer hitch
- PullRite SuperGlide 5th-wheel trailer hitch
- Reese Trail Boss 5th-wheel trailer hitch
- B&W 5th-wheel trailer hitch
- Colibert 208BW 5th-wheel trailer hitch
- Hi-Rise gooseneck-to-5th-wheel adapter by Draw-Tite, Hidden Hitch, Bulldog and Reese
- Any other gooseneck-to-5th-wheel adapter
61410 (SW16K, 61300 and 61301) Fifth Airborne Side Winder Fifth-Wheel Pin Box Coupler with Turret and Hardware
Replaces ST100-SW16K
Customers compare RP61410 to these similar products
Customers Who Purchased This Fifth Wheel King Pin Also Bought...
Ask the Experts about this Reese Fifth Wheel King Pin
Do you have a question about this Fifth Wheel King Pin?
- Can a Sidewinder be Used in a 2007-2010 Chevy with 5 foot 8 inch Box Length
- Using a Sidewinder depends on the length of your truck bed, the width of your trailer and the position of the fifth-wheel hitch in the bed of your pickup. Normally the hitch is 1-1/2 inches in front of the center of the rear axle on these models of Chevy pickups. If you measure from 1-1/2 inches in front of the center of the rear axle to the back of the cab and then measure the width of your trailer and divide it by 2 you will be able to see the difference you have for turning clearance between
view full answer...
- 5th Wheel Hitch Compatibily of Sidewinder with Rotating Turret and 14K Reese Fifth Wheel Hitch
- I spoke to my contact at the manufacturer and the Sidewinder, part # RP61410, is compatible with the Reese 14K Fifth Wheel Hitch but will not increase the weight capacity of the hitch.
As long as you can match up your pin box with the proper Sidewinder Turret you should be good to go.
view full answer...
- Locating Lippert Pin Box Number on a 2003 Montana Mountaineer in order to Choose a Sidewinder
- I spoke with my contact at Keystone, the manufacturer of the Montana Mountaineer trailers. Your pin box will have the model number stamped in the face of the pin box somewhere. It will not be on a tag or referenced as model number. You definitely want to be sure that you have the correct model number before you order.
From the information I received your pin box can be one of two models (the possibility still exists that a different pin box could have been used). If you have a smaller floor
view full answer...
- Dificulty Unhooking 5th Wheel Hitch With Two Different Styles of 5th Wheel Hitch
- Since you have had the same problem with two different brands of hitch it sounds to me like the problem may be with the pin box. If the king pin is damaged then this may be the cause of the problem. It could also be that the king pin is at an angle on the trailer. If so then the angle would cause the king pin to bind in the hitch and would cause the problem you are experiencing. I would check the king pin and the coupler in the hitch for signs of damage or wear that would tell you the story of h
view full answer...
- Sidewinder Pin Box Maintenance for a 2007, 32 Foot Everest 5th Wheel Trailer
- To address the issue of the angled arm we will need to check a few things. First of all, your pin weight cannot exceed 3,200 pounds for the 16,000 pound sidewinder so, you will need to check the pin weight of your trailer to be sure you have not overloaded the Sidewinder. If your pin weight is too heavy, you will need to reposition the load in the trailer to lighten the pin weight or upgrade the sidewinder to accommodate the load.
If you have an older Sidewinder installed on the trailer the p
view full answer...
- Can a Sidewinder Equipped Trailer Be Used with a Full Length Bed 2004 Ford F-350 Truck
- Using a Sidewinder with a long bed truck is not a problem. It would have no negative effects, you would just have more turn clearance than needed.
Since you have a Curt Q5 hitch, you cannot use the Sidewinder with the hitch. Curt has a big warning disclaimer about using a Sidewinder with the Q5, not to mention Fifth Gear does not offer a wedge that will fit the Q5.
From here you have two options. The first would be to remove the Sidewinder and install the original pin-box. You might have t
view full answer...
- Can a Reese Sidewinder with Rotating Coupler be Used with a 5th Wheel to Gooseneck Adapter
- If you need some extra clearance, we do carry several 5th wheel to gooseneck trailer hitch adapters. I recommend the Ranch Hitch Universal 5th-Wheel-to-Gooseneck Coupler Adapter with 8 Inch Offset, # AM3139. This adapter will give you 8 inches more clearance than a standard straight 5th wheel to gooseneck adapter. This unit is also height adjustable from 11-3/4 inches to 14-3/4 inches, and it has a gross trailer weight capacity of 24,000 pounds and vertical pin weight capacity of 6,00 pounds.
view full answer...
- What Can Be Done To Help With Unhooking Fifth Wheel With Sidewinder From Ford F150 Short Bed
- It sounds like the moving parts inside the fifth wheel head on your Reese 16K hitch need to be cleaned with WD-40, which will clean the area but it will not eliminate all the grease. This will help the fifth wheel head work properly. Then apply a light coating of all purpose grease, such as the LubriMatic White Lithium Grease, # L11350, to the skid plate and the jaw of the fifth wheel hitch. This will help reduce any metal to metal squeaking and wear and it will make it easier to unlock the hitc
view full answer...
- Recommendation for 5th Wheel Trailer Hitch and Install Kit for Use with Sidewinder on 2010 Dodge Ram
- Sidewinders, like # RP61410, are designed to be used with stationary hitches but can be used with a slider hitch as long as the slider remains locked in the towing position while towing or connected to a trailer. I have included a link to our FAQ article on Sidewinders for reference. To determine the best 5th wheel trailer hitch and installation kit for your truck, I will need to know a little more about it. Is your Big Horn a 1500, 2500, or 3500. Does it have overload springs. Is it a stepside.
view full answer...
- How to determine the Correct Sidewinder for a Lippert Pin box on a 2007 Forest River Wildwood
- To select a Sidewinder with Rotating Turret for your 2007 Dodge Ram 3500 Mega Cab with 6.3 foot bed, you will need to find the pin box model number or take measurements to determine the correct turret for your trailer pin box. I have posted a picture for you to see the measurements that need to be taken. You will most likely need the Sidewinder Fifth Wheel King Pin with Rotating Turret, item # RP61410, that you selected or the, item # RP61420, Sidewinder for your trailer with a Lippert pin box.
view full answer...
- How is 5th Airborne Sidewinder 5th Wheel King Pin ST100-SW16K Secured While Towing
- The Sidewinder Fifth Wheel King Pin with Rotating Turret, # RP61410, is designed to replace the pin box on a 5th wheel trailer. It is used on short bed, full size trucks when a slider 5th wheel hitch cannot offer enough clearance to safely make 90 degree turns.
When used with a standard 5th wheel trailer hitch, the Sidewinder provides 22 inches of clearance from the center of the king pin to the center of the turret. Each Sidewinder is pin box specific so you would need the manufacturer name
view full answer...
- Availability Of 5th Airborne Custom Wedge for Reese Fifth Wheels # SWW-03 For Reese 16K Revolution
- Yes, we have the 5th Airborne Custom Wedge for Select Series Fifth Wheels, part # SWW-03. This wedge will prevent the pivot at fifth wheel hitch jaws. It is a custom wedge designed specifically for Draw-Tite and Reese Select Series hitches #30046, #30049, #30047, #30051, #40119, #6021, #30033, #6022 and #30034.
I am including a link to the installation instructions on the custom wedge.
view full answer...
- Is Pro Series 5th Wheel Trailer Hitch # PSPS30855 Compatible with a Sidewinder, 2008 Chevy Silverado
- The Sidewinder Fifth Wheel King Pin with Rotating Turret, # RP61410, that you have referenced is compatible with the Pro Series 5th Wheel trailer hitches. You will need a stationary trailer hitch like Pro Series 5th Wheel Trailer Hitch, # PS30855. I have included a video review of the Pro Series hitches, a video showing the installation of a Sidewinder, and a link to the Sidewinder installation details for reference.
I have also included a link to an FAQ article that explains what products th
view full answer...
- Is A Slider Hitch Needed When Towing A 1998 Coachman Catalina With A 2006 Chevy Silverado Short Bed
- On your 2006 Chevrolet Silverado, if you have the 6-1/2 foot short bed you will want to use a slider hitch like the Reese 16K Fifth Wheel Trailer Hitch with Round Tube Slider, part # RP30075, and the Reese Quick-Install Custom Base Rails and Installation Kit, part # RP50064-58.
When a short-bed truck (under 8 foot) is used to tow a fifth-wheel trailer, it is recommended that a slider fifth wheel hitch and an extended pin box be used to help compensate for the reduced turning clearance. Even
view full answer...
- How to Determine the Correct Sidewinder Pin Box for a 1989 Alpenlite 5th Wheel Trailer
- Since you cannot verify the exact pin box model on your fifth-wheel trailer, you will need to measure to determine the correct fit for a Sidewinder King Pin with Rotating Turret.
I have posted a drawing at right that shows the measurements that will need to be made. We will also need to know the gross weight of your trailer loaded and ready to tow so that we can select the proper capacity pin box replacement for your trailer.
Finally, you will need to determine if your trailer can be used
view full answer...
- Will a Sidewinder Work with a Fixed Hitch on a 1998 Dodge Ram 2500 4x4 Short Bed
- If you use a Sidewinder coupler on your 1998 Dodge Ram 2500 4x4 short bed, you will be able to use a regular fixed hitch in your truck bed. With the Sidewinder, the pivot point is moved 22 inches closer to the tailgate. This will create more space between the truck cab and your fifth wheel trailer when making sharp 90 degree turns. You will not want to use a Sidewinder with a slider hitch unless the slider hitch was locked and not allowed to slide.
You will not want to use a Sidewinder coup
view full answer...
- Recommendation for 5th Wheel Trailer Hitch and Install Kit for Use with Sidewinder on 2009 Dodge Ram
- Since you are going to be using a Sidewinder you will not need to use a 5th wheel hitch with a slider. I attached an FAQ article on Sidewinders for you to check out.
For a hitch and rails I would recommend you get Pro Series 5th Wheel Trailer Hitch # PS30855 and Reese Quick-Install Custom Base Rails # RP50083-58. I attached installation instructions for the rail kit for you to check out.
We do not carry Hijacker hitches so I can not safely say if it would work with a Sidewinder, or if it c
view full answer...
- Which Sidewinder Replacement Pin Box will Work on a 2006 Ford F-350 with a 15K 5th Wheel Hitch
- To determine the correct Sidewinder pin box for your trailer, you will need to find out the part number of the pin box (king pin) on your trailer. Most king pins will have the pin box number listed on a sticker or stamped on the king pin itself. If it is not there or worn out, you will have to call the trailer manufacturer with your VIN or serial number to have them provide the coupler type and model number, or measure the bolt pattern of the pin box to determine the matching bolt pattern.
On
view full answer...
- Sidewinder Towing Characteristics and 2006 Chevy 2500 HD Towing Capacities
- I did some research on your 2006 Chevy Crew Cab 2500HD with a 6 1/2 ft bed. I found that this truck with the 6.0 liter gas V8 will be rated around 10,000 lbs, trucks with the 8.1 liter gas V8 and 6.6 liter Duramax diesel will be rated around 12,000 lbs and adding a properly rated fifth wheel hitch should boost the capacity.
If your truck has the Duramax diesel then you should be within the vehicles capacity, 14,200 lbs sounds correct, but you should make sure that you check your trucks specif
view full answer...
- How to Select the Correct Sidewinder Replacement Pin Box for a 1996 Nomad 5th Wheel Trailer
- Yes, we can determine if there is a Sidewinder replacement pin box available for your trailer. You will need to take 6 measurments since you cannot locate the pin box manufacturer and model number. I have added a numbered drawing, see link, that you can use to add dimensions to and then send them back to me. I can then match the dimensions of your trailer pin box to the dimensions for mounting a Sidewinder and determine the correct application, if one is available. You will also need a custom we
view full answer...
