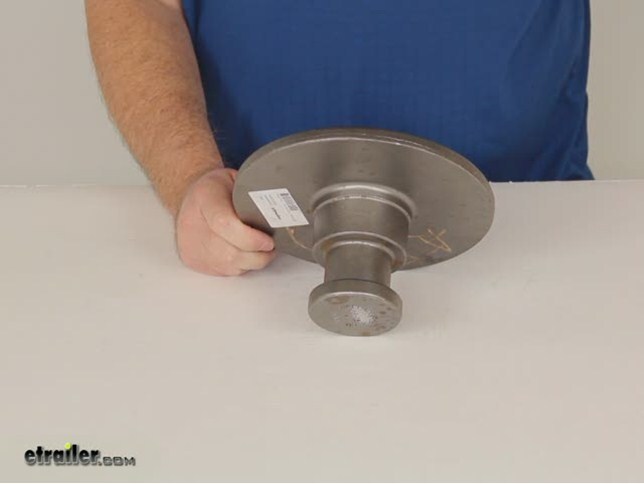

Holland Fifth Wheel King Pin - T809
Fifth Wheel Trailer King Pin
- 2" King Pin - Industry Standard
- Weld-on Application
- Upper coupler thickness is 0.38"
- Material: AISI 8630H steel hardened to 302-363 BHN
Customers compare T809 to these similar products
Customers Who Purchased This Fifth Wheel King Pin Also Bought...
Ask the Experts about this Holland Fifth Wheel King Pin
- What are the dimensions of the Weld Plate On the Weld on Fifth Wheel King Pin
- The weld plate is 8 inch diameter and 1/2 inch thick on the T809 weld on Fifth Wheel Trailer King Pin. The composition of the steel and a load rating are not given. The manufacturer does not specify the load rating due to the weld on configuration and the fact that it greatly depends on what it is welded to and how and where.
view full answer...
- Recommendation for a Gooseneck Trailer Hitch that Fits in 5th Wheel Rails
- I would use a Gooseneck hitch that installs in the rails that the fifth-wheel sets in. We have several models and they all fit in the standard fifth-wheel rails.
Draw-Tite 25K Gooseneck Trailer Hitch, item # 6002
Curt Spyder Gooseneck Trailer Hitch for Fifth Wheel Rails, 25,000 lbs GTW, item # 16085
Pro Series 25K Gooseneck Plate for Fifth Wheel Rails, item # 49080
If you do not want to remove the fifth-wheel hitch to hook up to the gooseneck trailer I would recommend using the Gooseneck
view full answer...
- Dimensions of the Holland Fifth Wheel King Pin, # T809
- I went out to the warehouse to measure a Holland Fifth Wheel King Pin, # T809. From the bottom of the plate to the end of the king pin it measures 3-11/16 inches. It has an overall height of 4-5/8 inches. The base has a diameter of 8 inches.
view full answer...
- What is the Plate Thickness at the Base of the Fifth Wheel Trailer King Pin # T809
- The plate at the base of the Fifth Wheel Trailer King Pin, item # T809, where it is welded to the trailer is 1/2 inches thick. From the top of the base to the bottom the thickness is 7/8 inches. I have added a dimensions to a photo for you to explain the measurements I took.
view full answer...
- What is the Upper Coupler Thickness of this Holland Fifth Wheel King Pin # T809
- This Holland Fifth Wheel King Pin, part # T809, has a upper coupler thickness of .38 inches. I went out into our ware house and measured to be sure.
The other model # T809 king pins from Holland have different upper coupler thicknesses have letters after the part # that designate the upper coupler thickness.
view full answer...
- How Long is the Pin Portion of the Fifth Wheel Trailer King Pin, # T809
- My first reaction was that they would all be the same. But, I went out to our parking lot where there are many recreational 5th wheel trailers with king pins I could measure. I measured about 10 and all of them, except for one, measured about 2-5/8 inches from the end of the pin to where it meets the base.
I also measured the Fifth Wheel Trailer King Pin, # T809, and it measures 3-11/16 inches from the bottom of the pin to the base and it is 4-5/8 inches tall overall.
view full answer...
- What Material is the Holland Fifth Wheel King Pin, # T809 Made Of
- The Holland Fifth Wheel King Pin, # T809, is machined steel (specifically AISI 8630H hardened to 302-363 BHN). You should not need any special welding equipment outside of what you would normally use for welding steel. The same for the heat up/cool down. It will be the same as when welding any other steel component of like steel.
Any welding should be done by a qualified professional welder.
view full answer...
- Shaft Measurements of the Holland Fifth Wheel King Pin
- I pulled the Holland Fifth Wheel King Pin, part # T809, from my warehouse and measured the different diameters of the shaft. The bottom portion diameter measures 2-13/16 inches, the middle portion measures 2 inches and the top portion measures 2-7/8 inches. I have included an image containing all of the measurements plus more that may be helpful.
view full answer...
- What are the Dimensions of the Fifth Wheel Trailer King Pin # T809
- What you are describing sounds like a pin box. The part that is angled up would be at the front so when you hitch up to the 5th wheel hitch the skid plate on the hitch and pin box will make contact with each other.
All of these parts are made of steel, like # T809. The upper thickness of T809 is 7/8 inches overall but where it gets welded to the trailer is 1/2 inch thick. I have included a picture that shows the measurements of the king pin for you.
view full answer...
- Will Holland 5th Wheel King Pin Fit a 1978 Holiday Rambler 5th Wheel Trailer
- The Holland 5th wheel king pin, # T809, is an industry standard size. It will need to be welded on by a qualified professional. To determine if it will fit the pin box on your camper I have included a picture that shows the dimensions for you. It may be easier just to replace the pin box if you are able to locate one that is the same make and model number.
view full answer...
- Gooseneck to Fifth Wheel Adapter Recommendation for a Truck with a B and W Turnover Hitch
- Check out the Curt X5 Fifth Wheel Adapter for B and W Square Shank Turnover Ball Hitches # 16310. This adapter will convert your B and W turnover ball gooseneck hitch to a fifth wheel rail to install your Reese 5th wheel hitch into.
You should note that this adapter is not designed to be used with sliding hitches.
view full answer...
