Upgrade the old roof vent in your RV or enclosed trailer to the Northern Breeze. This stylish yet affordable vent has a built-in, single-speed fan and an easy-to-operate, domed cover. Garnish, sealant, wiring, and mounting hardware sold separately. Call 800-298-8924 to order Ventline Enclosed Trailer Parts part number V2525-04-S46-M or order online at etrailer.com. Free expert support on all Ventline products. Guaranteed Lowest Price and Fastest Shipping for Ventline Northern Breeze RV Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Blue. Enclosed Trailer Parts reviews from real customers.
$139.95
Select Your Vehicle

View Cart

Enclosed Trailer Parts > Vents > Roof Vent > Vent Assembly > With 12V Fan > 14W x 14L Inch > Blue > Manual Lift > Ventline

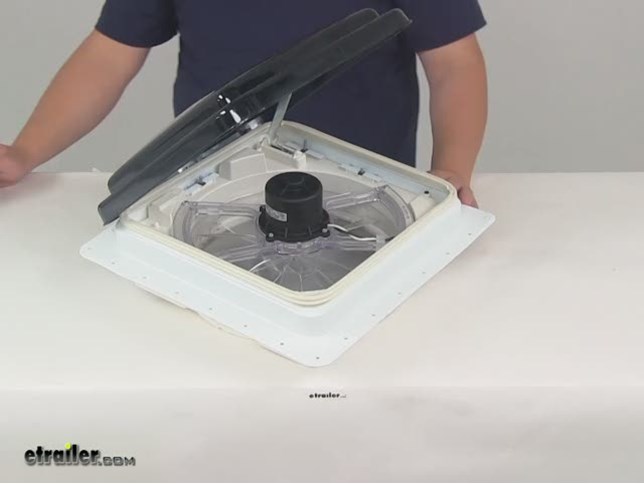

Ventline Northern Breeze RV Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Blue

Ventline Enclosed Trailer Parts

(2 reviews)


Code:   V2525-04-S46-M

Price:$139.95


Shipping Special

Shipping Weight: 10.8 pounds

Quantity:







Ventline Enclosed Trailer Parts - V2525-04-S46-M

Upgrade the old roof vent in your RV or enclosed trailer to the Northern Breeze. This stylish yet affordable vent has a built-in, single-speed fan and an easy-to-operate, domed cover. Garnish, sealant, wiring, and mounting hardware sold separately.

Features:

  • Roof vent with built-in fan draws out stale, smoky, or hot air from your enclosed trailer, camper, or RV
  • High-capacity, single-speed fan with 12V, 1-amp motor moves air at 400 CFM
    • Turns on and off with rocker switch located on bottom of vent
  • Easy-to-operate dome can be raised and lowered with a simple twist of the control knob
  • Snap-out screen keeps bugs and debris from getting into your trailer
    • Can be removed easily for cleaning
  • Galvanized steel mounting flange with white powder coat resists corrosion
  • Tinted, translucent polycarbonate plastic dome and clear fan blade allow some light through
  • Birch white screen frame (portion of vent that is visible inside RV)
  • Simple installation - screws into standard-size openings
    • Mounting hardware, sealant, garnish, and wiring sold separately
  • Made in the USA


Specs:

  • Fits 14-1/4" long x 14-1/4" wide rough opening
  • 1-Year warranty
  • Limited lifetime warranty on dome


From the high-capacity fan to the placement of the controls, this stylish, domed roof vent achieves a refined look and function at an affordable price.


High-Capacity Fan

The fan motor is located in the center of the vent to allow the fan to use all of the available area inside the frame for air movement. This allows the fan to move air at 400 CFM. And the transparent plastic fan blade doesn't block light. So when your vent is open, your trailer interior will get plenty of sunshine.


Easy-to-Operate Control Knob

The control knob, which lets you open and close the dome, is located at a corner of the vent - outside of air movement space so it won't interfere with airflow.


Rugged Dome

The tinted, rounded dome is made of rugged polycarbonate plastic that is durable enough to carry a lifetime warranty.


Note: Not for use above tubs, showers, or cooking range surfaces.


Instructions for Replacing an Existing Roof Vent

Note: Mounting hardware, sealant, garnish, and wiring are sold separately.


  1. Remove garnish trim piece if old vent includes this part.
  2. Disconnect wiring.
  3. Remove mounting screws and old sealant, and pull out old vent.
  4. Apply sealant to bottom of flange on new vent. Be sure to surround each screw hole.
  5. Insert vent through hole with screen frame extending through roof cavity and hinge of vent toward the front of the vehicle.
  6. Mount to roof with #8 screws.
  7. Remove screen frame and wiring compartment cover to make electrical connections.
  8. Connect to 12-volt DC power source.
  9. Replace screen frame and cover.
  10. Attach interior garnish piece with #8 screws.

Instructions for Installing a New Roof Vent (No Existing Rough Opening)

Note: Mounting hardware, sealant, garnish, and wiring are sold separately.


  1. Mark desired location for vent. Be sure to choose a location between roof joists.
  2. Cut a 14-1/4" x 14-1/4" opening through roof and ceiling.
  3. Apply sealant to bottom of flange. Be sure to surround each screw hole.
  4. Insert vent through hole with screen frame extending through roof cavity and hinge of vent toward the front of the vehicle.
  5. Mount to roof with #8 screws.
  6. Remove screen frame and wiring compartment cover to make electrical connections.
  7. Connect to 12-volt DC power source.
  8. Replace screen frame and cover.
  9. Attach interior garnish piece with #8 screws.

Available Matching Garnish Trim Pieces

Part
Number
Leg Length (Portion of Garnish That Extends into Roof Vent)Roof Thickness Range
VA0445-262-1/8"2-1/2" - 3-1/2"
VA0445-273-1/8"3-1/2" - 4-1/2"
VA0445-284-1/8"4-1/2" - 5-1/2"
VA0445-295-1/8"5-1/2" - 6-1/2"


V2525-04-S46-M Vent Line Northern Breeze Enclosed Trailer or Motor Home Roof Vent w/ 12-Volt Fan - Manual Dome - 14-1/4" x 14-1/4" - Birch White Screen Frame - Blue Dome










Customer Reviews

Ventline Northern Breeze RV Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Blue - V2525-04-S46-M

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

Upgrade the old roof vent in your RV or enclosed trailer to the Northern Breeze. This stylish yet affordable vent has a built-in, single-speed fan and an easy-to-operate, domed cover. Garnish, sealant, wiring, and mounting hardware sold separately.


- V2525-01-S46-M

by: Kenny08/05/2014

Review from a similar Ventline Northern Breeze in Enclosed Trailer Parts


Received great service and the parts were delivered on time. Thanks e trailer for the great service. 144318



- V2525-01-S46-M

by: Paul K.02/23/2015

Review from a similar Ventline Northern Breeze in Enclosed Trailer Parts


Prompt service. The product was a direct replacement and I'am completely satisfied. 175675

2
2


Ask the Experts about this Ventline Enclosed Trailer Parts
Do you have a question about this Enclosed Trailer Part?


  • Replacing the 12-Volt Fan Motor on a Ventline Northern Breeze RV Roof Vent
  • I went to our warehouse to get a Ventline RV roof vent # V2525-04-S46-M in order to determine if the fan motor can be replaced from accessing the underside instead of the topside. It isn't possible to replace the motor from the underside but removing the fan blade, as you did, is the first step. Once you remove the fan, open the dome lid, head topside and use a Phillips head screwdriver to remove all 4 screws of the existing fan motor. You can either pull out the wires as you remove...
    view full answer...

  • Replacement Fan Motor For Ventline Northern Breeze Roof Vent
  • The Ventline Replacement Fan Motor, part # VD0337-00 is designed to be a replacement for Northern Breeze trailer roof vents model # V2525-01-S46-M or # V2525-04-S46-M. Since the issue with corrosion and rusting has happened twice you may want to check to make sure the seal is in place and there are no signs of cracks or voids that would allow moisture. I would recommend replacing the vent motor, but see if you can find the source of the problem. If you find the seal needs to be replaced,...
    view full answer...

  • Replacement Vent Cover Lid Recommendation for a Ventline Northern Breeze RV Roof Vent
  • The correct replacement vent cover lid for the # V2525-04-S46-M that you referenced is the part # BVB0568-04.
    view full answer...

  • What is the Cubic Foot Per Minute Rating for Ventline Roof Vent w/ 110V Fan V2128SP-01
  • The first thing you should know about roof vent # V2128SP-01 is that it operates on 110 volt AC power. If you need a 12 volt DC powered vent with a fan this one will not work. But I spoke with my contact over at Ventline and found that the AC powered vent # V2128SP-01 is rated for 100 cubic feet per minute. For a 12 volt DC powered vent I recommend # V2525-04-S46-M which moves air at 400 cubic feet per minute.
    view full answer...

  • Will Fan in Ventline Northern Breeze RV Roof Vent Circulate Air in Parked Horse Trailer
  • Ventline Northern Breeze RV Roof Vent # V2525-04-S46-M would work adequately in your horse trailer to get some air moving. It would not be a wind tunnel or anything but it definitely wouldn't hurt. When moving you would want the lid closed otherwise you could lose the lid. If you were traveling down the highway and had the fan going it really wouldn't make a difference. The air moving over a open cavity on the roof or sides of the trailer would do more to pull air out of the trailer...
    view full answer...

  • Instructions for Fan Blade Replacement on a Vent Line Northern Breeze Roof Vent
  • To replace the fan blade of your Ventline Northern Breeze RV Roof Vent # V2525-04-S46-M all you really need to do is remove the mesh cover from the bottom of the assembly by spinning it off like a lid to a jar and then using the correct size socket or wrench loosen the nut that holds the fan on (you will need to hold the fan blade so it doesn't turn), pull it off the stud and then reverse the process to install the # VC0373-00. I went out and did this on a # V2525-04-S46-M that we had in...
    view full answer...

  • Will Ventline Northern Breeze Fan Replace Fan in 2014 Winnebago 27RBDS
  • To find out if the Ventline Northern Breeze RV Roof Vent Fan, part # V2525-04-S46-M is a fit for your 2014 Winnebago you will need to take some measurements. The Northern Breeze RV Roof Vent Fan fits an opening that is 14-1/4" long x 14-1/4" wide. If your current vent has a rough opening size of 14-1/4 square inches then this fan will work for you without cutting or significant modification. To install the vent I also recommend the installation kit # RVIKIT100.
    view full answer...

  • Replacement Trailer Roof Vent Operator Availability
  • Based on the dimension you listed it doesn't sound like we have the correct operator for your roof vent. We carry 4 operator assemblies, the part # BVD0462-00 has a distance of 2-7/16 inches between the mounting holes. The # VD0286-00 has a distance of 2-3/8 inches between mounting holes. The # BV0115-04 also has also a distance of 2-3/8 inches as well as the part # BV0115-06. It's possible you may have measured wrong so in this case if you have a vent like the # V2092SP-29 you would...
    view full answer...

  • Can Ventline Northern Breeze RV Roof Vent be Connected Directly to a 12 Volt Battery
  • Yes, you could connect the Ventline Northern Breeze RV Roof Vent # V2525-04-S46-M directly to a battery via a fuse. The fan has a switch built in so no additional switch is needed. Black is the power wire and would go to the positive battery terminal. White is the ground wire and you would want to attach it either to the negative battery terminal or a clean and corrosion free bare metal surface.
    view full answer...

  • Replacement Roof Vent Lid for Powered Vent With Offset Lift Mechanism
  • It sounds to me like you have a Ventline Northern Breeze RV roof vent like part # V2525-04-S46-M. You can examine the existing vent for manufacturer information and the model number. This vent has the lifting mechanism bracket on the side, not and the middle of the vent and the lift is operated by a knob, not a crank. It sounds exactly like what you described. If this is the case, we do indeed have a replacement dome lid, part # BVB0568-04. The lid has the lift bracket on the side, and...
    view full answer...

  • Roof Vent with Fan Recommendations for Enclosed Trailer
  • The fan of the Ventline Roof Vent w/ 110V Fan # V2128SP-01 that you referenced is an exhaust type fan that would pull hot air out of a trailer. The fan blade may be small but it still works well. It pulls 100 CFM. If you wanted a setup with a larger fan you would want the Ventline Northern Breeze RV Roof Vent # V2525-04-S46-M. The fan of this vent pulls 400 CFM.
    view full answer...
