Enclosed Trailer Parts Ventline V2119-603-00

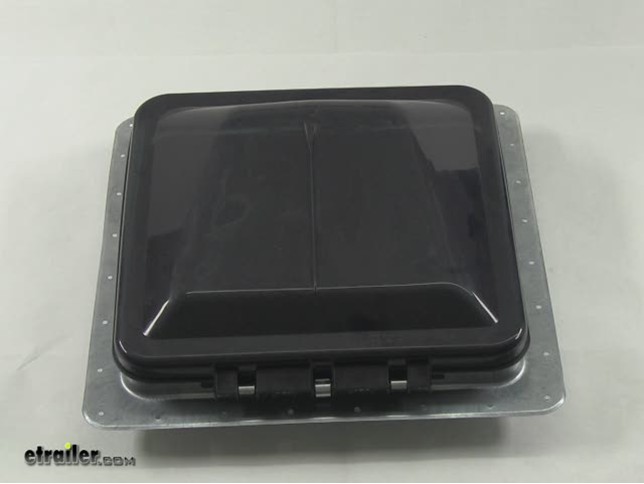

Ventline Ventadome Roof Vent w/ 12V Fan - Powered Lift - 14-1/4" x 14-1/4" - Smoke

Code: V2119-603-00

Price:$104.95

Shipping Weight: 6 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Ventline Enclosed Trailer Parts V2119-603-00 Review - Video

Ventline Enclosed Trailer Parts - V2119-603-00

This roof vent's powered, 12-volt fan and dome lift provide the ultimate in convenience for ventilating motor homes and enclosed trailers. Fan and wedge-shaped, plastic vent cover are operated from a remote wall switch.

Features:

Roof vent's electric fan yields better air circulation than non-powered models, exhausting hot air while trailer or RV remains locked and secure
Power lift opens and closes cover, eliminating hand cranking
- Simple to upgrade from non-powered model
Wall remote switch (VC0533-03-A, VC0533-02-A; sold separately) provides convenient operation
Translucent cover allows some light through
Aerodynamic, wedge-shaped dome made of durable polypropylene
Galvanized steel roof flange won't rust or corrode
Snap-out screen is easy to clean
Fan and power lift use 12-volt system - 110-volt hookup not required
Electrical parts sold separately
Made in the USA

Note: Screws and sealer are not included. See Installation Kit (RVIKIT100), which includes all necessary screws and sealer to install vent.

Specs:

Fan and lift power: 12-volt DC
Cover color: Smoke
Rough opening size: 14-1/4" x 14-1/4"
Vent extends above roof:
- 4-1/2" Closed
- 10" Open
1-Year warranty

Note: Not for use above tubs, showers or range cooking surfaces.

Installation Instructions

Mark desired location for vent. Be sure to choose a location between roof joists.
Cut a 14-1/4" x 14-1/4" opening through roof and ceiling. (Or use existing opening if you're replacing a standard 14-1/4" x 14-1/4" vent.)
Apply sealant to bottom of flange. Be sure to surround each screw hole.
Insert vent through hole with screen frame extending through roof cavity and hinge of vent toward the front of the vehicle.
Mount to roof with #8 screws.
Remove screen frame and wiring compartment cover to make electrical connections.
Connect to 12-volt DC power source.
Replace screen frame and cover.
Attach interior garnish piece with #8 screws.

V2119-603-00 Ventline Ventadome Trailer Roof Vent w/ 12V Fan - Powered Lift - 14-1/4" x 14-1/4" - Smoke

Video of Ventline Ventadome Roof Vent w/ 12V Fan - Powered Lift - 14-1/4" x 14-1/4" - Smoke

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Ventline Enclosed Trailer Parts V2119 603 00

Ventline Enclosed Trailer Parts V2119-603-00 Review

Video Transcript for Ventline Enclosed Trailer Parts V2119-603-00 Review

Today were looking at the Ventline Vented Dome Roof Vent with 12-volt fan, part number V2119-603-00. The power lift opens and closes the cover, eliminating a hankering. It has a translucent cover allows sunlight through and the fan the power lift uses a 12-volt system, so 110-volt hookup is not required. Its made in the USA and has a rough opening size of 14 by 14 with a one-year warranty. The outside flange is galvanized to prevent rust and corrosion on the outside of attachment point. Inside, it has a removable vent which will allow you to also see the wiring pigtails to connect both your fan and the power opening and closure.

And there you have it for the Ventline Vented Dome Roof Vent with 12-volt fan, part number V2119-603-00.
