Enclosed Trailer Parts > Vents > Roof Vent > Vent Assembly > No Fan > 14W x 14L Inch > Metal > Manual Lift > Ventline


Ventline Ventadome Trailer Roof Vent - Manual - 14-1/4" x 14-1/4" - Metal

Ventline Enclosed Trailer Parts

ratingratingratingratingrating (74 reviews)


Code:   V2110SP-24

Retail:$44.95

Price:$36.95


Shipping Special

Shipping Weight: 5 pounds

Quantity:






Ventline Enclosed Trailer Parts - V2110SP-24

This roof vent allows air to circulate in motor homes and enclosed trailers, keeping interiors ventilated without compromising security. Flat, low-profile metal vent cover opens and closes from inside with a hand-operated crank.

Features:

  • Roof vent allows fresh air to enter, and heat to escape, while trailer or RV remains locked and secure
  • Simple, hand-operated crank rotates to open and close dome and eliminates the need for wiring
  • Low-profile, mill finish metal cover
  • Galvanized steel roof flange won't rust or corrode
  • Snap-out screen is easy to clean
  • Polar White interior trim piece (or garnish) is included
  • Made in the USA

Note: Screws and sealer are not included. See Installation Kit (RVIKIT100), which includes all necessary screws and sealer to install vent.


Specs:

  • Included garnish fits roofs 1-7/8" to 3" thick
    • Garnish leg length (depth): 2-1/8"
    • Garnish color: Polar White
    • Other garnish sizes are available (sold separately)
  • Cover color: mill finish metal
  • Rough opening size: 14-1/4" wide x 14-1/4" long
  • 1-Year warranty


V2110-24 roof vent



Installation Instructions

  1. Mark desired location for vent. Be sure to choose a location between roof joists.
  2. Cut a 14-1/4" x 14-1/4" opening through roof and ceiling. (Or use existing opening if you're replacing a standard 14-1/4" x 14-1/4" vent.)
  3. Apply sealant to bottom of flange. Be sure to surround each screw hole.
  4. Insert vent through hole with screen frame extending through roof cavity and hinge of vent toward the front of the vehicle.
  5. Mount to roof with #8 screws.
  6. Attach interior garnish piece with #8 screws.


V2110SP-24 Ventline Ventadome Trailer Roof Vent - Manual - 14-1/4" x 14-1/4" - Metal





Video of Ventline Ventadome Trailer Roof Vent - Manual - 14-1/4" x 14-1/4" - Metal


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

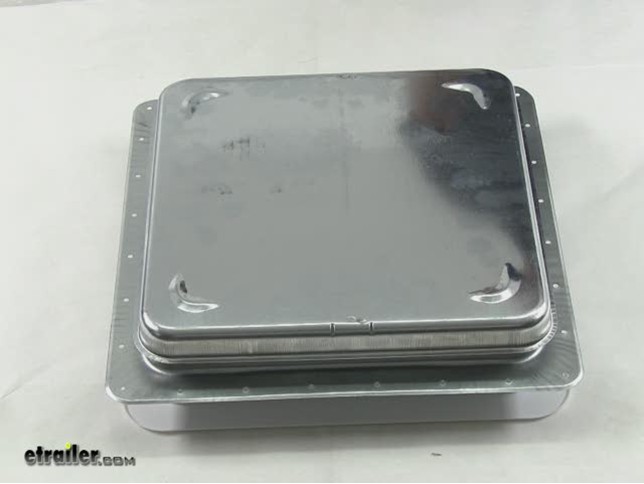

Video Demo Ventline Enclosed Trailer Parts V2110SP 24
Ventline Enclosed Trailer Parts V2110SP-24 Review

Video Transcript for Ventline Enclosed Trailer Parts V2110SP-24 Review

Today we are looking at the Ventline Ventadome Trailer Roof Vent, part number V2110SP-24. This vent is made from a galvanized steel roof plans that wont rust or corrode, is made in the USA and has a rough size opening of 14-1/4 by 14-1/4. If we turn our vent over we can see it has an inside turn ring with a removable screen. The manual vent, with a vent knob for opening and closing, and there you have it for the Ventline Ventadone Trailer Roof Vent V2110SP-24.
