Enclosed Trailer Parts > Vents > Roof Vent > Vent Assembly > With 12V Fan > 14W x 14L Inch > Smoke Plastic > Manual Lift > Ventline


Ventline Ventadome Trailer Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Smoke

Ventline Enclosed Trailer Parts

ratingratingratingratingrating (10 reviews)


Code:   V2094SP-34

Retail:$89.95

Price:$69.95


Shipping Special

Shipping Weight: 5 pounds

Quantity:






Ventline Enclosed Trailer Parts - V2094SP-34

This roof vent uses a 12-volt fan to circulate air in motor homes and enclosed trailers, keeping interiors ventilated without compromising security. Wedge-shaped, smoke-colored plastic vent cover opens and closes with a hand-operated crank.

Features:

  • Roof vent's electric fan yields better air circulation than non-powered models, exhausting hot air while trailer or RV remains locked and secure
    • Simple to upgrade from non-powered model
  • Basic, hand-operated crank rotates to open and close dome
  • Switch to turn the fan on/off is mounted on the vent
  • Translucent cover allows some light through
  • Aerodynamic, wedge-shaped dome made of durable polypropylene
  • Galvanized steel roof flange won't rust or corrode
  • Snap-out screen is easy to clean
  • Polar White interior trim piece (or garnish) is included
  • Fan uses 12-volt DC power
    • Wiring sold separately
  • Made in the USA


Specs:

  • Included garnish fits roofs 1-7/8" to 3" thick
    • Garnish leg length (depth): 2-1/8"
    • Garnish color: Polar White
    • Other garnish sizes are available (sold separately)
  • Fan power: 12-volt DC
    • 100 CFM
  • Cover color: Smoke
  • Rough opening size: 14-1/4" wide x 14-1/4" long
  • Vent extends above roof:
    • 4-1/2" Closed
    • 10" Open
  • 1-Year warranty


Note: Screws and sealer are not included. See Installation Kit (RVIKIT100), which includes all necessary screws and sealer to install vent.


V2094SP-34 roof vent


Note: Not for use above tubs, showers or range cooking surfaces.



Installation Instructions

  1. Mark desired location for vent. Be sure to choose a location between roof joists.
  2. Cut a 14-1/4" x 14-1/4" opening through roof and ceiling. (Or use existing opening if you're replacing a standard 14-1/4" x 14-1/4" vent.)
  3. Apply sealant to bottom of flange. Be sure to surround each screw hole.
  4. Insert vent through hole with screen frame extending through roof cavity and hinge of vent toward the front of the vehicle.
  5. Mount to roof with #8 screws.
  6. Remove screen frame and wiring compartment cover to make electrical connections.
  7. Connect to 12-volt DC power source
  8. Replace screen frame and cover.
  9. Attach interior garnish piece with #8 screws.


V2094SP-34 Ventline Ventadome Trailer Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Smoke







Video of Ventline Ventadome Trailer Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Smoke


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

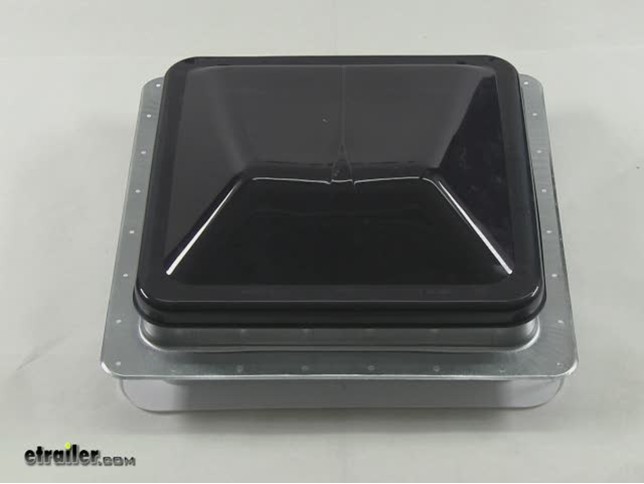

Video Demo Ventline Enclosed Trailer Parts V2094SP 34
Ventline Enclosed Trailer Parts V2094SP-34 Review

Video Transcript for Ventline Enclosed Trailer Parts V2094SP-34 Review

Today we are looking at the Ventline Ventadome Trailer Roof Vent with 12V fan, part number V2094SP-34. The roof vents fan yields better circulation than a non powered model. It has a translucent cover that will allow some sunlight through. The fan is powered by a 12 volt system and will not require 110 volt hookup. It is made in the USA, it has a rough opening size of 14-1/4 by 14-1/4 and it comes with a one year warranty. The outside metal flange is galvanized steel to prevent outside rusting and corrosion.

The inside comes with a trim ring to mount to the ceiling, and has a removable screen. Here you can see the fan, the on off switch, and also a hand crank for raising and lowering the vent cover. As you can see this vent cover is smoke. And there you have it for our Ventline Ventadome Trailer Roof Vent with 12V fan, part number V2094SP-34. .




Customer Reviews

Ventline Ventadome Trailer Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Smoke - V2094SP-34

Average Customer Rating:  ratingratingratingratingrating4.4 out of 5 stars   (10 Customer Reviews)

This roof vent uses a 12-volt fan to circulate air in motor homes and enclosed trailers, keeping interiors ventilated without compromising security. Wedge-shaped, smoke-colored plastic vent cover opens and closes with a hand-operated crank.


- V2094SP-34

ratingratingratingratingrating by: Justin09/13/2013


Etrailer Is a great company my hole experience hase been grate and I would deffanetly recomend this sight to anyone looking fot parts I got my product almost as fast as next day witch was really awsome and as far as the product goes it was everything that thay said it was witch made finding what I whanted very easy 99877






- V2094SP-34

ratingratingratingratingrating by: Henry J06/18/2014


Shipping was extremely fast. Product looks good. I just don't have them installed yet. Very good service . I would recommend etrailer to everyone. 136435






- V2094SP-34

ratingratingratingratingrating by: Virgil H04/18/2014


Was the right size and fairly easy to install.seem to be a really good product... 125921






- V2094SP-30

ratingratingratingratingrating by: Kerry S10/23/2012

Review from a similar Ventline Ventadome Roof Vent with Fan


This item arrived when they projected it would. As always I'm very happy with the service and how quick they responded when I had a question. I will definately continue to give them my business. I have not yet installed the roof vent so I can't send a picture. 57953





Comments

It still works like its brand new. I actually bought another one this year for another location.

Kerry - 04/23/2014

3720



- V2094SP-30

ratingratingratingratingrating by: Harley 0107/06/2012

Review from a similar Ventline Ventadome Roof Vent with Fan


I found this vent and fan combination to be just what I needed. I added it to the roof of my enclosed motorcycle trailer. It's made a big difference in keeping the inside of my black trailer cooler. Unless you have sheet metal screws and sealant around the shop, I'd order the install kit. This product does not come with a template for instilling it. I made my own out of thin plywood. Watch the edges of the metal, they are sharp. 46909






- V2094SP-30

ratingratingratingratingrating by: Kent K06/04/2012

Review from a similar Ventline Ventadome Roof Vent with Fan


A nice looking unit, packing included everything needed to make the install go smoothly. It fit easily into the old hole and other than adding wiring for the fan (old unit didn't have a fan), it only took about an hour to install. 42592






- V2094SP-30

ratingratingratingratingrating by: Diane11/22/2013

Review from a similar Ventline Ventadome Roof Vent with Fan


The product arrived exactly as expected and was easier to install than expected. With the excellent pricing, this is our new RV parts store. Thanks!! 108175






- V2094SP-30

ratingratingratingratingrating by: Morgan K07/27/2013

Review from a similar Ventline Ventadome Roof Vent with Fan


Screen is difficult to install. and flimsy. About what is expected at that price. Other wise good product. Good service. 91869






- V2094SP-30

ratingratingratingratingrating by: Jeffrey L E09/10/2013

Review from a similar Ventline Ventadome Roof Vent with Fan


Good quality. 12V fan is small but moves air well. Also is quieter than the original unit it replaced. 99216






- V2094SP-30

ratingratingratingratingrating by: John S.10/03/2013

Review from a similar Ventline Ventadome Roof Vent with Fan


Excellent product and great customer se rvice. 102388




10
10


Ask the Experts about this Ventline Enclosed Trailer Parts
Expert Answers about Ventline Ventadome Trailer Roof Vent w/ 12V Fan - Manual Lift - 14-1/4" x 14-1/4" - Smoke - V2094SP-34Do you have a question about this Enclosed Trailer Parts?


  • Replacement Ventline Trailer Roof Vent Covers for Parts V2092 and V2094
  • We carry a broad range of Ventline products, complete vent assemblies as well as individual replacement parts, for both of the part numbers you referenced. For Ventline item V2092 we offer complete vent assemblies, # V2092SP-29 in smoke color and # V2092SP-28 in white. Replacement domes are also available, # BVD0449-A03 in smoke and # BVD0449-A01 in white. For powered vent V2094 we offer a complete vent assembly # V2094SP-34 in smoke and # V2094SP-30 in white. Replacement domes only...
