Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.
CIPA Custom Towing Mirrors slide over your existing mirror to give you added vision for towing. Aside from the easy installation that requires no tools, CIPA custom towing mirrors leave no marks or holes on your vehicle. They are fully adjustable and do not obstruct your existing mirror. CIPA mirrors are superior because of their quality construction. The mirror casing is made up of a thicker plastic, which makes them extremely durable and corrosion-resistant. CIPA also maintains the aerodynamic shape of your mirror to prevent wind noise or vibration.
|
This should be what the mirror looks like on the vehicle. The CIPA mirror will slide over this mirror. |
Video of CIPA Custom Towing Mirror, Driver Side
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

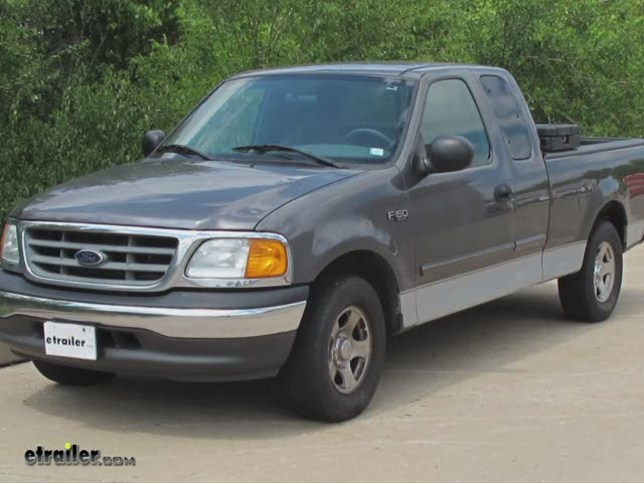

Today, in our 2004 Ford 150 Heritage, were going to install the Cipa Custom Towing Mirrors, part number 11601. This mirror extension will be on the drivers side. To install our mirror, well first take the felt strip and put it on the shoe. The shoe is the wedge that will mount on the inside of the mirror. To install the felt strip well peel back the two-way adhesive, well put it across the face of the shoe that will touch the mirror. Now with that done we can go ahead and insert the shoe into the mirror, lining up the end of the shoe with the alignment tab, custom molded into the mirror.
Now with that in place were ready to go ahead and install the mirror extension onto the manufacturers mirror. Well slide it into place, and set it, and then well take the hand knob and secure our mirror extension to the manufacturers mirror. The hand knob will create a wedge effect, holding it in place. We can also repeat the same process on the passengers side, and thatll complete the install of the Cipa Custom Towing Mirror, part number 11601, on our 2004 Ford 150 Heritage Series. End of Audio Duration: 1 minutes, 15 seconds .
1997 - 2002 Ford Expedition
2000 - 2003 Ford F-150
1997 - 1999 Ford F-150 and F-250 Light Duty
1998 - 2002 Lincoln Navigator
2004 - 2004 Ford F-150 Heritage Series Regular and SuperCab, Electric Mirror
2004 - 2004 Ford F-150 Heritage Series SuperCrew Cab, Electric Mirror
Customers Who Purchased This Custom Towing Mirrors Also Bought...
Replacement parts available for this product
Average Customer Rating:
4.5 out of 5 stars (8 Customer Reviews)
by: Johnny S.08/31/2012
Is this review helpful?
Product was better than expected, the fit was good, the looks are good, I am very happy with this product,The service was fantastic, I received the product several days earlier than I was expecting. Over all I am very happy with this product. Thank you53663
by: Frank C.06/21/2012
Is this review helpful?
Mirrors fit great. Can now see much better on the side of my camper45094
by: Jason03/23/2012
Is this review helpful?
Quick delivery. Product as described. 34877
by: Wade M.08/29/2011
Is this review helpful?
Mirrors were very easy to install. Fit good and tight with no vibration while traveling. The felt on the spacer should have been just a little wider, it leaves a line when you remove the mirror. I had just waxed the truck before using, so it wiped off fairly easy. I would have liked the mirror to have been about an inch bigger both in width and height but overall I was pleased with the purchase.23107
by: Ted R.08/25/2011
Is this review helpful?
I am new at towing a camper that is larger than the width of my F-150. After reviewing all the towing mirrors, I decided on the CIPA Custom. They attached over my existing mirrors easily and rode steady. I noticed very little vibration, even on rough roads. Exceptional product for temporary use. 22757
by: Les P08/08/2011
Is this review helpful?
Inexpensive fix over replacing the whole mirror. Work well and easy to install21285
by: Ron C.05/19/2011
Is this review helpful?
I don't ever rate anything at 100%, but these mirrors are very close to it. They are easy and fast to install, and will work just fine when I haul my 5th wheel holiday trailer. The service I received from Etrailer.com was flawless, and my order arrived in just a couple of days. I'm happy !!14836
by: Jim H.03/16/2011
Is this review helpful?
Products are exactly as pictured and are what I wanted. Haven't had time to use them yet, but I'm sure they'll be fine. Good price and shipping was EXCELLENT!!!!! Thanks ...will order again......Jim9544
Ask the Experts about this CIPA Custom Towing Mirrors
Do you have a question about this Custom Towing Mirrors?
Info for this part was:
At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
Installation Details
