Curt Wiring for the Volkswagen T2 Bus Van, 1977

Curt Wiring

(145 reviews)


Code:   C56175

Retail:$39.31

Price:$26.95


Shipping Special

Shipping Weight: 0.62 pounds

Quantity:






Curt Circuit Protected Converter w/ SMT - Volkswagen T2 Bus Van, 1977

Install a 4-way trailer connector on your Volkswagen T2 Bus Van with this wiring harness with tail light converter. Harness splices into existing wiring. SMT construction ensures superior performance.

Features:

  • Provides a 4-pole flat trailer connector for the Volkswagen T2 Bus Van
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Hardwires to existing harness behind tail lights
  • Solid one piece construction
  • 16 Gauge bonded wire with 4-flat plug
  • Factory appearance
  • Simple do-it-yourself instructions on every package
  • Not recommended for Volkswagen T2 Bus Vans with LED lights


Specs:

  • Wire configuration:
    • Red: brake lights
    • Yellow: left turn lights
    • Green: right turn lights
    • Brown: Tail lights
    • White: ground
  • 1-Year limited warranty


Tech Tip: It is always a good idea to apply a small amount of grease to all electrical connections to help prevent corrosion.


Warning: Overloading circuit can cause fires. Do not exceed lower of towing manufacturer rating or:

  • Max. stop/turn light: (3 amps)
  • Max. tail lights: (7.5 amps)

Read Volkswagen T2 Bus Van owner's manual and instruction sheet for additional information.


Surface Mount Technology (SMT) is a method for constructing electrical circuits where components are mounted onto the surface of printed circuit boards.



56175 CURT Vehicle Wiring Harness - 4 Wire

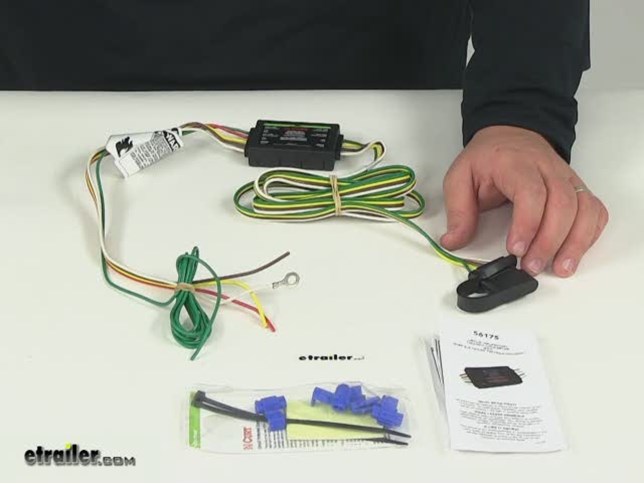

Video of Curt Circuit Protected Converter w/ SMT
