Custom Fit Vehicle Wiring


T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Tow Ready Custom Fit Vehicle Wiring

ratingratingratingratingrating (29 reviews)


Code:   118506

Retail:$101.44

Price:$72.95


Shipping Special

Shipping Weight: 2 pounds

Quantity:






Tow Ready Custom Fit Vehicle Wiring - 118506

Quickly and easily install a 4-way trailer connector on your vehicle with this custom wiring harness. T-One connector plugs directly into existing wiring. Powered ModuLite reduces strain on wiring system.

Features:

  • Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily
    • Locate connection points behind tail lights
    • Plug in T-connector
    • Run hot lead to car battery
  • Includes ModuLite to ensure that your vehicle's wiring matches that of your trailer
    • Powered module connects directly to battery to avoid overloading vehicle's electrical system
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


Specs:

  • Maximum amperage:
    • Stop/turn lights: 4.2 amps per circuit
    • Tail lights: 7.5 amps per circuit
  • 1-Year limited warranty


Installation

This custom-fit T-One connector plugs into your vehicle's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the tail light assemblies to access this harness.


T-One Connection Location Points Behind Tail Lights

Once you've plugged in the T-connector, run the hot lead up to your car battery. Connect the lead to the included fuse holder, and then connect the fuse holder to the positive terminal on your battery and insert the provided fuse.


Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.


It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.


ModuLite Powered Tail Light Converter

A ModuLite power module is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your vehicle's three-wire system need to be combined so they are compatible with the wiring system of your trailer. This power module functions as a tail light converter to combine the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your vehicle operate.


With a ModuLite, your trailer's lights will be powered without overloading your vehicle's electrical system. Because the module draws power directly from your car's battery and bypasses the electrical routes that are used by a basic wiring harness, there is virtually no draw on your tail light circuits.



118506 Tow Ready T-1 T-Connector - 4 Wire - Modu-Lite





Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

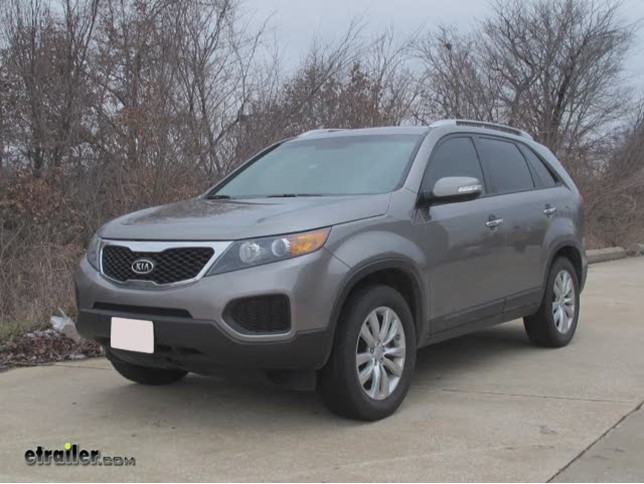

Video install trailer wiring 2011 kia sorento 118506
Trailer Wiring Harness Installation - 2011 Kia Sorento

Video Transcript for Trailer Wiring Harness Installation - 2011 Kia Sorento

Today, on a 2011 Kia Sorento, were going to install part number 118506 from inaudible. First thing well do is were going to remove the two tail lights. Well remove two screws here and here. To disconnect the harness, first inaudible the right here, and pull the part. Well put those aside and repeat the same process over on the passengers side. The next thing well do is remove this plastic ring right here.

That fastener will not be reused. Well take the wire harness dropped between the body work and the body. That will be the same thing with our T-connector with the red wire. Alright. Next, were going to go ahead and test our black wire that come from the kit to our red wire here and this eventually get run to the front of the vehicle to the battery.

Then well take the black wire and do the same thing with other wires. Well inaudible through here and pull the wires down. inaudible and test the module. The module has a bracket with a threaded hole in the end and inaudible hardware into it inaudible main fasteners that allows to cool and to face you back a little bit more so you can run the module underneath. Well put the two fasteners back in, now Ill take the white wire inaudible terminal and inaudible to the body.

Now well take the wire harness, plug it into the factory wire harness, snap it together and then well go ahead and install the inaudible.Then well take the wire harness and well run it behind the support for the bumper cover then down to our hitch. With the red and green wire, were actually going to run it above the bumper bracket over to this wire thats a little bit on the short side. Then were going to run a piece of tubing and well use that to help pull the wire over the bumper bracket. Then well run it the same way to the passengers side. So when you run the wire direct to rout as possible because theres very little leftover.

Theyre going to be attached to the wire harness thats attached to the tail light. Now were going to run the black wire and roll it up to the front of the car and to the battery. Make sure it stays away from anything thats moving or anything that gets hot like the exhaust. And when you run it to the engine compartment, the same thing applies as you run it to the battery. Well run the wire to the inaudible side of the battery well be attaching it to this terminal here so well cut our wire short .


This Product Fits The Following Vehicles

2011 - 2013 Kia Sorento 4 Cylinder models

2011 - 2013 Kia Sorento Base I4 without factory tow package

2011 - 2013 Kia Sorento EX I4 without factory tow package

2011 - 2013 Kia Sorento EX V6 without factory tow package

2011 - 2013 Kia Sorento LX I4 without factory tow package

2011 - 2013 Kia Sorento LX V6 without factory tow package

2011 - 2013 Kia Sorento V6 EX without Factory Tow Prep Package

2011 - 2013 Kia Sorento V6 LX without Factory Tow Prep Package




Customers Who Purchased This Custom Fit Vehicle Wiring Also Bought...






Customer Reviews

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118506

Average Customer Rating:  ratingratingratingratingrating4.4 out of 5 stars   (29 Customer Reviews)




- 118506

ratingratingratingratingrating by: James S.06/03/2011

Is this review helpful?


The hitch installed in about half an hour on a hydraulic lift. There is a good inch between the hitch and the muffler. The wiring took over two hours hiding all the wires. It could be done in less than an hour if i had to do it again. 16060



- 118506

ratingratingratingratingrating by: Scott B.03/16/2014

Is this review helpful?


Product was as advertised, and as they mention in the video, you do not have very much play went you string it over to the passenger side. Took me a few times till I got enough to hook up. Other than that, awesome product, great site and excellent customer service!120891



- 118506

ratingratingratingratingrating by: Dennis M12/28/2013

Is this review helpful?


Item arrived in 4 days. All parts fit as advertised. Hardest part of installation was routing wires through the chasis, as there are some tight spots around the tail lights. While the installation video was helpful, I think some more video under the car for routing the wires would have been helpful. Installation took about two hours because of some trial and error. Overall it was not too hard of an installation. Dealer wanted $575 to install wiring and hitch on my 2012 Sorento. By installing myself, the cost was roughly $240 for the hitch and wiring assembly. The cost difference will pay for the utility trailer I have been looking to buy. Thanks etrailer for a good experience.111359



- 118506

ratingratingratingratingrating by: Robert F.09/07/2013

Is this review helpful?


Received my hitch for my 2013 Kia Sorento in about three days after placing my order. Everything was there and in good shape. The delivery company did a job on the box but the merchandize was fine. Only question is the instructions for the $72.00 wiring harness were a little shy on instructions but I think I can figure them out. Would be nice to see more info in the installation of the wiring harness. Your employee Gail was very helpful and efficient and I will give your company a 9 our of 10. Keep up the good work.98835


Comments

How about a video? http:/www.etrailer.com/tv-install-trailer-wiring-2011-kia-sorento-118506.aspx

Patrick B - 9/10/2013

2048

- 118506

ratingratingratingratingrating by: Tom H.08/13/2013

Is this review helpful?


This wiring harness is very well made with all corresponding wires bundled neatly together to avoid any confusion. The installation went exactly as demonstrated on the video which was VERY helpful for those of us who are visual learners. Once installed, it operates as advertised.94915



- 118506

ratingratingratingratingrating by: Todd Vilen07/17/2013

Is this review helpful?


This product installed perfectly and components all fit well, just as advertised. Being a novice, I followed a U-tube video or I may have had slight difficulty. All the lights check out perfectly. Supplied lengths were plenty adequate and did not require stretching it thin or working on extremely taught wires. I am impressed. 90056



- 118506

ratingratingratingratingrating by: no name04/20/2013

Is this review helpful?


The wiring that runs from the drivers side to the passenger side is short. There is an alternative path, but it is difficult to reach without small hands. I would suggest either making the wiring a little longer 5 inches? or more clearly showing the alternative path.77036



- 118506

ratingratingratingratingrating by: Robert04/11/2013

Is this review helpful?


Prroduct arrived within a week. The installation videos were a tremendous help. I installed the hitch myself and use 2 hydraulic bottle jacks to raise the hitch, which is quite heavy, into position until I was able to thread a bolt in on each end. After getting the unit suspended on 2 bolts, I was able to center the hitch side to side, install the last 2 bolts and use the jacks to raise the hitch firmly to the car frame so I could snug the boltsup. I used a short piece of 2x4 to wedge between the muffler and auto frame to give room to get a socket wrench on the last bolt to tighten it. The muffler only needed to be shoved out of the way slightly. No need to remove ot from its hangers. It would be easier to install with a helper but not difficult by myself. No need to cut bumper. Wiring was a challeng only because of difficulty of getting it threaded up the passenger side fender. You need a skinny flexible length of whatever u have to push down thru the fender till it exits below. Then tape your wire harness to it and wrestle it up to the light. I chose to route the power cable thru the car interior and that was a chore. Easier to route under car but more exposed to elements and damage. I found one wire under the dash that penetrated the firewall and was able to punch the power line thru its rubber boot seal with an awl that got the power cable into the engine compartment. The connection to the batter was easy. I recommend this hitch for the DIYer.75443



- 118506

ratingratingratingratingrating by: Brandon T.07/22/2012

Is this review helpful?


The harness was simple in nature to install. The hardest part was fishing the wires behind the bumper and running the negative to the front of the truck. It took over an hour to do bc of tight spaces and trying to figure out where to run everything. I could probably cut 30 mins off if I had to do it again.48852



- 118506

ratingratingratingratingrating by: Jeron F07/14/2012

Is this review helpful?


I can't believe how easy etrailer makes the installation of the products. I love the videos that show you how to install the product on your vehicle. Very easy to install both the hitch and wiring. Product shipped on time. I even received an email at 1:00 am saying the product had shipped, which was only a couple hours after I ordered it. I would definitely order from this company again. Right prices and awesome service. Great Job guys. 47976



- 118506

ratingratingratingratingrating by: Reese L.06/03/2012

Is this review helpful?


Very easy to install once you figure out how to run the power to the battery. Other than that everything went well. I ended up following the brake lines from the rear to the under the hood area. Get a lot of zip ties to make sure everything stays snug. 42537



- 118506

ratingratingratingratingrating by: tim d.05/18/2012

Is this review helpful?


Perfect fit! I just installed today and working so far. I say that because I had installed a curt harness and only lasted a month. Unfortunately I purchased it on ebay and didn't bother trying to contact them. I'm trusting you that if I have problems I can call. Thanks for quick delivery!!40980


Comments

I had the same problem with the Curt harness. The first one was messed up the second day on the job, and now the second one is bad two months down the line, and I havent even had the trailer connected to it. Im taking the trailer across country in two weeks. Im going to junk the the Curt module, and buy this one. E-trailer has been great, they sent the replacement right away after the first, but Ive had enough, no more Curt products for me. Im not going to try for a 3rd strike. Especially when I know the problem isnt a result of the trailer. The curt modules just dont do it, and even despite the excellent service from E-trailer, I really dont want to have to keep crawling under my Sorento to remove the box every six months!

comment by: Anthony H - 9/28/2013


2113

Thanks for the update. Be sure and give us a call when you place your order.

Patrick B - 10/2/2013




- 118506

ratingratingratingratingrating by: Scott W.03/31/2012

Is this review helpful?


Tight fit behind the lighting assembly. Someone should note "exactly" where to route the wires as there are two choices down in the body panels. One leaves the wires too short, one is just right....... I routed wires twice.... no big deal. 35753



- 118506

ratingratingratingratingrating by: Larry G.03/29/2012

Is this review helpful?


Installation of hitch and full wiring harness went smoothly. No issues that others had mentioned, didn't have to drill out frame or cut away at center of bumper. Also, had plenty of wire, didn't have to splice any additional...trick was to hug the inside of bumper. Watching videos helped to simplify the installation, along with a little patience. Toughest part was to fish the wiring up through the passenger side tail light opening, bent coat hanger worked well. Would strongly recommend etrailer, price was reasonable and installation straightforward.35562



- 118506

ratingratingratingratingrating by: mike h10/22/2011

Is this review helpful?


i ordered parts for my parents that needed them for the car to tow a trailer to florida. they were ready to go when they found out the wiring harness had a problem, the parts arrived as ordered and very fast and allowed them to be on there way. price with next day air was still very reasonable thankyou25950



- 118506

ratingratingratingratingrating by: Danny07/06/2011

Is this review helpful?


Ordered for a 2011 kia sorento, overall easy install, but a bit time consuming. Control box was a tight squeeze to fit in the space and running a power line to the battery was a task. But in the end it makes for a very solid and clean install. Probably took about an hour and a half to run all the cables.18596



- 118506

ratingratingratingratingrating by: Brian C05/24/2011

Is this review helpful?


I did not have enough wire to connect to the passenger side tail light without more disassembly of my new vehicle than I really wanted to perform. l-added jumper inline with the wiring-potential ground point. Also, in order to allow more room for the installation I made up the butt connector for the battery positive wire before mounting the harness behind the driver's side tail light. Running to the battery was fine, not professional by any means but should work. Maybe some mounts and adhesive would help to make it more professional. Works as described.15283



- 118506

ratingratingratingratingrating by: Scott M.05/22/2011

Is this review helpful?


This installation went mostly okay. Everything plugged into place as described. I agree with some other comments on this forum that if you follow the installation instructions exactly, there isn't enough wire to reach the passenger side lights. I ended up running mine right behind the bumper hugging the rear door seal. That made it work out just right. The real bear of the installation was running the power supply up to the battery. I had trouble with this and am not 100% satisfied that it looks professional. That one part took 70% of the time to install.15070



- 118506

ratingratingratingratingrating by: David12/24/2010

Is this review helpful?


T-One connector The T connector works as described, but I found that the wiring harness for the passenger side lamp was too short. I had to add approximately 6" of wire to get it reach. Overall its a good kit and it does what it says.4580



- 118506

ratingratingratingratingrating by: Steve D.09/06/2013

Is this review helpful?


Everything worked out great . Nice products ,fast shipping and easy to install. Thanks Steve98674



- 118506

ratingratingratingratingrating by: Chip D.07/18/2013

Is this review helpful?


Be prepared to spend some time under your vehicle, but it was fairly straight forward installation and didn't take too much time.90175



- 118506

ratingratingratingratingrating by: Mike S06/30/2013

Is this review helpful?


This product was good but the directions need to be a little clearer. We had to remove the spare tire to install.86804



- 118506

ratingratingratingratingrating by: Gordon06/21/2013

Is this review helpful?


The wiring kit was relatively easy to install, the hardest part was trying to fit the control box between the body panels. 85464



- 118506

ratingratingratingratingrating by: Rich K05/29/2013

Is this review helpful?


Excellent product, great communication! 82268



- 118506

ratingratingratingratingrating by: Kenny A.05/06/2013

Is this review helpful?


This was easy to install. No problem at all with wire lengths. Took less than one hour to install.79132



- 118506

ratingratingratingratingrating by: Keith F.12/29/2012

Is this review helpful?


Harness kit was complete and easy to install. The instructional video was very helpful.62228



- 118506

ratingratingratingratingrating by: Raymond Derosa11/24/2012

Is this review helpful?


I AM VERY EXPERIENCED IN ELECTRICAL WORK THE HARNESS IS NOT USER FRIENDLY. IT IS WAY TO SHORT TO REACH THE RIGHT REAR TAIL LIGHT! I USED BUTT SPLICES TO LENGTHEN THE WIRES AND THEN HAD NO PROBLEM. 59975



- 118506

ratingratingratingratingrating by: Don Parsons10/05/2012

Is this review helpful?


Everything arrived quickly. Installed the hitch in about 45 minutes by myself using some blocking to support one end. The wiring took another an hour but was very straight forward. Very satisfied with the service and items.56377



- 118506

ratingratingratingratingrating by: Don A06/26/2012

Is this review helpful?


Prompt order processing and delivery. Product easy to install (2011 Kia Sorento). Saved about $450.00 from what the dealer quoted by installing the hitch and wiring harness ourselves. Install videos were a great help. Thanks etrailer!!45694



Ask the Experts about this Tow Ready Custom Fit Vehicle Wiring
Expert Answers about T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118506                                            Do you have a question about this Custom Fit Vehicle Wiring?


  • What is the Correct Trailer Wiring Harness for the 2011 Kia Sorento
  • A vehicle specific wiring harness is the best way to get the trailer lighting to work on your 2011 Kia Sorento. If your vehicle has the factory tow package wiring installed you will need the Tow Ready Custom Fit Vehicle Wiring, item # 118451, which will connect to existing connectors located along the frame on the passengers side near the rear tire. The instructions, see link, show pictures of the connectors you will need to use. If your vehicle does not have the factory tow package wiring y
    view full answer...

  • Which is the Correct 4-Way Trailer Wiring Harness for a 2011 Kia Sorento with Tow Package
  • Your instinct is correct. The Tow Ready Custom Fit Vehicle Wiring, # 118269 is designed to fit the 2011 Kia Sorento that is equipped with the tow package. I have included a link to the installation details and an installation video that you might find helpful.
    view full answer...

  • Which Vehicle Wiring Harness Will Work On A 2011 Kia Sorento
  • For the 2011 Kia Sorento SX models the LED tail lights is one major reason why the Tow Ready Upgraded Circuit Protected Modulite with 4 Pole Harness and Hardwire Kit, part # 119176KIT, is needed. The problem is that LED lights use much less power than incandescent bulbs. Because less power is required, lower rated wiring and other components can be used on the vehicle. When a trailer is connected, it requires extra power draw and the wiring in the SX model is not sufficient to handle the require
    view full answer...

  • Trailer Wiring Harness Recommendation for a 2012 Kia Sorento V6
  • The only wiring harness for a 2012 Kia Sorento that does not require a direct connection to the battery is # 118541, but it only fits models that have the factory tow package. If the vehicle does not have the factory tow package, you will need to use Tow Ready Wiring Harness, # 118506 or CURT Wiring Harness, # C56163. With either of these harnesses, a few customers found the green wire (for the passenger side tail light) to be a little short. One customer did find an alternate route behind th
    view full answer...

  • What is the Correct Trailer Wiring harness for a 2012 Kia Sorento 4 Cylinder
  • The correct wiring harness for a 4 cylinder 2012 Kia Sorento is # C56163. The other kit you have referenced, # 118506, is not a verified fit for the 4 cylinder 2012 models. I have included a link to the installation instructions for you to view.
    view full answer...
