Custom Fit Vehicle Wiring Tow Ready 118434

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Rating: rating rating rating rating rating
21 reviews

Code: 118434

Retail:$41.86

Price:$32.95

Shipping Weight: 2 pounds

Shipping Special

Orders of $150 qualify for free shipping.
Lowest Price Pledge

Quantity:

Trailer Wiring Harness Installation- 2009 Saturn Outlook - Video
Trailer Wiring Harness Installation - 2008 Saturn Outlook - Video
Trailer Wiring Harness Installation - 2007 Saturn Outlook - Video

Tow Ready Custom Fit Vehicle Wiring - 118434

Quickly and easily install a 4-way trailer connector on your vehicle with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required.

Features:

Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
- Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
Connects quickly and easily - no cutting or splicing of wires
- Locate connection points behind tail lights
- Plug in T-connector
Constructed of 16-gauge bonded wire
Comes with dust cap for 4-way flat connector

Specs:

Maximum amperage: 7.5 amps per circuit
1-Year limited warranty

Installation

This custom-fit T-One connector plugs into your vehicle's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the tail light assemblies to access this harness.

T-One Connection Location Points Behind Tail Lights

Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.

It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.

118434 Tow Ready T-1 T-Connector - 4 Wire

Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

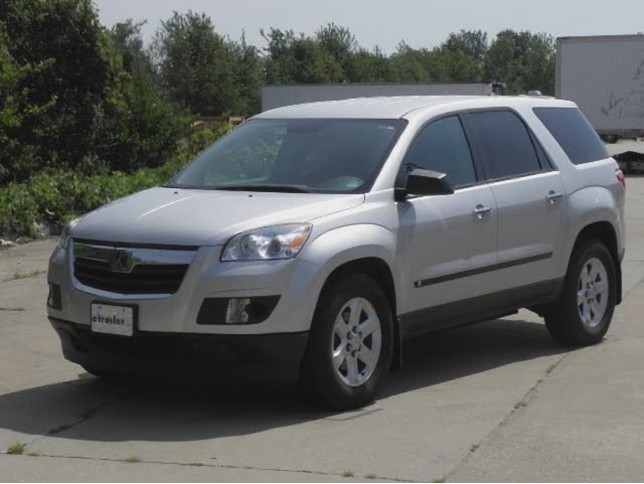

Video Wiring Harness 2009 Saturn Outlook

Trailer Wiring Harness Installation- 2009 Saturn Outlook

Video install trailer wiring 2008 saturn outlook 118434

Trailer Wiring Harness Installation - 2008 Saturn Outlook

Video wiring install 2007 saturn outlook

Trailer Wiring Harness Installation - 2007 Saturn Outlook

Video Transcript for Trailer Wiring Harness Installation- 2009 Saturn Outlook

Today on this 2009 Saturn Outlook we are going to install 118434 from Tow Ready. The first thing we need to do is open up the rear hatch and get access to the tail lights. Now we need to remove the tail light itself, so we are going to remove these two covers, and the screws are behind the covers. Then we can pop off the light. Then we can disconnect the light from the vehicle. This latch right here will pull down. We have the driver side tail light removed, lets go to the passenger side and repeat the same process. :36

We are back over on the driver side again, we are going to start routing the harness. First off, you want to take the T-connector, the one half of it with the green wire and put it between the body work and the bumper cover. We are going to it straight down where it comes out the vehicle. Now we are going to do the same thing again with the 4-pole flat. We will take the one half of the T-connector and plug it back into the factory harness until it snaps. Next take a ground screw and attach it to the sheet metal right here. 1:10

At this point we can go ahead and reattach our tail light. It snaps in. Next we are going to take our T-connector that goes to the passenger side and route it to the other side of the vehicle anyway we can, just try and keep away from anything that is hot like the exhaust. We will just run it to the other side for now. Then we will run our 4-pole to our receiver hitch. Just loop it up and over. For now we will just tie off on our tow loop. Then we will zip tie our excess up and out of the way. To pull our harness back up to this passenger light, we are going to run our wire straight down and use it to pulll it on through. Then we will pull our wire up, we do not have it super tight, just enough to take up the slack, make sure it is not touching the exhaust or anything like that. Then we will zip tie it to the wire harness. Just like the driver side lets snap our T-One harness into the factory harness. Then reinstall our light. With that, that would conclude our basic install of our wiring harness, but wait, there is more! 2:46

Next we are going to install part number 118144 from Tow Ready. This bracket is going to bolt directly to the tab on the hitch. Our 4-pole harness is going to simply snap into place on the bracket. To help pull it through, you may want to grip it with a pair of pliers and just pull it on through. We will use the supplied hardware to attach it to the hitch. There you have it for part number118434 from Tow Ready.
