Custom Fit Trailer Wiring


Tow Package Vehicle Wiring Harness with 7-Way Trailer Connector

Tow Ready Custom Fit Vehicle Wiring

ratingratingratingratingrating (18 reviews)


Code:   118247

Retail:$83.82

Price:$63.95


Shipping Special

Shipping Weight: 2 pounds

Quantity:






Tow Ready Custom Fit Vehicle Wiring - 118247

Tow Ready Replacement 7-Way Wiring Harness for 2004 Ford F-150 with OEM 4-Flat Trailer Connector.

Features:

  • Replaces factory installed 4-Pole connector
  • Exact Replacement for Damaged OEM Wiring Harness
  • Installs in seconds on vehicles with factory 4-pole
  • Upgrades Vehicles From 4-Flat OEM Wiring to 7-Way Connectors
  • Connects Directly to Standard OEM Connector
  • Fuses and Relays Included
  • NOTE: Mounting bracket part number PK12711U will work with this harness

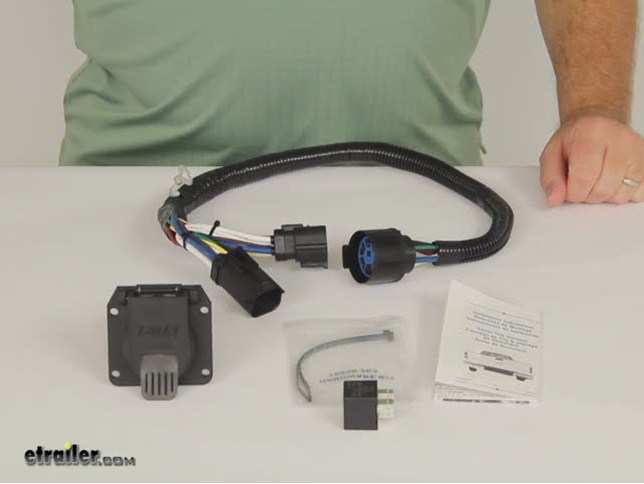

118247 Tow Package Vehicle Wiring Harness with 7-Way Trailer Connector







Video of Tow Package Vehicle Wiring Harness with 7-Way Trailer Connector


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install trailer wiring 2004 ford f150 118247
Trailer Wiring Harness Installation - 2004 Ford F-150

Video Transcript for Trailer Wiring Harness Installation - 2004 Ford F-150

All right. Today on this 2004 Ford F150 were going to install part number 118247. First thing we need to do is go ahead and unload our spare tire and get it out of our way. This way we have access to the wiring connection we need. Now, the wiring connection were looking for is going to be on the drivers side frame rail pointed out here, and well go ahead and disconnect it. Well push down on the tab and pull it apart.

Next, we need to remove the ground screw. Well go ahead and remove it. Now we can go ahead and start installing the new part. Now the wire harness is shaped like a T so well take both halves of the T and install them into the wire harness; one on each side. Well push them together until they click.

All right, now well take our white wire at the ring terminal and add that to the original wire with the ring terminal and bolt those two back together to the frame using the ground screw. Now we need to install a seven pole connector. Now, this kit does not come with any brackets to hold the seven pole in place. So, were going to add a couple of part numbers. Were going to use part number pk12711u to hold our seven pole bracket.

Were going to use part number 18136 to mount the whole assembly to the hitch. Well start off by putting the two brackets together. Now, were going to intentionally take one bracket and install it in reverse fashion that way we keep the seven pole connector as close to the hitch as possible. Well bolt these two together and then well take that assembly and well go ahead and clamp it to the hitch. Well take the band clamp, run it around the hitch and through the bracket and then tighten it down.

Well make sure its level first and then well tighten it down for good. Now well go ahead and take our wire harness and run it through the bracket. Well remove the little gray lock thats on top then install the seven pole connector. It also just snaps together. And, then well reinstall the lock. And, then our seven pole connector will get bolted to the seven pole bracket. All right. Were done with the back of the vehicle. Now we need to add a relay to the front. Well go to the passenger side front seat and there will be a kick panel down below that we have to remove to get access to the fuse panel. Well remove the door and then remove the lid to the panel. Then well go ahead and add our relay that comes with the kit. This will power our 12 volt power supply with our hot lead going out back at the seven pole connector. Now, you want to check your owners manual for proper location of this circuit, and then reinstall the covers. That will finish it for our install of part number 118247 on our 2004 Ford F150.
