Tow Ready Custom Fit Vehicle Wiring for the Saturn Vue, 2007

Tow Ready Custom Fit Vehicle Wiring

ratingratingratingratingrating (33 reviews)


Code:   118418

Retail:$69.84

Price:$53.95


Shipping Special

Shipping Weight: 2 pounds

Quantity:






T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - Saturn Vue, 2007

Quickly and easily install a 4-way trailer connector on your Saturn Vue with this custom wiring harness. T-One connector plugs directly into existing wiring - no cutting, splicing or tapping required. Circuit-protected converter guards against shorts.

Features:

  • Provides a 4-way flat trailer connector at the back of your Saturn Vue to power your trailer's signal lights
    • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
    • Locate connection points behind tail lights
    • Plug in T-connector
  • Includes circuit-protected tail light converter to ensure that your Saturn Vue's wiring matches that of your trailer
    • Provides protection against electrical shorts and overloads
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector


Specs:

  • Maximum amperage:
    • Stop/turn lights: 2.1 amps per circuit
    • Tail lights: 4.2 amps per circuit
  • 1-Year limited warranty


Installation

This custom-fit T-One connector plugs into your Saturn Vue's wiring harness, which is located behind the driver's-side and passenger's-side tail lights. You will have to remove the tail light assemblies to access this harness.


T-One Connection Location Points Behind Tail Lights

Once installation is complete, the 4-way flat connector will be stowed beneath your Saturn Vue, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.


It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.


Circuit-Protected Tail Light Converter

A tail light converter is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your Saturn Vue's three-wire system need to be combined so they are compatible with the wiring system of your trailer. The tail light converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your Saturn Vue operate.


This converter safeguards itself and your vehicle against possible electrical shorts and overloads with integrated short circuit protection. Just install the connector as indicated and rest assured that the wiring system of your vehicle will remain feedback-free.



118418 Tow Ready T-1 T-Connector - 4 Wire

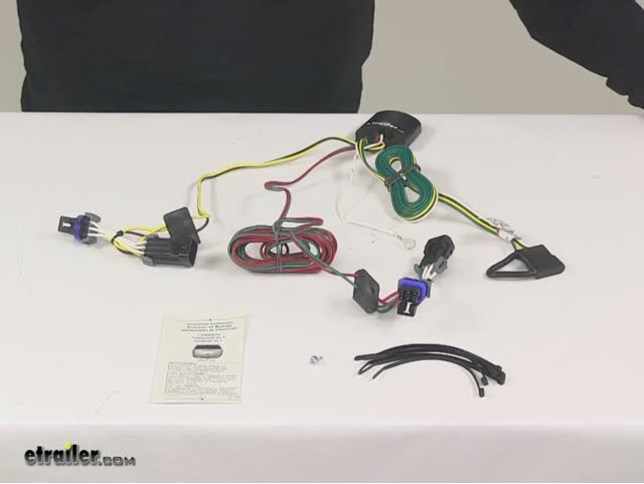

Video of T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video wiring install 2006 saturn vue
Trailer Wiring Harness Installation - 2006 Saturn Vue
Video install trailer wiring 2003 saturn vue 118418
Trailer Wiring Harness Installation - 2003 Saturn Vue

Video Transcript for Trailer Wiring Harness Installation - 2006 Saturn Vue

Today we are going to install part number 118418 from Tow Ready on our 2006 Saturn Vue. The general layout of this wire harness is that the connections are behind the tail lights, route the wires underneath the vehicle, and the wires will be stored outside the vehicle when we are done. To start off, we will take off the tail lights we will lift the hatch to get to those. All right, and here is our connection point right here. So let us pull this latch out and pull it apart. And repeat for the passengers side. All right, next we need to loosen this section of quarter-panel here to give us some room to run our connectors and put our black box for the T-harness hidden back up inside of here. What we are going to do is take out this nut here and this nut here, and that will give us enough wiggle room to pull the panel off just a little bit.

Today we are going to install part number 118418 from Tow Ready on our 2006 Saturn Vue. The general layout of this wire harness is that the connections are behind the tail lights, route the wires underneath the vehicle, and the wires will be stored outside the vehicle when we are done. To start off, we will take off the tail lights we will lift the hatch to get to those. All right, and here is our connection point right here. So let us pull this latch out and pull it apart. And repeat for the passengers side. All right, next we need to loosen this section of quarter-panel here to give us some room to run our connectors and put our black box for the T-harness hidden back up inside of here. What we are going to do is take out this nut here and this nut here, and that will give us enough wiggle room to pull the panel off just a little bit.

The next thing we are going to do is go ahead and route our red and green wire to the passengers side. But the exhaust is really close to this area, so what we are going to is start off by putting a zip-tie in this hole in the body work here, and we are just going to use that to help keep everything out of the way. And then next we can run this across: We have to take these little rivets apart for the bumper fascia support, and we actually put it up between the bumper fascia and the supports going all the way across. For now, we will go ahead and secure these wires. Now we do the same thing again for our 4-pole wire harness. We will go ahead and zip-tie it to the rest of our bundle here and hide it behind the bumper. We put these together, and that will clamp everything in place and stay out of the way. We are going to go ahead and take our connector and just put it back up in here, like we did on the drivers side, and just pull it out the top. We will make our connections again. And then now we will take our excess wire and just bundle it and zip-tie it to the existing harness. Now we will go ahead and install our bracket, part number 118144. Take our 4-pole and just pull it through the bracket it is a friction fit. And we are set. And that covers it for part number 118418.


Customer Reviews

T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118418

Average Customer Rating:  ratingratingratingratingrating4.9 out of 5 stars   (33 Customer Reviews)




- 118418

ratingratingratingratingrating by: Jud S.04/16/2014

Is this review helpful?


The product was as expected and well assembled. The directions were aided greatly by the Your Tube video and installation time was much less than expected. Because of the video I expected the mounting plate for the 4 pin connection this, however, was simply my mistake and I can order that bracket separately. Over all I am very pleased withthe product and ease of installation. Well done! 125370



- 118418

ratingratingratingratingrating by: Dennis02/12/2013

Is this review helpful?


I ORDERED A TOW HITCH AND WIRING KIT FOR MY SATURN VUE. IT CAME THREE DAYS LATER, EARLIER THEN PROMISED. NOT ONLY WAS THE PACKAGE COMPLETE, BUT IT FIT ONTO MY VEHICLE LIKE A GLOVE. NOW MY FAMILY AND I CAN HIT THE LAKE THIS SUMMER WITH OUR NEW BOAT!!! VERY HAPPY WITH ETRAILER!!65985



- 118418

ratingratingratingratingrating by: Larry W.11/04/2012

Is this review helpful?


Great product and service! Ordered wiring harness on Saturday, had it by Tuesday.Instructions were spot on and easy to follow. Didn't have to cut and splice any wires, everything plugged right up, wires were the perfect length, took less than an hour. I wish all my "projects" were this easy.Thanks!58810



- 118418

ratingratingratingratingrating by: Nick m09/27/2012

Is this review helpful?


I've had a trailer hitch for about 3 yrs now but nobody had a quick connect wiring harness till I found this one. I didn't follow the directions to an exact "T" because I wanted my 4-flat plug to stay inside the car unless I'm hauling somthing. But I had the whole thing installed in about 20 mins. Best investment I've made. I'm trailering my new motorcycle next week. At least now I won't have to borrow trucks and such. I can go buy my own trailer. Worth the extra $ for quick connect. Solid product55958



- 118418

ratingratingratingratingrating by: Chris09/13/2012

Is this review helpful?


I recently purchased the 118418 T-connector for my Saturn Vue to haul a Scout Trailer. Watched the video once and had this installed in 15 minutes. Super simple to install and use. Since I have a Reese tubular hitch, I had to buy an adapter to mount the plug in an odd place, but the connector itself works and that is all I need it to do. E-trailer made it extremely simple to install a trailer light hook-up, in fact, I will be ordering another one soon for another vehicle and will have my 13 year old son install it.54603



- 118418

ratingratingratingratingrating by: Jaykuul05/10/2012

Is this review helpful?


Kit is exactly like the picture and vids, easy as pie to install. Like everyone has stated, the wire to fish through is too short, needs to be longer but I guess they need to save costs lol. If you expand and flatten the wire completely straight, its just long to reach through.39960



- 118418

ratingratingratingratingrating by: James F.03/19/2012

Is this review helpful?


The video made it easy. Popped a few of the wheel well "buttons" out and fed the wiring through the taillight assemblies. You can tuck the wiring up in the fascia or tie to the hitch frame, either way you really won't see it. We just hooked up the ground to the the quarter panel retaining bolt since it was right there anyway. No need to drill a hole in your vehicle. Tested the lights once it was all set up, no problems on either the Vue or the trailer. 34324



- 118418

ratingratingratingratingrating by: Heather R.06/30/2011

Is this review helpful?


Our order included everything that we needed. It arrived ahead of schedule and included clear written instructions. The online videos were extremely helpful as well. I highly recommend etrailer.com to anyone looking to install a trailer hitch. It makes it easy even for people with no automotive experience. Great job!!!18268



- 118418

ratingratingratingratingrating by: Farrell L.04/08/2011

Is this review helpful?


Fully installed hitch and electrical in about two hours. No problems at all. 11376



- 118418

ratingratingratingratingrating by: E. G. B.04/06/2011

Is this review helpful?


Fit good. No problems to install. 11237



- 118418

ratingratingratingratingrating by: Bo L.04/17/2012

Is this review helpful?


Super easy installation, video instructions were most helpful, one happy customer37470



- 118418

ratingratingratingratingrating by: Fred J.01/24/2011

Is this review helpful?


You guys and girls are fantastic. Great service, nice people with a delivery that far exceeded my expectations. All I can say is WOW. I would gladly refer my friends to eTrailer.6019



- 118418

ratingratingratingratingrating by: Sunfish Bill Osborne10/24/2013

Is this review helpful?


Easy installation - excellent instructions. It works!104988



- 118418

ratingratingratingratingrating by: J.08/30/2013

Is this review helpful?


fast shipping 97598



- 118418

ratingratingratingratingrating by: Jason- Minneapolis07/07/2013

Is this review helpful?


Quick shipping, fits perfect, and great how to video online!88026



- 118418

ratingratingratingratingrating by: Richard02/04/2013

Is this review helpful?


Other than taking quite a bit of time chasing the threads in the frame rails, install with off with a problem. Really liked the wiring harness. Easy plug in again no problem.64907



- 118418

ratingratingratingratingrating by: Al G.11/16/2012

Is this review helpful?


Product was exactly as described and very easy to set up. 59538



- 118418

ratingratingratingratingrating by: Dewey C.05/06/2012

Is this review helpful?


I bought the trailer hitch and wiring harness for my 2007 Saturn Vue. The service I got was excellent. The products were in excellent condition.39534



- 118418

ratingratingratingratingrating by: Jared J.04/05/2012

Is this review helpful?


The harness went in exactly as expected and works perfectly. The wire lengths were good and the instruction were clear. Some disassembly of the vehicle was necessary, but no permanent modifications were needed.36205



- 118418

ratingratingratingratingrating by: Brian E04/04/2012

Is this review helpful?


Quick installation for flawless wiring of a trailer.36145



- 118418

ratingratingratingratingrating by: Matt S03/15/2012

Is this review helpful?


I have no auto repair experience and I had no problem installing the wiring kit.34031



- 118418

ratingratingratingratingrating by: Hub D.01/20/2012

Is this review helpful?


Easy to install, used coat hanger to pull the plugs down and up and did not need to take the fender well apart.30012



- 118418

ratingratingratingratingrating by: Tim M01/19/2012

Is this review helpful?


Installation went well with the very adequate instructions.29942



- 118418

ratingratingratingratingrating by: Ron K.12/23/2011

Is this review helpful?


this is the second one i purchased and came back because the first was so easy to install. great product.28633



- 118418

ratingratingratingratingrating by: Dave K.09/16/2011

Is this review helpful?


I found this through YouTube, excellent! From now on, I don't go to the store, I go to etrailer.com. The item came in three days, perfect for my weekend project.24052



- 118418

ratingratingratingratingrating by: Mark D.09/12/2011

Is this review helpful?


Should have watched the video before trying to do this by the written directions. I tried with the written directions and figured it out but went back to the video and acutally did it right. Make sure to watch the video.23754



- 118418

ratingratingratingratingrating by: David J.07/22/2011

Is this review helpful?


This part came in very fast and it fits just right and work great. thank you. David Johnson19882



- 118418

ratingratingratingratingrating by: Craig V06/25/2011

Is this review helpful?


Very good and easy to install no time at all Will be back.... 17946



- 118418

ratingratingratingratingrating by: William Green06/16/2011

Is this review helpful?


The trailer wiring harness was exactly as advertised. Works great! 17123



- 118418

ratingratingratingratingrating by: Rick B.05/11/2011

Is this review helpful?


Quality product and very useful video on installation. Thank you ! 13317



- 118418

ratingratingratingratingrating by: Gary T.05/05/2011

Is this review helpful?


The product fit and worked just fine. A nice addition would be to add a cd to yhe kit with the video that's on your web page. 12924



- 118418

ratingratingratingratingrating by: Bryan B04/29/2011

Is this review helpful?


Wiring harness was easy to install with those factory connectors. A+++12575



- 118418

ratingratingratingratingrating by: Rob W04/09/2011

Is this review helpful?


Instructions were complete and installation was a breeze. Delivered quickly and fit our Vue perfectly.11402



Ask the Experts about this Tow Ready Custom Fit Vehicle Wiring
Expert Answers about T-One Vehicle Wiring Harness with 4-Pole Flat Trailer Connector - 118418                                            Do you have a question about this Custom Fit Vehicle Wiring?


  • Will the T-one Vehicle Harness Part #118418 Fit the 2003 Saturn Vue Redline
  • No, I am sorry you will have to hardwire your 2003 Saturn Vue Redline to have trailer lighting available at the rear of the vehicle. If you need a 4-way flat connector you could use the Upgraded Circuit Protected Modulite with 4 Pole Harness and Hardwire Kit, part # 119179KIT, which will include all wiring and connectors to complete the wiring along with instructions. You will have to remove the vehicle taillights and splice into the vehicles wiring using a circuit tester, part number 3808 if
    view full answer...

  • Troubleshooting # 118418 T-One Vehicle Harness Installed on Saturn Vue
  • Whenever trailer lights exhibit strange behavior, its typically a result of a poor ground connection. It sounds like you have done a wonderful job of troubleshooting up to this point. The only thing it appears you have not checked is the grounding point on the vehicle side of the equation, where you have the ground wire for the converter attached. Another quick method of troubleshooting is trying the trailer on a different vehicle or the vehicle with a different trailer (if possible). This wi
    view full answer...

  • Short Circuit on Trailer Caused Trailer Wiring Harness on 2008 Saturn Vue to Blow
  • What probably happened was that the converter box has blown. This means that it has done its job. The short on the trailer blew the box instead of damaging the vehicle wiring. There is no fix for this and the wiring harness on the vehicle will have to be replaced. You will need to make sure that the short circuit has been fixed prior to installing and using the new harness. Otherwise the same problem will keep happening until the short is fixed. I have included a couple of wiring FAQs that m
    view full answer...
